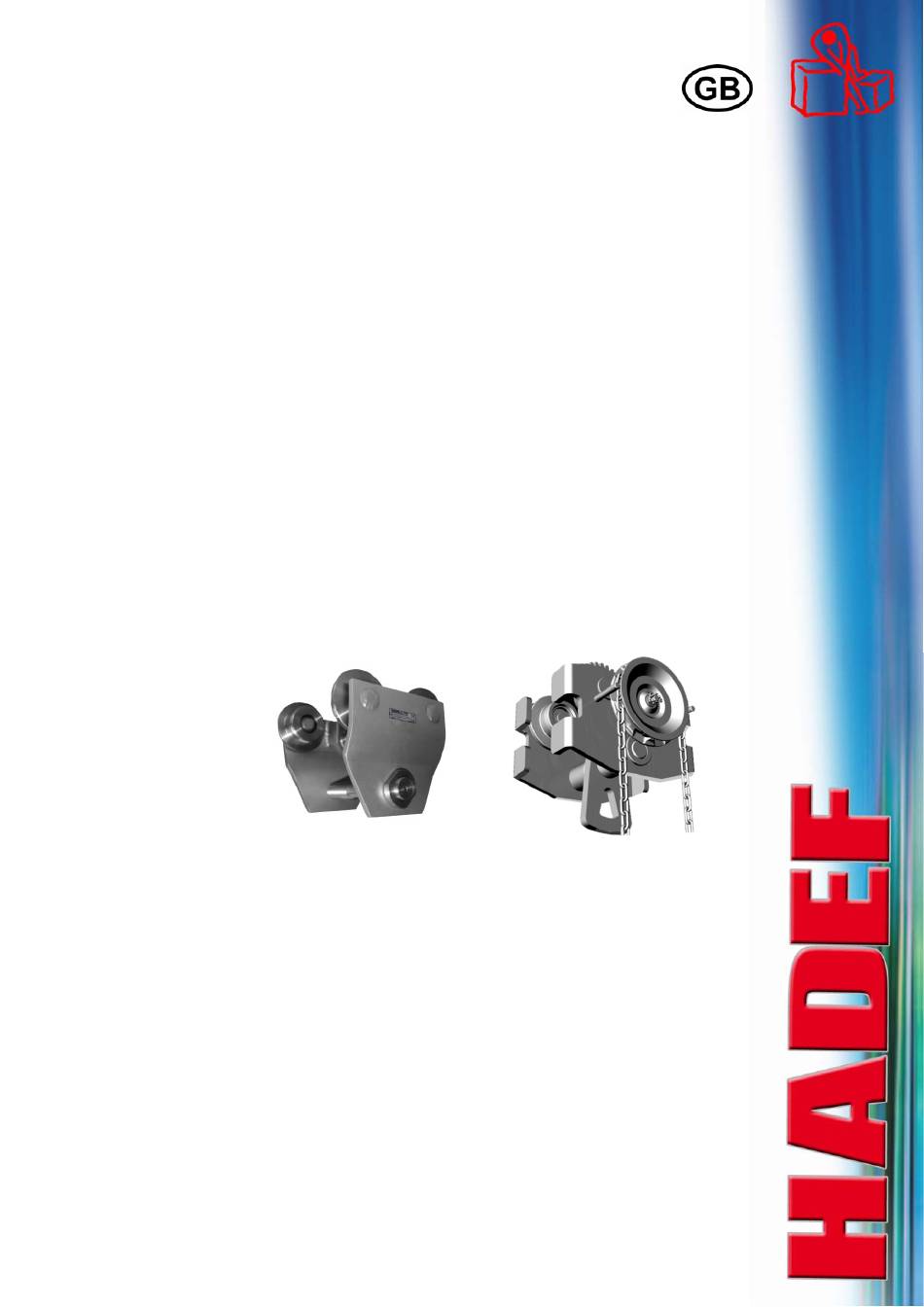

- Page 1 Installation, Operating and Maintenance Instructions HADEF Monorail Trolley Type 18/16VA as push travel trolley as hand geared trolley Stainless steel design 5.52.122.00.01.02 Rev.02...
-
Page 2: Table Of Contents
Heinrich de Fries GmbH Heinrich de Fries GmbH, Gauss Str. 20, D-40235 Düsseldorf Heinrich De Fries GmbH will be named HADEF in the following text. Original operating- and maintenance instructions in German language. Translation in other languages is made of the German original. -
Page 3: Information
Inspection ..................10 11.1 Periodic checks ....................... 10 Service ....................10 12.1 Lubricant - Selection ....................... 10 12.2 Lubricant for food industry – Selection (as option*) ............ 10 Trouble ....................11 Decommissioning ................11 ... -
Page 4: Duty Of Care Of The Owner
Failure to follow the instructions of this manual can lead to unpredictable hazards. For any resulting damage or personal injury, HADEF assumes no liability. The unit was designed and built following a risk analysis and careful selection of the harmonized standards that are to be complied with, as well as other technical specifications. -
Page 5: Appropriate Use
The permitted environmental temperature during equipment operation is –10°C up to +50°C! Defective devices and load suspension devices must not be used until they have been repaired! Only original spare parts must be used. Non-compliance will result in any warranty claims on HADEF becoming void. -
Page 6: Transport
Ambient temperature -10°C up to +50°C. Humidity 90 % or less but not under water. DANGER! It is not permitted to use the unit in an area at risk from explosion! Aufbau Push travel trolley Type 18/16R-VA Hand geared trolley Type 18/16H-VA Functions Push travel trolley: The trolley is moved by pushing the load. -
Page 7: Important Components
Load bolt made in stainless steel Different bolt lengths are available for different beam flange widths. Hand chain made in stainless steel Technical data Rush Trolley Type 18/16R-VA Beam flange width from - to Capacity at load bar size... -
Page 8: Adjusting The Gauge
Adjusting the gauge The trolley can be adjusted to various beam flange widths. Setting to the relevant beam flange width “B” is to be made as follows: Push Travel Trolley Type 18/16 R-VA Dimension "X" is set by turning the load bar. Secure the safety nuts (L)+(R) tight. -
Page 9: Tools
Tools 500kg = SW30 18/16R-VA 1000kg = SW35 1000kg = SW55 18/16H-VA 2000kg = SW55 3000kg = SW65 Operation Only people that are familiar with the operation of the lifting devices and cranes may be entrusted with their operation. They must be authorized by the employer for the operation of the equipment. The employer must ensure that the operating instructions are available near the equipment and that they are accessible for the operating personnel. -
Page 10: Functional Test
Functional test Trolleys Carefully move the trolley to the end positions and check the positions of the end stops. Maintenance 10.1 General All monitoring, servicing and maintenance operations are to ensure correct functioning of the equipment; they must be effected with utmost care. Only “qualified persons”... - Page 11 Trouble Please pay attention to the following in case of problems: Troubles with the equipment must only be repaired by qualified personnel. Secure the unit against unintended operation start. Put up a warning note indicating that the unit is not to be used. Secure the working area of moving parts of the unit.
