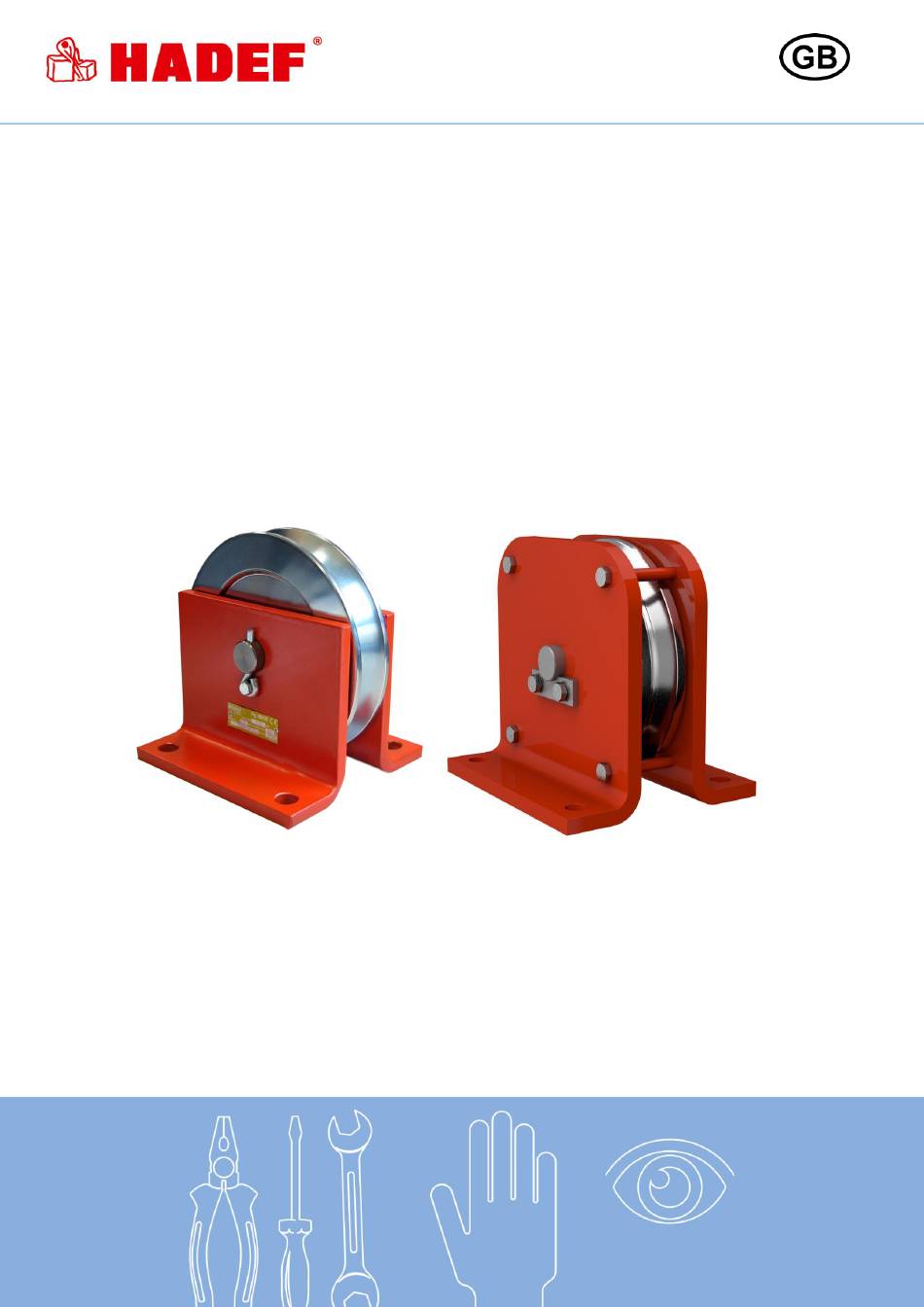

- Page 1 Installation, Operating and Maintenance Instructions Pedestal 108/99 - 108/22 Rev.01 5.52.624.00.01.01...
-
Page 2: Table Of Contents
Heinrich de Fries GmbH Heinrich de Fries GmbH, Gauss Str. 20, D-40235 Düsseldorf Heinrich De Fries GmbH will be named HADEF in the following text. Original operating- and maintenance instructions in German language. Translation in other languages is made of the German original. -
Page 3: Information
Failure to follow the instructions of this manual can lead to unpredictable hazards. For any resulting damage or personal injury, HADEF assumes no liability. The unit was designed and built following a risk analysis and careful selection of the harmonized standards that are to be complied with, as well as other technical specifications. -
Page 4: Requirements For The Operating Personnel
The required personal protective equipment for the operators, service and repair personnel is available and is used. The operating instructions are always available at the location where the equipment is used and that they are legible and complete. ... -
Page 5: Transport And Storage
The equipment is to be used exclusively for movement of goods. Under no circumstances persons may be moved. Never load the devices beyond their working load limit. Observe the relevant national accident prevention regulations. Building walls, ceilings, floors or constructions - on which the units are mounted or suspended - must be checked by a structural engineer for sufficient stability. -
Page 6: Design

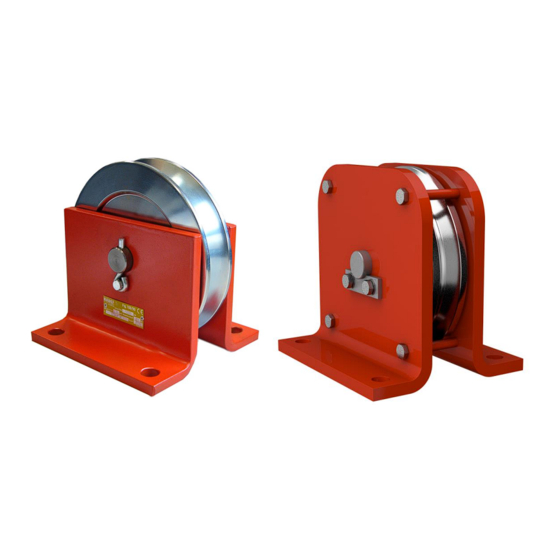

Important components Rope pulley with machined groove Maintenance-free roller bearing Side plates made of bended steel plate Rope slip off guard (only 108/22) Technical data 108/99 rope pulley diameter capacity max. rope diameter weight outer Ø mm groove base Ø mm... -
Page 7: Wire Rope Deflection
from 2000kg up to 1000kg To prevent the rope from slipping off when slack, the rope must be guided under at least one rope slip off guard. Tools 108/99 capacity tool size usage 250kg – 1000kg axial securing 2000kg –... -
Page 8: Control
108-22 capacity tool size usage 250kg – 500kg 1000kg axial securing 2000 - 5000kg Rope slip off guard 12500kg 20000kg Control Only people that are familiar with the operation of the lifting devices and cranes may be entrusted with their operation. -
Page 9: Maintenance
Maintenance 10.1 General All monitoring, servicing and maintenance operations are to ensure correct functioning of the equipment; they must be effected with utmost care. Only “qualified persons” may do this work. Servicing and maintenance work must only be done when the hoist is not loaded. ... - Page 10 Remedy trouble cause remedy loud noise while turning rope pulley loose seating or sluggishness of rope pulley ball bearing worn or defective replace ball bearing Rope pulley does not turn rope sticking in pulley groove rope pulley worn or deformed replace rope pulley Decommissioning WARNING!
