- Page 1 PPC/EPC-A72-101-C User Manual Release 1.0 www.chipsee.com...
- Page 2 www.chipsee.com...
- Page 3 Chipsee Products Naming Rules CS12800R101P-C111 CS12800R101E-C111 Chipsee Product Abbreviations www.chipsee.com...
- Page 4 Horizontal Resolution 80Means 800 Pixel 10Means 1024 Pixel 12Means 1280 Pixel 14Means 1440 Pixel 19Means 1920 Pixel Vertical Resolution 480Means 480 Pixel 600Means 600 Pixel 768Means 768 Pixel 800Means 800 Pixel 900Means 900 Pixel 102Means 1024 Pixel 108Means 1080 Pixel...
-
Page 5: Hardware Features
Means Embedded PC or Panel PC Means Embedded PC without Case Means Panel PC with Case Means Touch Type Means Resistive Touch Means Capacitive Touch Means LCD Brightness Means Common Brightness Means High Brightness PCB Version Baseboard PCB Version Number... - Page 6 2 x USB 2.0 Host, 1 x USB 3.0 Host, 1 x Type-C 1 Channel 1000M LAN 3.5mm Audio In/Out Connector, 2W Speaker Audio Internal Buzzer Default 5 x RS232 and 2 x RS485 (Optional RS232+RS485 4 x RS485 at most, 1 debug port)

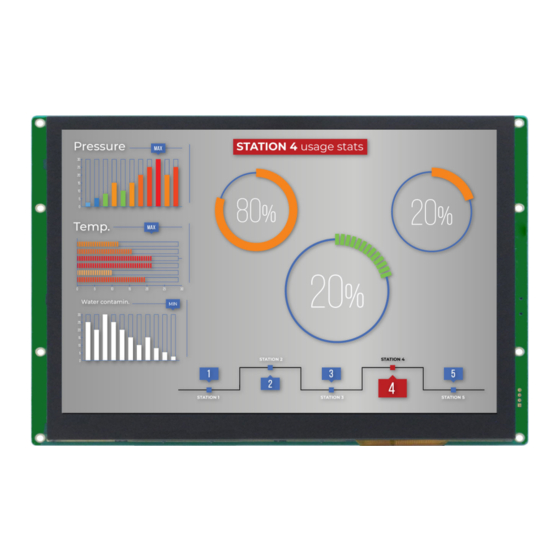

- Page 7 CS12800R101E- C111 Figure 1: Front View www.chipsee.com...
- Page 8 Figure 2: Back View CS12800R101P- www.chipsee.com...
- Page 9 C111 Figure 3: Front View www.chipsee.com...
-
Page 10: Power Input Connector
Figure 4: Back View Power Input Connector The product uses a wide-range power input DC 15~36V. The total power consumption is normally about 7.5W. The power input connector is a 3 pin 3.81mm screw terminal connector, as shown www.chipsee.com... - Page 11 Figure 5. A detailed description of the power input connector pins is provided in Table 1. www.chipsee.com...
- Page 12 Figure 5: Power Input Connector Table 1 www.chipsee.com...
- Page 13 Power Input Pin Definition: Pin Number Definition Description Connect to DC Power Positive Pin 1 Positive Input Terminal Connect to DC Power Negative Pin 2 Negative Input Terminal Pin 3 Ground Connect to Power System Ground ATTENTION: T h e...
- Page 14 Use a high-quality power adapter. Or a battery to provide power like a cell phone or tablet PC. If the power adapter isn’t good enough, make sure the power input connector Pin 3 is connected to the Ground. This method can eliminate the problem totally.
- Page 15 www.chipsee.com...
-
Page 16: Usb 2.0 Connector
Figure 6: RS485+RS232 Connector Table 2 RS232 / RS485 / CAN Pin Definition: Pin Number Definition Description Pin 1 RS485_4+ USB UART4, RS485 +(A) signal Pin 2 RS485_4- USB UART4, RS485 -(B) signal Pin 3 RS485_3+ USB UART3, RS485 +(A) signal... -
Page 17: Usb 3.0 Connector
There are four USB 2.0 connectors, as Figure 7 shows. Each can provide 500mA of current. Figure 7: USB HOST Connector USB 3.0 Connector The product CS12800R101P/ CS12800R101E has one USB 3.0 www.chipsee.com... - Page 18 Figure 8 shows. Figure 8: USB 3.0 Connector www.chipsee.com...
-
Page 19: Lan Connector
USB Type-C As well as one USB Type-C connector, as shown in Figure 9. Figure 9: USB Type-C Connector LAN Connector The product CS12800R101P/ CS12800R101E has one channel 1000Mbit Ethernet Connector, as Figure 10 shows. www.chipsee.com... - Page 20 www.chipsee.com...
- Page 21 Figure 10: LAN Connector TF Card The product CS12800R101P/ CS12800R101E has one TF (uSD) card connector, as Figure 11 shows, that supports a TF (uSD) card up to 32GB. www.chipsee.com...
-
Page 22: Sim Card Holder
Figure 11: TF Card Connector ATTENTION: A TF card does not come with the product. SIM Card Holder www.chipsee.com... - Page 23 There is one SIM card holder, as shown in Figure 12. To read the SIM card data, you need a 4G/LTE module. There is a mini- PCIe connector inside that enables a 4G/LTE module to be mounted. Figure 12: mini-PCIe Connector&4G Module...
-
Page 24: Audio Connector
Audio Connector The product CS12800R101P/ CS12800R101E has one Audio Input (“Line-in”) and one Audio (“Line-out”) output, as Figure 14 shows. It also has an internal 2W speaker. Figure 14: Audio Connector WiFi+BT www.chipsee.com... -
Page 25: Hdmi Connector
The product has one WiFi+BT module, based on the Realtech RTL8723, which integrates WiFi and BT. There is a connector on the backside of the case that is used to connect an external WiFi and BT antenna, as shown in Figure 15. -
Page 26: Power Button
Figure 16: HDMI Connector Power Button Figure 17 shows the product’s power button. www.chipsee.com... -
Page 27: Expansion Connector
Figure 17: Power On Button Expansion Connector There is one Expansion Connector (closed by default), as Figure 18 shows. As for the definition of every Pin, please refer to Table 3. www.chipsee.com... - Page 28 Figure 18: GPIO Connector Table 3 GPIO Connector Definition Pin Number Definition www.chipsee.com...
-
Page 29: Dimensions And Mounting
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 OUT4 Pin 6 OUT3 Pin 7 OUT2 Pin 8 OUT1 Pin 9 GND_ISO Pin 10 VCC_ISO ATTENTION: This GPIO Connector is optional. If you need it, please contact us. All GPIO signals are isolated, and the VCC_ISO supports a 5V~24V input. - Page 30 The dimensions of CS12800R101E-C111 are 245*155*11mm. www.chipsee.com...
-
Page 31: Mounting Method
Mounting Method The CS12800R101P can be mounted by screw holes (Vesa mount) and Panel mounting. The CS12800R101E can be mounted by Embedded mounting. Please make sure the display is not exposed to high pressure when mounting into an enclosure. - Page 32 www.chipsee.com...
- Page 33 www.chipsee.com...
- Page 34 Figure 19: Panel Mounting Method www.chipsee.com...
- Page 35 www.chipsee.com...
-
Page 36: How To Get Support
If your question is about technical support or troubleshooting for one of our products, we kindly ask you to first check our documentation for a possible solution. If you cannot find the solution you are looking for then please write to service@chipsee.com providing all possible details. www.chipsee.com... - Page 37 Chipsee assumes no responsibility for any errors, which may appear in this manual. Furthermore, Chipsee reserves the right to alter the hardware, software, and/or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein.
