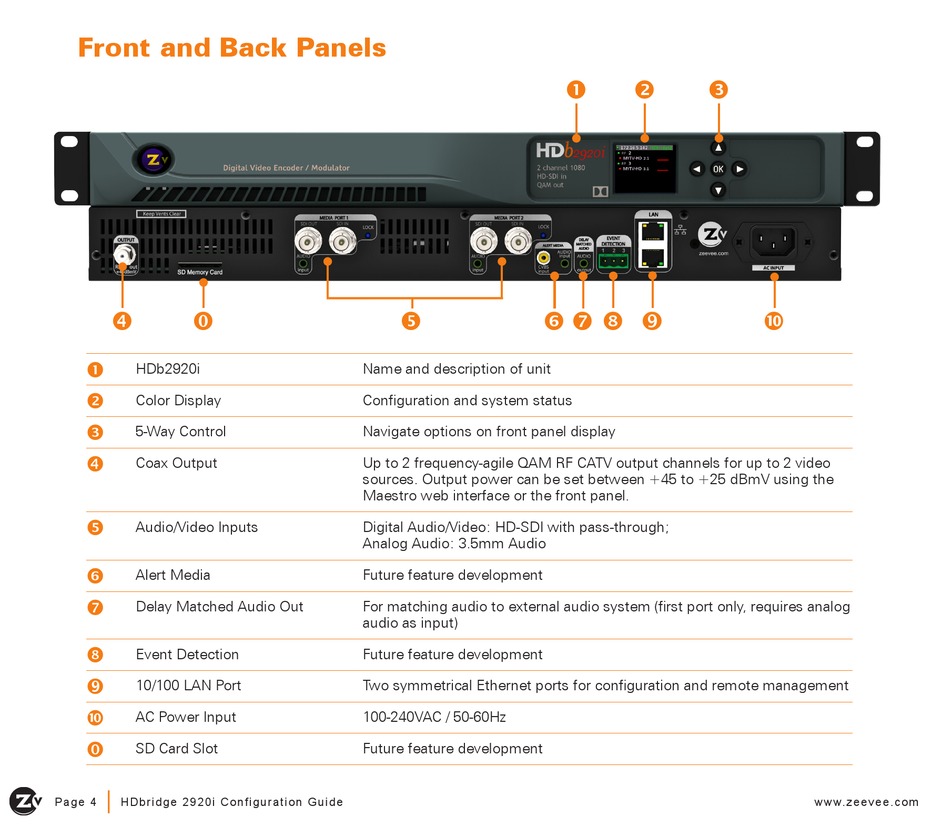

Front and Back Panels


t

HDb2920i

Color Display

5-Way Control

Coax Output

Audio/Video Inputs

Alert Media

Delay Matched Audio Out

Event Detection

10/100 LAN Port

AC Power Input
t SD Card Slot
|
Page 4 H D br i dge 29 2 0 i C o n f ig u r a t io n G u id e

Name and description of unit
Configuration and system status
Navigate options on front panel display
Up to 2 frequency-agile QAM RF CATV output channels for up to 2 video
sources. Output power can be set between +45 to +25 dBmV using the
Maestro web interface or the front panel.
Digital Audio/Video: HD-SDI with pass-through;
Analog Audio: 3.5mm Audio
Future feature development
For matching audio to external audio system (first port only, requires analog
audio as input)
Future feature development
Two symmetrical Ethernet ports for configuration and remote management
100-240VAC / 50-60Hz
Future feature development
  
    
