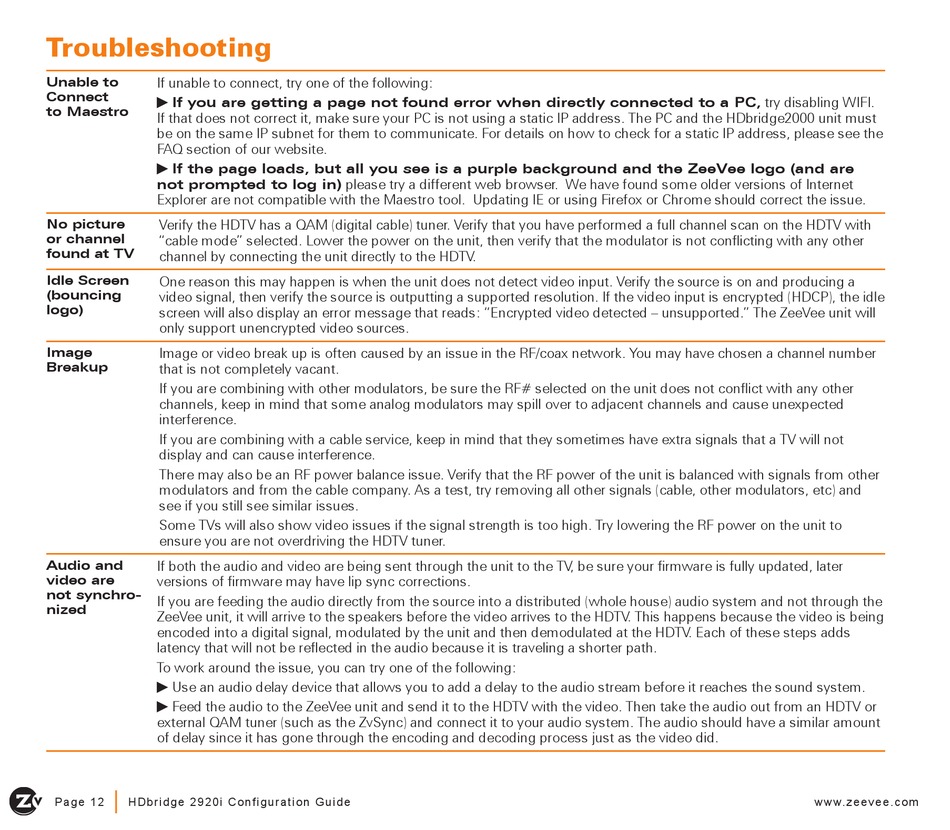

Troubleshooting

Unable to
If unable to connect, try one of the following:
Connect
If you are getting a page not found error when directly connected to a PC, try disabling WIFI.

to Maestro
If that does not correct it, make sure your PC is not using a static IP address. The PC and the HDbridge2000 unit must
be on the same IP subnet for them to communicate. For details on how to check for a static IP address, please see the
FAQ section of our website.
If the page loads, but all you see is a purple background and the ZeeVee logo (and are

not prompted to log in) please try a different web browser. We have found some older versions of Internet
Explorer are not compatible with the Maestro tool. Updating IE or using Firefox or Chrome should correct the issue.
No picture
Verify the HDTV has a QAM (digital cable) tuner. Verify that you have performed a full channel scan on the HDTV with
or channel
"cable mode" selected. Lower the power on the unit, then verify that the modulator is not conflicting with any other
found at TV
channel by connecting the unit directly to the HDTV.
Idle Screen One reason this may happen is when the unit does not detect video input. Verify the source is on and producing a
(bouncing
video signal, then verify the source is outputting a supported resolution. If the video input is encrypted (HDCP), the idle
logo)
screen will also display an error message that reads: "Encrypted video detected – unsupported." The ZeeVee unit will
only support unencrypted video sources.
Image Image or video break up is often caused by an issue in the RF/coax network. You may have chosen a channel number
Breakup
that is not completely vacant.
If you are combining with other modulators, be sure the RF# selected on the unit does not conflict with any other
channels, keep in mind that some analog modulators may spill over to adjacent channels and cause unexpected
interference.
If you are combining with a cable service, keep in mind that they sometimes have extra signals that a TV will not
display and can cause interference.
There may also be an RF power balance issue. Verify that the RF power of the unit is balanced with signals from other
modulators and from the cable company. As a test, try removing all other signals (cable, other modulators, etc) and
see if you still see similar issues.
Some TVs will also show video issues if the signal strength is too high. Try lowering the RF power on the unit to
ensure you are not overdriving the HDTV tuner.
Audio and
If both the audio and video are being sent through the unit to the TV, be sure your firmware is fully updated, later
video are
versions of firmware may have lip sync corrections.
not synchro-
If you are feeding the audio directly from the source into a distributed (whole house) audio system and not through the
nized
ZeeVee unit, it will arrive to the speakers before the video arrives to the HDTV. This happens because the video is being
encoded into a digital signal, modulated by the unit and then demodulated at the HDTV. Each of these steps adds
latency that will not be reflected in the audio because it is traveling a shorter path.
To work around the issue, you can try one of the following:
Use an audio delay device that allows you to add a delay to the audio stream before it reaches the sound system.

Feed the audio to the ZeeVee unit and send it to the HDTV with the video. Then take the audio out from an HDTV or

external QAM tuner (such as the ZvSync) and connect it to your audio system. The audio should have a similar amount
of delay since it has gone through the encoding and decoding process just as the video did.
|
Page 12 H D b r i dg e 2 9 2 0 i C o n fi g u r a ti o n G u i d e w w w.z e ev e e.c om
