- Page 1 IB838 Series Intel® Core™ i3 N-series 3.5" Disk-Size SBC User’s Manual Version 1.0 (July 2023)
- Page 2 No part of this publication may be reproduced, copied, stored in a retrieval system, translated into any language or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written consent of IBASE Technology, Inc. (hereinafter referred to as “IBASE”). Disclaimer IBASE reserves the right to make changes and improvements to the products described in this document without prior notice.
- Page 3 0.1% by weight (1000 ppm) except for cadmium, limited to 0.01% by weight (100 ppm). • Lead (Pb) • Mercury (Hg) • Cadmium (Cd) • Hexavalent chromium (Cr6+) • Polybrominated biphenyls (PBB) • Polybrominated diphenyl ether (PBDE) IB838 Series User’s Manual...
- Page 4 Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions or recycle them at a local recycling facility or battery collection point. IB838 Series User’s Manual...
- Page 5 Software in use (such as OS and application software, including the version numbers) If repair service is required, you can download the RMA form at http://www.ibase.com.tw/english/Supports/RMAService/. Fill out the form and contact your distributor or sales representative. IB838 Series User’s Manual...
-
Page 6: Table Of Contents
DDR5 SO-DIMM Connector (J2) ..........27 2.5.11 M.2 B-Key 3052 Connector (J3) ..........28 2.5.12 DC Power Input Connector (J4) ..........28 2.5.13 USB 2.0 Connector (J5) ............29 2.5.14 SPI Flash Tool Connector (J6) ..........29 IB838 Series User’s Manual... - Page 7 Save & Exit Settings ................70 Appendix ..................71 I/O Port Address Map ................72 Interrupt Request Lines (IRQ) .............. 74 Watchdog Timer Configuration ............75 Onboard Connector Reference Types ..........79 USB Power Control Mapping ............... 79 IB838 Series User’s Manual...
-
Page 9: Chapter 1 General Information
Chapter 1 General Information The information provided in this chapter includes: • Features • Packing List • Optional Accessories • Specifications • Block Diagram • Board Pictures • Board Dimensions... -
Page 10: Introduction
2x Intel® PCI-E 2.5G LAN • 2x USB 2.0, 4x USB 3.2 (1x Type-C + 3x Type-A), 4x COM, 1x SATA III • 2x M.2 socket (E-key + B-key) • Supports fTPM, Watchdog timer, Digital I/O IB838 Series User’s Manual... -
Page 11: Packing List
DC-In power cable (PW592) COM ports cable (PK1H) SATA & HDD power cable (SATA-53A) USB 2.0 cable (USB29) • Audio cable (Audio-18) • M.2 (B-Key) PCIe extension 3042 to 3052 • Heat spreader (HSIB838-1) • Heat sink (HSIB838-A) IB838 Series User’s Manual... -
Page 12: Specifications
N-series built-in HD audio + ALC888S codec Serial Port 1x RS232/422/485 (Jumper-less selection) + 3x RS232 USB 2.0 2x USB 2.0 via (pin header) USB 3.X 1x Type-C+ 3x Type-A Serial ATA 1x SATA III Digital IO 4-In & 4-Out IB838 Series User’s Manual... - Page 13 • Operation: 0 ~ 60 °C (32 ~ 140 °F) Temperature • Storage: -20 ~ 80 °C (-4 ~ 176 °F) Relative 10% ~ 90 % (non-condensing) Humidity All specifications are subject to change without prior notice. IB838 Series User’s Manual...
-
Page 14: Block Diagram
Block Diagram IB838 Series User’s Manual... -
Page 15: Board Pictures

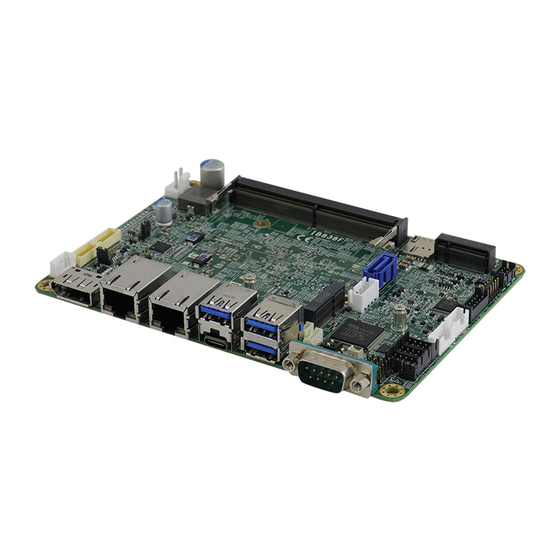

General Information Board Pictures Top View Bottom View ＊The photos are for reference only. Some minor components may differ. IB838 Series User’s Manual... - Page 16 I/O View IB838 Series User’s Manual...
-
Page 17: Dimensions
General Information Dimensions IB838 Series User’s Manual... - Page 18 This page is intentionally left blank. IB838 Series User’s Manual...
-
Page 19: Chapter 2 Hardware Configuration
Chapter 2 Hardware Configuration This section provides information on jumper settings and connectors on the IB838 in order to set up a workable system. On top of that, you will also need to install crucial pieces such as the CPU and the memory before using the product. -
Page 20: Essential Installations
Essential Installations 2.1.1 Installing the Memory The IB838 series supports two DDR4 memory sockets. To install the modules, locate the memory slot on the board and perform the following steps: Align the key of the memory module with that on the memory slot and insert the module slantwise. -
Page 21: Setting The Jumpers
When two pins of a jumper are encased in a jumper cap, this jumper is closed, i.e. turned On. When a jumper cap is removed from two jumper pins, this jumper is open, i.e. turned Off. IB838 Series User’s Manual... -
Page 22: Jumper & Connector Locations
Jumper & Connector Locations IB838 IB838 Series User’s Manual... -
Page 23: Jumpers Quick Reference
LVDS Panel Power Selection AT / ATX Selection M.2 B-key / Sierra Module Selection Sierra Module Interface Selection Clear CMOS Data Clear ME Register 2.4.1 eDP Panel Power Selection (JP1) Function Pin closed Setting 3.3V (default) IB838 Series User’s Manual... -
Page 24: Lvds Panel Brightness Selection (Jp2)
2.4.2 LVDS Panel Brightness Selection (JP2) Function Pin closed Setting 3.3V (default) 2.4.3 LVDS Panel Power Selection (JP3) Function Pin closed Setting 3.3V (default) IB838 Series User’s Manual... -
Page 25: At / Atx Selection (Jp4)
Hardware Configuration 2.4.4 AT / ATX Selection (JP4) Function Pin closed Setting 2.4.5 M.2 B-key / Sierra Module Selection (JP5) Function Pin closed Setting M.2 B-key (default) Sierra Module IB838 Series User’s Manual... -
Page 26: Sierra Module Interface Selection (Jp6)
2.4.6 Sierra Module Interface Selection (JP6) Function Pin closed Setting PCIE (default) 2.4.7 Clear CMOS Data (SW1) Function Setting Normal (default) P1-OFF Clear CMOS P1-ON IB838 Series User’s Manual... -
Page 27: Clear Me Register (Sw1)
Hardware Configuration 2.4.8 Clear ME Register (SW1) Function Setting Normal (default) P2-OFF Clear ME Register P2-ON IB838 Series User’s Manual... -
Page 28: Connectors Quick Reference
J10, J15 SMBUS Connector Power JTAG Connector M.2 E-Key 2230 Connector COM2, COM3, COM4 RS-232 Ports J18, J16, J14 RTC Battery Connector LVDS Backlight Connector 80 Port Debug Tool Connector Digital I/O Connector Front Panel Connector IB838 Series User’s Manual... -
Page 29: Sata Connectors (Cn1)
Hardware Configuration 2.5.1 SATA Connectors (CN1) Assignment Assignment Ground Ground Ground 2.5.2 eDP Connector (CN2) Remarks: KEL_SSL00-40S IB838 Series User’s Manual... - Page 30 Vcc AUXN Ground Ground +3.3V Ground EDP BKLT (+12V) Ground Hot Plug detect Ground Ground TXN3 TXP3 Back Light Control Ground Back Light Enable TXN2 EDP BKLT (+12V) TXP2 +3.3V Ground Ground TXN1 TXP1 Ground IB838 Series User’s Manual...
-
Page 31: Dp Connectors (Cn3)
Hardware Configuration 2.5.3 DP Connectors (CN3) Assignment Assignment LAN0_P LAN3_N LAN0_N CONFIG LAN1_P AUXP LAN1_N LAN2_P AUXN Hot Plug LAN2_N LAN3_P +3.3V IB838 Series User’s Manual... -
Page 32: Lan Connectors (Cn4, Cn5)
2.5.4 LAN Connectors (CN4, CN5) 2.5.5 USB 3.2 Connector (CN6) IB838 Series User’s Manual... -
Page 33: Type-C Connector (Cn7)
Hardware Configuration 2.5.6 Type-C Connector (CN7) 2.5.7 USB 3.2 Stack Connector (CN8) IB838 Series User’s Manual... -
Page 34: Com1 Rs-232/422/485 Serial Port (Cn9)
DCD, Data carrier detect Ground DTR, Data terminal ready Ground CTS, Clear to send TX, Transmit RTS, Request to send RX, Receive RI, Ring Indicator Assignment RS-232 RS-422 RS-485 (default) Ground Ground Ground Ground Ground Ground Data+ Data- IB838 Series User’s Manual... -
Page 35: Nano Sim Card Slot (J1)
Hardware Configuration 2.5.9 Nano SIM Card Slot (J1) 2.5.10 DDR5 SO-DIMM Connector (J2) IB838 Series User’s Manual... -
Page 36: B-Key 3052 Connector (J3)
2.5.11 M.2 B-Key 3052 Connector (J3) *With sierra LTE card, USB/PCIE I/F is configurable by JP5, JP6. 2.5.12 DC Power Input Connector (J4) Assignment +9V ~ +36V Ground IB838 Series User’s Manual... -
Page 37: Usb 2.0 Connector (J5)
Hardware Configuration 2.5.13 USB 2.0 Connector (J5) Remarks: HK_DF11-8S-PA66H Assignment Assignment Ground Data- Data+ Data+ Data- Ground 2.5.14 SPI Flash Tool Connector (J6) Remarks: Factory use only. IB838 Series User’s Manual... -
Page 38: Audio Connector (J7)
2.5.15 Audio Connector (J7) Remarks: HK_DF11-12S-PA66H Assignment Assignment Lineout_L Lineout_R JD_FRONT Ground LINEIN_L Linein_R JD_LINEIN Ground MIC_L MIC-R JD_MIC1 Ground 2.5.16 SATA HDD Power Connector (J8) Remarks: E-CALL 0110-071-040 Assignment Assignment Ground Ground +12V IB838 Series User’s Manual... -
Page 39: Speaker Out Connector (J9)
Hardware Configuration 2.5.17 Speaker Out Connector (J9) Remarks: E-CALL_0110-161-040 Assignment Assignment SPK_L+ SPK_R- SPK_L- SPK_R+ IB838 Series User’s Manual... -
Page 40: Lvds Connectors (J10, J15)
2.5.18 LVDS Connectors (J10, J15) ** J10:Channel-A, J15:Channel-B Remarks: HIROSE_DF20G-20DP-1V(56) Assignment Assignment TX0P TX0N Ground Ground TX1P TX1N Ground Ground TX2P TX2N Ground Ground CLKP CLKN Ground Ground TX3P TX3N Power Power IB838 Series User’s Manual... -
Page 41: Smbus Connector (J11)
Hardware Configuration 2.5.19 SMBUS Connector (J11) Assignment Assignment PLT_RST# SMB_DATA GPIO SMB_CLK- Ground IB838 Series User’s Manual... -
Page 42: Power Jtag Connector (J12)
2.5.20 Power JTAG Connector (J12) Assignment Assignment SMB_CLK Ground SMB_DATA Remarks: Factory use only. IB838 Series User’s Manual... -
Page 43: E-Key 2230 Connector (J13)
Remarks: HK_DF11-10S-PA66H Assignment Assignment DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready Ground DSR, Data set ready RTS, Request to send CTS, Clear to send RI, Ring indicator Not Used IB838 Series User’s Manual... -
Page 44: Rtc Battery Connector (J20)
2.5.23 RTC Battery Connector (J20) Assignment Battery+ Ground 2.5.24 LVDS Backlight Connector (J21) Remarks: E-CALL_0110-161-040 Assignment Assignment +12V Brightness Control Backlight Enable Ground IB838 Series User’s Manual... -
Page 45: Port Debug Tool Connector (J22)
Hardware Configuration 2.5.25 80 Port Debug Tool Connector (J22) Remarks: Factory use only. 2.5.26 Digital I/O Connector (J23) Remarks: E-CALL_0196-01-200-100 Assignment Assignment Ground OUT3 OUT1 OUT2 OUT0 IB838 Series User’s Manual... -
Page 46: Front Panel Setting Connector (J24)
2.5.27 Front Panel Setting Connector (J24) Remarks: E-CALL_0126-01-203-080 Assignment Assignment PWR_BTN- PWR_BTN+ HDD_LED+, 3.3V HDD Active Ground Reset POWER_LED+, 5V Ground IB838 Series User’s Manual... -
Page 47: Chapter 3 Drivers Installation
Chapter 3 Drivers Installation This chapter introduces installation of the following drivers: • ® Intel Chipset Software Installation Utility • VGA Driver • HD Audio Driver • LAN Driver • ® Intel Management Engine Drivers Installation • ® Intel Thunderbolt Drivers Installation... -
Page 48: Introduction
INF files for Plug & Play function for Intel chipset components. Follow the instructions below to complete the installation. Run the drivers disk. Click Intel on the left pane and then Intel(R) AlderLake-N Chipset Drivers on the right pane. IB838 Series User’s Manual... - Page 49 Chipset Device Software appears, click Next to continue. Accept the software license agreement and proceed with the installation process. On the Readme File Information screen, click Install. After completing the installation, click Finish to complete the setup process. IB838 Series User’s Manual...
-
Page 50: Vga Driver Installation
VGA Driver Installation Run the drivers disk. Click Intel on the left pane and then Intel(R) AlderLake-N Chipset Drivers on the right pane. Click Intel(R) HD Graphics Driver. Click Begin installation. IB838 Series User’s Manual... - Page 51 Driver Installation Click I agree to accept the license agreement. On the next screen, click Start and then click Finish when installation has been completed. IB838 Series User’s Manual...
-
Page 52: Hd Audio Driver Installation
HD Audio Driver Installation To complete the audio driver installation, go to the system’s Device Manager to Update driver of the High Definition Audio Controller. Locate and install the driver manually. IB838 Series User’s Manual... - Page 53 Driver Installation Go to the subfolder shown below and click Next. Windows has finished installing the drivers. Click Close. IB838 Series User’s Manual...
- Page 54 Run the drivers disk. Click Intel on the left pane and then Intel(R) AlderLake-N Chipset Drivers on the right pane. Click Realtek High Definition Audio Driver. On the Welcome screen of the InstallShield Wizard, click Next. On the next screen, click Next. On the next screen, click Finish. IB838 Series User’s Manual...
-
Page 55: Lan Driver Installation
Run the drivers disk. Click Intel on the left pane and then Intel(R) AlderLake-N Chipset Drivers on the right pane. Click Intel(R) PRO LAN Network Drivers.. On the Network Connections screen, click Install Drivers and Software. When the Welcome screen appears, click Next. IB838 Series User’s Manual... - Page 56 On the next screen, accept the license agreement and click Next. On the Setup Options screen, click Next to continue. On the Ready to Install the Program screen, click Install. When the Install wizard has completed the installation, click Finish. IB838 Series User’s Manual...
-
Page 57: Intel ® Management Engine Drivers Installation
AlderLake-N Chipset Drivers on the right pane. Click Intel(R) ME 15.x Drivers. When the Welcome screen appears, click Next. Accept the license agreement and click Next. After Intel Management Engine Components have been successfully installed, click Finish. IB838 Series User’s Manual... -
Page 58: Intel(R) Serial Io Drivers Installation
In the Welcome screen, click Next. In the next screen, accept the license agreement and click Next. In the Readme File Information screen, click Next. In the Confirmation screen, click Next. When installation has been completed, click Finish. IB838 Series User’s Manual... -
Page 59: Chapter 4 Bios Setup
Chapter 4 BIOS Setup This chapter describes the different settings available in the AMI BIOS that comes with the board. The topics covered in this chapter are as follows: • Main Settings • Advanced Settings • Chipset Settings • Security Settings •... -
Page 60: Introduction
These defaults have been carefully chosen by both AMI and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could make the system unstable and crash in some cases. IB838 Series User’s Manual... -
Page 61: 4.3 Main Settings
4.3 Main Settings BIOS Setting Description Sets the date. Use the <Tab> key to switch System Date between the data elements. Set the time. Use the <Tab> key to switch System Time between the data elements. IB838 Series User’s Manual... -
Page 62: 4.4 Advanced Settings
4.4 Advanced Settings This section allows you to configure system features according to your preference. IB838 Series User’s Manual... - Page 63 Serial IO UART0 needs to be enabled to select BT Interface interface. BT Tile Mode Options: Enabled/Disabled Advanced Configure ACPI objects for wireless devices Settings Default: Disabled WWAN Configure WWAN related options. Configuration WWAN Device: enable or disable M.2 WWAN device IB838 Series User’s Manual...
- Page 64 Technology. Active Efficient-cores Number of E-cores to enable in each processor package. Note: Number of cores and E-cores are looked at together. When both are (o,o), Pcode will enable all cores. Enable/Disable AES (Advanced Encryption Standard) IB838 Series User’s Manual...
- Page 65 Management Control Allows more than two frequency ranges to be Intel Speedstep supported Enable/Disable Intel Speed Shift Technology Intel Speed Shift support. Enabling will expose the CPPC v2 Technology interface to allow for hardware controlled P-states. IB838 Series User’s Manual...
- Page 66 4.4.4 PCH-FW Configuration IB838 Series User’s Manual...
- Page 67 TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support to TPM 2.0 devices. Device Select Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2 devices will be enumerated. IB838 Series User’s Manual...
- Page 68 Enables / Disables the system ability to hibernate (OS/S4 Sleep State). This option may be not Enable Hibernation effective with some OS. Select the highest ACPI sleep state the system ACPI Sleep State will enter when the SUSPEND button is pressed. IB838 Series User’s Manual...
- Page 69 BIOS Setup 4.4.7 LVDS Configuration IB838 Series User’s Manual...
- Page 70 Select an optimal setting for the Super IO device. Options are: IO=2E8h; IRQ=7; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; Change Settings IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; Enable – provide the standby power for devices. Standby Power on S5 Disable – shutdown the standby power. (Eup) IB838 Series User’s Manual...
- Page 71 BIOS Setting Description These fields are the parameters of the hardware Temperatures / monitoring function feature of the motherboard. Voltages The values are read-only values as monitored by the system and show the PC health status. IB838 Series User’s Manual...
- Page 72 4.4.10 AMI Graphic Output Protocol Policy IB838 Series User’s Manual...
- Page 73 Max.time the device will take before it properly reports itself to the Host Controller. ‘Auto’ uses Device power-up delay default value: for a Root port it is 100ms, for a Hub port the delay is taken from Hub descriptor. IB838 Series User’s Manual...
-
Page 74: 4.5 Chipset Settings
4.5 Chipset Settings 4.5.1 System Agent (SA) Configuration 4.5.1.1. Graphics Configuration: IB838 Series User’s Manual... - Page 75 Enables / Disables Serial Port 0 ~ 2. SATA Ports Hot Plug Enables / Disables SATA Ports HotPlug. Power-On After Specify what state to go to when power is Power failure re-applied after a power failure (G3 state) IB838 Series User’s Manual...
-
Page 76: 4.6 Security Settings
The mode change requires platform reset. Secure Boot mode options: Standard or Custom. In Custom mode, Secure Boot Policy variables Secure Boot Mode can be configured by a physically present user without full authentication IB838 Series User’s Manual... -
Page 77: 4.7 Boot Settings
Number of seconds to wait for setup activation Timeout key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock Selects the keyboard NumLock state. State Quiet Boot Enables / Disables Quiet Boot option. FIXED BOOT Sets the system boot order. ORDER Priorities IB838 Series User’s Manual... -
Page 78: 4.8 Save & Exit Settings
Saves the changes done so far as User Defaults. Restores the user defaults to all the setup Restore User Defaults options. Attempts to launch EFI shell application Launch EFI Shell from (Shell.efi) from one of the available filesystem filesystem device devices. IB838 Series User’s Manual... -
Page 79: Appendix
Appendix This section provides the mapping addresses of peripheral devices and the sample code of watchdog timer configuration. -
Page 80: I/O Port Address Map
0x00000030-0x00000031 Programmable interrupt controller 0x00000034-0x00000035 Programmable interrupt controller 0x00000038-0x00000039 Programmable interrupt controller 0x0000003C-0x0000003D Programmable interrupt controller 0x000000A0-0x000000A1 Programmable interrupt controller 0x000000A4-0x000000A5 Programmable interrupt controller 0x000000A8-0x000000A9 Programmable interrupt controller 0x000000AC-0x000000AD Programmable interrupt controller 0x000000B0-0x000000B1 Programmable interrupt controller IB838 Series User’s Manual... - Page 81 PCI Express Root Complex 0x00003090-0x00003097 Standard SATA AHCI Controller 0x00003080-0x00003083 Standard SATA AHCI Controller 0x00003060-0x0000307F Standard SATA AHCI Controller 0x00000040-0x00000043 System timer 0x00000050-0x00000053 System timer 0x00002000-0x000020FE Motherboard resources 0x00000060-0x00000060 Standard PS/2 Keyboard 0x00000064-0x00000064 Standard PS/2 Keyboard IB838 Series User’s Manual...
-
Page 82: Interrupt Request Lines (Irq)
IRQ 4294967293 PCI Express Root Port #9 - 54B0 Intel(R) USB 3.20 eXtensible Host Controller - 1.20 IRQ 4294967291 (Microsoft) IRQ 4294967294 PCI Express Root Port #7 - 54BE IRQ 4294967278 Intel(R) Management Engine Interface #1 IB838 Series User’s Manual... -
Page 83: Watchdog Timer Configuration
**endptr; char SIO; printf("Fintek 81964 watch dog program\n"); SIO = Init_F81964(); if (SIO == 0) printf("Can not detect Fintek 81964, program abort.\n"); return(1); }//if (SIO == 0) if (argc != 2) printf(" Parameter incorrect!!\n"); return (1); IB838 Series User’s Manual... - Page 84 DisableWDT(void) unsigned char bBuf; Set_F81964_LD(0x07); //switch to logic device 7 bBuf = Get_F81964_Reg(0xFA); bBuf &= ~0x01; Set_F81964_Reg(0xFA, bBuf); //disable WDTO output bBuf = Get_F81964_Reg(0xF5); bBuf &= ~0x20; bBuf |= 0x40; Set_F81964_Reg(0xF5, bBuf); //disable WDT //--------------------------------------------------------------------------- //--------------------------------------------------------------------------- IB838 Series User’s Manual...
- Page 85 Init_Finish; F81964_BASE = 0x00; result = F81964_BASE; Init_Finish: return (result); //--------------------------------------------------------------------------- void Unlock_F81964 (void) outportb(F81964_INDEX_PORT, F81964_UNLOCK); outportb(F81964_INDEX_PORT, F81964_UNLOCK); //--------------------------------------------------------------------------- void Lock_F81964 (void) outportb(F81964_INDEX_PORT, F81964_LOCK); //--------------------------------------------------------------------------- void Set_F81964_LD( unsigned char LD) Unlock_F81964(); outportb(F81964_INDEX_PORT, F81964_REG_LD); outportb(F81964_DATA_PORT, LD); Lock_F81964(); IB838 Series User’s Manual...
- Page 86 F81964_DATA_PORT (F81964_BASE+1) //--------------------------------------------------------------------------- #define F81964_REG_LD 0x07 //--------------------------------------------------------------------------- #define F81964_UNLOCK 0x87 #define F81964_LOCK 0xAA //--------------------------------------------------------------------------- unsigned int Init_F81964(void); void Set_F81964_LD( unsigned char); void Set_F81964_Reg( unsigned char, unsigned char); unsigned char Get_F81964_Reg( unsigned char); //--------------------------------------------------------------------------- #endif // F81964_H IB838 Series User’s Manual...
-
Page 87: Onboard Connector Reference Types
VHR-2N Dupont Dupont Digital I/O 2.00 mm-pitch pin 2.00 mm-pitch (Female) header (Male) E-CALL LCD Backlight 0110-161-040 PHR-4. Hirose Hirose LVDS J10, J15 DF20G-20DP-1V DF20A-20DS-1C SSL00-40S SSL20-40S USB Power Control Mapping Function Connector Software Mapping Bit_5 IB838 Series User’s Manual...
