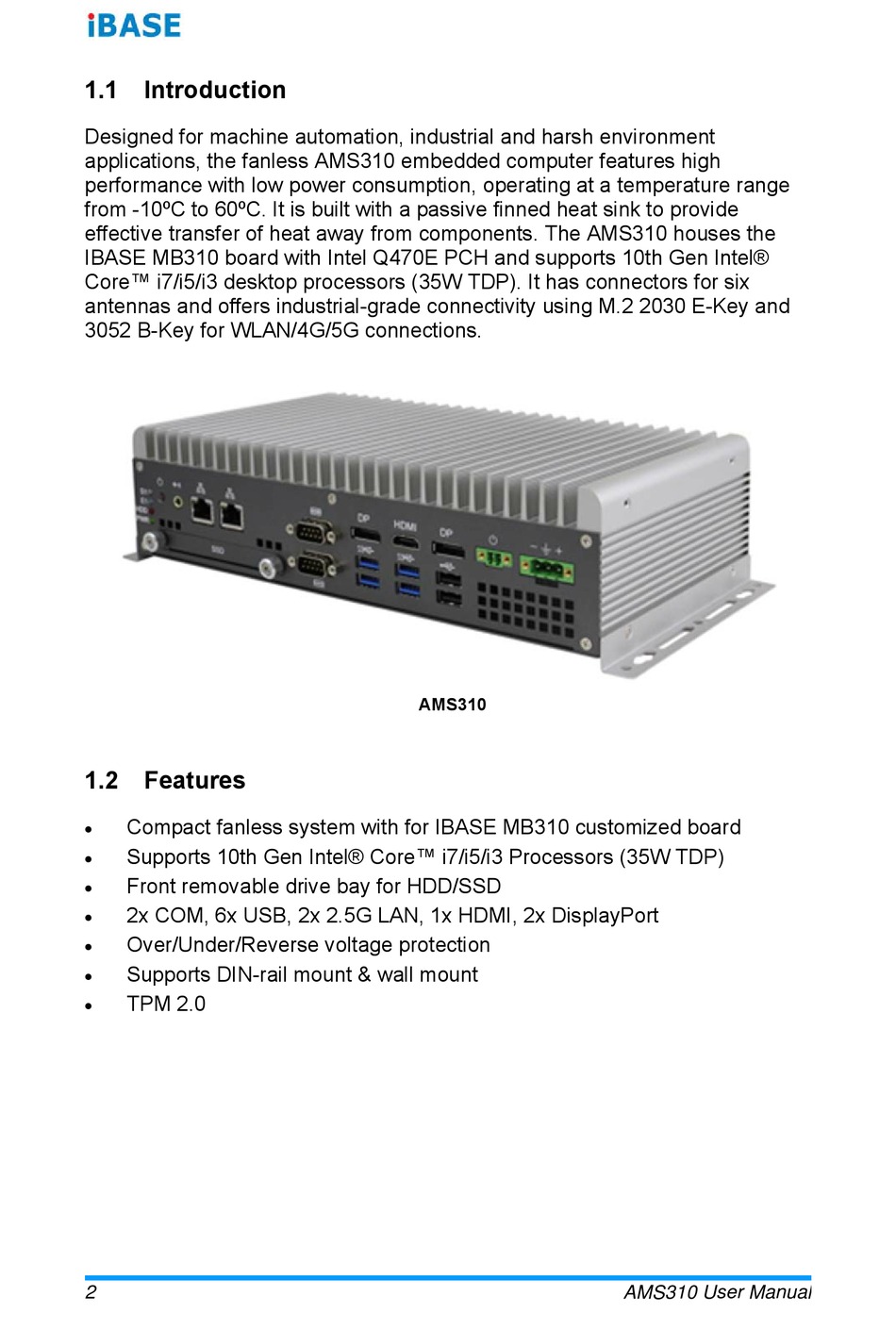

1.1 Introduction

Designed for machine automation, industrial and harsh environment
applications, the fanless AMS310 embedded computer features high
performance with low power consumption, operating at a temperature range
from -10ºC to 60ºC. It is built with a passive finned heat sink to provide
effective transfer of heat away from components. The AMS310 houses the
IBASE MB310 board with Intel Q470E PCH and supports 10th Gen Intel®
Core™ i7/i5/i3 desktop processors (35W TDP). It has connectors for six
antennas and offers industrial-grade connectivity using M.2 2030 E-Key and
3052 B-Key for WLAN/4G/5G connections.

1.2 Features

Compact fanless system with for IBASE MB310 customized board

Supports 10th Gen Intel® Core™ i7/i5/i3 Processors (35W TDP)

Front removable drive bay for HDD/SSD

2x COM, 6x USB, 2x 2.5G LAN, 1x HDMI, 2x DisplayPort

Over/Under/Reverse voltage protection

Supports DIN-rail mount & wall mount

TPM 2.0

