Chapter 6: Accessories for Your CentriVap

Installing a Glass Lid

Turn off the CentriVap. Unplug the power cord from the wall receptacle. Pull
outward on the hinge pin knob. Lift and remove the old lid. To install the new
lid, reverse the process.

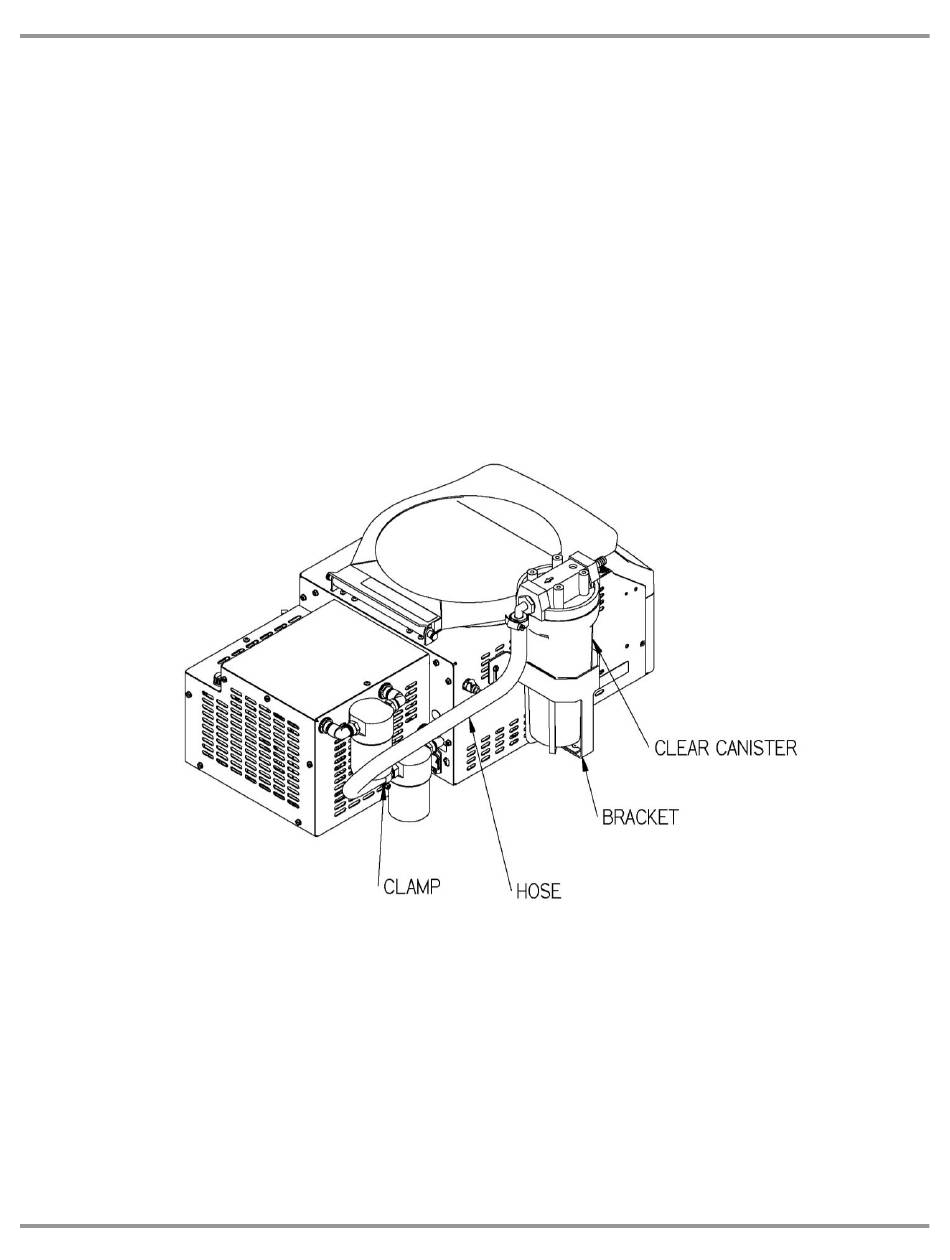

Installing a Secondary Chemical Trap

An accessory secondary chemical trap is available to minimize the exhausting of
solvents into the atmosphere. Attach the bracket to the left hand side of the
housing using the screws provided. Attach the hose from the outlet on the vacuum
pump to the "out" connector of the canister housing. Unscrew the clear bowl of
the canister housing from the head. Remove both the upper and lower caps from
the filter cartridge and insert the small end of the cartridge into the hole in the
center of the head. Reinstall the clear bowl.
