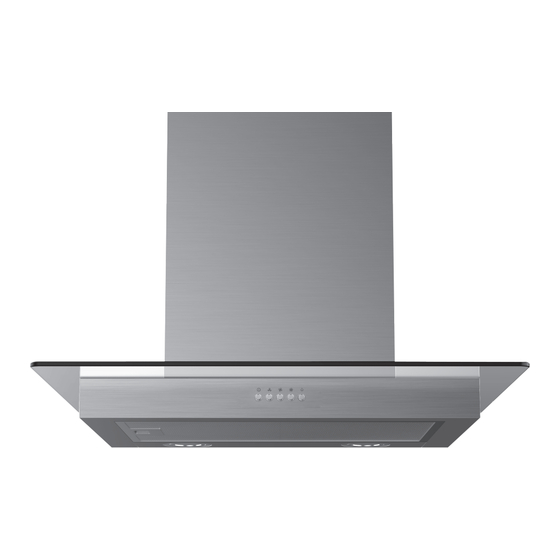

Midea MHC90GSS Instructions Manual

Hide thumbs Also See for MHC90GSS:
Table of Contents

Advertisement

Quick Links

Download this manual
Midea
Cooker Hood
Instruction
MODEL : MHC60GSS
MHC90GSS
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your cooker hood,and keep it
carefully. If you follow the instructions, your cooker hood will provide you with many years
of good service.

Advertisement

Table of Contents
loading

Related Manuals for Midea MHC90GSS

Summary of Contents for Midea MHC90GSS

  • Page 1 Midea Cooker Hood Instruction MODEL : MHC60GSS MHC90GSS SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your cooker hood,and keep it carefully. If you follow the instructions, your cooker hood will provide you with many years of good service.

  • Page 2: Recommendations And Suggestions

    RECOMMENDATIONS AND SUGGESTIONS The instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION  The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
  • Page 3 COMPONENTS Ref. Qty. Product Components Hood Body, complete with: Controls, Light, Blower, Filter. Lower Decorative Chimney Upper Decorative Chimney Flange ( optional ) Exhaust Pipe The Activated Charcoal filter ( optional ) Ref. Qty. Installation Components ( 2 Spare) M4 x 20 Decorative washers Spare Hood fixing bracket...
  • Page 4 DIMENSIONS 600/900 Min. Min. 650mm 650mm min. max. 600/900...

  • Page 5: Installation

    INSTALLATION WALL DRILLING AND BRACKET FIXING Vertical reference line As a first step, proceed with the following drawings:  A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted.

  • Page 6: Ducted Version Air Exhaust System

     Mark a point (3) on the horizontal line C, 80 mm to the vertical reference line.  Repeat this operation on the other side and on the vertical reference line , checking that the three marks are leveled. Fix the brackets (Optional): ...

  • Page 7: Chimney Assembly

    CHIMNEY ASSEMBLY The chimney can only be installed with exhausting hood. Lower Decorative Chimney Fix a Chimney fixing bracket 21 onto the Lower Decorative Chimney with 2 screws 12  (4.2 x 9.5) supplied with the hood. Upper Decorative Chimney Slightly widen the two sides of the upper chimney and hook them between the wall and the ...
  • Page 8 OFF MOTOR SWITCH: Press on this switch to stop the motor operation. SPEED SWITCH: Press on this switch, the motor runs at LOW speed. SPEED SWITCH: Press on this switch, the motor runs at MEDIUM speed. SPEED SWITCH: Press on this switch, the motor runs at HIGH speed.

  • Page 9: Grease Filters

    MAINTENANC GREASE FILTERS CLEANING METAL SELF-SUPPORTING GREASE FILTERS  The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.  Pull the comfort panels to open them. ...

  • Page 10: Led Light Replacement

    LED LIGHT REPLACEMENT Replacing the light modules   Before changing the light module(s), unplug the appliance from the mains or switch off the  circuit breaker in the fuse box. 2. Lower the control panel at the front by carefully pulling it downwards. You can now access the light module and terminals.Replace the lamp(commercially available LED lamp (max.1.5w).

  • Page 11: Troubleshooting

    TROUBLE SHOOTING Fault Cause Solution The blades are blocked. The capacitor is damaged. Replace capacitor. Light on, but The motor is damaged. Replace motor. motor does not The internal wiring of motor is cut off/ work Replace motor. disconnected. An unpleasant smell may be produced.
  • Page 12 P/N:16173000A12971...

This manual is also suitable for:

Mhc60gss
