T-CANOPY RANGEHOOD
USER MANUAL
330366
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.

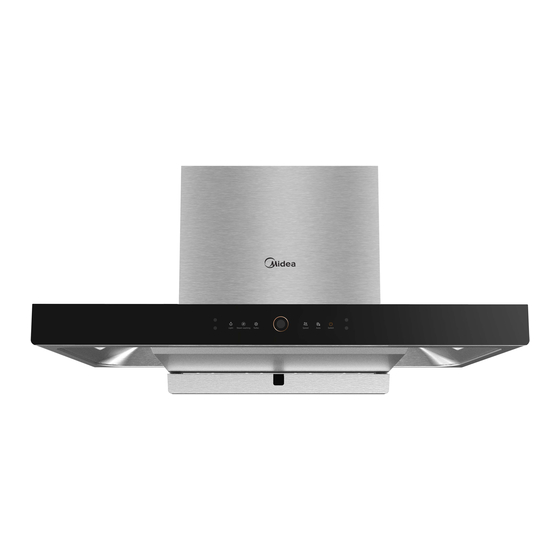

The diagram above is just for reference. Please take the appearance of the actual product as the standard.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea 330366
Summary of Contents for Midea 330366

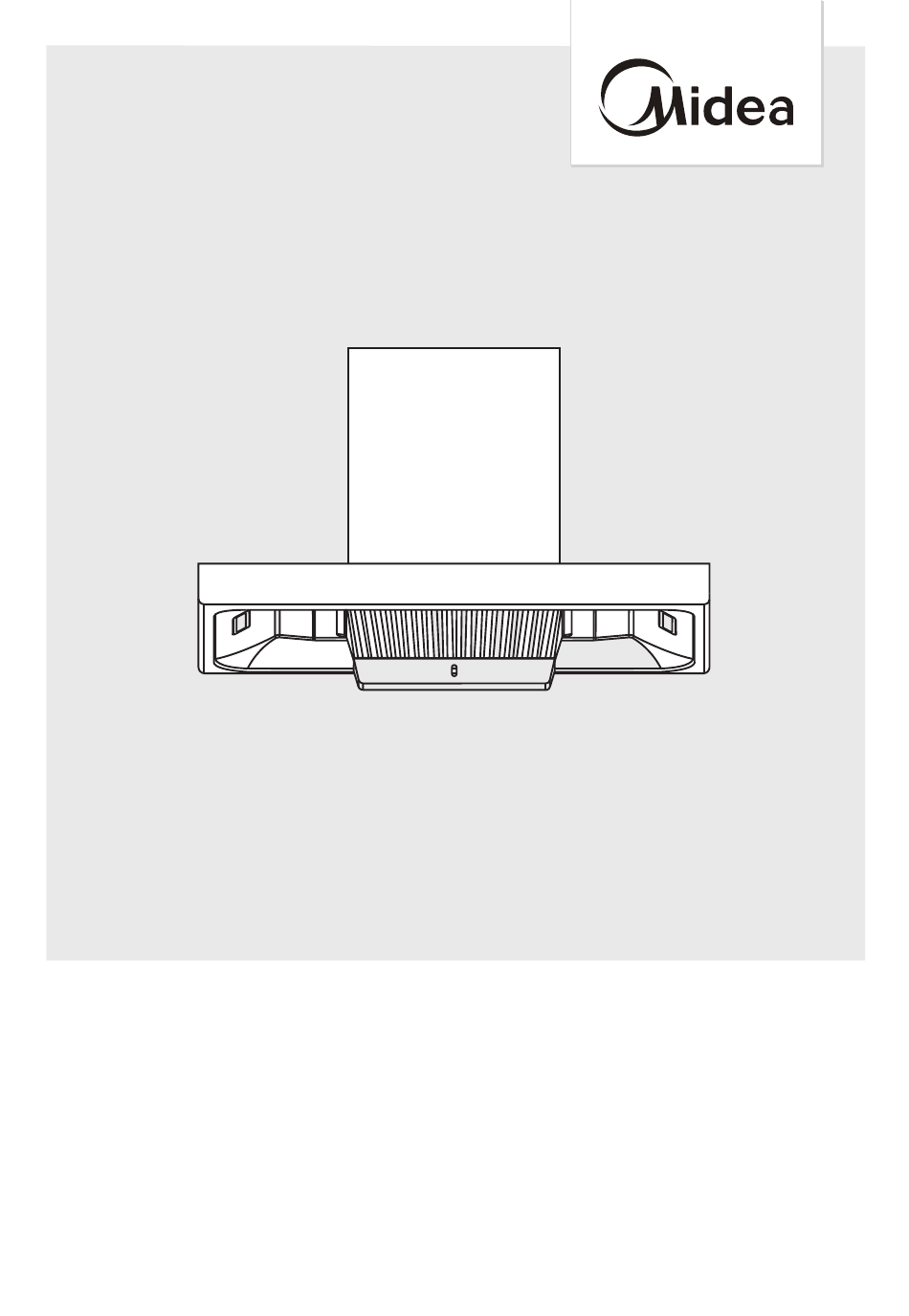

- Page 1 T-CANOPY RANGEHOOD USER MANUAL 330366 Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.
-
Page 2: Table Of Contents
THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and CONTENTS THANK YOU LETTER SAFETY INSTRUCTIONS SPECIFICATIONS PRODUCT OVERVIEW PRODUCT INSTALLATION... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. - Page 4 WARNING This appliance is not intended for use by persons (including children) with reduced ● physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 5: Specifications
After installation of a range hood or other cooking fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur. SPECIFICATIONS Model 330366 Voltage/Frequency 220V-240V~/50Hz Rated power 283W Lighting power 1.5W ×... -
Page 6: Product Overview
PRODUCT OVERVIEW Components Ref. Qty. Product Components Range hood body Exhaust pipe Installation plate Oil cup Screws M5x16 Screw M5x50 Expansion bolt Self tapping screw ST4.2x9.5 Chimney fixing bracket Limited block Screw M5x45 Screw ST2.9x9.5 Screw ST4.2x16... -
Page 7: Product Installation
PRODUCT INSTALLATION Determine location Range hood should be installed horizontaly on the top of the stove, the installation ● diagram is as follows: Suspended Chimney Cupboard ceiling Exhaust pipe 905~915 Schematic diagram of the hole size of the exhaust pipe at the Φ182 ceiling. -
Page 8: Operation Instructions
lnstallation plate WARNING Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. OPERATION INSTRUCTIONS Range Hood Can Be Used After Power. Light Auto clean High Low/Mid Power Gesture control left Gesture control right... - Page 9 Button Name Function Light Press: Turn on/o the light. Press the " " button for 3 seconds to switch it on. The cleaning process will run 9 minutes. After 9 minutes, the button indicator will be o . During the Auto clean porcess, pressing the " "...
-
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE Surface cleaning Recommdndation after cooking with a dry cloth or a wet ● cloth moistened with neutral surfaces of the machine. Do not use clean balls, brushes or coarse cloth to avoid scratching the machine surface. Oil cup installation: ●... - Page 11 Internal Cleaning Unplug the power cord, Remove the decorative unscrew the screws for fixing cover. cover. screws 3. Remove screw, take down the Remove screw, take down the rack cover plate. air inlet ring. Loose the nut according to Clean the impeller and volute instruction, take out the impeller.
-
Page 12: Trouble Shooting
TROUBLE SHOOTING Fault Solution Both light and motor Unplug power plug and reconnect the power supply. do not work Oil cup tilt, please reinstall. Oil cup full filled with oil, please dump the oil. Oil leakage Oil-way blockage caused by long time uncleaned internal oil-way, needs professionals to wash the hood. -
Page 13: Trademarks, Copyrights And Legal Statement
Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea. -
Page 14: Disposal And Recycling
DISPOSAL AND RECYCLING Important instructions for environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. -
Page 15: Data Protection Notice
European Economic Area. Further information are provided on request. You can contact our Data Protection O cer via MideaDPO@midea.com. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via... - Page 16 © Midea 2023 all rights reserved 16173000A23428 V1.0...
