Summary of Contents for Midea MHC90CGSS

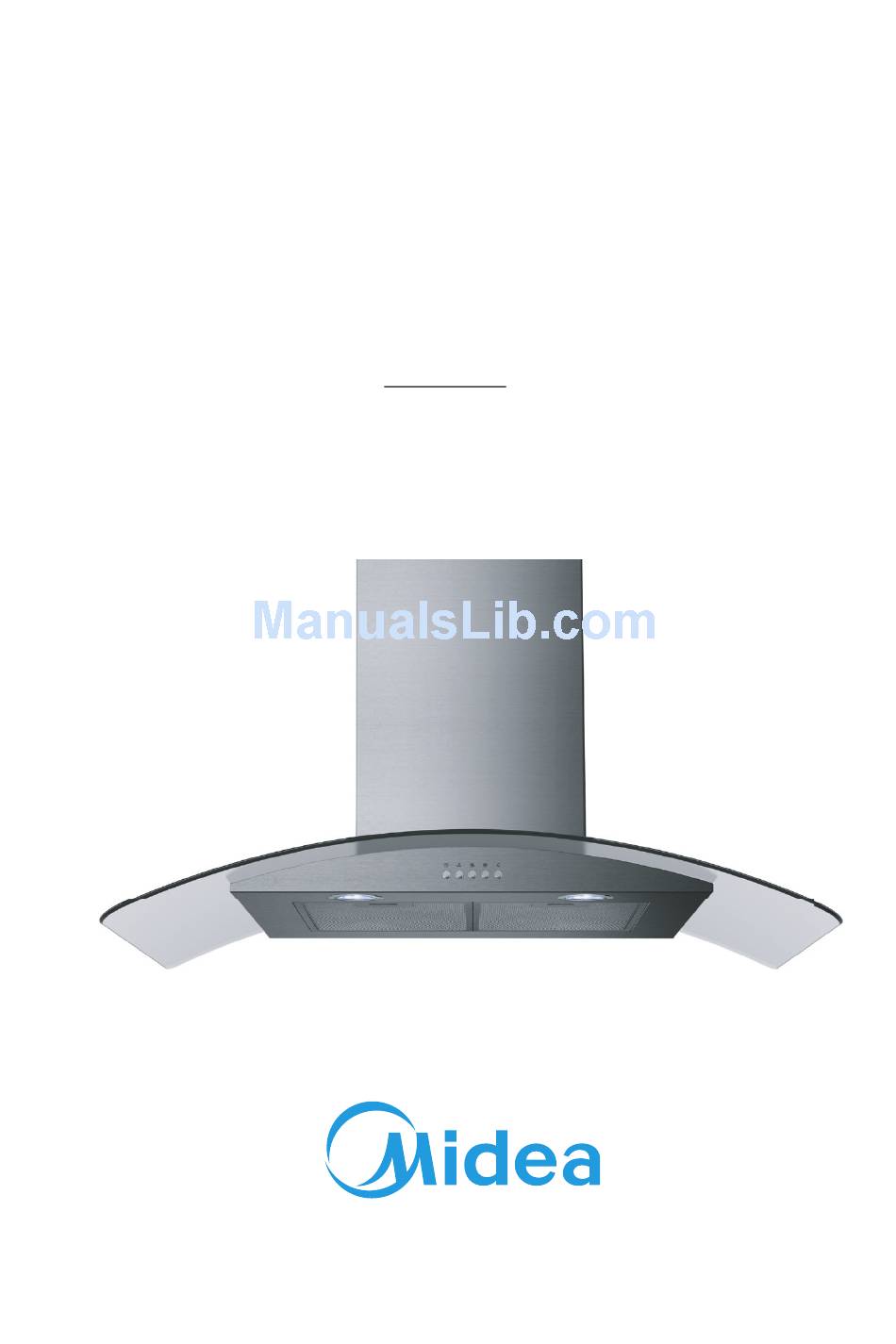

- Page 1 Midea Cooker Hood Instructions MODEL: MHC90CGSS SAVE THESE INSTRUCTIONS CAREFULLY Read the instructions carefully before using your cooker hood, and keep them carefully. If you follow the instructions, your cooker hood will serve you many years well.
-
Page 2: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The instructions apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your appliance. INSTALLATION ● The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. - Page 3 COMPONENTS Ref. Qty. Product Components Hood Body, complete with Control, Light, Blower, Filter. Lower Decorative Chimney Upper Decorative Chimney Exhaust Pipe Activated Charcoal Filter (optional) Ref. Qty. Installation Components Screws 5 x 50 Wall Plug Screws 4.2 x 9.5 Hood Fixing Bracket (optional ) Chimney Fixing Bracket (0 / 1 optional) Qty.
- Page 4 DIMENSION 485-865...
-
Page 5: Installation
INSTALLATION WALL DRILLING AND BRACKET FIXING As the first step, proceed with the following drawings: ● A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted. ●... -
Page 6: Ducted Version Air Exhaust System
● Mark a point (3) on the horizontal line C, 130 (250 optional) mm to the vertical reference line. ● Repeat this operation on the other side, checking that the two marks are on one horizontal line. Fix the brackets (optional): ●... -
Page 7: Chimney Assembly
CHIMNEY ASSEMBLY The chimney can only be installed with an exhausting hood. Lower decorative chimney ● Fix the lower decorative chimney to the hood body with 2 screws 12 (4.2 x 9.5) supplied with the hood. Upper Decorative Chimney ● Slightly widen the two sides of the upper chimney and hook them between the wall and the bracket 21 which is fixed on the lower decorative chimney. - Page 8 Speed adjustment MOTOR OFF SWITCH: Press this switch to stop the motor. SPEED SWITCH: Press this switch, and the motor runs at LOW speed. SPEED SWITCH: Press this switch, and the motor runs at MEDIUM speed. SPEED SWITCH: Press this switch, and the motor runs at HIGH speed. LIGHT ON/OFF SWITCH: Press this switch to turn on the light, and press again to turn it off.
-
Page 9: Grease Filter
MAINTENANC GREASE FILTER METAL SELF-SUPPORTING GREASE FILTER CLEANING ● The filters must be cleaned every 2 months of operation or more frequently for particularly heavy usage, and can be washed in a dishwasher. ● Pull the comfort panel to open them. ●... -
Page 10: Light Replacement
LIGHTING LIGHTING LIGHT REPLACEMENT LIGHTING LIGHT REPLACEMENT Replacing the light modules LIGHT REPLACEMENT ou cannot replaced the light bulbs, the entire light module has to be replaced. Replacing the light modules Replacing the light module When changing the light modules, the contacts are live. ... -
Page 11: Troubleshooting
TROUBLE SHOOTING Fault Cause Solution The blade is blocked. The capacitor is damaged. Replace the capacitor. Light is on, but The motor is damaged. Replace the motor. motor does not work The internal wiring of motor is cut off/ disconnected. An unpleasant smell may Replace the motor. - Page 12 3 years for the life of the appliance. FOR SPARE PARTS OR TO FIND THE ADDRESS OF YOUR NEAREST STATE SPARE PARTS CENTRE IN AUSTRALIA MIDEA HOME APPLIANCES AUSTRALIA PTY LTD 11/75 Lorimer Street, Docklands, Melbourne, 3008 After-sales service No.: 1800 88 60 10...
