2.0
Installation Instructions

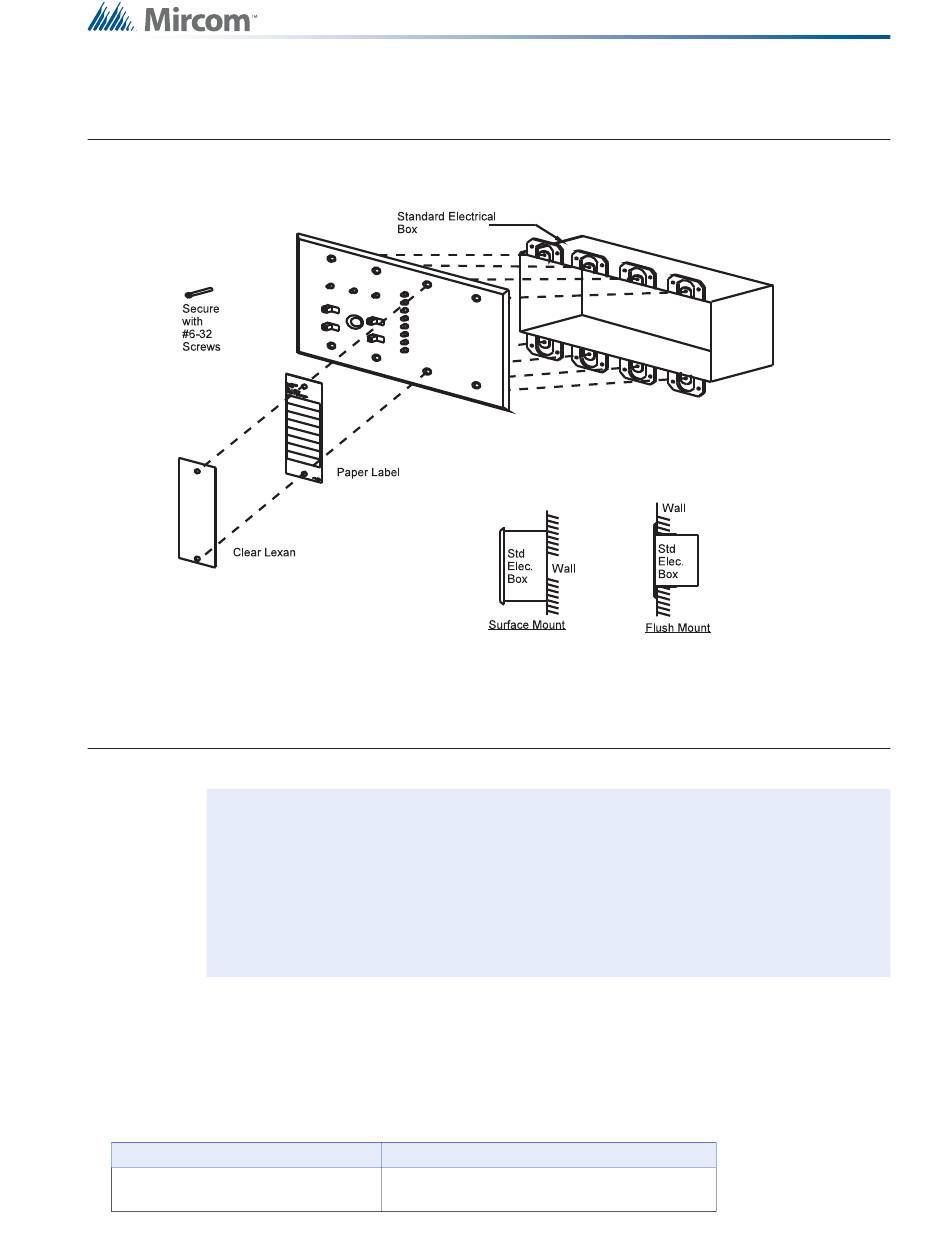

Figure 1
i
Notes: The RAM-208 is supplied with NP-386 paper labels for zone identification.
2.1
Controls & Displays
For precise definitions of Control & Display operation, refer to the manual for the Fire Alarm
Control Panel that the Annunciator is being connected to.
Table 1 Controls and Displays
Controls
System Reset, Signal Silence,
Buzzer Silence, Lamp Test
Installation Diagram
This annunciator displays initiating circuit status only (no individual circuit
troubles). Indicating and relay circuits are not remotely displayed. Refer to the
manual of the fire alarm control panel that the annunciator will be connected to.
The RAM-208 has a keyswitch to enable the four slide-switch controls. The key
should be appropriately secured.
Displays
AC On, Common Trouble, Signal Silence,
8 Circuit Status LEDs
Installation Instructions
9
