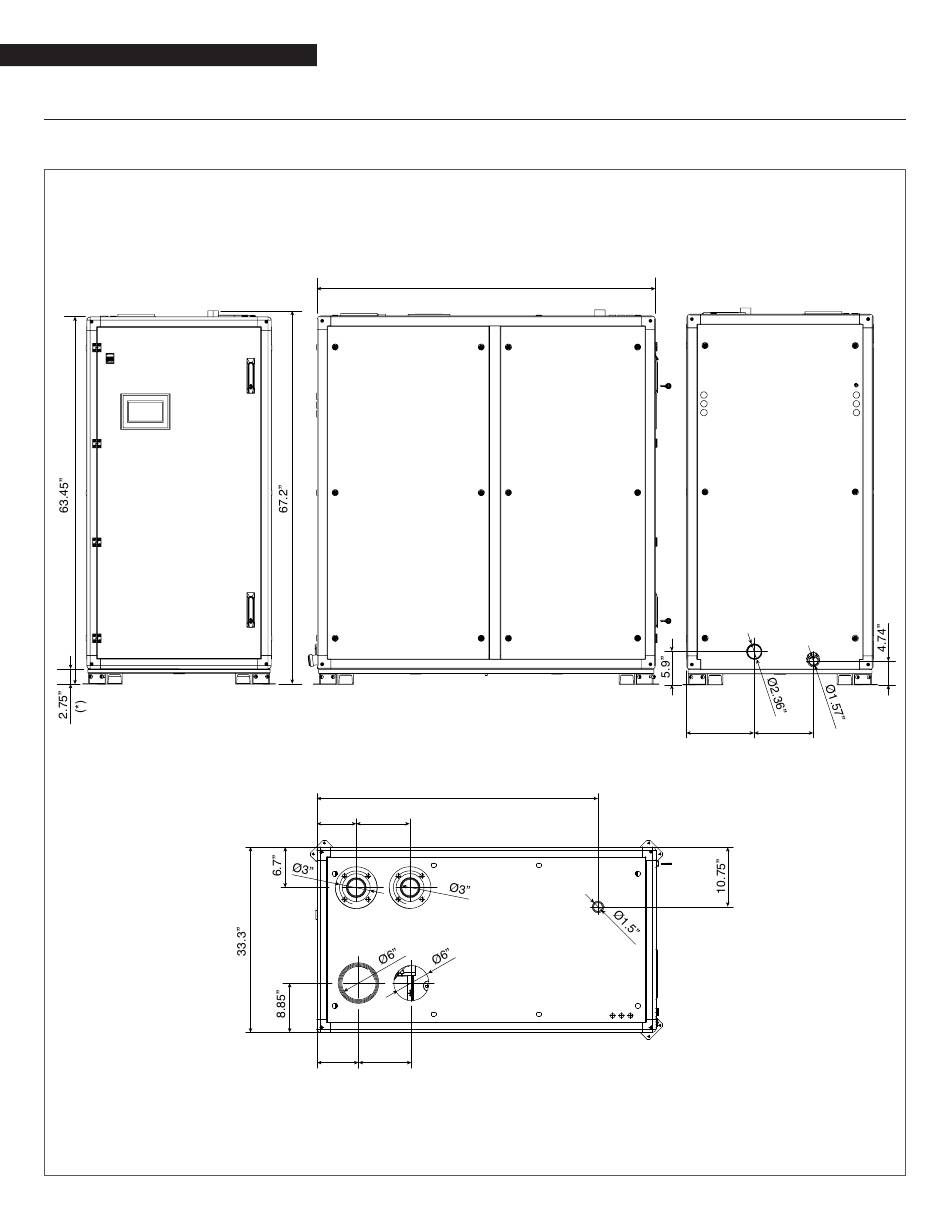

2.7 Size and Connections

ARRAY AR 1000, AR 1500
60.8"
11.5" 10.15"
50.8"
8.5" 11.5"
7.47" 9.48"
Dimensions are in inches
(*) Mounting feet may be removed during installation to reduce the overall height by 2". Feet must be re-installed once boiler is in
its final location.
