OPERATION

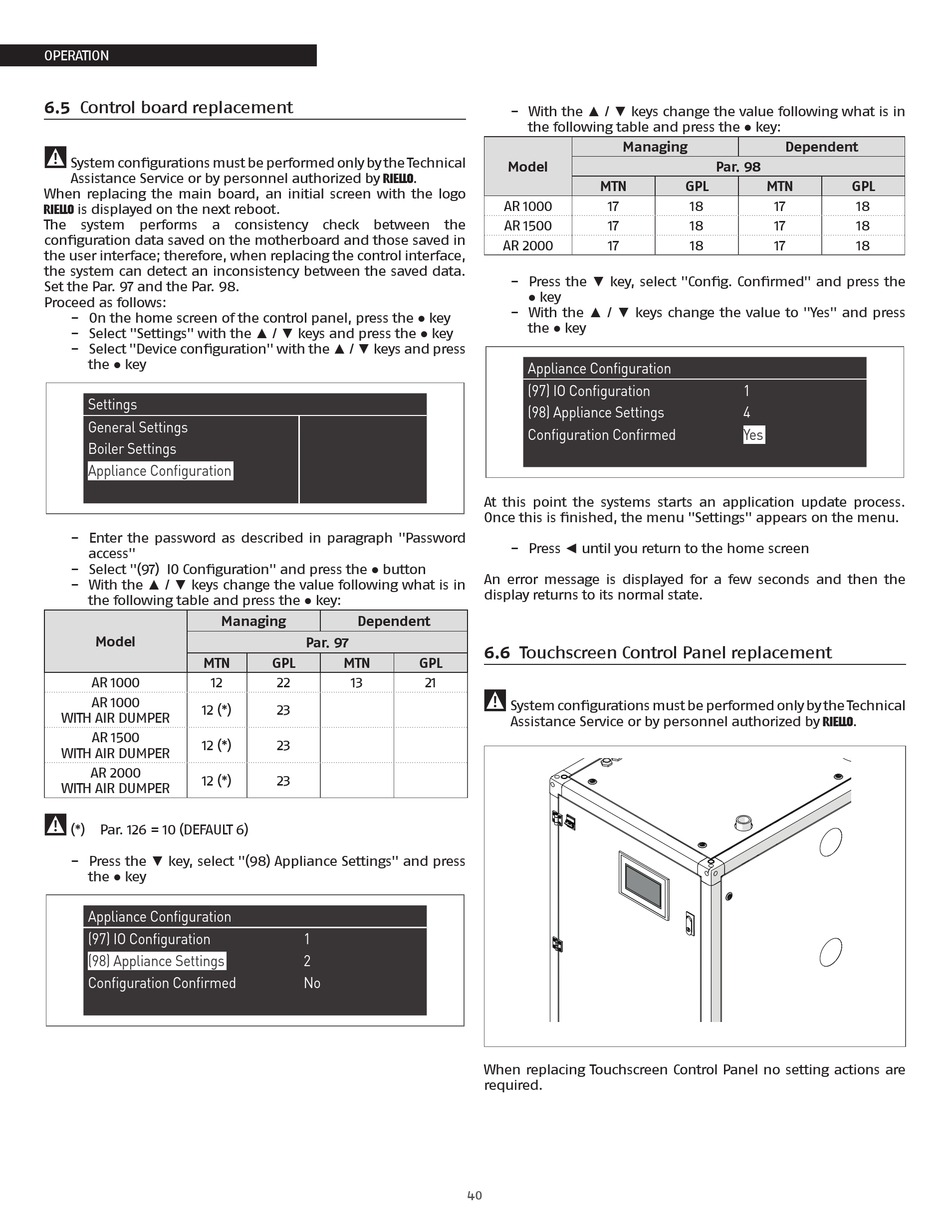

6.5 Control board replacement

9
System configurations must be performed only by the Technical
Assistance Service or by personnel authorized by
When replacing the main board, an initial screen with the logo
R is displayed on the next reboot.
The system performs a consistency check between the
configuration data saved on the motherboard and those saved in
the user interface; therefore, when replacing the control interface,
the system can detect an inconsistency between the saved data.
Set the Par. 97 and the Par. 98.
Proceed as follows:
− On the home screen of the control panel, press the ● key
− Select "Settings" with the ▲ / ▼ keys and press the ● key
− Select "Device configuration" with the ▲ / ▼ keys and press
the ● key
Settings
" "
General Settings
" "
Boiler Settings
" "
Appliance Configuration
"
− Enter the password as described in paragraph "Password
access"
− Select "(97) IO Configuration" and press the ● button
− With the ▲ / ▼ keys change the value following what is in
the following table and press the ● key:
Managing
Model
MTN
AR 1000 12
AR 1000
12 (*)
WITH AIR DUMPER
AR 1500
12 (*)
WITH AIR DUMPER
AR 2000
12 (*)
WITH AIR DUMPER
9
(*) Par. 126 = 10 (DEFAULT 6)
− Press the ▼ key, select "(98) Appliance Settings" and press
the ● key
Appliance Configuration
"
(97) IO Configuration
" "
(98) Appliance Settings
"
Configuration Confirmed
"
R
"
Dependent
Par. 97
GPL MTN
22 13
23
23
23
"
1
2
"
No
" " "
− With the ▲ / ▼ keys change the value following what is in
the following table and press the ● key:
Model
.
AR 1000
AR 1500
AR 2000
− Press the ▼ key, select "Config. Confirmed" and press the
● key
− With the ▲ / ▼ keys change the value to "Yes" and press
the ● key
Appliance Configuration
"
(97) IO Configuration
"
(98) Appliance Settings
"
Configuration Confirmed
"
At this point the systems starts an application update process.
Once this is finished, the menu "Settings" appears on the menu.
− Press ◄ until you return to the home screen
An error message is displayed for a few seconds and then the
display returns to its normal state.

6.6 Touchscreen Control Panel replacement

GPL
21
9
System configurations must be performed only by the Technical
Assistance Service or by personnel authorized by
When replacing Touchscreen Control Panel no setting actions are
required.
40
Managing
Par. 98
MTN GPL MTN
17 18 17
17 18 17
17 18 17
"
1
"
4
"
Yes
" " "
Dependent
GPL
18
18
18
