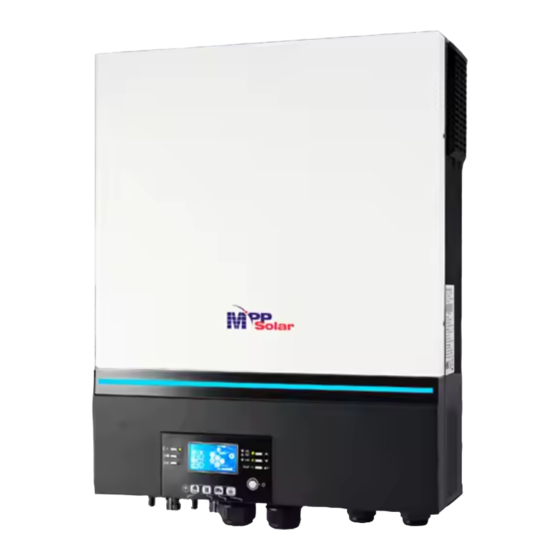

MPP Solar PIP3624MAX User Manual

Solar inverter / charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
PIP3624MAX/PIP7248MAX
SOLAR INVERTER / CHARGER
Version: 1.0

Advertisement

Table of Contents
loading

Related Manuals for MPP Solar PIP3624MAX

Summary of Contents for MPP Solar PIP3624MAX

  • Page 1 User Manual PIP3624MAX/PIP7248MAX SOLAR INVERTER / CHARGER Version: 1.0...

  • Page 2: Table Of Contents

    Table of Contents ABOUT THIS MANUAL ............................1 Purpose ................................1 Scope ................................1 SAFETY INSTRUCTIONS ........................... 1 INTRODUCTION ..............................2 Features ................................2 Basic System Architecture ..........................3 Product Overview ............................. 4 INSTALLATION ..............................5 Unpacking and Inspection..........................5 Preparation ..............................

  • Page 3: About This Manual

    ABOUT THIS MANUAL Purpose This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read this manual carefully before installations and operations. Keep this manual for future reference. Scope This manual provides safety and installation guidelines as well as information on tools and wiring. SAFETY INSTRUCTIONS WARNING: This chapter contains important safety and operating instructions.

  • Page 4: Introduction

    INTRODUCTION This is a multi-function inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single package. The comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC or solar charging priority, and acceptable input voltage based on different applications.

  • Page 5: Basic System Architecture

    Basic System Architecture The following illustration shows basic application for this unit. It also includes the following devices to have a complete running system:  Generator or Utility mains.  PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power various appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioners.

  • Page 6: Product Overview

    Product Overview PIP3624MAX PIP7248MAX Appendix I. NOTE: For parallel model installation and operation, please check LCD display 12. Current sharing port Status indicator 13. Parallel communication port Charging indicator 14. Dry contact Fault indicator 15. USB port as USB communication port and USB function port Function buttons 16.

  • Page 7: Installation

    INSTALLATION Unpacking and Inspection Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package: Inverter unit Manual software CD RS-232 cable Parallel communication cable Current sharing cable (only for PIP7248MAX model) (only for PIP7248MAX model) DC Fuse...

  • Page 8: Battery Connection

    Install the unit by screwing four screws. It’s recommended to use M4 or M5 screws. Battery Connection CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-current protector or disconnect device between battery and inverter. It may not be requested to have a disconnect device in some applications, however, it’s still requested to have over-current protection installed.

  • Page 9: Ac Input/Output Connection

    WARNING! It's very important for system safety and efficient operation to use appropriate cable for AC input connection. To reduce risk of injury, please use the proper recommended cable size as below. Suggested cable requirement for AC wires Model Gauge Torque Value PIP3624MAX 12AWG 1.2~ 1.6Nm PIP7248MAX 8 AWG 1.4~ 1.6Nm Please follow below steps to implement AC input/output connection: 1.

  • Page 10: Pv Connection

    5. Make sure the wires are securely connected. CAUTION: Important Be sure to connect AC wires with correct polarity. If L and N wires are connected reversely, it may cause utility short-circuited when these inverters are worked in parallel operation. CAUTION: Appliances such as air conditioner requires at least 2~3 minutes to restart because it’s required to have enough time to balance refrigerant gas inside of circuits.
  • Page 11 Prepare the cable and follow the connector assembly process: Strip one cable 8 mm on both end sides and be careful NOT to nick conductors. Insert striped cable into female terminal and crimp female terminal as shown below. Insert assembled cable into female connector housing as shown below. Insert striped cable into male terminal and crimp male terminal as shown below.
  • Page 12 90Vdc~450Vdc PV Array MPPT Voltage Range 150Vdc 80Vdc Start-up Voltage (Voc) Recommended solar panel configuration for PIP3624MAX model: Solar Panel Spec. SOLAR INPUT Q'ty of panels Total input power (reference) Min in series: 6 pcs, max. in series: 12 pcs.

  • Page 13: Final Assembly

    Final Assembly After connecting all wirings, re-connect three cables and then put bottom cover back by screwing two screws as shown below. Remote Display Panel Installation The LCD module can be removable and installed in a remote location with an optional communication cable. Please take the follow steps to implement this remote panel installation.
  • Page 14 Step 2. Prepare your mounting holes in the marked locations as shown in the illustration below. The LCD module then can be securely mounted to your desired location. Ø 5-Ø 9 Note: Wall installation should be implemented with the proper screws to the right. Step 3.

  • Page 15: Communication Connection

    Communication Connection Serial Connection Please use the supplied serial cable to connect between the inverter and your PC. Install the monitoring software from the bundled CD and follow the on-screen instructions to complete your installation. For detailed software operation, refer to the software user manual on the bundled CD. Wi-Fi Connection This unit is equipped with a Wi-Fi transmitter.

  • Page 16: Operation

    OPERATION Power ON/OFF Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch (located on the display panel) to turn on the unit. Inverter Turn-on After this inverter is turned on, WELCOME light show will be started with RGB LED BAR. It will slowly cycle through entire spectrum of nine colors (Green, Sky blue, Royal blue, Violet, Pink, Red, Honey, Yellow, Lime yellow) about 10-15 seconds.

  • Page 17: Lcd Display Icons

    Solid On Battery is fully charged Green Flashing Battery is charging. Solid On Fault mode Flashing Warning mode Function Keys Function Key Description Exit the setting USB function setting Select USB OTG functions Timer setting for the Output source Setup the timer for prioritizing the output source priority Timer setting for the Charger source Setup the timer for prioritizing the charger source...
  • Page 18 Battery Information Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery mode and charging status in line mode. When battery is charging, it will present battery charging status. Status Battery voltage LCD Display <2V/cell 4 bars will flash in turns. Bottom bar will be on and the other three bars Constant 2 ~ 2.083V/cell...

  • Page 19: Lcd Setting

    LCD Setting General Setting ” After pressing and holding “ button for 3 seconds, the unit will enter the Setup Mode. Press “ ” or “ ” button to select setting programs. Press “ ” button to confirm you selection or “ ”...
  • Page 20 60A (default) Appliances (default) If selected, acceptable AC input voltage range will be within 90-280VAC. AC input voltage range If selected, acceptable AC input voltage range will be within 170-280VAC. AGM (default) Flooded User-Defined If “User-Defined” is selected, battery charge voltage and low DC cut-off voltage can be set up in Battery type program 26, 27 and 29.
  • Page 21 WECO battery (only for If selected, programs of 02, 12, PIP7248MAX model) 26, 27 and 29 will be auto-configured per battery supplier recommended. No need for further adjustment. Battery Type Soltaro battery (only for If selected, programs of 02, 26, 27 PIP7248MAX model) and 29 will be automatically set up.
  • Page 22 02 for 30A (default) utility charger. PIP3624MAX model: 22.0V 22.5V 23.0V (default) 23.5V Setting voltage point back to utility source when selecting “SBU” (SBU 24.0V 24.5V priority) in program 01. 25.0V 25.5V...
  • Page 23 PIP7248MAX model: 46V (default) PIP3624MAX model: Battery fully charged 24.5V Setting voltage point back to battery mode when selecting “SBU” (SBU priority) in program 01. 25.5V...
  • Page 24 26.5V 27V (default) 27.5V 28.5V 29.5V Setting voltage point back to battery mode when selecting “SBU” (SBU priority) in program 01. 30.5V PIP7248MAX model: Battery fully charged...
  • Page 25 54V (default) Setting voltage point back to battery mode when selecting “SBU” (SBU priority) in program 01. If this inverter/charger is working in Line, Standby or Fault mode, charger source can be programmed as below: Solar first Solar energy will charge battery as Charger source priority: first priority.
  • Page 26 Solar and Utility (default) Solar energy and utility will charge battery at the same time. Charger source priority: Only Solar Solar energy will be the only To configure charger source charger source no matter utility is priority available or not. If this inverter/charger is working in Battery mode, only solar energy can charge battery.
  • Page 27 Bulk charging voltage (C.V voltage) If self-defined is selected in program 5, this program can be set up. Setting range is from 25.0V to 31.0V for PIP3624MAX model and 48.0V to 62.0V for PIP7248MAX model. Increment of each click is 0.1V.
  • Page 28  If PV energy, battery If self-defined is selected in program 5, this program can be set power and utility are all up. Setting range is from 21.0V to 24.0V for PIP3624MAX model available, inverter will transfer to line mode and 42.0V to 48.0V for PIP7248MAX model.
  • Page 29 PIP3624MAX model default: PIP7248MAX model default: 58.4V 29.2V Battery equalization voltage Setting range is from 25.0V to 31.0V for PIP3624MAX model and 48.0V to 62.0V for PIP7248MAX model. Increment of each click is 0.1V. 60min (default) Setting range is from 5min to 900min.
  • Page 30 If selected, the maximum Disable (Default) discharge current limits protection is disabled. It will be protected by overload. The setting range is from 30 A to 150 A. Increment of each click is 10A. Setting to limit maximum Maximum discharging current discharge current.
  • Page 31 High Scrolling Breathing RGB LED effects Solid on (Default) C01: (Default) C02: Color combination of RGB Violet-White-Sky blue White-Yellow-Green   LED to show energy source Pink-Honey Royal blue-Lime yellow   and battery charge/discharge status: Grid-PV-Battery   Battery charge/discharge status Not reset (Default) Reset...
  • Page 32 30 minutes 60 minutes For minute setting, the range is from 0 to 59. Time setting – Minute For hour setting, the range is from 0 to 23. Time setting – Hour For day setting, the range is from 1 to 31. Time setting–...
  • Page 33 Procedure LCD Screen Step 1: Press and hold “ ” button for 3 seconds to enter USB function setting mode. Step 2: Press “ ”, “ ” or “ ” button to enter the selectable setting programs (detail descriptions in Step 3).. Step 3: Please select setting program by following the procedure.
  • Page 34 Step 3: Please select setting program by following each procedure. Program# Operation Procedure LCD Screen Press “ ” button to set up Utility First Timer. Press “ ” button to select staring time. Press “ ” or “ ” button to adjust values and press “ ”...

  • Page 35: Lcd Display

    Press “ ” button to set up Solar Only Timer. Press “ ” button to select staring time. Press “ ” or “ ” button to adjust values and press “ ” to confirm. Press “ ” button to select end time. Press “ ”...
  • Page 36 PV current = 2.5A PV1 current = 2.5A (dual input model) PV current PV2 current = 2.5A (dual input model) PV power = 500W PV1 power = 500W (dual input model) PV power PV2 power = 500W (dual input model)
  • Page 37 AC and PV charging current=50A PV charging current=50A Charging current AC charging current=50A AC and PV charging power=500W PV charging power=500W Charging power AC charging power=500W Battery voltage=25.5V, output voltage=230V Battery voltage and output voltage...
  • Page 38 Output frequency=50Hz Output frequency Load percent=70% Load percentage When connected load is lower than 1kVA, load in VA will present xxxVA like below chart. Load in VA When load is larger than 1kVA (≧1KVA), load in VA will present x.xkVA like below chart. When load is lower than 1kW, load in W will present xxxW like below chart.
  • Page 39 This PV Today energy = 3.88kWh, Load Today energy= 9.88kWh. PV energy generated today and Load output energy today This PV month energy = 388kWh, Load month energy= 988kWh. PV energy generated this month and Load output energy this month. This PV year energy = 3.88MWh, Load year energy = 9.88MWh.

  • Page 40: Operating Mode Description

    Main CPU version 00014.04. Main CPU version checking. Secondary CPU version 00012.03. Secondary CPU version checking. Secondary Wi-Fi version 00000.24. Secondary Wi-Fi version checking. Operating Mode Description Operation mode Description LCD display Charging by utility and PV energy. Charging by utility. Standby mode Note: No output is supplied by the...
  • Page 41 Operation mode Description LCD display Charging by utility and PV energy. Charging by utility. Fault mode Note: *Fault mode: Errors are PV energy and utility can caused by inside circuit error charge batteries. or external reasons such as over temperature, output Charging by PV energy.
  • Page 42 Operation mode Description LCD display If either “SUB” (solar first) or “SBU” is selected as output source priority and battery is not connected, solar energy and the utility will provide the loads. The unit will provide output power from the mains. It will Line Mode also charge the battery at line mode.

  • Page 43: Faults Reference Code

    Faults Reference Code Fault Code Fault Event Icon on Fan is locked when inverter is off. Over temperature Battery voltage is too high Battery voltage is too low Output short circuited. Output voltage is too high. Overload time out Bus voltage is too high Bus soft start failed PV over current PV over voltage...

  • Page 44: Warning Indicator

    Warning Indicator Warning Warning Event Audible Alarm Icon flashing Code Beep three times every Fan is locked when inverter is on. second Over temperature None Battery is over-charged Beep once every second Low battery Beep once every second Overload Beep once every 0.5 second Output power derating Beep twice every 3 seconds PV energy is low.

  • Page 45: Battery Equalization

    BATTERY EQUALIZATION Equalization function is added into charge controller. It reverses the buildup of negative chemical effects like stratification, a condition where acid concentration is greater at the bottom of the battery than at the top. Equalization also helps to remove sulfate crystals that might have built up on the plates. If left unchecked, this condition, called sulfation, will reduce the overall capacity of the battery.

  • Page 46: Specifications

    SPECIFICATIONS Table 1 Line Mode Specifications MODEL PIP3624MAX PIP7248MAX Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 230Vac 170Vac± 7V (UPS) Low Loss Voltage 90Vac± 7V (Appliances) 180Vac± 7V (UPS); Low Loss Return Voltage 100Vac± 7V (Appliances) High Loss Voltage 280Vac±...
  • Page 47 Table 2 Inverter Mode Specifications MODEL PIP3624MAX PIP7248MAX Rated Output Power 3600W 7200W Output Voltage Waveform Pure Sine Wave Output Voltage Regulation 230Vac± 5% Output Frequency 60Hz or 50Hz Peak Efficiency Overload Protection 100ms@≥205% load;5s@≥150% load; 10s@110%~150% load Surge Capacity...
  • Page 48 Table 3 Charge Mode Specifications Utility Charging Mode MODEL PIP3624MAX PIP7248MAX Charging Current (UPS) @ Nominal Input Voltage Flooded 29.2Vdc 58.4Vdc Bulk Charging Battery Voltage AGM / Gel 28.2Vdc 56.4Vdc Battery Floating Charging Voltage 27Vdc 54Vdc Overcharge Protection 33Vdc 66Vdc...
  • Page 49 Table 4 General Specifications MODEL PIP3624MAX PIP7248MAX Safety Certification Operating Temperature Range -10°C to 50°C Storage temperature -15°C~ 60°C Humidity 5% to 95% Relative Humidity (Non-condensing) Dimension 147.4x 432.5 x 553.6 (D*W*H), mm Net Weight, kg 14.1 18.4 Table 5 Parallel Specifications (...

  • Page 50: Trouble Shooting

    TROUBLE SHOOTING Problem LCD/LED/Buzzer Explanation / Possible cause What to do Unit shuts down LCD/LEDs and buzzer automatically will be active for 3 The battery voltage is too low 1. Re-charge battery. during startup seconds and then (<1.91V/Cell) 2. Replace battery. process.

  • Page 51: Appendix I: Parallel Function (Only For Pip7248Max Mode)

    Appendix I: Parallel function (Only for PIP7248MAX mode) 1. Introduction This inverter can be used in parallel with two different operation modes. 1. Parallel operation in single phase is with up to 6 units. The supported maximum output power is 43.2KW/43.2KVA.
  • Page 52 Recommended breaker specification of battery for each inverter: Model 1 unit* PIP7248MAX 250A/70VDC *If you want to use only one breaker at the battery side for the whole system, the rating of the breaker should be X times current of 1 unit. “X” indicates the number of inverters connected in parallel. Recommended breaker specification of AC input with single phase: 2 units 3 units...
  • Page 53 Three inverters in parallel: Power Connection Communication Connection Four inverters in parallel: Power Connection Communication Connection...
  • Page 54 Five inverters in parallel: Power Connection Communication Connection Six inverters in parallel: Power Connection Communication Connection...
  • Page 55 4-2. Support 3-phase equipment Two inverters in each phase: Power Connection Communication Connection Four inverters in one phase and one inverter for the other two phases: Power Connection Communication Connection...
  • Page 56 Three inverters in one phase, two inverters in second phase and one inverter for the third phase: Power Connection Communication Connection Three inverters in one phase and only one inverter for the remaining two phases: Power Connection Communication Connection...
  • Page 57 Two inverters in two phases and only one inverter for the remaining phase: Power Connection Communication Connection Two inverters in one phase and only one inverter for the remaining phases: Power Connection Communication Connection...
  • Page 58 One inverter in each phase: Power Connection Communication Connection WARNING: Do not connect the current sharing cable between the inverters which are in different phases. Otherwise, it may damage the inverters. 5. PV Connection Please refer to user manual of single unit for PV Connection. CAUTION: Each inverter should connect to PV modules separately.
  • Page 59 6. LCD Setting and Display Setting Program: Program Description Selectable option Single When the unit is operated alone, please select “SIG” in program 28. When the units are used in parallel Parallel for single phase application, please select “PAL” in program 28. Please refer to 5-1 for detailed information.
  • Page 60 Fault code display: Fault Code Fault Event Icon on Power feedback protection Firmware version inconsistent Current sharing fault CAN fault Host loss Synchronization loss Battery voltage detected different AC input voltage and frequency detected different AC output current unbalance AC output mode setting is different Code Reference: Code Description...
  • Page 61 automatically restart. If detecting AC connection, they will work normally. LCD display in Master unit LCD display in Slave unit Step 5: If there is no more fault alarm, the parallel system is completely installed. Step 6: Please switch on all breakers of Line wires in load side. This system will start to provide power to the load.
  • Page 62 8. Trouble shooting Situation Solution Fault Fault Event Description Code Restart the inverter. Check if L/N cables are not connected reversely in all inverters. For parallel system in single phase, make sure the sharing are Current feedback into connected in all inverters. the inverter is For supporting three-phase system, make sure the sharing cables are detected.

  • Page 63: Appendix Ii: Bms Communication Installation

    Appendix II: BMS Communication Installation 1. Introduction If connecting to lithium battery, it is recommended to purchase a custom-made RJ45 communication cable. Please check with your dealer or integrator for details. This custom-made RJ45 communication cable delivers information and signal between lithium battery and the inverter.
  • Page 64 3. Installation and Operation After configuration, please install LCD panel with inverter and Lithium battery with the following steps. Step 1. Use custom-made RJ45 cable to connect inverter and Lithium battery. Note for parallel system: 1. Only support common battery installation. 2.
  • Page 65 Step 5. Be sure to select battery type as “PYL” in LCD program 5. If communication between the inverter and battery is successful, the battery icon on LCD display will flash. Generally speaking, it will take longer than 1 minute to establish communication. Active Function This function is to activate lithium battery automatically while commissioning.
  • Page 66 Step 3. Turn on the inverter. Step 4. Be sure to select battery type as “WEC” in LCD program 5. If communication between the inverter and battery is successful, the battery icon on LCD display will “flash”. Generally speaking, it will take longer than 1 minute to establish communication. SOLTARO Step 1.
  • Page 67 Step 3. Turn on the inverter. Step 4. Be sure to select battery type as “SOL” in LCD program 5. If communication between the inverter and battery is successful, the battery icon on LCD display will “flash”. Generally speaking, it will take longer than 1 minute to establish communication. LCD Display Information Press “...
  • Page 68 5. Code Reference Related information code will be displayed on LCD screen. Please check inverter LCD screen for the operation. Code Description Action If battery status is not allowed to charge and discharge after the communication between the inverter and battery is successful, it will show code 60 to stop charging and discharging battery.

  • Page 69: Appendix Iii: The Wi-Fi Operation Guide In Remote Panel

    Appendix III: The Wi-Fi Operation Guide in Remote Panel 1. Introduction Wi-Fi module can enable wireless communication between off-grid inverters and monitoring platform. Users have complete and remote monitoring and controlling experience for inverters when combining Wi-Fi module with WatchPower APP, available for both iOS and Android based device. All data loggers and parameters are saved in iCloud.
  • Page 70 Then, a “Registration success” window will pop up. Tap “Go now” to continue setting local Wi-Fi network connection. Step 2: Local Wi-Fi Module Configuration Now, you are in “Wi-Fi Config” page. There are detailed setup procedure listed in “How to connect?” section and you may follow it to connect Wi-Fi.
  • Page 71 Step 3: Wi-Fi Network settings icon to select your local Wi-Fi router name (to access the internet) and enter password. Step 4: Tap “Confirm” to complete the Wi-Fi configuration between the Wi-Fi module and the Internet. If the connection fails, please repeat Step 2 and 3. Diagnose Function If the module is not monitoring properly, please tap “...
  • Page 72 2-3. Login and APP Main Function After finishing the registration and local Wi-Fi configuration, enter registered name and password to login. Note: Tick “Remember Me” for your login convenience afterwards. Overview After login is successfully, you can access “Overview” page to have overview of your monitoring devices, including overall operation situation and Energy information for Current power and Today power as below diagram.
  • Page 73 Devices Tap the icon (located on the bottom) to enter Device List page. You can review all devices here by adding or deleting Wi-Fi Module in this page. Add device Delete device icon on the top right corner and enter part number by scanning bar code to add Wi-Fi module. This part number is printed on the Wi-Fi module’s surface, or manually enter it.
  • Page 74 2-4. Device List In Device List page, you can pull down to refresh the device information and then tap any device you want to check up for its real-time status and related information as well as to change parameter settings. Please refer to the parameter setting list.
  • Page 75 【Battery Mode】 Inverter will power the load from the batter with or without PV charging. Only PV source can charge battery. Device Alarm and Name Modification In this page, tap the icon on the top right corner to enter the device alarm page. Then, you can review alarm history and detailed information.
  • Page 76 【Rated Information】displays information of Nominal AC voltage, Nominal AC current, Rated battery voltage, Nominal output voltage, Nominal output frequency, Nominal output current, Nominal output apparent power and Nominal output active power. Please slide up to see more rated information. 【History】displays the record of unit information and setting timely. 【Wi-Fi Module Information】displays of Wi-Fi Module PN, status and firmware version.
  • Page 77 discharge. Charger source To configure charger source priority. priority: Max. charging current It’s to set up battery charging parameters. The selectable values in Max. AC charging different inverter model may vary. current: Please see product manual for the details. Float charging voltage It’s to set up battery charging parameters.
