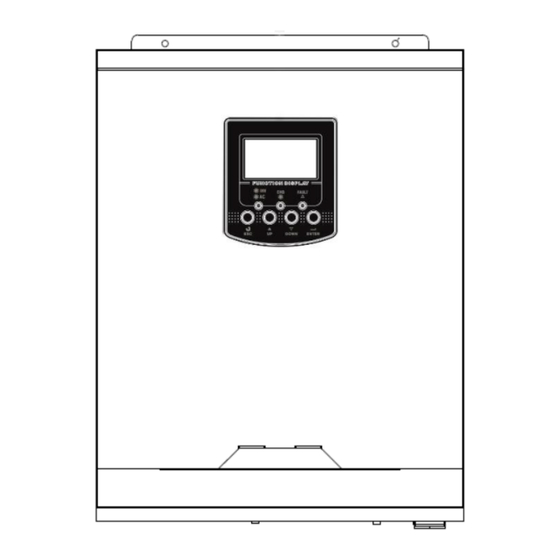

MPP Solar PIP 1212GE User Manual

Inverter / charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
PIP 1212GE/PIP 2524GE
INVERTER / CHARGER
Version: 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIP 1212GE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MPP Solar PIP 1212GE

Summary of Contents for MPP Solar PIP 1212GE

  • Page 1 User Manual PIP 1212GE/PIP 2524GE INVERTER / CHARGER Version: 1.1...

  • Page 2: Table Of Contents

    Table Of Contents ABOUT THIS MANUAL ............................1 Purpose ................................1 Scope ................................1 SAFETY INSTRUCTIONS ........................... 1 INTRODUCTION ..............................2 Features ................................2 Basic System Architecture ..........................2 Product Overview ............................. 3 INSTALLATION ..............................4 Unpacking and Inspection..........................4 Preparation ..............................

  • Page 3: About This Manual

    ABOUT THIS MANUAL Purpose This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read this manual carefully before installations and operations. Keep this manual for future reference. Scope This manual provides safety and installation guidelines as well as information on tools and wiring. SAFETY INSTRUCTIONS WARNING: This chapter contains important safety and operating instructions.

  • Page 4: Introduction

    INTRODUCTION This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

  • Page 5: Product Overview

    Product Overview 1. LCD display 2. Status indicator 3. Charging indicator 4. Fault indicator 5. Function buttons 6. Power on/off switch 7. AC input 8. AC output 9. PV input 10. Battery input 11. RS-232 communication port...

  • Page 6: Installation

    INSTALLATION Unpacking and Inspection Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package:  The unit x 1  User manual x 1  Communication cable x 1 ...

  • Page 7: Battery Connection

    To reduce risk of injury, please use the proper recommended cable as below. Recommended battery cable size: Model Wire Size Cable (mm Torque value（max） PIP 1212GE/ 1 x 4AWG 2 Nm PIP 2524GE Please follow below steps to implement battery connection: 1. Remove insulation sleeve 18 mm for positive and negative conductors.
  • Page 8 5. Insert the battery wires flatly into battery connectors of inverter and make sure the bolts are tightened with torque of 2 Nm in clockwise direction. Make sure polarity at both the battery and the inverter/charge is correctly connected and conductors are tightly screwed into the battery terminals. Recommended tool: #2 Pozi Screwdriver 6.

  • Page 9: Ac Input/Output Connection

    Suggested cable requirement for AC wires Cable (mm Model Gauge Torque Value PIP 1212GE/ 12 AWG 1.2 Nm PIP 2524GE Please follow below steps to implement AC input/output connection: 1. Before making AC input/output connection, be sure to open DC protector or disconnector first.

  • Page 10: Pv Connection

    To reduce risk of injury, please use the proper recommended cable size as below. Model Wire Size Cable (mm Torque value（max） PIP 1212GE/ 1 x 12AWG 1.2 Nm PIP 2524GE WARNING: Because this inverter is non-isolated, only three types of PV modules are acceptable: single crystalline, poly crystalline with class A-rated and CIGS modules.

  • Page 11: Final Assembly

    tightly in clockwise direction. Recommended tool: 4mm blade screwdriver Final Assembly After connecting all wirings, please put bottom cover back by screwing two screws as shown below.

  • Page 12: Operation

    OPERATION Power ON/OFF Side view of unit Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch (located on the button of the case) to turn on the unit. Operation and Display Panel The operation and display panel, shown in below chart, is on the front panel of the inverter.

  • Page 13: Lcd Display Icons

    LCD Display Icons Icon Function description Input Source Information Indicates the AC input. Indicates the PV input Indicate input voltage, input frequency, PV voltage, charger current, charger power, battery voltage. Configuration Program and Fault Information Indicates the setting programs. Indicates the warning and fault codes. Warning: flashing with warning code.
  • Page 14 In battery mode, it will present battery capacity. Load Percentage Battery Voltage LCD Display < 1.85V/cell 1.85V/cell ~ 1.933V/cell Load >50% 1.933V/cell ~ 2.017V/cell > 2.017V/cell < 1.892V/cell 1.892V/cell ~ 1.975V/cell Load < 50% 1.975V/cell ~ 2.058V/cell > 2.058V/cell Load Information Indicates overload.

  • Page 15: Lcd Setting

    LCD Setting After pressing and holding ENTER button for 3 seconds, the unit will enter setting mode. Press “UP” or “DOWN” button to select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to exit. Setting Programs: Program Description...
  • Page 16 80A. Increment of each click is that in program in 11, the 10A. inverter will apply charging current from program 02 for utility charger. Available options in PIP 1212GE model: 11.0V 11.3V 11.5V (default) 11.8V Setting voltage point back to utility source when selecting “SBU priority”...
  • Page 17 Available options in PIP 2524GE model: 22.0V 22.5V 23.0V (default) 23.5V 24.0V 24.5V 25.0V 25.5V Available options in PIP 1212GE model: Battery fully charged 12.0V 12.3V 12.5V 12.8V 13.0V Setting voltage point back 13.3V 13.5V (default) to battery mode when selecting “SBU priority”...
  • Page 18 24.5V 25.5V 26.5V 27V (default) 27.5V 28.5V If this inverter/charger is working in Line, Standby or Fault mode, charger source can be programmed as below: Utility first Utility will charge battery as first priority. Solar energy will charge battery only when utility power is not available.
  • Page 19 (C.V voltage) If self-defined is selected in program 5, this program can be set up. Setting range is from 12.5V to 15.0V for PIP 1212GE model and 25.0V to 31.0V for PIP 2524GE model. Increment of each click is 0.1V.
  • Page 20 Low DC cut-off voltage If self-defined is selected in program 5, this program can be set up. Setting range is from 10.5V to 12.0V for PIP 1212GE model and 21.0V to 24.0V for PIP 2524GE model. Increment of each click is 0.1V.

  • Page 21: Display Setting

    Display Setting The LCD display information will be switched in turns by pressing “UP” or “DOWN” key. The selectable information is switched as below order: input voltage, input frequency, PV voltage, charging current, charging power, battery voltage, output voltage, output frequency, load percentage, load in Watt, load in VA, load in Watt, DC discharging current, main CPU Version.
  • Page 22 AC and PV charging current=50A PV charging current=50A Charging current AC charging current=40A AC and PV charging power=500W PV charging power=500W Charging power AC charging power=500W Battery voltage=25.5V, output voltage=230V Battery voltage and output voltage...
  • Page 23 Output frequency=50Hz Output frequency Load percent=70% Load percentage When connected load is lower than 1kVA, load in VA will present xxxVA like below chart. Load in VA When load is larger than 1kVA (≧1KVA), load in VA will present x.xkVA like below chart. When load is lower than 1kW, load in W will present xxxW like below chart.

  • Page 24: Operating Mode Description

    Battery voltage=25.5V, discharging current=1A Battery voltage/DC discharging current Main CPU version 00014.04 Main CPU version checking Operating Mode Description Operation mode Description LCD display Charging by utility and PV energy. Charging by utility. Standby mode Note: No output is supplied by the *Standby mode: The inverter unit but it still can charge is not turned on yet but at this...
  • Page 25 Operation mode Description LCD display Charging by utility and PV energy. The unit will provide output power from the mains. It will also charge the battery at line mode. Charging by utility. If “solar first” is selected as output source priority and solar energy is not sufficient to provide the load, solar energy and the utility will provide the loads and charge the battery at the...

  • Page 26: Battery Equalization Description

    Power from PV energy only. The unit will provide output Battery Mode power from PV power only. Battery Equalization Description Equalization function is added into charge controller. It reverses the buildup of negative chemical effects like stratification, a condition where acid concentration is greater at the bottom of the battery than at the top. Equalization also helps to remove sulfate crystals that might have built up on the plates.
  • Page 27 However, in Equalize stage, when battery equalized time is expired and battery voltage doesn’t rise to battery equalization voltage point, the charge controller will extend the battery equalized time until battery voltage achieves battery equalization voltage. If battery voltage is still lower than battery equalization voltage when battery equalized timeout setting is over, the charge controller will stop equalization and return to float stage.

  • Page 28: Fault Reference Code

    Fault Reference Code Fault Code Fault Event Icon on Fan is locked when inverter is off. Over temperature or NTC is not connected well. Battery voltage is too high Battery voltage is too low Output short circuited or over temperature is detected by internal converter components.

  • Page 29: Specifications

    SPECIFICATIONS Table 1 Line Mode Specifications INVERTER MODEL PIP 1212GE PIP 2524GE Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 230Vac 170Vac± 7V (UPS); Low Loss Voltage 90Vac± 7V (Appliances) 180Vac± 7V (UPS); Low Loss Return Voltage 100Vac± 7V (Appliances) High Loss Voltage 280Vac±...
  • Page 30 Table 2 Inverter Mode Specifications INVERTER MODEL PIP 1212GE PIP 2524GE Rated Output Power 1.2KVA/ 1.2KW 2.5KVA/ 2.5KW Pure Sine Wave Output Voltage Waveform 230Vac± 5% Output Voltage Regulation 50Hz Output Frequency Peak Efficiency Overload Protection 5s@≥130% load; 10s@105%~130% load...
  • Page 31 Table 3 Charge Mode Specifications Utility Charging Mode INVERTER MODEL PIP 1212GE PIP 2524GE Charging Algorithm 3-Step AC Charging Current (Max) 80Amp (@V =230Vac) Bulk Charging Flooded Battery 14.6 29.2 Voltage AGM / Gel Battery 14.1 28.2 Floating Charging Voltage 13.5Vdc...

  • Page 32: Trouble Shooting

    TROUBLE SHOOTING Problem LCD/LED/Buzzer Explanation / Possible cause What to do Unit shuts down LCD/LEDs and buzzer automatically will be active for 3 The battery voltage is too low 1. Re-charge battery. during startup seconds and then (<1.91V/Cell) 2. Replace battery. process.
