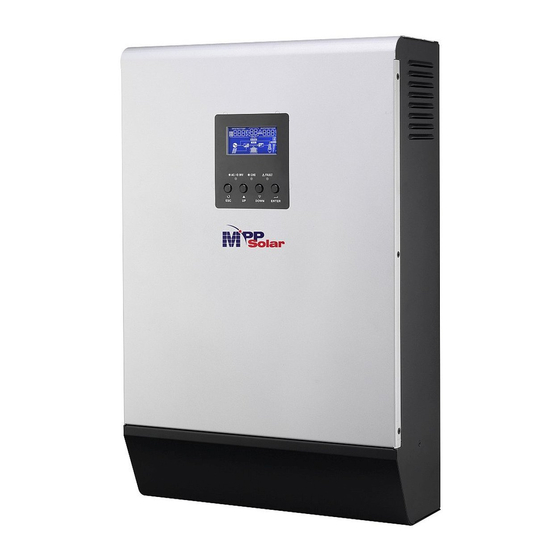

- Page 1 REMOTE PANEL MANUAL FOR PIP-HS/MS/MSX INVERTER-CHARGER SERIES User Manual Version: 1.2...
- Page 2 Product Overview Communication port and power input: Power input of remote panel. Signal input: Signal input to remote panel. Communication port: Connection to PC. Power switch: Main switch of remote panel. External power input: It’s necessary to have external +5VDC power source when using inverter without dry contact.
- Page 3 USB communication board RJ45 communication board Step 1: Remove terminal cover. Step 2: Remove USB Step 3: Put bundled RJ45 communication board. communication board in same place. Step 3: Before wiring connection, please modify jumper setting of JP1 and JP2 in communication board as below.
- Page 4 the inverter is bundled with dry contact, please follow below diagram 2 for wiring connection. Use a RJ45 to RS232 cable bundled with inverter to connect communication port to PC. If the inverter is not bundled with dry contact, it’s necessary to use an external +5V USB adapter to provide power for remote panel.
