24/7 ASSET MONITORING SOLUTION ENERGY
AMS01 CONFIGURATION TOOL USER MANUAL
SENSeOR (head office)
Bâtiment Natura 2
1198, avenue du Docteur
Maurice Donat
06250 Mougins
France
Contact address:
Regional distributors
Visit
www.senseor.com
for
the latest distribution
locations.
Advertisement
Table of Contents
Related Manuals for WIKA SENSeOR AMS01
Summary of Contents for WIKA SENSeOR AMS01
- Page 1 Document revision: UM00400EN-AA Date: 2023-07 24/7 ASSET MONITORING SOLUTION ENERGY AMS01 CONFIGURATION TOOL USER MANUAL SENSeOR (head office) Bâtiment Natura 2 1198, avenue du Docteur Maurice Donat 06250 Mougins France Contact address: Regional distributors Visit www.senseor.com the latest distribution locations.
-
Page 2: Warranty
MONITORING SOLUTION ENERGY WARRANTY These products are warranted to be free from functional defects in material and in workmanship at the time of the manufacturing and to conform at that time to the specifications set forth in the relevant instruction manuals or in the data sheets, for such products for a period of one year. Reference SENSeOR terms and conditions provided at time of purchase for complete warranty details. -
Page 3: Safety Information
MONITORING SOLUTION ENERGY SAFETY INFORMATION IT IS IMPORTANT TO READ THIS MANUAL BEFORE INSTALLING OR COMMISSIONING SENSEOR CRITICAL ASSET MONITORING SYSTEMS. DANGER DANGER INDICATES AN IMMINENTLY HAZARDOUS SITUATION, WHICH, IF NOT AVOIDED, WILL RESULT IN DEATH OR SERIOUS INJURY. FAILURE TO FOLLOW THE INSTRUCTIONS GIVEN WILL RESULT IN DEATH OR SERIOUS INJURY. WARNING WARNING INDICATES A POTENTIALLY HAZARDOUS SITUATION, WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH OR SERIOUS INJURY. -
Page 4: Table Of Contents
MONITORING SOLUTION ENERGY TABLE OF CONTENTS WARRANTY ............................... 2 SAFETY INFORMATION ..........................3 TABLE OF CONTENTS ..........................4 OVERVIEW ..............................6 RELATED DOCUMENTS ........................6 SYSTEM HARDWARE INSTALLATION ....................6 CONFIGURATION TOOL INSTALLATION ....................7 OPERATING SYSTEM ..........................7 AMS01 CONFIGURATION TOOL INSTALLER ..................7 OTHER REQUIRED INSTALLATION ...................... - Page 5 MONITORING SOLUTION ENERGY OFFLINE MODE ............................29 AMS01 Configuration Tool User Manual 5/29 www.senseor.com...
-
Page 6: Overview

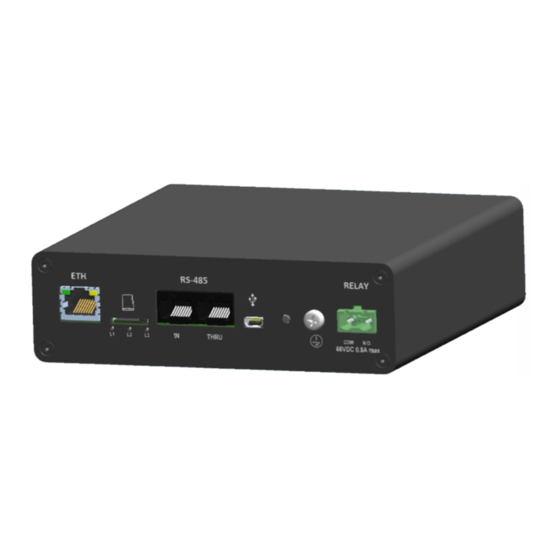

MONITORING SOLUTION ENERGY OVERVIEW This user manual describes how to use the AMS01 Configuration Tool software applicable with AMS01-T, AMS01-P and AMS01-TP readers. The following guidelines are applicable from version 1.3.6. RELATED DOCUMENTS UM00403-EN_AMS01 User Manual. UM00417-EN_AMS01 Modbus table. UM00418-EN_AMS01 Modbus table with HTR02 compatibility mode. UM00419-EN_AMS01 SD card file management. -
Page 7: Configuration Tool Installation
MONITORING SOLUTION ENERGY CONFIGURATION TOOL INSTALLATION OPERATING SYSTEM The AMS01 Configuration Tool operates only on Microsoft Windows operating system, with at least Windows 10 64-bit. AMS01 CONFIGURATION TOOL INSTALLER To install AMS01 Configuration Tool, double-click on the ‘Setup AMS01 Configuration Tool vX.Y.Z.msi’. NOTE LAST REVISION... -
Page 8: Configuration Of The Connection
MONITORING SOLUTION ENERGY CONFIGURATION OF THE CONNECTION The default IP address is printed on the serialization label on the back of the reader. This IP address can be modified using the software (see ‘Settings’ tab) To connect a computer to the reader, the Ethernet card must be configured as follows: •... -
Page 9: Application Launch
MONITORING SOLUTION ENERGY APPLICATION LAUNCH FIRST LAUNCH AND WINDOWS FIREWALL At the first use of ‘Scan’ button, the Windows firewall will ask for you about security notice. You must allow the AMS01 Configuration Tool software to communicate using your networks. AMS01 Configuration Tool User Manual 9/29 www.senseor.com... -
Page 10: Main Window Description
MONITORING SOLUTION ENERGY MAIN WINDOW DESCRIPTION READER DETECTION At start-up, the application scans and lists available and active network adapters. Select the network card associated with the readers IP address. If the network card is not detected: • Close the application, •... - Page 11 MONITORING SOLUTION ENERGY Click on button to list readers connected to the selected card: : Open reader window (see next chapter). : Update firmware by loading firmware file (*.senseor) from file explorer. : This label appears if the reader is in ‘Device Firmware Update (DFU)’ mode. NOTE THE LATEST FIRMWARE VERSION IS AVAILABLE ON THE WEBSITE SENSEOR.COM/DOWNLOADS.
-
Page 12: Reader Window Description
MONITORING SOLUTION ENERGY READER WINDOW DESCRIPTION SETTINGS TAB This tab shows the reader information and could be used to configure the following settings: READER NAME (max 19 digits) SYSTEM • Mains power frequency (‘50 Hz’ or ‘60 Hz’) • System temperature unit (Celsius or Fahrenheit) •... - Page 13 MONITORING SOLUTION ENERGY CONFIGURATION FILE • Save the full reader configuration (all tabs) into a file. • Load full reader configuration (all tabs) from a specified file. : Apply modifications. : Cancel modifications. AMS01 Configuration Tool User Manual 13/29 www.senseor.com...
-
Page 14: Installation Tab
MONITORING SOLUTION ENERGY INSTALLATION TAB This tab is used to configure temperature sensors and partial discharge detection probes installation. For installation details, please refer to the ‘UM00403-AMS01 User Manual’. ENVIRONMENTAL SENSOR This location shows the information from the external humidity and temperature sensor if connected. Data are obtain by click on the refresh button TEMPERATURE INSTALLATION SETTINGS Only applicable for ‘AMS01-T’... - Page 15 MONITORING SOLUTION ENERGY Select which temperature reference must be used for sensor installation. Use Global Reference Manually set temperature is used as reference temperature. Use Environmental Sensor Environmental sensor temperature is used as reference temperature. Individual Reference The reference temperature must be manually set for each Temperature sensor.
-
Page 16: Antenna Pairs
MONITORING SOLUTION ENERGY ANTENNA PAIRS The AMS01 reader support up to five antenna pairs. Temperature sensors and partial discharge probes needs to be configured for each antenna pair. Add new antenna to the reader configuration. Clear all antennas from the reader configuration. Remove the antenna from the reader configuration. -
Page 17: Temperature Sensors
MONITORING SOLUTION ENERGY TEMPERATURE SENSORS The following picture shows the temperature sensor configuration section in antenna pair. Add sensor(s) by selecting XML file(s) into the antenna pair. Name of the sensor (max 19 digits). Check the sensor. Enter the reference temperature (only available when Individual reference temperature use is selected in Temperature installation settings space). - Page 18 MONITORING SOLUTION ENERGY Commissioning status The commissioning status information reflects the status of the sensor view by the reader. A non- commissioned sensor will not be interrogated by the reader. The sensor is commissioned by the system on the best RF signal available. The sensor is commissioned manually from the diagnostic page.
-
Page 19: Diagnostic Window
MONITORING SOLUTION ENERGY DIAGNOSTIC WINDOW Only applicable for ‘AMS01-T’ and ‘AMS01-TP’ readers. This window shows the spectrum view of the sensitive elements of a temperature sensor and more precise information about sensor interrogation result. The system will suggest an operating point validating most of its criteria. If needed you can select an other operating point. -
Page 20: Partial Discharge Probes
MONITORING SOLUTION ENERGY PARTIAL DISCHARGE PROBES Only applicable for ‘AMS01-P’ and ‘AMS01-TP’ readers. Click to enable/disable the PD probe for this antenna pair. Select a PD Notifier to associate with the probe (see ‘Partial discharge monitoring notifiers’ chapter). AMS01 Configuration Tool User Manual 20/29 www.senseor.com... -
Page 21: Temperature Notifiers
MONITORING SOLUTION ENERGY TEMPERATURE NOTIFIERS Only applicable for ‘AMS01-T’ and ‘AMS01-TP’ readers. NOTIFIER OPERATION Temperature notifiers is an information system based on predefined temperature threshold values and duration time. A notifier could be linked to one or several sensors (see Installation tab). - Page 22 MONITORING SOLUTION ENERGY WARNING ALERT OR WARNING NOTIFICATION SWITCHES ON WHEN TEMPERATURE MEASURED EXCEED THE ALERT THRESHOLD FOR A PREDEFINED PERIOD (EX: 1 HOUR). ALERT OR WARNING NOTIFICATION SWITCHES OFF WHEN TEMPERATURE MEASURED BREAK DOWN THE ALERT THRESHOLD FOR A PREDEFINED PERIOD (EX: 1 HOUR). AMS01 Configuration Tool User Manual 22/29 www.senseor.com...
-
Page 23: Tab Description
MONITORING SOLUTION ENERGY TAB DESCRIPTION : Enter temperature notifier name (be reflected in other tabs). : Activate Overheating notification for this notifier. : Activate Deviation notification for this notifier. : Choose Warning threshold value. : Choose Alert threshold value. : Choose period above the threshold value for notification activation : Activate relay switch on corresponding notification level. -
Page 24: Partial Discharge Notifiers
MONITORING SOLUTION ENERGY PARTIAL DISCHARGE NOTIFIERS Only applicable for ‘AMS01-P’ and ‘AMS01-TP’ readers. NOTIFIER OPERATION Partial discharge notifiers are information systems that use predefined PD level threshold values to monitor a percentage of PD activity over a specific period. The system calculate a PD level who is proportional to the Ratio (dB) and the Estimated Pulse Per Cycle (EPPC) measured at each cycle. -
Page 25: Tab Description
MONITORING SOLUTION ENERGY TAB DESCRIPTION : Activate/Deactivate the PD Notifier. : This value is the notification threshold level, obtained by multiplying Ratio by EPPC. : Choose a Ratio level for PD triggered level calculation. : Choose an EPPC level for PD triggered level calculation. : Choose the period above the PD level threshold value for notification activation. -
Page 26: System Test Tab
MONITORING SOLUTION ENERGY SYSTEM TEST TAB This window allow to check the system installation by performing the measurement of selected elements (temperature sensors and partial discharge probes). This test is activated with the ‘Play’ button Uncheck the toggle buttons in front of temperature sensor or PD probe to not run a measurement on this elements. -
Page 27: Test Of Relay
MONITORING SOLUTION ENERGY TEST OF RELAY : When the test is running, click on the toggle button to open/close the relay. TEST OF THE TEMPERATURE SENSORS For each enabled temperature sensor, the system will check the sensor and return temperature with one of the following test result icons: : The sensor is correctly interrogated. - Page 28 MONITORING SOLUTION ENERGY : The partial discharge activity is being evaluated. During the system test it is possible to change offset level to show the partial discharge activity measurements depending on the different offset levels. The offset level is used to vary the sensitivity of partial discharge activity detection. A low offset level allows detection of a partial discharge in a nearby zone, or detection of a low intensity partial discharge.
- Page 29 MONITORING SOLUTION ENERGY OFFLINE MODE This configuration tool software allow user to prepare configuration of a reader without the need of this reader. To start an offline configuration, select ‘Offline’ in network card. In ‘Offline’ mode you can load an existing configuration with ‘Load from XML’ or start an new configuration using the button ‘Create new’.
