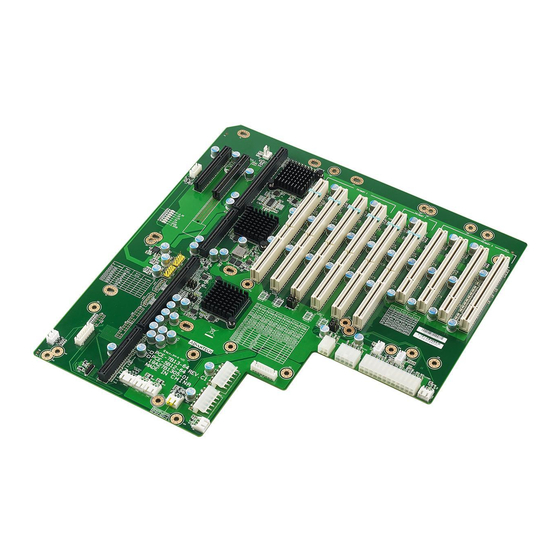

PCE-5B12(7B13)-07 Backplane: 12(13)-slot BP for 14-
Slot Chassis, 1 PICMIG 1.3, 4(5) PCIe, 7 32-bit PCI
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following materials have been shipped:
• One 2 ports USB cable
• PCE-5B12(7B13)-07 Startup Manual
• M4*6*0.7 Round Screws (20 pieces)
• 2-year quality warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Specifications
Standard Functions
• PICMG 1.3 Slot:
- PCE-5B12-07 supports PCE-50XX/51XX/71XX CPU
Cards
- PCE-7B13-07 supports PCE-51XX/71XX CPU Cards
• PCIe Slots:
- PCE-5B12-07: 1 PCIe x16, 3 PCIe x4
- PCE-7B13-07: 2 PCIe x8, 3 PCIe x4
• 32-bit PCI Slots:
- PCE-5B12-07: 7 32-bit/33-MHz PCI
- PCE-7B13-07: 7 32-bit/33-MHz PCI
• USB (2.0) support: Four Universal Serial Bus ports to
Backplane
Note:
Some add-on cards installed on this backplane
may cause CPU card BIOS resource allocation
problems, if this occurs please contact Advan-
tech technical support staff for help in solving the
problems.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
https://www.advantech.com/support
This manual is for the PCE-5B12-07(PCE-7B13-07)
series.
Part No. 200K5B1212
Printed in China
Specifications (Cont.)
Mechanical and Environment
• Dimensions: 327.66 x 315.45 mm
• Power supply voltage: +12 V, +5 V, -12 V, -5 V, +5 V
• Power requirements: Depends on the CPU board,
• Operating temperature: 0 ~ 60°C
This table shows the function of each jumper and con-
nector:
3rd Edition
February 2023
SBY, +3.3 V
addon card & peripherals
Connectors and Jumpers
Connectors
Label
Function
SHBA1~SHBD1
PICMG1.3 CPU board slot
PPCIE2
PCIe x 16 slot (only on PCE-5B12-07)
PPCIE1, PPCIE2
PCIe x8 slots (only on PCE-7B13-07)
P1PCIE1~P1PCIE3
PCIe x4 slots
P1PCI1~ P1PCI3
32 Bit/33 MHz PCI bus slots
P2PCI1~P2PCI4
32 Bit, 33/66MHz PCI bus slots
EATXPWR1
ATX2.0 24-pin power connector
ATX 12V Auxiliary 8-pin power con-
EATX12V1
nector
ATX12V1
ATX 12V 4-pin power connector
PWR3V1
3.3V auxiliary power connector
PWR3V2
3.3V auxiliary power connector
VOLT1
Alarm board/CMM power connector
FAN1~7
FAN Connector
FAN speed detector connector
FANDEC1
(optional)
SMBUS1~SMBUS3
System management bus (optional)
JFP1
Power and reset button connector
IPMB1
IPMB connector (optional)
USB12
Two USB port pin header
USB34
Two USB port pin header
PCE-5B12(7B13)-07 Startup Manual 1
