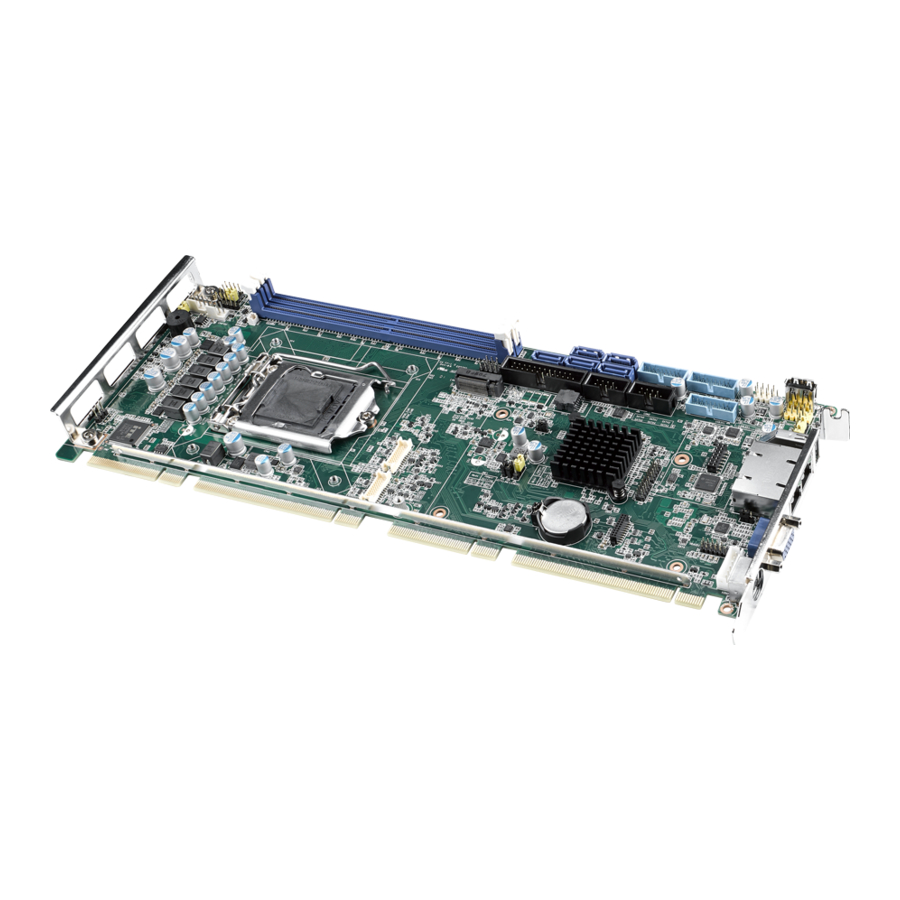

Advantech PCE-7131 Startup Manual

PCE-7131/5131/5031 LGA1151 Intel
Pentium ECC/non-ECC (PCE-7131) PICMG 1.3 Single
®
Host Board with (ECC/non-ECC) DDR4/M.2 (2280)/
Dual GbE LAN
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
1. PCE-7131/5131/5031 PICMG 1.3 Single Host Board
2. PCE-7131/5131/5031 Startup Manual
3. Serial ATA HDD data cables
4. Serial ATA HDD power cables
5. COM port cable kit
6. 2-port USB cable kit
7. Keyboard and mouse Y cable
8. Jumper package
9. Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1: For detailed contents of PCE-7131/5131/5031,
please refer to user manual on the Advantech
Website.
Note 2: Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
For more information on this and other Advantech prod-
ucts, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website at:
https://advt.ch/suppo1aa86
Register your products on our website and get 2 months
extra warranty for Free at:
http://www.register.advantech.com
This manual is for the PCE-5031/5131/7131
Part No. 2041503102
Printed in China
Startup Manual
3rd Edition
October 2022
Core
®
Specifications
General
• LGA1151 8th and 9th Intel
Xeon
®
Note: 8th Gen CPU is compatible with V1.XX, 9th Gen CPU
is compatible with V1.XX and V2.XX BIOS
• BIOS: AMI 256 Mb SPI BIOS
• Chipset:
- PCE-7131: Intel® C246
- PCE-5131: Intel® Q370
- PCE-5031: Intel® H310
• System memory:
- PCE-7131: Supports dual channel DDR4 2400/2666
16GB per DIMM with ECC/non-ECC; Max. capacity is up
to 32GB
- PCE-5131/5031: Supports dual channel DDR4
2400/2666 16GB per DIMM without ECC; Max. capacity
is up to 32GB.
Note1: Please select Intel ECC supported processor to
enable ECC function.
Note2: Supports DDR4 1024M x 8 memory technology.
• SATA Ports:
- PCE-7131/5131 supports 5 x SATA3.0 ports with SW
Raid 0,1,5,10.
- PCE-5031 supports 4 x SATA3.0 ports without Raid
function.
• M.2 Ports: PCE-7131/5131 supports M.2 2280 type M
module and compatible to SATA3.0 and PCI Express 3.0
• Serial ports: Two RS-232 with pin headers
• Keyboard/mouse connector: Supports one standard
PS/2 keyboard and mouse connector and one external
6-pin header
• Watchdog timer: 255 level timer intervals
• USB 2.0: PCE-7131/5131/5031: 7 * USB 2.0 (Pin-
header*2+USB Type A*1+, 4 on backplane)
• USB 3.1:
- PCE-7131/5131: 6 * USB 3.1 (Gen1) (Pin-header*6),
1*USB3.1 (Gen2) (Rear I/O)
- PCE-5031: 2 * USB 3.1 (Gen1) (Pin-header*2), 1 * USB
3.1
(Gen2) (Rear I/O)
• GPIO: One programmable 8-bit GPIO pin-header
VGA Interface
• Chipset: Intel
HD Graphics
®
• Shared system memory is subject to OS
Ethernet Interface
• Chipset supports:
- LAN 1: I219LM (PCE-7131/5131); I219V(PCE-5031)
- LAN 2: I210AT (PCE-7131); I210AT (PCE-5131/5031)
• Connection: 2 x on-board RJ-45 connectors with LED
PCE-7131/5131/5031 Startup Manual 1
i7/i5/i3/
TM
Core™ i7/i5/i3/Pentium
® ®
/
