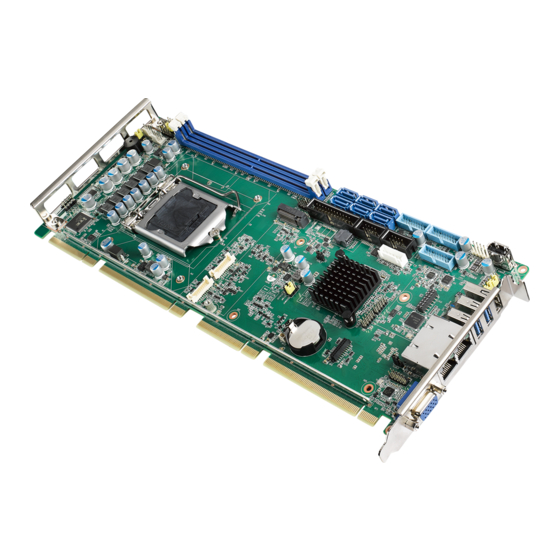

Advantech PCE-7132 Startup Manual

PCE-7132/5132/5032 LGA1200 Intel
i9/i7/i5/i3/Pentium
Host Board with (ECC/non-ECC) DDR4/M.2 (2280)/
Dual GbE LAN
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
1. PCE-7132/5132/5032 PICMG 1.3 single host board
2. PCE-7132/5132/5032 Startup Manual
3. Serial ATA HDD data cables
4. COM port cable kit
5. Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1: For detailed contents of PCE-7132/5132/5032,
please refer to the user manual on the Advan-
tech website.
Note 2: Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
For more information on this and other Advantech prod-
ucts, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website at:
https://advt.ch/PCE-7132
https://advt.ch/PCE-5132
https://advt.ch/PCE-5032
Register your products on our website and get 2 months
extra warranty for Free at:
http://www.register.advantech.com
This manual is for the PCE-5032/5132/7132
Part No. 2041513201
Printed in China
ECC/non-ECC PICMG 1.3 Single
®
Specifications
General
• LGA1200 10th Gen. Intel
• BIOS: AMI 256 Mb SPI BIOS
• Chipset:
• System memory:
• SATA Ports:
• M.2 Ports: PCE-7132/5132 supports M.2 2280 type M
• Serial ports: Two RS-232 with pin headers
• Watchdog timer: 255 level timer intervals
• USB 2.0:
• USB 3.2:
• GPIO: One programmable 8-bit GPIO pin-header
VGA Interface
• Chipset: Intel
• Shared system memory is subject to OS
Ethernet Interface
• Chipset supports:
• Connection: 2 x on-board RJ-45 connectors with LED
2nd Edition
November 2022
Core
®
Xeon
®
- PCE-7132: Intel® W480E
- PCE-5132: Intel® Q470E
- PCE-5032: Intel® H420E
- PCE-7132: Supports dual channel DDR4 2666/2933
32GB per DIMM with ECC/non-ECC; Max. capacity is
up to 64GB
- PCE-5132/5032: Supports dual channel DDR4
2666/2933 32GB per DIMM without ECC; Max. capacity
is up to 64GB.
Note: Please select Intel® ECC supported processor to
enable ECC function.
- PCE-7132/5132 supports 6 x SATA3.0 ports with SW
Raid 0,1,5,10.
- PCE-5031 supports 4 x SATA3.0 ports without Raid
function.
module and compatible to PCI Express 3.0
- PCE-7132/5132/5032: 6*USB 2.0 (USB Type
A*1+Rear*1, 4 on backplane)
- PCE-7132/5132: 6 * USB 3.2 (Gen1) (Pin-header * 6), 2
* USB 3.2 (Gen2) (Rear I/O)
- PCE-5031: 2 * USB 3.1 (Gen1) (Pin-header * 2), 2 *
USB 3.2 (Gen1) (Rear I/O)
HD Graphics
®
- LAN 1: I219LM(PCE-7132/5132); I219V(PCE-5032)
- LAN 2: I210AT(PCE-7132/51322); I210AT (PCE-5032)
indicators
PCE-7132/5132/5032 Startup Manual 1
TM
Core™ i9/i7/i5/i3/Pentium
®
/
®
