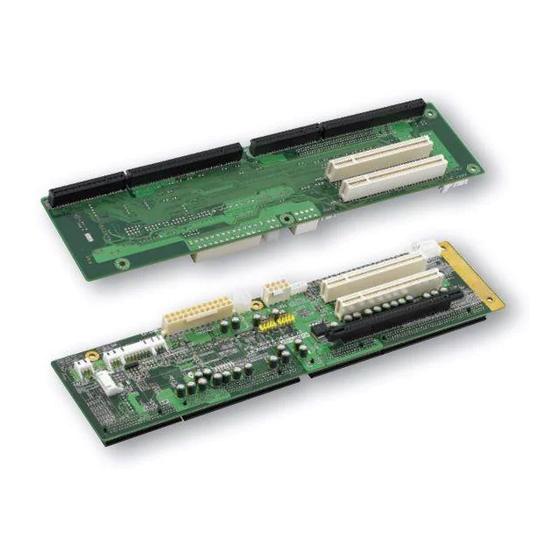

PCE-5B06V-04A1E (PCE-7B06V-04A1E) Backplane:
6-slot BP for 2U Chassis, 1 PICMIG 1.3, 1 PCIe, 4
32-bit PCI
Startup Manual
Packing list
Before you begin installing your card, please make sure
that the following materials have been shipped:
• One 2 Ports USB Cable
• PCE-5B06V-04A1E (PCE-
7B06V-04A1E) Startup Manual
• M4*6*0.7 Round Screws (5 pcs)
• 2 years quality warranty card
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the PCE-5B06V-04A1E (PCE-
7B06V-04A1E) series Rev. A1
Part No. 200K5B0621
Printed in China
Specifications
Standard Functions
• PICMIG 1.3 slots:
PCE-7B06V-04 supports PCE-7xxx CPU boards
p/n: 1700002204
PCE-5B06V-04 supports PCE-5xxx CPU boards
• PCIe slots:
PCE-7B06V-04 supports one PCIe x8 slot
p/n: 1939000410
PCE-5B06V-04 supports one PCIe x16 slot
p/n: 2190000902
• 32-bit PCI:
Four 32-bit / 33 MHz PCI slot
• USB (2.0) support: Four Universal Serial Bus ports to
Backplane
Mechanical and Environment
• Dimensions: 80.01 x 325 mm
• Power supply voltage: +12 V, +5 V, -12 V, -5 V, +5 V
SBY, +3.3 V
• Power requirements: Refer to the CPU Board, add-on
Card & Peripherals
• Operating temperature: 0 ~ 60° C
• Weight: 0.211 kg (weight of board)
2nd Edition
August 2012
PCE-5B06V(7B06V)-04A1E Startup Manual 1
Advertisement
Related Manuals for Advantech PCE-5B06V-04A1E
Summary of Contents for Advantech PCE-5B06V-04A1E
- Page 1 • Power requirements: Refer to the CPU Board, add-on Card & Peripherals • Operating temperature: 0 ~ 60° C • Weight: 0.211 kg (weight of board) For more information on this and other Advantech products, please visit our website at: http://www.advantech.com http://www.advantech.com/eplatform...
-
Page 2: Connectors And Jumpers
ATX12V1 Connectors and Jumpers Name The table below lists the function of each of the jumpers and connectors: 12 V 12 V Connectors Label Function EATX12V1 SHBA1~SHBD1 PICMG1.3 CPU board slot Name PPCIE1 PCE-5B06V-04: PCIe x 16 slot PCE-7B06V-04: PCIe x 8 slot PPCI1~PPCI4 32 Bit / 33 MHz PCI Bus slot EATXPWR1... - Page 3 IPMB1 Name IPMB_CLK IPMB_DAT USB12 Name USBV0 USBV0 USBD0- USBD1- USBD0+ USBD1+ Null USB34 Name USBV2 USBV2 USBD2- USBD3- USBD2+ USBD3+ Null PSON1: ATX / AT Mode Selection Setting Function AT Mode 2-3* ATX Mode *: Default PCE-5B06V(7B06V)-04A1E Startup Manual 3...
- Page 4 Locating connectors and Jumpers Locating Connectors (component side) Locating Connectors (solder side) 4 PCE-5B06V(7B06V)-04A1E Startup Manual...
-
Page 5: Board Dimensions
Board Dimensions Mechanical Drawing (component side) Mechanical Drawing (solder side) PCE-5B06V(7B06V)-04A1E Startup Manual 5... -
Page 6: Board Diagram
Board Diagram PCI Routing Tables PCI 32-bit PCI Slot PPCI1 PPCI2 PPCI3 PPCI4 IDSEL AD 31 AD 30 AD 29 AD 28 INT A INT B INT C INT D INT A PCI Interrupt Pin Route INT B INT C INT D INT A INT B...
