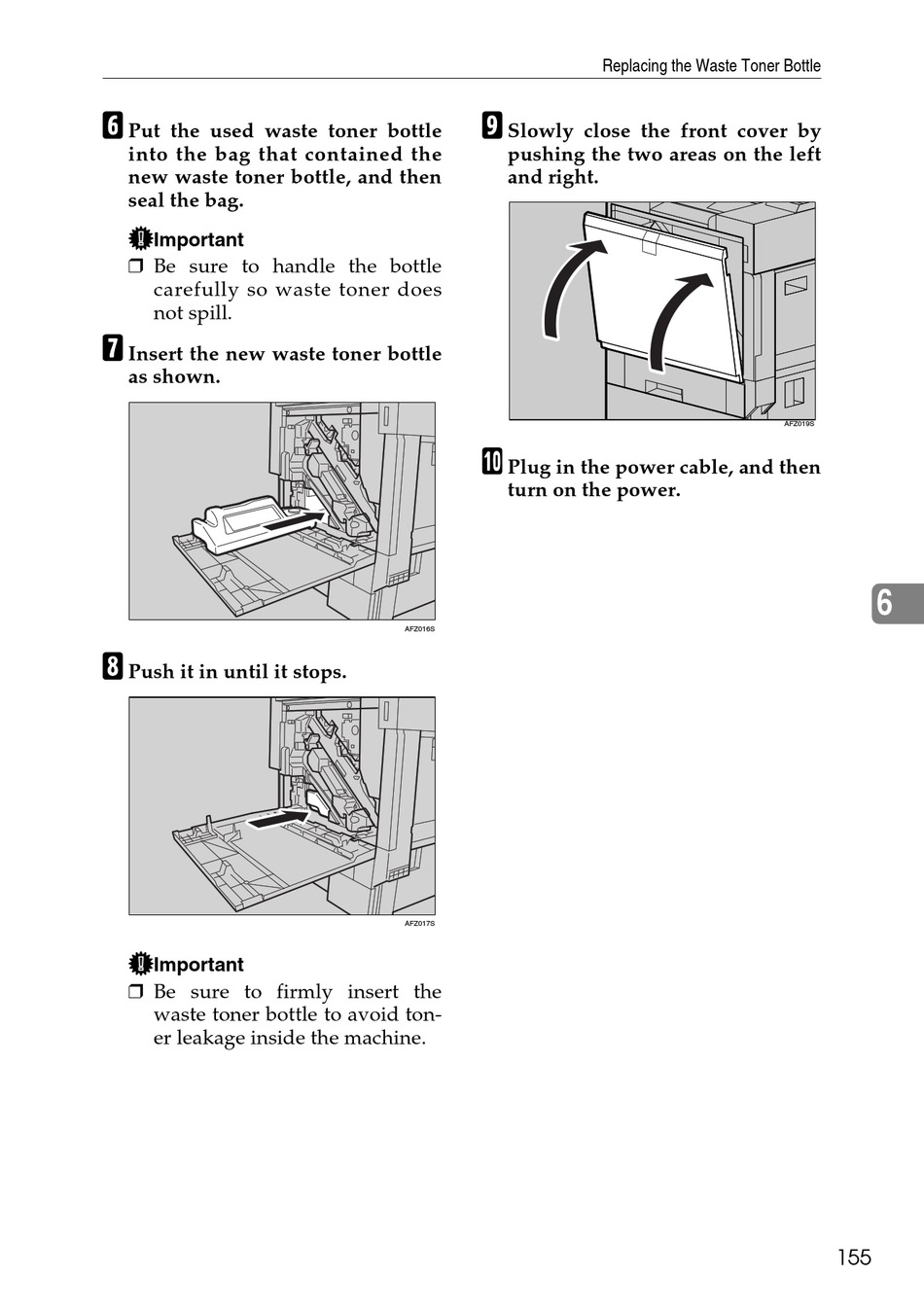

Ricoh Aficio 3228C Settings Manual page 167

F F F F
Put the used waste toner bottle
into the bag that contained the
new waste toner bottle, and then
seal the bag.
Important
❒ Be sure to handle the bottle
carefully so waste toner does
not spill.
G G G G
Insert the new waste toner bottle
as shown.
H H H H
Push it in until it stops.
Important
❒ Be sure to firmly insert the
waste toner bottle to avoid ton-
er leakage inside the machine.
I I I I
Slowly close the front cover by
pushing the two areas on the left
and right.
J J J J
Plug in the power cable, and then
turn on the power.
AFZ016S
AFZ017S
Replacing the Waste Toner Bottle
AA
AFZ019S
6
155
