3 - Mounting Instructions

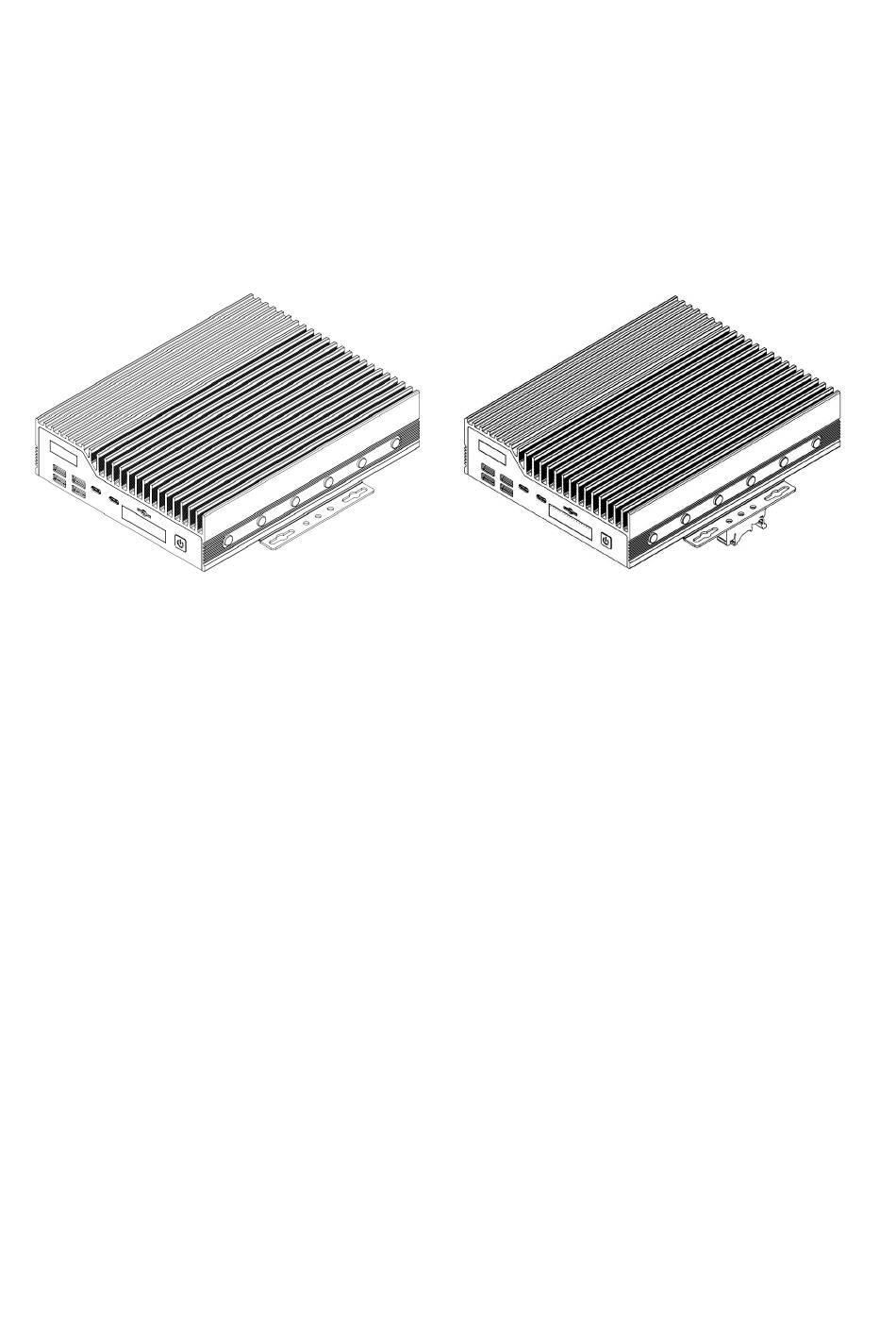

3.1 - Wall Mount & DIN Rail Mounting
The Helix 511 has optional Wall Mount brackets (SKU : MTW101) and DIN Rail mounting brackets
(SKU : MTW101-K) available for purchase.
For Wall Mounting, follow steps below :
Step 1: Align the four screw holes on the bottom of the system with the respective holes on the
mounting brackets.
Step 2: Attach wall mounting brackets (MTW101) to the system using the supplied M3 screws
(M3X0.5 Flathead Screw, 4mm Long).
Step 3 : Install system to surface using keyhole slots on wall mount brackets and appropriate
hardware for the surface (not provided).
For DIN Rail Mounting, follow the below steps:
Step 1: Follow steps 1-2 from the Wall Mounting section.
Step 2: Align the mounting holes of the din clip bracket to the three mounting holes on the wall mount
bracket.
Step 3: Install the din clips to the wall mount brackets using supplied screws and a Phillips head
screwdriver.
Step 6: Mount system onto the DIN rail.
Note: The mounting brackets are required to support 3x the hanging weight of the system (14.82lbs /
6.72 kgs). The mating surface and hardware must be capable of supporting the same load.
