ML100G-42 Product Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ML100G Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onlogic ML100G Series

Summary of Contents for Onlogic ML100G Series

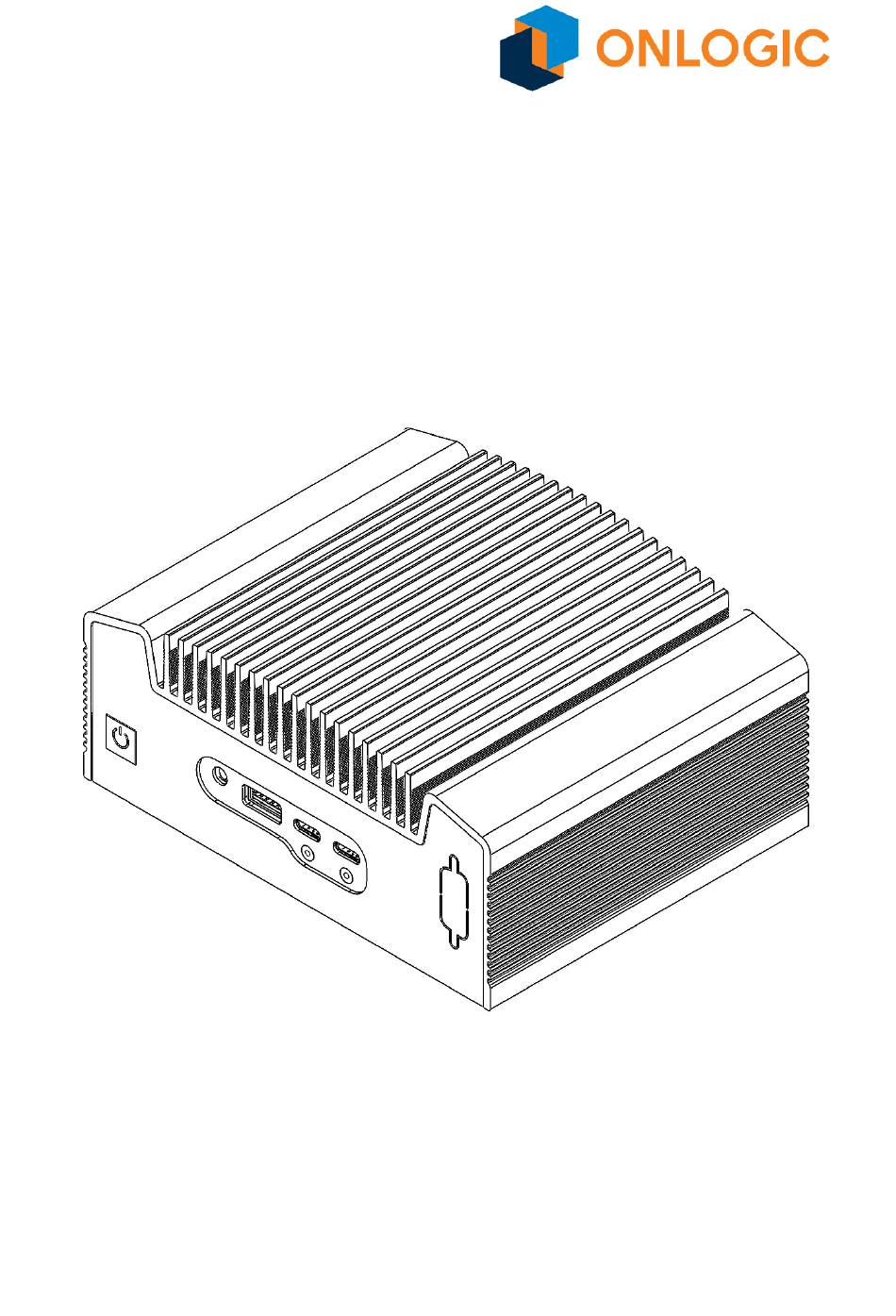

  • Page 1 ML100G-42 Product Manual...

  • Page 2: Table Of Contents

    Revision History Revision History Date Manual Creation Version 1.0 10/23/2024 Table of Contents 1 - System Overview 1.1 - System Introduction 1.2 - Accessories 1.3 - Product Specifications 1.4 - Exterior Features and Dimensions 1.4.1 - Front I/O 1.4.2 - Back I/O 1.4.3 - ML100G-42 Dimensions 1.5 - System Block Diagram 2 - I/O Definitions...
  • Page 3 5.3.1 - CE 5.3.2 - FCC Statement 5.3.3 - ISED 5.3.4 - UKCA 5.4 - Appendix D: Safety Precautions, Safeguards & Information 5.4.1 - Safe use and installation instructions 5.4.2 - Précautions et guide d’installation...

  • Page 4: System Overview

    All drivers and product guides can be found on the corresponding product page. For more information on accessories and additional features, visit the ML100G-42 product page at https://www.onlogic.com/store/ml100g-42/.

  • Page 5: Product Specifications

    1.3 - Product Specifications OnLogic ML100G-42 Processor AMD Ryzen 7 8840U Memory 2x DDR5-5600 SO-DIMM up to 96GB Integrated Graphics AMD Radeon Graphics 1x USB 3.2 Gen 2 (Type-A) 2x USB 4 (Type-C, 5V/3A, DP1.4a) - Supports Locking Connectors Front I/O...
  • Page 6 3 Antenna holes Extra Chassis Features Kensington Lock Radio Specifications when equipped with INT-9260 Wifi/BT (device for indoor use) Frequency Bands 2.4GHz and 5GHz bands 2400 - 2485 MHz Operating Frequency 5150 - 5250 MHz, 5250 - 5350 MHz 5470 - 5725 MHz, 5725 - 5878 MHz 2.4GHz: 802.11b/g/n;...

  • Page 7: Exterior Features And Dimensions

    1.4 - Exterior Features and Dimensions 1.4.1 - Front I/O 1.4.2 - Back I/O...

  • Page 8: Ml100G-42 Dimensions

    1.4.3 - ML100G-42 Dimensions...

  • Page 9: System Block Diagram

    1.5 - System Block Diagram...

  • Page 10: I/O Definitions

    2 - I/O Definitions 2.1 - Front I/O definition Power button / Power LED The front power button can be used to turn on and off the ML100G-42 system. The power button is a momentary contact button with a blue LED backlight used to display the status of the system. A solid blue light indicates that the system is powered in the S0 state.
  • Page 11 Function Color State LAN link is not established Link LAN link is established Blinking LAN activity occurring 10 Mbps data rate Speed Orange 100 Mbps Green 1 Gbps data rate COM DB9 (optional) The dual serial ports support RS-232 communication. RS-232 COM DB9 pinout...

  • Page 12: Motherboard Connectors

    2.3 - Motherboard Connectors M.2 2242/2280 M-key (PCIe Gen 4 x 4) M.2 2230 E-key (Wi-Fi) (PCIe Gen 4 x1/ USB 2.0) M.2 2242 M-key (PCIe Gen 4 x4) COM Port Header JP1 Header System Panel Header DC Jack (12V~24V)
  • Page 13 M.2 M-Key Two M.2 M-Key ports are present on the ML100G-42 motherboard to allow support for M-Key form-factor expansion cards. Form-factors 2242/2280 are supported on the primary slot, and the secondary slot supports 2242 form-factor, both M-Key ports are PCIe Gen 4 x 4. A full pinout table for this expansion slot is provided in Appendix B M.2 E-Key An M.2 E-Key port is present on the ML100G-42 motherboard to allow support for E-Key form-factor...

  • Page 14: Mounting Instructions

    System Panel Header HDD LED+ PWR LED+ HDD LED- PWR LED- PWRBTN# RESET# Dummy 3 - Mounting Instructions 3.1 - Wall Mount & DIN Rail Mounting The ML100G-42 has optional Wall Mount brackets (SKU : MTW101) and DIN Rail mounting brackets (SKU : MTW101-K) available for purchase.

  • Page 15: Vesa Mounting

    Step 3 : Install system to surface using keyhole slots on wall mount brackets and appropriate hardware for the surface (not provided). For DIN Rail Mounting, follow the below steps: Step 1: Follow steps 1-2 from the Wall Mounting section. Step 2: Align the mounting holes of the din clip bracket to the three mounting holes on the wall mount bracket.

  • Page 16: Power Management

    4 - Power Management 4.1 - Wake-Up Events The ML100G-42 supports multiple power states. The wake-up events can be configured in the BIOS. This section describes the supported power management functions and gives information on protection circuitry for power adapters. Wake-Up Event From ACPI State Power Button...

  • Page 17: Appendices

    5 - Appendices 5.1 - Appendix A: System Thermal Results 5.1.1 - Test Conditions Temperature: 50 C soaking for minimum of 2hrs ° ● Conditions: ● DC Load 1 Amps on 1x Back Panel USB port ○ DC Load 1 Amps on 1x Front panel USB port ○...

  • Page 18: Appendix B: Expansion Port Pinout

    5.2 - Appendix B: Expansion port pinout 5.2.1 - M.2 M-Key Function Function 3.3 V 3.3 V LED# 3.3 V 3.3 V 3.3 V 3.3 V USB_D+ USB_D- SMB_CLK PERn0/SATA-B+ SMB_DATA PERp0/SATA-B- PETn0/SATA-A- PETp0/SATA-A+ PERST# CLKREQ# REFCLKn WAKE# REFCLKp CONNECTOR Key M CONNECTOR Key M CONNECTOR Key M CONNECTOR Key M...

  • Page 19: M.2 E-Key

    CONNECTOR Key M CONNECTOR Key M CONNECTOR Key M CONNECTOR Key M SUSCLK PEDET 3.3 V 3.3 V 3.3 V 5.2.2 - M.2 E-Key Function Function 3.3 V USB_D+ 3.3 V USB_D- PETp0 PETn0 PERp0 PERn0 REFCLKp0 REFCLKn0 SUSCLK...

  • Page 20: Appendix C: Regulatory Compliance

    PERST0# CLKREQ0# 3.3V 3.3V 5.3 - Appendix C: Regulatory Compliance 5.3.1 - CE The computer system was evaluated for medical, IT equipment, automotive, and maritime EMC standards as a class A device. The computer complies with the relevant IT equipment directives for the CE mark.

  • Page 21: Ukca

    4. To protect against excessive RF exposure, maintain at least 20cm from any user and the RF antennas. Only use provided dual band antennas of 2dBi/2dBi gain. 5. Wall or ceiling mounting device requires use of OnLogic mounting plate or bracket. 6. Use M3x0.5mm Flat Head screws to attach mounting plate or mounting brackets to threaded holes on bottom or rear of chassis.

  • Page 22: Précautions Et Guide D'installation

    Part I, CSA C22.1. 17. Allow ample space for terminal block wiring connections such that the wires do not bend and are protected from accidental damage. 18. Install the device only with shielded network cables. 19. The installer should be experienced in aftermarket installation and familiar with general practices for installing electronics.
  • Page 23 11. Ne nettoyez pas l'appareil avec des liquides. Le châssis peut être nettoyé uniquement avec un chiffon sec ou un plumeau. Pour éviter de se blesser et/ou d'endommager l'appareil, l'appareil doit être éteint et toutes les alimentations et autres périphériques doivent être déconnectés avant le nettoyage.
