Onlogic ML100G Series Product Manual

Hide thumbs Also See for ML100G Series:

Advertisement

Quick Links

Download this manual
ML100G-54 Product Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ML100G Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onlogic ML100G Series

Summary of Contents for Onlogic ML100G Series

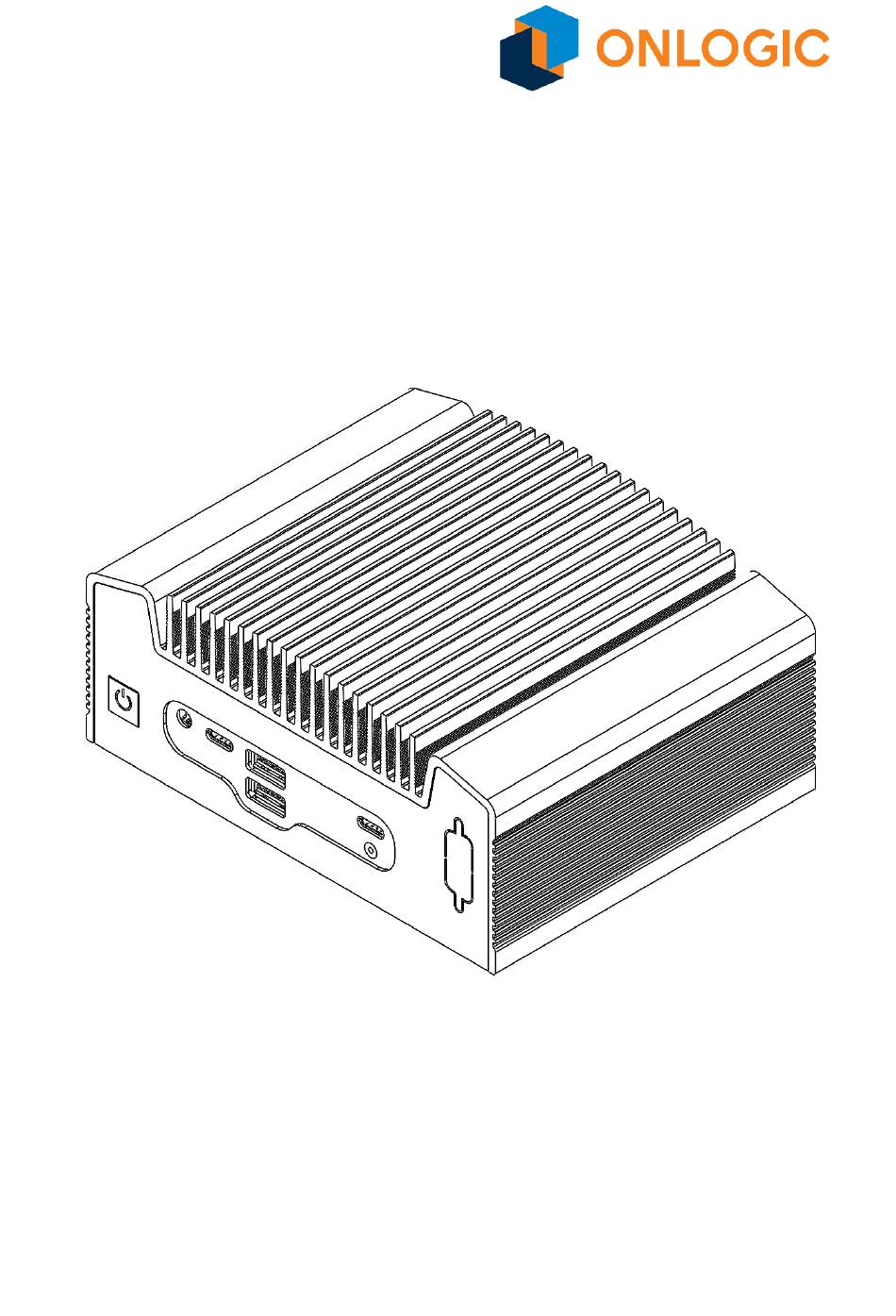

  • Page 1 ML100G-54 Product Manual...

  • Page 2: Table Of Contents

    Revision History Revision History Date Manual Creation Version 1.0 10/23/2024 Table of Contents 1 - System Overview 1.1 - System Introduction 1.2 - Accessories 1.3 - Product Specifications 1.4 - Exterior Features and Dimensions 1.4.1 - Front I/O 1.4.2 - Back I/O 1.4.3 - ML100G-54 Dimensions 1.5 - System Block Diagram 2 - I/O Definitions...
  • Page 3 5.3.1 CE 5.3.2 FCC Statement 5.3.3 ISED 5.3.4 UKCA 5.4 Appendix D: Safety Precautions, Safeguards & Information 5.4.1 Safe use and installation instructions 5.4.2 Précautions et guide d’installation...

  • Page 4: System Overview

    All drivers and product guides can be found on the corresponding product page. For more information on accessories and additional features, visit the ML100G-54 product page at https://www.onlogic.com/store/ml100g-54/.

  • Page 5: Product Specifications

    1.3 - Product Specifications OnLogic ML100G-54 Processor Intel 12th Gen Alder Lake N97 Processor Memory 1x DDR4-3200 SO-DIMM up to 32GB Integrated Graphics Intel UHD Graphics 2x USB 3.2 Gen 2 (Type-A) 2x USB 3.2 Gen 2 (Type-C, 5V/3A, DP1.4a) - Supports 1 Locking Connector...
  • Page 6 Extra Chassis Features 4 Antenna holes Radio Specifications when equipped with INT-9260 Wifi/BT (device for indoor use) Frequency Bands 2.4GHz and 5GHz bands 2400 - 2485 MHz Operating Frequency 5150 - 5250 MHz, 5250 - 5350 MHz 5470 - 5725 MHz, 5725 - 5878 MHz 2.4GHz: 802.11b/g/n;...

  • Page 7: Exterior Features And Dimensions

    1.4 - Exterior Features and Dimensions 1.4.1 - Front I/O 1.4.2 - Back I/O...

  • Page 8: Ml100G-54 Dimensions

    1.4.3 - ML100G-54 Dimensions...

  • Page 9: System Block Diagram

    1.5 - System Block Diagram...

  • Page 10: I/O Definitions

    The ML100G-54 supports an optional Isolated Digital I/O add-in card (OnLogic ADP120 DIO). This option allows for interfacing with digital logic applications. For a complete explanation of features, operating voltages, and safety information, please refer to the DIO expansion manual on the OnLogic support site -...
  • Page 11 LAN LED The LAN Ports on ML100G-54 support up to 2.5Gbps link speeds over standard shielded CAT5e or CAT6 cables. The connector is the industry standard RJ45 connector. The LAN link state is shown by the two LEDs enclosed in the port. The description is included below. Color State Function...

  • Page 12: Motherboard Connectors

    2.3 - Motherboard Connectors M.2 2242/2260/2280 M-key (PCIe Gen 3 x 1, SATA III) M.2 2230 E-key (Wi-Fi) (PCIe x1/ USB 2.0) J1/J2 Headers USB2 Header COM Port Header SATA Port JP1 Header System Panel Header DC Jack (9V~19V)
  • Page 13 M.2 M-Key An M.2 M-Key port is present on the ML100G-54 motherboard to allow support for M-Key form-factor expansion cards. 2242/2260/2280 form-factors are supported. The M-Key connector includes support for PCIe Gen3 x 1, SATA Gen III (6.0Gbps) devices. A full pinout table for this expansion slot is provided in Appendix B M.2 E-Key An M.2 E-Key port is present on the ML100G-54 motherboard to allow support for E-Key form-factor wireless expansion cards.
  • Page 14 COM Port Header (RS-232/422/485) DCD# DTR# DSR# RTS# CTS# Dummy JP1 Header Setting Description AT Mode (Default Open: ATX Mode) Clear CMOS Auto Clear CMOS DACC* * Auto clear CMOS when system boot improperly System Panel Header HDD LED+ PWR LED+ HDD LED- PWR LED- PWRBTN#...

  • Page 15: Mounting Instructions

    3 - Mounting Instructions 3.1 - Wall Mount & DIN Rail Mounting The ML100G-54 has optional Wall Mount brackets (SKU : MTW101) and DIN Rail mounting brackets (SKU : MTW101-K) available for purchase. For Wall Mounting, follow steps below : Step 1: Align the four screw holes on the bottom of the system with the respective holes on the mounting brackets.

  • Page 16: Vesa Mounting

    3.2 - VESA Mounting The ML100G-54 has an optional VESA mounting bracket (SKU : MTV100-K) available for purchase. Follow the steps below for mounting. Step 1: Align the four screw holes on the bottom of the system with the respective holes on the mounting bracket.

  • Page 17: Power Management

    4 - Power Management 4.1 - Wake-Up Events The ML100G-54 supports multiple power states. The wake-up events can be configured in the BIOS. This section describes the supported power management functions and gives information on protection circuitry for power adapters. Wake-Up Event From ACPI State Power Button...

  • Page 18: Appendices

    5 - Appendices 5.1 - Appendix A: System Thermal Results 5.1.1 - Test Conditions Temperature: 50 C soaking for minimum of 2hrs ° ● Conditions: ● DC Load 1 Amps on 1x Back Panel USB port ○ DC Load 1 Amps on 1x Front panel USB port ○...

  • Page 19: Appendix B: Expansion Port Pinout

    5.2 - Appendix B: Expansion port pinout 5.2.1 - M.2 M-Key Function Function 3.3 V 3.3 V LED# 3.3 V 3.3 V 3.3 V 3.3 V USB_D+ USB_D- SMB_CLK PERn0/SATA-B+ SMB_DATA PERp0/SATA-B- PETn0/SATA-A- PETp0/SATA-A+ PERST# CLKREQ# REFCLKn WAKE# REFCLKp CONNECTOR Key M CONNECTOR Key M CONNECTOR Key M CONNECTOR Key M...

  • Page 20: M.2 E-Key

    CONNECTOR Key M CONNECTOR Key M CONNECTOR Key M CONNECTOR Key M SUSCLK PEDET 3.3 V 3.3 V 3.3 V 5.2.2 - M.2 E-Key Function Function 3.3 V USB_D+ 3.3 V USB_D- CNV_WGR_D1- CNV_RF_RESET# CNV_WGR_D1+ MODEM_CLKREQ CNV_WGR_D0- CNV_WGR_D0+ CNV_WGR_CLK- CNV_BRI_RSP CNV_WGR_CLK+ CNV_BGI_DT CNV_RGI_RSP...

  • Page 21: Appendix C: Regulatory Compliance

    PERST0# CLKREQ0# W_DISABLE2# WAKE0# W_DISABLE1# SMB_DATA CNV_WT_D1- SMB_CLK CNV_WT_D1+ RESERVED CNV_WT_D0- CNV_WT_D0+ CNV_WT_CLK- 3.3V CNV_WT_CLK+ 3.3V 5.3 - Appendix C: Regulatory Compliance 5.3.1 - CE The computer system was evaluated for medical, IT equipment, automotive, and maritime EMC standards as a class A device. The computer complies with the relevant IT equipment directives for the CE mark.

  • Page 22: Ukca

    4. To protect against excessive RF exposure, maintain at least 20cm from any user and the RF antennas. Only use provided dual band antennas of 2dBi/2dBi gain. 5. Wall or ceiling mounting device requires use of OnLogic mounting plate or bracket. 6. Use M3x0.5mm Flat Head screws to attach mounting plate or mounting brackets to threaded holes on bottom or rear of chassis.

  • Page 23: Précautions Et Guide D'installation

    Part I, CSA C22.1. 17. Allow ample space for terminal block wiring connections such that the wires do not bend and are protected from accidental damage. 18. Install the device only with shielded network cables. 19. The installer should be experienced in aftermarket installation and familiar with general practices for installing electronics.
  • Page 24 11. Ne nettoyez pas l'appareil avec des liquides. Le châssis peut être nettoyé uniquement avec un chiffon sec ou un plumeau. Pour éviter de se blesser et/ou d'endommager l'appareil, l'appareil doit être éteint et toutes les alimentations et autres périphériques doivent être déconnectés avant le nettoyage.
