5.4.3 Test Results

5.4.4 Test Result Summary

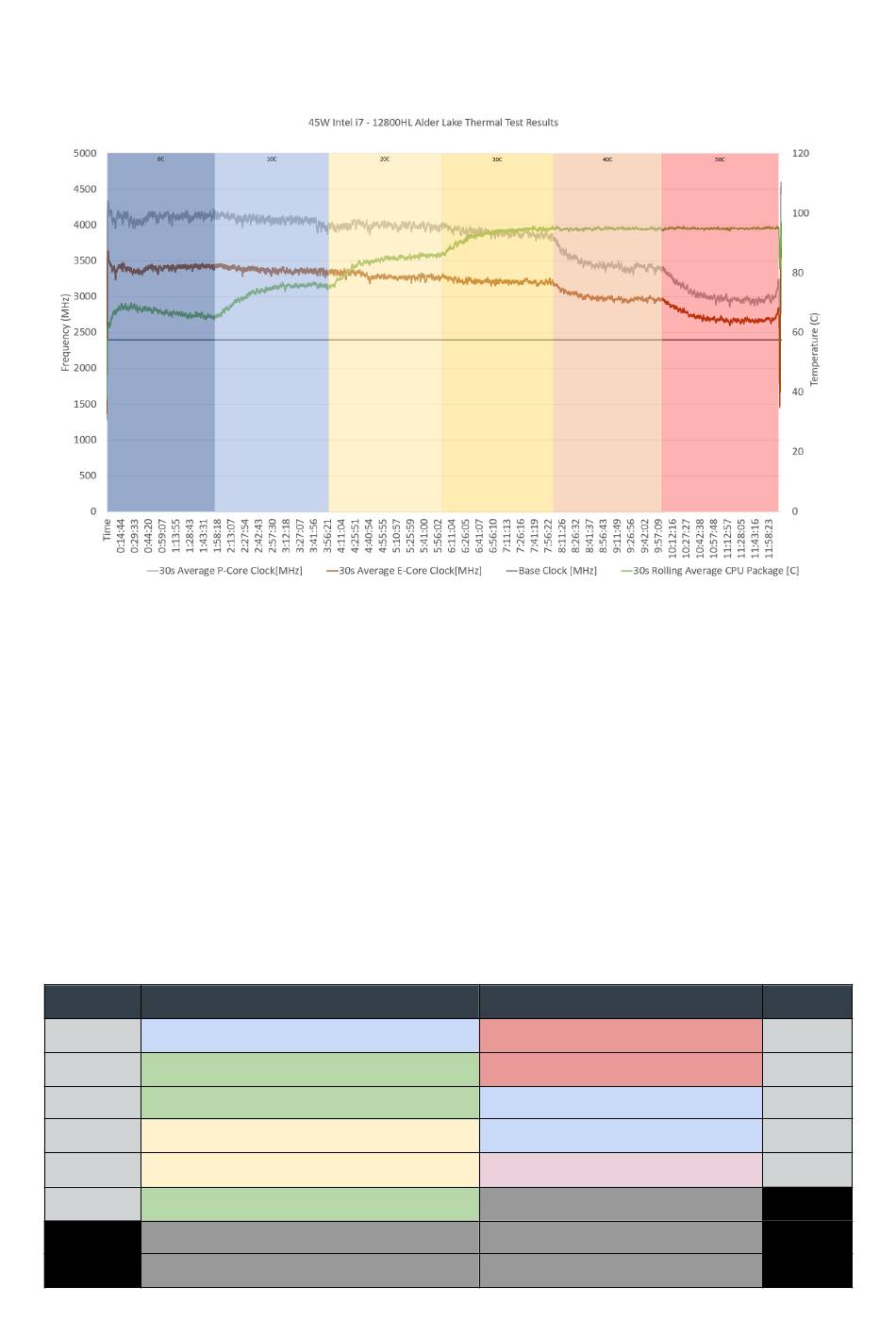

The Helix 511 with i7-12800HL processor saturated upwards of its rated base clock speeds on
performance and efficiency cores while sustaining significant processor, memory and storage
stress loads through an ambient temperature range of 0-50C.

5.5 - Appendix D: Expansion port pinout

5.5.1 - M.2 B-Key

Pin
1
3
5
7
9
11
13
15
Function
CONFIG_3
GND
GND
USB 2.0 D+
USB 2.0 D-
GND
KEY
KEY
Function
3.3V
3.3V
FULL_CARD_POWER_OFF#
W_DISABLE1#
NC
KEY
KEY
KEY
Pin
2
4
6
8
10
12
14
16
28
