Summary of Contents for Onlogic HX511

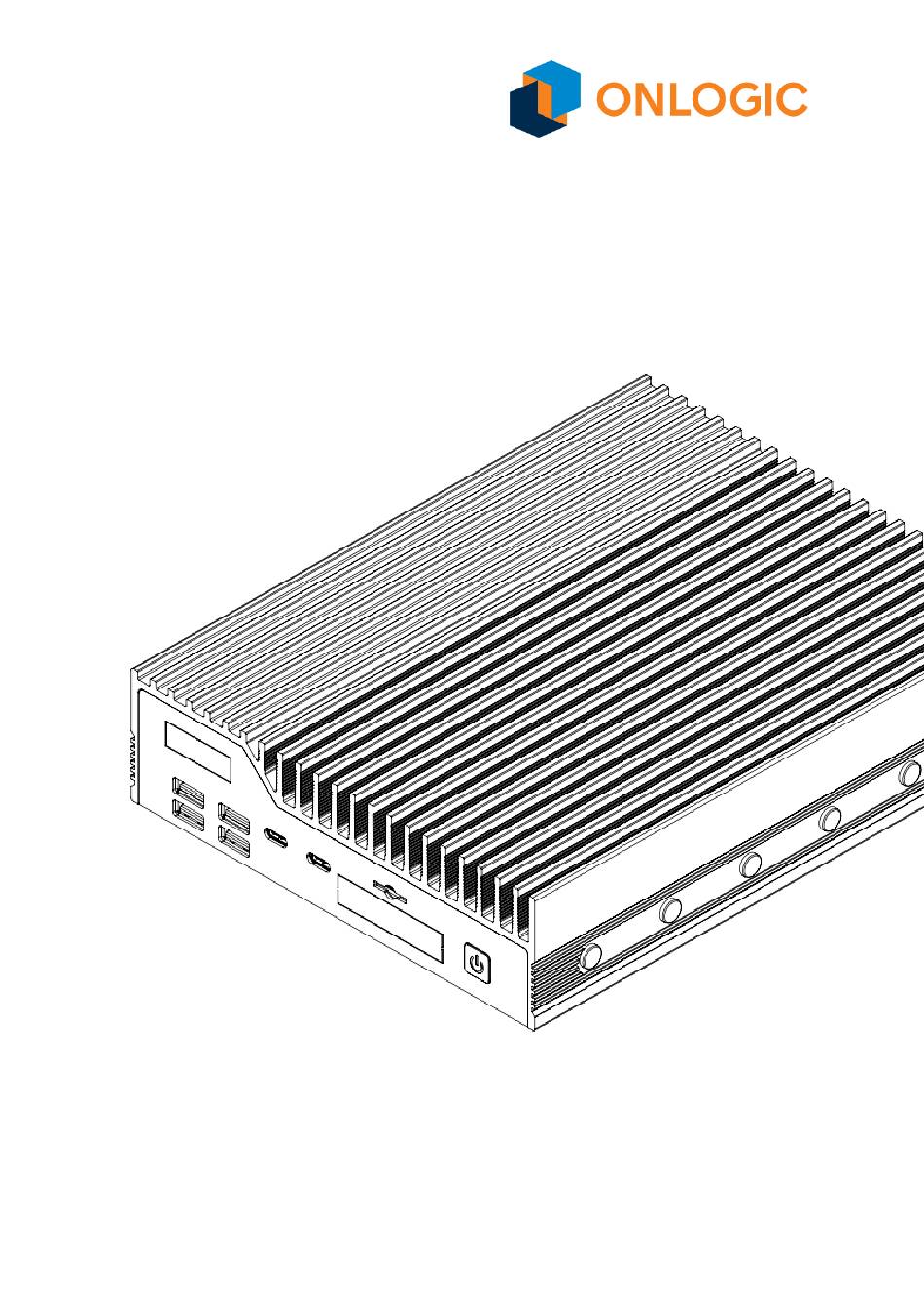

  • Page 1 HX511 Product Manual...

  • Page 2: Table Of Contents

    1.3 - Product Specifications 1.4 - Exterior Features and Dimensions 1.4.1 - Front I/O 1.4.2 - Back I/O 1.4.3 - Helix 511 Dimensions (HX511) 1.5 - System Block Diagram 2 - I/O Definitions 2.1 - Front I/O definition 2.2 Rear I/O definition 2.3 - Motherboard Connectors...
  • Page 3 5.5.3 - M.2 M-Key 5.5.4 - mPCIe 5.6 Appendix E: Regulatory Compliance 5.6.1 CE 5.6.2 FCC Statement 5.6.3 ISED 5.6.4 UKCA 5.6.5 VCCI 5.7 Appendix F: Safety Precautions, Safeguards & Information 5.7.1 Safe use and installation instructions 5.7.2 Précautions et guide d’installation...

  • Page 4: System Overview

    1 - System Overview 1.1 System Introduction The OnLogic HX511 expands on the Helix product range, and leverages Intel® 12th generation Alder Lake PS processing into a powerful fanless system. The HX511 offers increased compute power and visual processing capabilities, encased in Hardshell™...

  • Page 5: Product Specifications

    1.3 - Product Specifications Model HX511 8.86" x 2" x 6.97" System Dimensions 225 x 50.8 x 177 mm 4.94 lbs System Weight 2.24 kgs 8.7" x 6.1" Board Dimensions 221 x 156 mm CPU (on solder side of board)
  • Page 6 Thermal Standards (Subject to System Operating Temperature: 0-50C change through RFI and RFQ Storage Temperature: -10-85C steps) Operating Humidity: 0% - 90% (non-condensing) 6 Antenna holes Wall Mount Extra Chassis Features DIN Rail Mount VESA Mount FCC 47 CFR Part 15 Subpart B (Class A) EN 60950-1 &...
  • Page 7 Modes of operation Duplex (Tx/Rx) Duty cycle (access As In: IEEE 802.11a/b/g/n/ac protocol) Radio Specifications when equipped with Amit MDG100 (EU) GPS Receiver Operating frequency range: 1559 - 1610 MHz GLONASS Receiver Operating frequency range: 1559 - 1610 MHz BDS Receiver Operating frequency range: 1559 - 1610 MHz Galileao Receiver Operating frequency range: 1559 - 1610 MHz...

  • Page 8: Exterior Features And Dimensions

    1.4 - Exterior Features and Dimensions 1.4.1 - Front I/O 1.4.2 - Back I/O...

  • Page 9: Helix 511 Dimensions (Hx511)

    1.4.3 - Helix 511 Dimensions (HX511)

  • Page 10: System Block Diagram

    1.5 - System Block Diagram...

  • Page 11: I/O Definitions

    SIM card A 3FF Subscriber Identity Module (SIM) card slot is present on the front panel of the Helix platform allowing native support for OnLogic 4G LTE modules. The SIM signals are connected to the M.2 B-Key internal expansion slot.
  • Page 12 There are four USB 3.2 Gen 2 ports on the front panel of the Helix platform. These ports are capable of linking at 10Gb/s transfer rates. Thunderbolt™ 4 There are two Thunderbolt 4 ports on the front panel of the HX511. These ports are capable of linking at up to 40Gb/s transfer rates. USB Type-C connector (Thunderbolt 4) –...
  • Page 13 3X COM Option RS-232 RS-422 RS-485 COM2 DCD COM2 TX- COM2 TX+/RX+ COM2 RX COM2 TX+ COM2 TX-/RX- COM2 RTS COM2 DSR COM2 CTS COM2 TX COM2 RX+ COM2 DTR COM2 RX- COM2 RI / COM2 12V COM2 12V 12V / 5V / 5V / 5V COM3 DCD...
  • Page 14 COM4 RX COM4 TX+ COM4 TX-/RX- COM4 CTS COM4 DSR COM4 DTR COM4 RX- COM4 TX COM4 RX+ SHIELD SHIELD SHIELD COM4 RI / COM4 12V COM4 12V 12V / 5V / 5V / 5V RESET RESET RESET SWITCH SWITCH SWITCH POWER POWER...

  • Page 15: Rear I/O Definition

    2.2 Rear I/O definition DisplayPort 1 & 2 Helix utilizes Intel® Integrated processor graphics that power the onboard DisplayPorts. This means resolutions up to 4096x2304 @ 60Hz are supported on both outputs simultaneously. All ports support Multi-Stream Transport (MST). LAN1 - Intel I225-LM The Intel I219 LAN Port on Helix supports up to 2.5Gbps link speeds over standard shielded CAT5e or CAT6 cables.
  • Page 16 LAN2 - Intel I225-IT The second LAN Port on Helix 511 supports up to 2.5Gbps link speeds over standard shielded CAT5e or CAT6 cables. The connector is the industry standard RJ45 connector. The LAN link state is shown by the two LEDs enclosed in the port. The description is included below. Color State Function...
  • Page 17 COM DB9 option The serial port mode and voltage between Off/5V/12V on Pin 9 on Helix can be selected in the BIOS configuration. The serial ports support RS-232, RS-422, and RS-485 configurations. Refer to the BIOS manual in Appendix C for configuration instructions. RS-232 RS-422 RS-485...
  • Page 18 Terminal block power option Mainboard power is applied to the Helix 511 through a 4-pin terminal block connector (Mating part: Dinkle 2ESDAM-04P or equivalent). The system is operational from 12V~24V. [see section 4.3 for input voltage qualifications]. The maximum rated current of the connector is 15A per pin. Use a wire gauge that is rated for the operational current.

  • Page 19: Motherboard Connectors

    2.3 - Motherboard Connectors M.2 B-Key An M.2 B-Key port is present on the Helix 511 motherboard to allow support for B-Key form-factor expansion cards. Supported cards include 3042, 3052, 2280 form-factors. The B-Key connector supports PCIe Gen 4 x2, USB 3.2 10Gb/s, USB 2.0, SATA Gen I (1.5Gbps), SATA Gen II (3.0Gbps), and SATA Gen III (6.0Gbps) devices.
  • Page 20 for PCIe Gen 3 x4, PCIe Gen 3 x2, PCIe Gen 4 x4, SATA Gen I (1.5Gbps), SATA Gen II (3.0Gbps), and SATA Gen III (6.0Gbps) devices. A full pinout table for this expansion slot is provided in Appendix E SO-DIMM1 &...
  • Page 21 Motherboard bottom view (Heatsink side) CPU socket The LGA1700 CPU socket on the Helix 511 supports all 12th Gen Intel PS-series processors up to 45W TDP...

  • Page 22: Mounting Instructions

    3 - Mounting Instructions 3.1 - Wall Mount & DIN Rail Mounting The Helix 511 has optional Wall Mount brackets (SKU : MTW101) and DIN Rail mounting brackets (SKU : MTW101-K) available for purchase. For Wall Mounting, follow steps below : Step 1: Align the four screw holes on the bottom of the system with the respective holes on the mounting brackets.

  • Page 23: Vesa Mounting

    3.2 - VESA Mounting The Helix 511 has an optional VESA mounting bracket (SKU : VMPL-2022-K) available for purchase. Follow the steps below for mounting. Step 1: Align the four screw holes on the bottom of the system with the respective holes on the mounting bracket.

  • Page 24: Power Management

    4 - Power Management 4.1 - Wake-Up Events The Helix platform supports multiple power states. The wake-up events can be configured in the BIOS. This section describes the supported power management functions and gives information on protection circuitry for power adapters. Wake-Up Event From ACPI State Comments...

  • Page 25: Appendices

    PL2 is shown at the bottom of each table. *The configurations below are using representative samples of internal devices, the specific components mentioned below may vary from the devices provided by OnLogic. System Component...
  • Page 26 OS Power Plan Balanced Balanced Balanced BIOS Version 1.18 1.18 1.18 The power consumption for each system configuration is recorded below. Low Config Measurements Power Consumption 12V Avg [W] 24V Avg [W] Pseudo G3 0.05 0.135 Deep S5 0.11 0.26 OS Idle CPU / System stress 27.3...

  • Page 27: Appendix B: Bios Manual And Drivers

    5.3 - Appendix B: BIOS manual and Drivers For a detailed overview of the BIOS screens and individual settings, as well as instructions for updating the BIOS, please refer to the OnLogic support site at the link below. https://support.onlogic.com/documentation/helix-511-technical-resources/ 5.4 - Appendix C: System Thermal Results 5.4.1 Test Conditions...

  • Page 28: Test Results

    5.4.3 Test Results 5.4.4 Test Result Summary The Helix 511 with i7-12800HL processor saturated upwards of its rated base clock speeds on performance and efficiency cores while sustaining significant processor, memory and storage stress loads through an ambient temperature range of 0-50C. 5.5 - Appendix D: Expansion port pinout 5.5.1 - M.2 B-Key Function...

  • Page 29: M.2 E-Key

    CONFIG_0 GPIO_10/W_DISABLE2# PERn1/USB3.1-Rx- UIM-RESET PERp1/USB3.1-Rx+ UIM_CLK UIM_DATA PETn1/USB3.1-Tx- UIM_PWR PETp1/USB3.1-Tx+ PERn0/SATA-B+ PERp0/SATA-B- PETn0/SATA-A- PETp0/SATA-A+ PERST# CLKREQ# REFCLKn PEWAKE# REFCLKp SIM_DETECT RESET_N SUSCLK CONFIG_1 3.3V 3.3V 3.3V CONFIG_2 5.5.2 - M.2 E-Key Function Function 3.3 V USB_D+ 3.3 V...
  • Page 30 USB_D- PCM_CLK RESERVED CNV_RF_RESET#_R RESERVED BT_PCMIN BT_PCMOUT RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED PETp0 RESERVED PETn0 RESERVED RESERVED PERp0 RESERVED PERn0 RESERVED RESERVED REFCLKp0 RESERVED REFCLKn0 SUSCLK(32kHz) PERST0# CLKREQ0# W_DISABLE2# PEWAKE0# W_DISABLE1# RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED 3.3V RESERVED 3.3V...

  • Page 31: M.2 M-Key

    5.5.3 - M.2 M-Key Function Function 3.3 V 3.3 V PERn3 PERp3 DAS/DSS (I/O)/LED_1# (I)(0/3.3V) PETn3 3.3 V PETp3 3.3 V 3.3 V PERn2 3.3 V PERp2 PETn2 PETp2 PERn1 PERp1 PETn1 PETp1 DEVSLP (O) SMB_CLK (I/O)(0/1.8V) PERn0/SATA-B+ SMB_DATA (I/O) (0/1.8V) PERp0/SATA-B- ALERT# (I) (0/1.8V) PETn0/SATA-A-...

  • Page 32: Mpcie

    SUSCLK(32kHz) (O)(0/3.3V) PEDET (NC-PCIe/GND-SATA) 3.3 V 3.3 V 3.3 V 5.5.4 - mPCIe Function Function WAKE# 3.3V 1.5V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET UIM_SPU W_DISABLE1# PERST# PERn0 3.3V PERp0 1.5V SMB_CLK PETn0 SMB_DATA PETp0 USB 2.0_D- USB 2.0_D+ 3.3V 3.3V 1.5V...

  • Page 33: Appendix E: Regulatory Compliance

    5.6 Appendix E: Regulatory Compliance 5.6.1 CE The computer system was evaluated for medical, IT equipment, automotive, and maritime EMC standards as a class A device. The computer complies with the relevant IT equipment directives for the CE mark. Modification of the system may void the certifications. Testing includes: EN 55032, EN 55035, IEC 60601-1, EN 62368-1, EN 60950-1, and IEC 60945.

  • Page 34: Appendix F: Safety Precautions, Safeguards & Information

    4. To protect against excessive RF exposure, maintain at least 20cm from any user and the RF antennas. Only use provided dual band antennas of 2dBi/2dBi gain. 5. Wall or ceiling mounting device requires use of OnLogic mounting plate or bracket. 6. Use M3x0.5mm Flat Head screws to attach mounting plate or mounting brackets to threaded holes on bottom or rear of chassis.

  • Page 35: Précautions Et Guide D'installation

    18. Install the device only with shielded network cables. 19. The installer should be experienced in aftermarket installation and familiar with general practices for installing electronics. 20. Radio device is not intended for emergency service use. 21. Service and repair of the device must be done by qualified service personnel. This includes, but is not limited to, replacement of the CMOS battery.
  • Page 36 12. Prévoyez un espace suffisant autour de tous les côtés de l'appareil pour un refroidissement correct et pour ne pas dépasser sa limite de température de fonctionnement maximale. Si l'appareil est monté sur une surface verticale, l'orientation recommandée de l'appareil est telle que les ailettes du dissipateur thermique permettent à...
