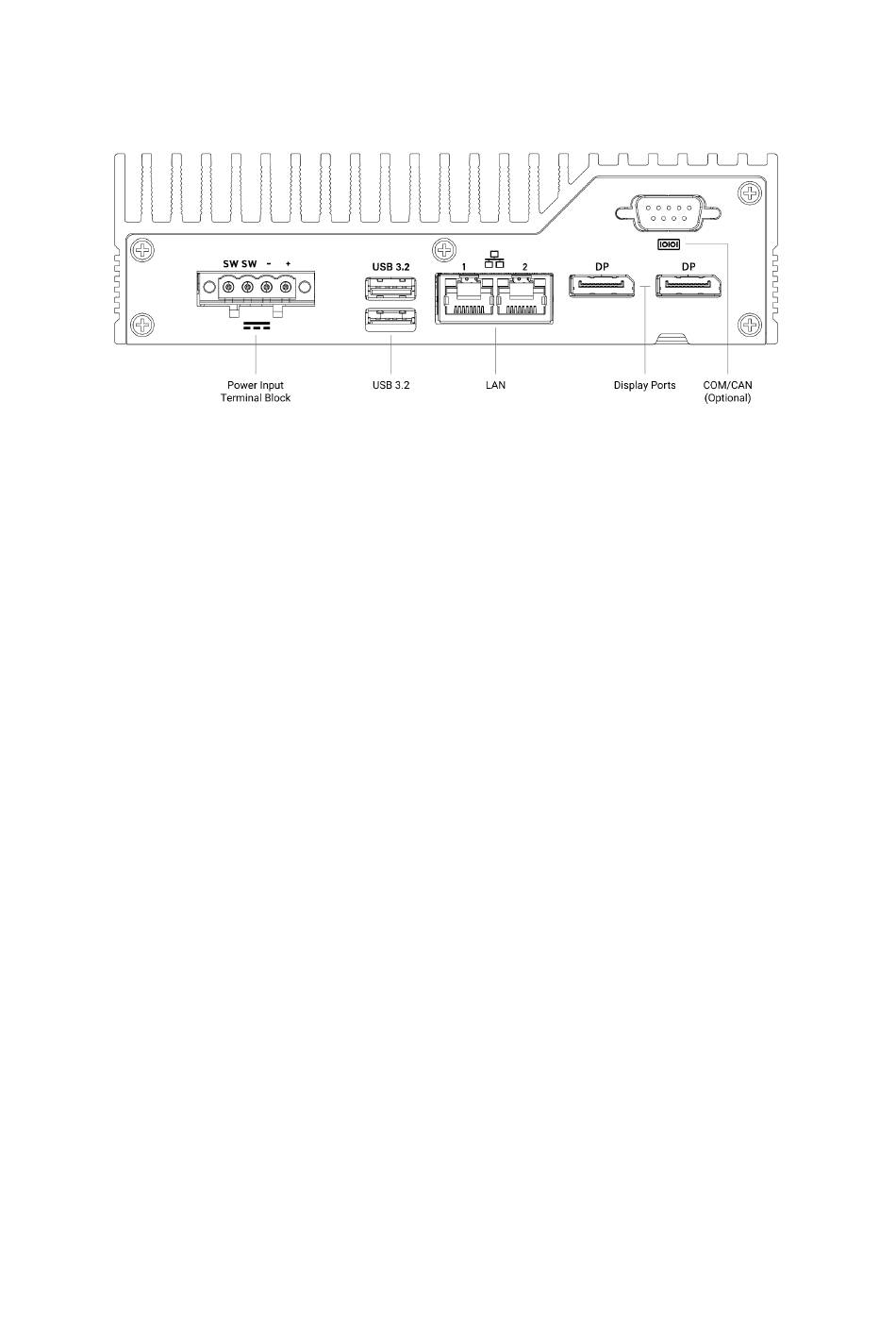

2.2 Rear I/O definition

DisplayPort 1 & 2
Helix utilizes Intel® Integrated processor graphics that power the onboard DisplayPorts. This means
resolutions up to 4096x2304 @ 60Hz are supported on both outputs simultaneously. All ports support
Multi-Stream Transport (MST).
LAN1 - Intel I225-LM
The Intel I219 LAN Port on Helix supports up to 2.5Gbps link speeds over standard shielded CAT5e or
CAT6 cables. The connector is the industry standard RJ45 connector. This port also features Intel' s
vPro® technology enabling remote out-of-band management and security features (requires Intel
Core™ i5 or higher). The LAN link state is shown by the two LEDs enclosed in the port. The
description is included below.
