Pr 45Xx Display / Programming Front; Mounting / Demounting The Pr 45Xx - PR electronics 4114 Product Manual

Functionality
The simple and easily understandable menu structure and the explanatory help texts guide you
effortlessly and automatically through the configuration steps, thus making the product very easy to
use. Functions and configuration options are described in the section "Configuration / operating the
function keys".
Application
• Communications interface for modification of operational parameters in 4114.
• Can be moved from one 4114 device to another and download the configuration of the first unit to
• Fixed display for readout of process data and status.
Technical characteristics
• LCD display with 4 lines:
• Programming access can be blocked by assigning a password. The password is saved in the device

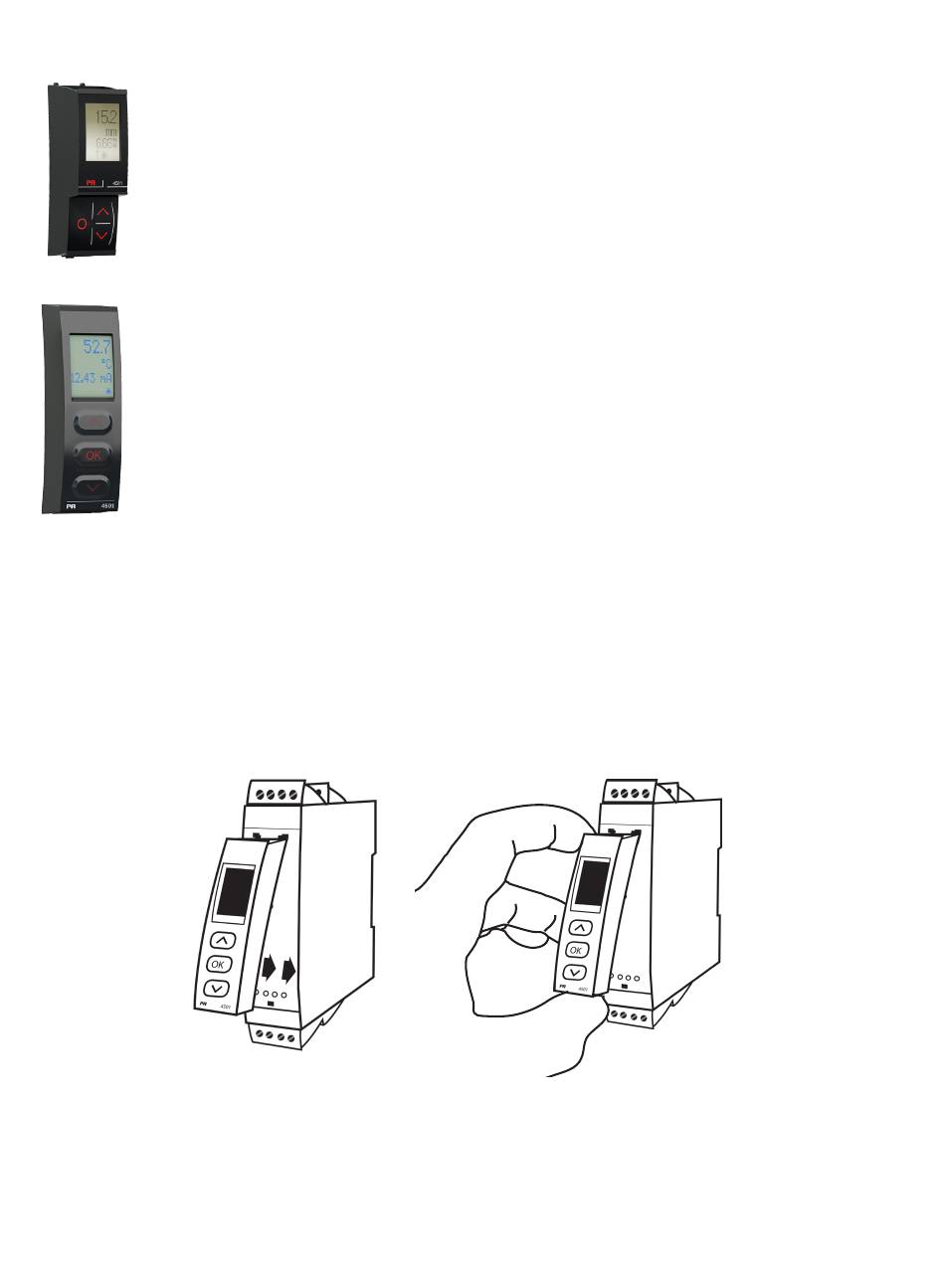

1: Insert the tabs of the PR 45xx into the holes at the top of the device.
2: Hinge the PR 45xx down until it snaps into place.
Demounting of the PR 45xx
3: Push the release button on the bottom of the PR 45xx and hinge the the PR 45xx out and up.
4: With the PR 45xx hinged up, remove from holes at the top of the device.
10

PR 45xx display / programming front

subsequent units.
Line 1 (H=5.57 mm) shows the input signal.
Line 2 (H=3.33 mm) shows the selected engineering unit.
Line 3 (H=3.33 mm) shows analog output or TAG no.
Line 4 shows status for communication.
in order to ensure a high degree of protection against unauthorized modifications to the
configuration.

Mounting / demounting the PR 45xx

1
2
3
3
4114V105-UK
4
4
