PR electronics 2261 Manual

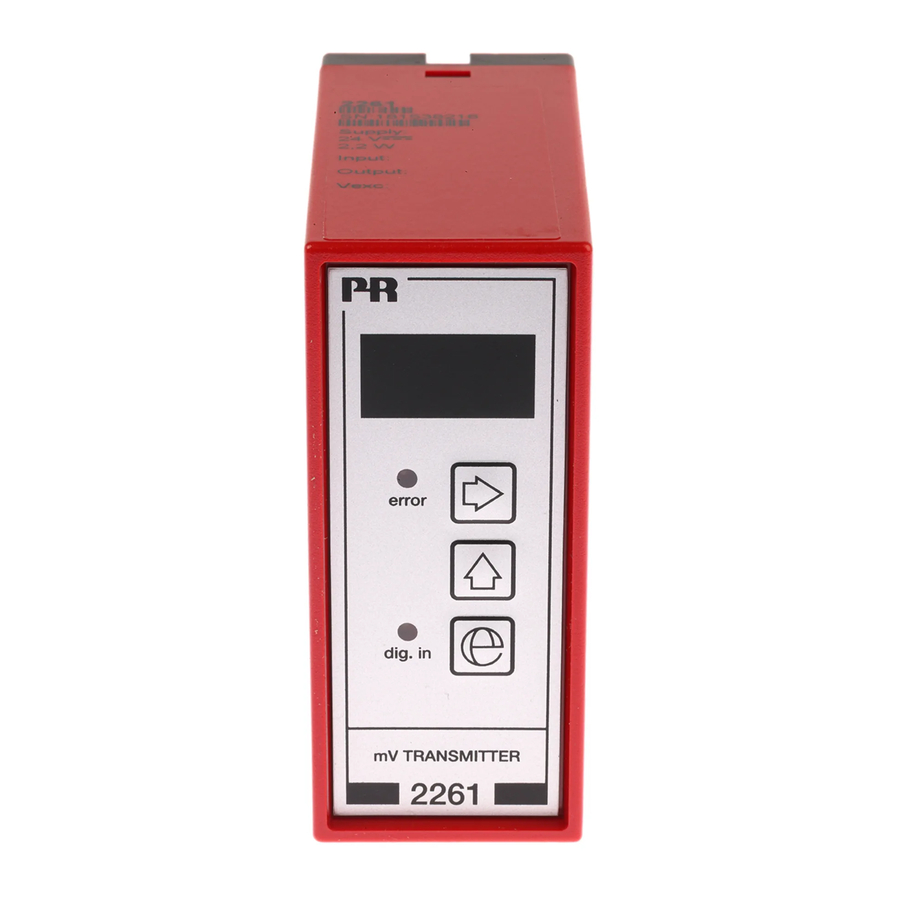

Mv transmitter
Hide thumbs Also See for 2261:

Advertisement

Table of Contents

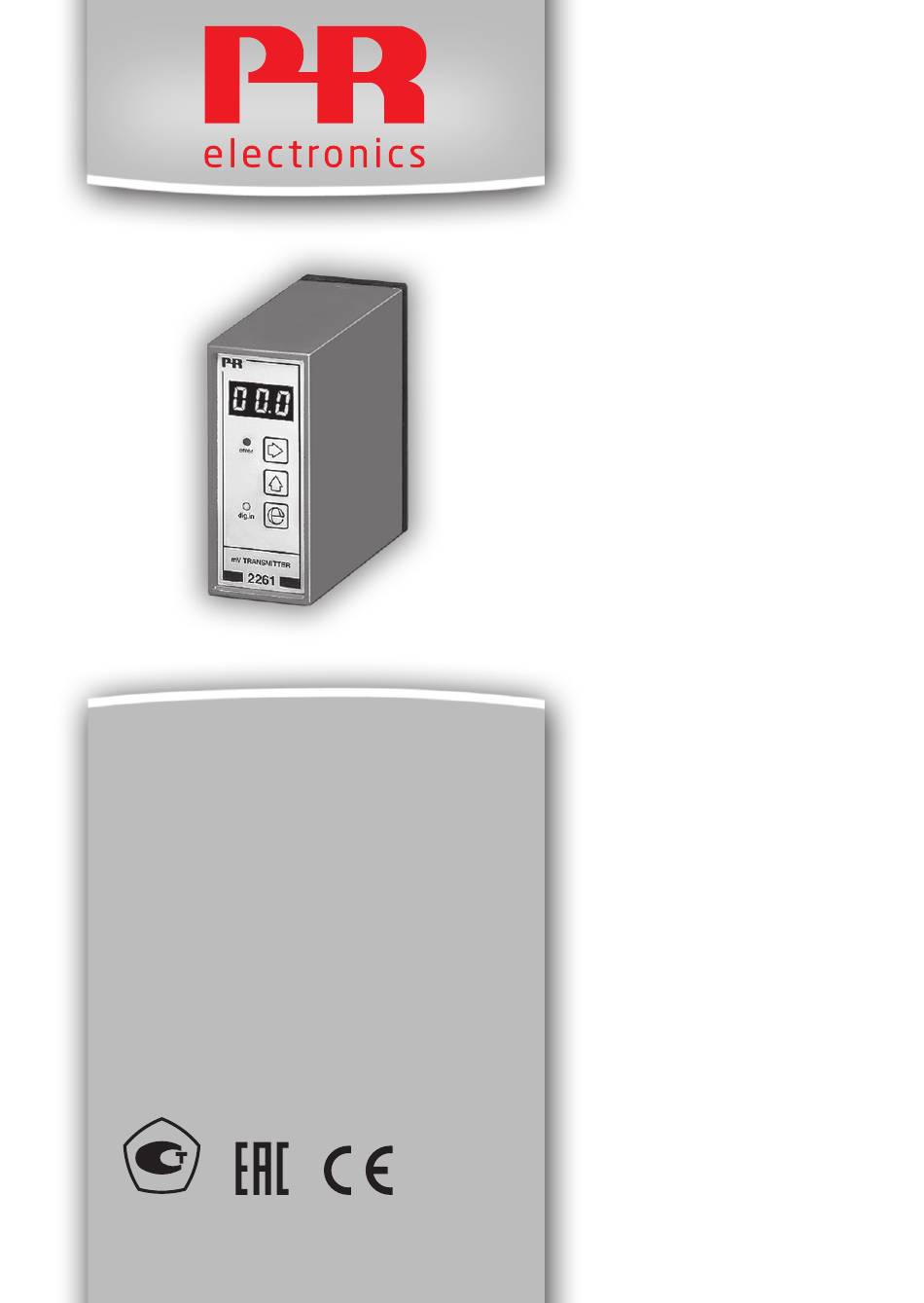

2 2 6 1
m V t r a n s m i t t e r
N o . 2 2 6 1 V 1 0 2 - U K
F r o m s e r . n o . 9 7 0 1 0 6 0 0 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2261 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR electronics 2261

Summary of Contents for PR electronics 2261

  • Page 1 2 2 6 1 m V t r a n s m i t t e r N o . 2 2 6 1 V 1 0 2 - U K F r o m s e r . n o . 9 7 0 1 0 6 0 0 1...
  • Page 2 Vores motto »Signals the Best« er indbegrebet af denne filosofi – og din garanti for kvalitet. PR electronics A/S offers a wide range of analog and digital signal conditioning devices for industrial automation. The product range includes Isolators, Displays, Ex Interfaces, Temperature Transmitters, and Multifunctional Devices.

  • Page 3: Table Of Contents

    TRANSMITTER TYPE 2261 CONTENTS Applications....................Technical characteristics ..............Inputs ......................Taring ......................Standard current / voltage output ........... Front error LED ..................Transducer supply .................. Sense ......................Electrical specifications................ Order ......................Hardware programming ................ Block diagram ................... Routing diagram ..................

  • Page 4: Applications

    Signal conversion / amplification The 2261 converts bipolar mV signals from transducers supplied directly by the module to standard current / voltage signals. The 2261 is suitable for load cell applications. By way of the relative calibration function the scale can be tared, i.e.

  • Page 5: Technical Characteristics

    Technical characteristics In general: The 2261 is microprocessor-controlled and basic-calibrated meaning that input and output can be programmed acc. to the requested signal range without any readjust ment. This guarantees high accuracy and flexibility. The user interface consists of a 3-digit display and 3 front function keys which are used for taring or change of input / output signal range.

  • Page 6: Front Error Led

    Front error LED At an incorrect output, the red LED will flash, e.g. at overrange saturation. Transducer supply Front-programmable to 5...13 VDC. It is up to the customer to ensure a max. load of 230 mA (e.g. 6 parallel 350 Ω load cells). Sense When the transducer supply is applied, the sense input can be used for compensa- tion for cable resistance to the transducer.
  • Page 7 Electrical specifications - Input: mV input: Measurement range ..........-40...100 mV Min. measurement range (span) ......10 mV Max. offset ..............70% of selected max. value Input in relation to supply gnd......> -5 V and < +10 V Max.

  • Page 8: Order

    Voltage limit .............. < 11.5 VDC Observed authority requirements: EMC ................2014/30/EU RoHS ................2011/65/EU EAC ................. TR-CU 020/2011 Of span = Of the presently selected range Order Type 2261 Hardware programming Output range MENU 4.3 0...10 mA 0...20 mA 0...500 mV 0...1000 mV 0...5 V...

  • Page 9: Block Diagram

    BLOCK DIAGRAM 2261V102-UK...
  • Page 10 2261V102-UK...
  • Page 11 2261V102-UK...

  • Page 12: Routing Diagram

    PROGRAMMING / OPERATING THE FUNCTION KEYS DOCUMENTATION FOR ROUTING DIAGRAM General The programming is menu-controlled. The main menus are numbered in level 0 (X.0), and the submenus are numbered in level 1 (X.1 - X.5). Each submenu has an accompa nying entry menu. The menus are structured in such a way that the menus most frequently used are closer to the default menu 0.0.
  • Page 13 tAR - Taring When submenu 5.1 has been selected for {tLO or tHI}, activating the key for more than 2 s will tare the input value to the value it had when activated. The input span is not affected but is kept relative to the new offset value.
  • Page 14 Example: A signal of 5...15 mV corresponds to a weight of 0...1000 kilo. It must be possible to detect a 50% overrange of the scale on the analogue output of the mV transmitter at the same time as the display shows 150%.

  • Page 15: Description Of Functions (Selection Of Application)

    4.3 UI - Selection of current or voltage output See the hardware programming for correct jumper setting. Possible selections are: 001 = Current output in the range 0...10 mA 002 = Current output in the range 0...20 mA 003 = Voltage output in the range 0...500 mV 004 = Voltage output in the range 0...1000 mV 005 = Voltage output in the range 0...5 V 006 = Voltage output in the range 0...10 V...
  • Page 16 5.4 PAS - Setting of password . When the password is 040, changes can be made in all menu points. When the password is <> 040, programming is blocked in all menu points, but access is open for reading the settings. Enter the password by keys.
  • Page 17 Displays Programmable displays with a wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearization, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analog and digital signals as well as HART signals between sensors / I/P converters / frequency ®...
  • Page 18  www.prelectronics.com  sales-uk@prelectronics.com  www.prelectronics.com  sales-us@prelectronics.com  www.prelectronics.cn  sales-cn@prelectronics.com  www.prelectronics.be  sales-be@prelectronics.com Head office Denmark www.prelectronics.com PR electronics A/S sales@prelectronics.dk Lerbakken 10 tel. +45 86 37 26 77 DK-8410 Rønde fax +45 86 37 30 85...
