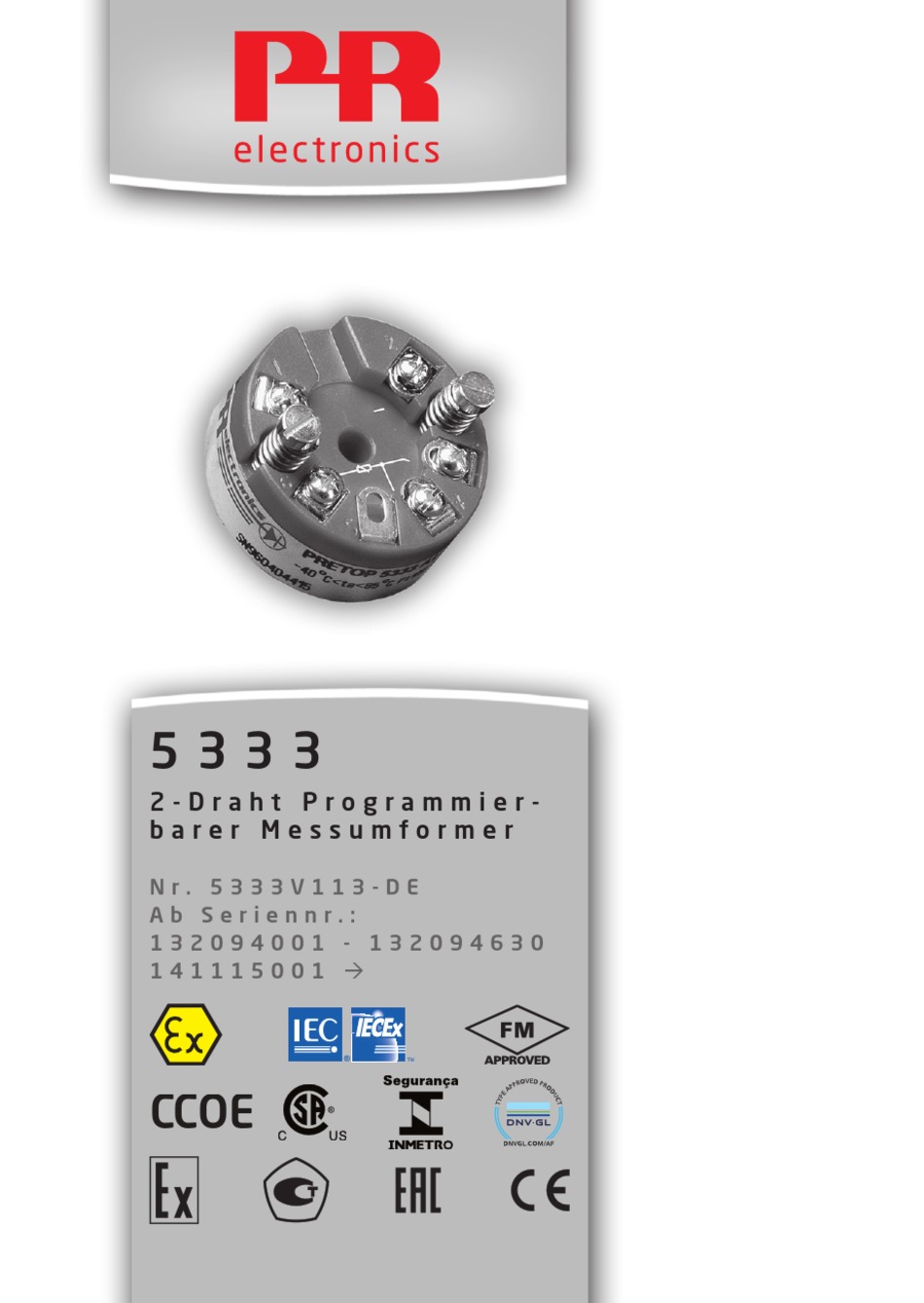

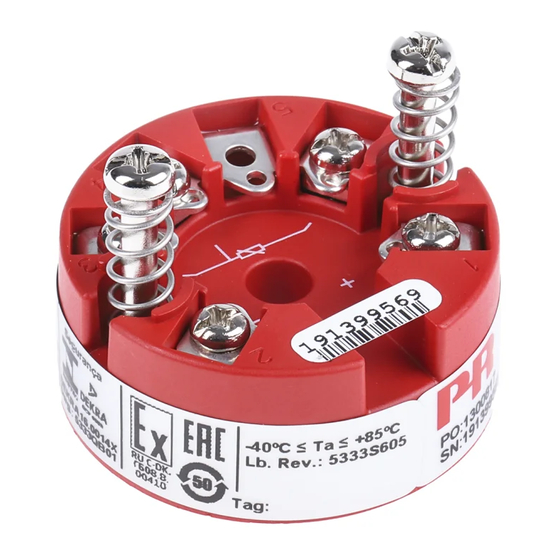

5 3 3 3
2 - D r a h t P r o g r a m m i e r -
b a r e r M e s s u m f o r m e r
N r . 5 3 3 3 V 1 1 3 - D E
A b S e r i e n n r . :
1 3 2 0 9 4 0 0 1 - 1 3 2 0 9 4 6 3 0
1 4 1 1 1 5 0 0 1 
CCOE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5333 and is the answer not in the manual?

Questions and answers

Summary of Contents for PR electronics 5333

  • Page 1 5 3 3 3 2 - D r a h t P r o g r a m m i e r - b a r e r M e s s u m f o r m e r N r .
  • Page 2 Revision Notes The following list provides notes concerning revisions of this document. Rev. ID Date Notes 13/45 IECEx and INMETRO approvals added 15/14 PESO/CCOE approval added GOST approval replaced with EAC approval 17/07 FM installation drawing updated INMETRO installation drawings updated 1707...
  • Page 3: Table Of Contents

    2-DRAHT PROGRAMMIERBARER MESSUMFORMER 5333 Inhaltsverzeichnis Verwendung....................Technische Merkmale ................Montage / Installation ................Anwendungen ..................Bestellangaben: 5333 ................Elektrische Daten ................... Anschlüsse ....................Blockdiagramm ..................Programmierung ..................Abmessungen ..................10 Montage von Fühlerleitungen ............10 Appendix ....................11 ATEX Installation Drawing - 5333A ..........12 ATEX Installation Drawing - 5333D ..........
  • Page 4: Verwendung

    • Der WTH- und Widerstandseingang haben Leitungskompensation bei 3-Leiter- Anschluss. Montage / Installation • Für DIN Form B Sensorkopf Montage. Im sicheren Bereich kann der 5333 auf einer DIN- Schiene mittels einer spezieller Armatur montiert werden. 5333V 1 13 - D E...
  • Page 5: Anwendungen

    ANWENDUNGEN 2-Draht-Installation im Kontrollraum WTH in 4...20 mA 2-Draht-Installation im Kontrollraum Widerstand in 4...20 mA 5 33 3 V 1 13 - DE...
  • Page 6: Bestellangaben: 5333

    Bestellangaben: 5333 Version 5333 Standard CSA, FM, ATEX, IECEx & INMETRO Elektrische Daten Spezifikationsbereich: -40°C bis +85°C Gemeinsame Daten: Versorgungsspannung DC Standard ..............8...35 V CSA, FM, ATEX, IECEx & INMETRO ..8...30 V Verlustleistung Standard ..............25 mW...0,8 W CSA, FM, ATEX, IECEx &...
  • Page 7 Genauigkeit, höherer Wert von allgemeinen und Grundwerten: Allgemeine Werte Absolute Temperatur- Eingangsart Genauigkeit koeffizient ≤ ±0,1% d. Messsp. ≤ ±0,01%d. Messsp./°C Alle Grundwerte Grund- Temperatur- Eingangsart Genauigkeit koeffizient ≤ ±0,3°C ≤ ±0,01°C/°C ≤ ±0,2 Ω ≤ ±20 mΩ / °C Lin.
  • Page 8 Ausgang: Stromausgang: Signalbereich ............. 4...20 mA Min. Signalbereich............ 16 mA Aktualisierungszeit ..........135 ms Belastungswiderstand ........... ≤ (U - 8) / 0,023 [Ω] Vers . Belastungsstabilität ..........< ±0,01% d. Messsp. / 100 Ω Fühlerfehlererkennung: Programmierbar ............3,5...23 mA NAMUR NE43 aufsteuernd ........23 mA NAMUR NE43 zusteuernd ........
  • Page 9: Anschlüsse

    ANSCHLÜSSE Eingang: WTH, 2-Leiter WTH, 3-Leiter Widerst., 2-Leiter Widerst., 3-Leiter Ausgang: 2-Draht-Installation 5 33 3 V 1 13 - DE...
  • Page 10: Blockdiagramm

    BLOCKDIAGRAMM 5333V 1 13 - D E...
  • Page 11: Programmierung

    PROGRAMMIERUNG • Loop Link ist eine batteriegespeiste Schnittstelle zur Programmierung des 5333. • Bezüglich Programmierung verweisen wir auf die nachfolgende Zeichnung und die “Hilfe”-Funktion im PReset-Programm. • Loop Link darf nicht zur Kommunikation mit Modulen, die in Ex-gefährdeten Bereichen installiert sind, benutzt werden.
  • Page 12: Montage Von Fühlerleitungen

    Abmessungen Montage von Fühlerleitungen ø 6 mm 20.2 m m 33 mm ø 44 mm Die Leitungen müssen zwischen den Metallplatten. 5333V 1 13 - D E...
  • Page 13: Appendix

    APPENDIX ATEX Installation Drawing - 5333A ATEX Installation Drawing - 5333D IECEx installation drawing - 5333A IECEx installation drawing - 5333D FM Installation Drawing - 5333D CSA Installation Drawing - 5333D INMETRO Instruções de Segurança - 5333A INMETRO Instruções de Segurança - 5333D 5 33 3 V 1 13 - DE...
  • Page 14 5333QA02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installationszeichnung Für die sichere Installation von 5333A ist Folgendes zu beachten: Das Gerät darf nur von qualifiziertem Personal eingebaut werden, das mit den nationalen und internationalen Gesetzen, Richtlinien und Standards auf diesem Gebiet vertraut ist. Das Baujahr kann aus den ersten beiden Ziffern der Seriennummer ersehen werden.
  • Page 15 5333QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installationszeichnung Für die sichere Installation von 5333D ist Folgendes zu beachten: Das Gerät darf nur von qualifiziertem Personal eingebaut werden, das mit den nationalen und internationalen Gesetzen, Richtlinien und Standards auf diesem Gebiet vertraut ist. Das Baujahr kann aus den ersten beiden Ziffern der Seriennummer ersehen werden.
  • Page 16 5333QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installationsvorschriften Für Anwendung in einer potentiellen explosiven Atmosphäre - basierend auf entflammbaren Gas - muss der Messumformer in einem Gehäuse, welcher einen Schutzgrad von mindestens IP20 gemäß EN 60529 besitzt, eingebaut werden. Für Applikationen in explosiver Atmosphäre, wo Kategorie 1 G, 1 M oder 2 M Geräte vorgeschrieben sind, und wenn das Gehäuse aus Aluminium ist, ist das Gehäuse so zu montieren, dass Zündquellen (Stöße und Reibungsfunken) selbst bei selten auftretenden Störungen vermieden werden;...
  • Page 17 5333QI02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 5333A or 5343A the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 18 5333QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 5333D or 5343B the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 19 5333QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes. In a potentially explosive gas atmosphere, the transmitter shall be mounted in a metal form B enclosure in order to provide a degree of protection of at least IP20 according to IEC60529. If however the environment requires a higher degree of protection, this shall be taken into account.
  • Page 20 5300Q502 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM FM Installation Drawing Model 5331D, 5333D and 5343B Non Hazardous Location Hazardous (Classified) Location Class I,Division1, Groups, A,B,C,D T4..T6 Associated Apparatus Class I, Zone 0, AEx ia IIC T4..T6 or Barrier with Ambient temperature limits entity Parameters: T4: ‐40 to + 85 deg. Celcius T6: ‐40 to + 60 deg. Celcius UM <...
  • Page 21 5300Q502 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM The entity concept The Transmitter must be installed according to National Electrical Code (ANSI-NFPA 70) and shall be installed with the enclosure, mounting, and spacing segregation requirement of the ultimate application. Equipment that is FM-approved for intrinsic safety may be connected to barriers based on the ENTITY CONCEPT.
  • Page 22 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM CSA Installation drawing 533XQC03 Hazardous area Non Hazardous Area T4: -40 ≤ Ta ≤ 85ºC T6: -40 ≤ Ta ≤ 60ºC Module 5331D, 5333D Terminal: 3,4,5,6 Only passive, or non-energy storing devices such as RTD’s and Thermocouples may be connected Barrier...
  • Page 23 5333QB02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Desenho de Instalação INMETRO Para instalação segura do 5333A ou 5343A o seguinte deve ser observado. O modo deve apenas ser instalado por pessoas qualificadas que são familiarizadas com as leis nacionais e internacionais, diretrizes e padrões que se aplicam a esta área.
  • Page 24 5333QB01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Desenho de Instalação InNMETRO Para instalação segura do 5333D ou 5343B o seguinte deve ser observado. O modo deve apenas ser instalado por pessoas qualificadas que são familiarizadas com as leis nacionais e internacionais, diretrizes e padrões que se aplicam a esta área.
  • Page 25 5333QB01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Notas de Instalação. Em uma atmosfera de gás potencialmente explosiva, o transmissor deve ser montado em um enclousure a fim de garantir um grau de proteção de no mínimo IP20 de acordo com ABNT NBR IEC60529.
