PR electronics 5335 Manual

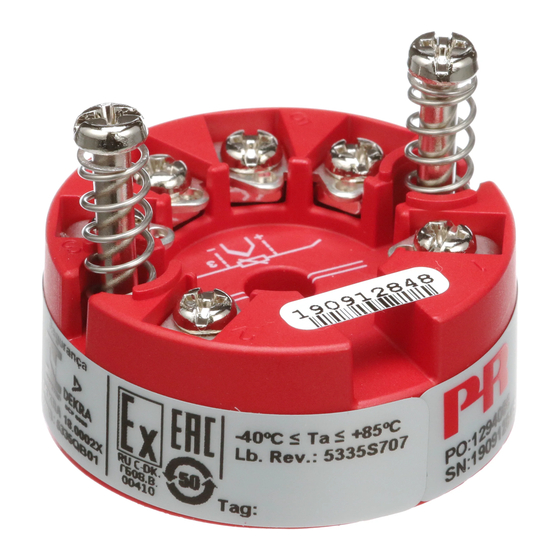

2-wire transmitter with hart protocol
Hide thumbs Also See for 5335:
Table of Contents

Advertisement

Quick Links

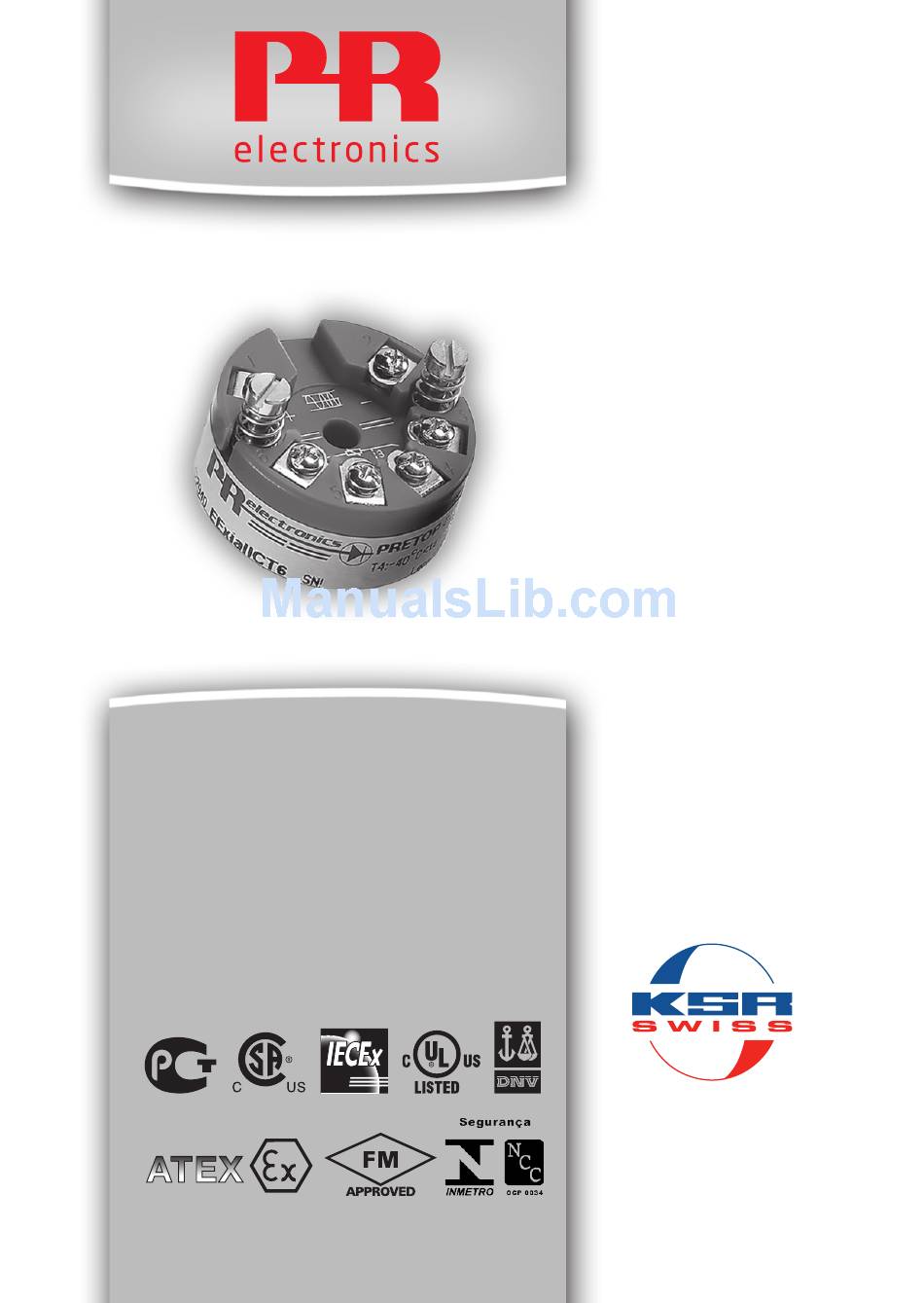

5 3 3 5
2 - W i r e T r a n s m i t t e r
w i t h H A R T
N o . 5 3 3 5 V 1 1 6 - U K
F r o m s e r . n o . 1 2 0 9 1 7 0 0 1
®
P r o t o c o l
Distributed by:
Heinrich Kübler AG
Ruessenstrasse 4
CH-6340 Baar
Tel.: +41 (0)41 766 62 62
Fax: +41 (0)41 766 62 63
info@kubler.ch
www.kubler.ch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5335 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR electronics 5335

Summary of Contents for PR electronics 5335

  • Page 1 5 3 3 5 2 - W i r e T r a n s m i t t e r ® w i t h H A R T P r o t o c o l Distributed by: N o .
  • Page 2 PR electronics A/S tilbyder et bredt program af analoge og digitale signalbehandlingsmoduler til industriel automation. Programmet består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere, Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv barske miljøer med elektrisk støj, vibrationer og temperaturudsving, og alle produkter opfylder de strengeste internationale standarder.

  • Page 3: Table Of Contents

    PRetop 5335 CONTENTS Application ....................Technical characteristics ..............Mounting / installation ................. Applications....................Accessories ....................Order: 5335 ....................Electrical specifications................ Connections ....................Block diagram ................... Programming .................... 10 Connection of transmitters in multidrop mode ......12 Mechanical specifications ..............12 Mounting of sensor wires ..............

  • Page 4: Application

    • Sensor error detection according to the guidelines in NAMUR NE 89. Mounting / installation • For DIN form B sensor head mounting. In non-hazardous areas the 5335 can be mounted on a DIN rail with the PR fitting type 8421. • NB: As Ex barrier for 5335D we recommend 5106B and 9106B.

  • Page 5: Applications

    APPLICATIONS 2-wire installation in control room RTD to 4...20 mA 2-wire installation TC to 4...20 mA in control room 2-wire installation Resistance to 4...20 mA in control room 2-wire installation mV to 4...20 mA in control room 2-wire installation Di erence or average in control room RTD, TC or mV 5 33 5 V 1 16 - UK...

  • Page 6: Accessories

    Order: 5335 Type Version 5335 Standard CSA, FM, ATEX, IECEx & INMETRO Accessories 5909 = Loop Link USB interface and PReset Software 8421 = DIN rail clip Electrical specifications Specifications range: -40°C to +85°C Common specifications: Supply voltage, DC Standard ............. 8.0...35 V CSA, FM, ATEX, IECEx &...
  • Page 7 Basic values Basic Temperature Input type accuracy coefficient ≤ ±0.1°C ≤ ±0.005°C/°C Pt100 & Pt1000 Ni100 ≤ ±0.2°C ≤ ±0.005°C/°C ≤ ±0.1 Ω ≤ ±5 mΩ / °C Lin. R Volt ≤ ±10 µV ≤ ±0.5 µV / °C TC type: ≤...
  • Page 8 Electrical specifications, input: Max. offset ..............50% of selec. numerical max. value RTD and linear resistance input: Min. Max. Min. type value value span Standard Pt100 IEC 60751 -200°C +850°C 10°C Ni100 DIN 43760 -60°C +250°C 10°C 0 Ω 7000 Ω 25 Ω...

  • Page 9: Current Output

    Voltage input: Measurement range ..........-800...+800 mV Min. span ..............2.5 mV Input resistance............10 MΩ Current output: Signal range ............... 4...20 mA Min. signal range ............16 mA Updating time ............440 ms (660 ms for diff.) Fixed output signal ..........Between 4 and 20 mA Output signal at EEprom error ......

  • Page 10: Connections

    CONNECTIONS Input: RTD, 2-wire RTD, 3-wire RTD, 4-wire TC, internal CJC TC, external CJC Resistance, 2-wire Resistance, 3-wire TC, di erence TC, di erence or average, or average, RTD, di erence Resistance, 4-wire or average with internal CJC with external CJC Output: mV, di erence 2-wire installation...

  • Page 11: Block Diagram

    BLOCK DIAGRAM 5 33 5 V 1 16 - UK...

  • Page 12: Programming

    PROGRAMMING PRetop 5335 can be configured in the following 3 ways: 1. With PR electronics A/S’ communications interface Loop Link and PReset PC configuration software. 2. With a HART ® modem and PReset PC configuration software. 3. With a HART ® communicator with PR electronics A/S’ DDL driver. 1: Loop Link For programming please refer to the drawing below and the help functions in PReset.
  • Page 13 For programming please refer to the drawing below. To gain access to product-specific commands, the HART ® communicator must be loaded with the PR electronics A/S DDL driver. This can be ordered either at the HART ® Communica tion Foundation or at PR electronics A/S. Receiving Safe area area Equipment +Vsupply Input > 250 Ω, < 1100 Ω...

  • Page 14: Connection Of Transmitters In Multidrop Mode

    CONNECTION OF TRANSMITTERS IN MULTIDROP MODE The HART ® communicator or a PC modem can be connected accross AB or BC. PRetop PRetop PRetop 5335 5335 5335 Power supply Max. 15 transmitters > 250 Ω, < 1100 Ω load The outputs of max. 15 transmitters can be connected in parallel for a digital HART ®...

  • Page 15: Appendix

    APPENDIx ATEx Installation Drawing - 5335A ATEx Installation Drawing - 5335D IECEx installation drawing - 5335A IECEx installation drawing - 5335D FM Installation Drawing - 5335D CSA Installation Drawing - 5335D INMETRO Instruções de Segurança - 5335D 5 33 5 V 1 16 - UK...
  • Page 16 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing 5335QA02 For safe installation of 5335A or 5337A the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 17 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM If the transmitter is supplied with an non-sparking signal "nA", or interfaces a non sparking signal, the transmitter shall be mounted in a metal enclosure form B according to DIN 43729 providing a degree of protection of at least IP6X according to EN60529, and in conformance with type of protection Ex tD and suitable for the application.
  • Page 18 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing 5335QI02 For safe installation of 5335A or 5337A the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 19 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing 5335QA01 For safe installation of 5335D or 5337D the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 20 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes General installation instructions The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute.
  • Page 21 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing 5335QI01 For safe installation of 5335D or 5337D the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 22 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes General installation instructions The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute.
  • Page 23 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM FM Installation Drawing 5300Q502 Rev AH Model 5331C,5331D, 5333C, 5333D and 5343B Non Hazardous Location Hazardous (Classified) Location Class I,Division1, Groups, A,B,C,D Associated Apparatus Class I, Zone 0, IIC or Barrier with Ambient temperature limits entity Parameters: T4: ‐40 to + 85 deg. Celcius T6: ‐40 to + 60 deg. Celcius UM <...
  • Page 24 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM The entity concept The Transmitter must be installed according to National Electrical Code (ANSI-NFPA 70) and shall be installed with the enclosure, mounting, and spacing segregation requirement of the ultimate application. Equipment that is FM-approved for intrinsic safety may be connected to barriers based on the ENTITY CONCEPT.
  • Page 25 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM CSA Installation drawing 533XQC03 Hazardous area Non Hazardous Area T4: -40 ≤ Ta ≤ 85ºC T6: -40 ≤ Ta ≤ 60ºC Module 5331D, 5333D Terminal: 3,4,5,6 Only passive, or non-energy storing devices such as RTD’s and Thermocouples may be connected Barrier...
  • Page 26 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Instruções de Segurança 5335D, 5336D, 5337D: Instalação Ex: Para a instalação segura do transmissor 5335D-5337D em áreas classificadas, deve-se observar o seguinte: O módulo necessita ser instalado somente por pessoal qualificado e que tenham familiaridade com normas internacionais, diretivas e normalização aplicadas à...
  • Page 27 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Ex ia IIC T6…T4 Ga Ex ia I Ma Certificado:: NCC 12.0844 X Temp. amb. máxima T1...T4 ....85°C Temp. amb. máxima T5 e T6 ....45°C Aplicável em Zona ....... 0, 1, 2 Sinal de saída / alimentação , terminal 1 e 2: Ui ............
  • Page 28 Displays Programmable displays with a wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearization, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analog and digital signals as well as HART signals between sensors / I/P converters / ®...
  • Page 29  www.prelectronics.se  sales-se@prelectronics.com  www.prelectronics.co.uk  sales-uk@prelectronics.com  www.prelectronics.com  sales-us@prelectronics.com  www.prelectronics.cn  sales-cn@prelectronics.com Head office Denmark www.prelectronics.com PR electronics A/S sales-dk@prelectronics.com Lerbakken 10 tel. +45 86 37 26 77 DK-8410 Rønde fax +45 86 37 30 85...
