5 3 5 0
PRO F IBU S

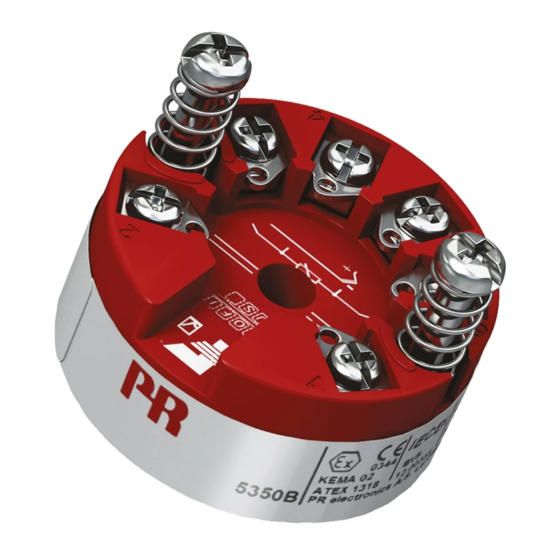

TIO N™ F ieldbu s Tr an s m itter
N o . 5 3 5 0 V 1 0 9 - I N ( 0 8 2 5 )
F r o m s e r . n o . 0 3 0 6 4 0 0 0 1
S I G N A L S T H E B E S T
®
PA / F O UNDA-
Side 1
DK
Page 17
UK
Page 33
FR
Seite 49
DE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PR electronics 5350

  • Page 1 Displays Programmable displays with a wide se- lection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearisation, scaling, and difference measurement functions for programming via PReset software. Ex barriers Interfaces analogue digital ® signals as well as HART signals between sensors / I/P converters / frequency signals and control systems in Ex zone 0, 1 &...
  • Page 2: Table Of Contents

    ® PROFIBUS PA / FOUNDATION™ FIELDBUS TRANSMITTER PRetrans 5350 Indholdsfortegnelse Sikkerhedsinstruktion ............EF-overensstemmelseserklæring ........Anvendelse ................. Teknisk karakteristik ............Montage / installation ............Applikationer ..............Bestillingsskema..............Elektriske specifikationer ........... Tilslutninger, indgang ............12 Tilslutninger, udgang ............13 Montering af følerledninger ..........13 Blokdiagram ...............
  • Page 3: Sikkerhedsinstruktion

    Ex-installation: Som producent erklærer PR electronics A/S For sikker installation af 5350 i eksplosionsfarligt område skal følgende Lerbakken 10 overholdes. Installation må kun foretages af kvalificeret personale, der er bekendt med de nationale og internationale love, direktiver og standarder, der DK-8410 Rønde...
  • Page 4: Anvendelse

    Fieldbus funktionsblokke: 2 analoge og 1 PID. OUNDATION™ • F Fieldbus funktionalitet: Basic eller LAS. OUNDATION™ Montage / installation: • Kan monteres i DIN form B følerhoved. I ikke-eksplosionsfarlige områder kan 5350 monteres på en DIN-skinne med PR-beslag type 8421.
  • Page 5: Elektriske Specifikationer

    Basisværdier Basis- Temperatur- Indgangstype nøjagtighed koefficient ≤ ±0,1°C ≤ ±0,002°C / °C Pt100 og Pt1000 ≤ ±0,15°C ≤ ±0,002°C / °C Ni100 ≤ ±1,3°C ≤ ±0,02°C / °C Cu10 ≤ ±0,05 Ω ≤ ±0,002 Ω Lin. R / °C ≤ ±10 µV ≤...
  • Page 6 TC-indgang: Ex-godkendelse - 5350A: KEMA 03ATEX1011 X Min. Max. Type værdi værdi Standard Ex-data: +400°C +1820°C IEC 60584-1 Terminal 1, 2 (Fieldbus-kredsløb): -100°C +1000°C IEC 60584-1 II 3 G EEx nA [nL] II C T4...T6 -100°C +1200°C IEC 60584-1 ..............: 32 VDC -180°C +1372°C IEC 60584-1...
  • Page 7 EEx- / I.S.-godkendelse - 5350B: 5350B KEMA 02ATEX1318 ........II 1 GD el. II 2 (1) GD, Zone 1, EEx ib IIC, Entity / Fisco T65°C...T105°C IS, Class I, Division 2, Group A, B, C, D EEx ia IIC eller EEx ib [ia] IIC T4...T6 Entity / Fisco Må...
  • Page 8: Montering Af Følerledninger

    Tilslutninger: Udgang: Bus-tilslutning Bus- terminering Segment- kobler Bus-tilslutning Bus- terminering Segment- kobler Mekaniske specifikationer: Montering af følerledninger: Ledninger monteres mellem metalpladerne...
  • Page 9: Blokdiagram

    Blokdiagram: Bus-installation:...
  • Page 10 ® PROFIBUS PA / FOUNDATION™ FIELDBUS TRANSMITTER PRetrans 5350 Contents Safety instruction ............... 18 EC Declaration of Conformity ..........19 Application ................. 20 Technical characteristics ............ 20 Mounting / installation ............20 Applications ................ 21 Order .................. 22 Electrical specifications ............22 Connections, input .............
  • Page 11: Safety Instruction

    EC DECLARATION OF CONFORMITY Ex installation: As manufacturer For safe installation of 5350 in a hazardous area, the following must be obser- PR electronics A/S ved. The module must only be installed by qualified personnel who are fami- Lerbakken 10 liar with the national and international laws, directives and standards that DK-8410 Rønde...
  • Page 12: Application

    Fieldbus function blocks: 2 analogue and 1 PID. OUNDATION™ • F Fieldbus capability: Basic or LAS. OUNDATION™ Mounting / installation: • For DIN form B sensor head mounting. In non-hazardous areas the 5350 can be mounted on a DIN rail with the PR fitting type 8421.
  • Page 13: Electrical Specifications

    Basic values Basic Temperature Input type accuracy coefficient ≤ ±0.1°C ≤ ±0.002°C / °C Pt100 and Pt1000 ≤ ±0.15°C ≤ ±0.002°C / °C Ni100 ≤ ±1.3°C ≤ ±0.02°C / °C Cu10 ≤ ±0.05 Ω ≤ ±0.002 Ω Lin. R / °C ≤...
  • Page 14 TC input: Ex approval - 5350A: KEMA 03ATEX1011 X Min. Max. Type value value Standard Ex data: Terminal 1, 2 (Fieldbus circuit): +400°C +1820°C IEC584 -100°C +1000°C IEC584 II 3 G EEx nA [nL] II C T4...T6 -100°C +1200°C IEC584 ..............
  • Page 15 EEx / I.S. approval - 5350B: 5350B KEMA 02ATEX1318 ........II 1 GD or II 2 (1) GD, Zone 1, EEx ib IIC, Entity / Fisco T65°C...T105°C IS, Class I, Division 2, Group A, B, C, D EEx ia IIC or EEx ib [ia] IIC T4...T6 Entity / Fisco Applicable in zone ........
  • Page 16: Mounting Of Sensor Wires

    Connections: Output: Bus connection termination Segment coupler Bus connection termination Segment coupler Mechanical specifications: Mounting of sensor wires Wires must be mounted between the metal plates.
  • Page 17: Block Diagram

    Block diagram: Bus installation:...
  • Page 18 ® TRANSMETTEUR PROFIBUS PA / FIELDBUS FOUNDATION™ PRetrans 5350 Sommaire Consigne de sécurité ............34 Déclaration de conformité CE ..........35 Application ................. 36 Caractéristiques techniques ..........36 Montage / installation ............36 Applications ................ 37 Référence ................38 Spécifications électriques ..........38 Connexions, entrée ............
  • Page 19: Consigne De Sécurité

    Consigne de sécurité DECLARATION DE CONFORMITE CE Installation S.I. : En tant que fabricant Pour l’installation de 5350 dans les zones dangereuses, conformez-vous aux PR electronics A/S consignes de sécurité suivantes : l’installation ne doit être réalisée que par du Lerbakken 10 personnel qualifié...
  • Page 20: Application

    : 2 blocs analogiques et 1 bloc PID. OUNDATION™ • Fonctionnalités en Fieldbus F : Basic. ou LAS. OUNDATION™ Montage / installation : • Pour tête de sonde DIN B. En zone non-dangereuse le 5350 peut être monté sur rail DIN avec le support PR type 8421.
  • Page 21: Spécifications Électriques

    Valeurs de base Type Précision Coefficient d’entrée de base de température ≤ ±0,1°C ≤ ±0,002°C / °C Pt100 et Pt1000 ≤ ±0,15°C ≤ ±0,002°C / °C Ni100 ≤ ±1,3°C ≤ ±0,02°C / °C Cu10 ≤ ±0,05 Ω ≤ ±0,002 Ω R.
  • Page 22 Entrée TC : Approbation S.I. - 5350A : KEMA 03ATEX1011 X Valeur Valeur Type min. max. Standard Caractéristiques S.I. : Borne 1, 2 (Circuit Fieldbus) : +400°C +1820°C IEC584 -100°C +1000°C IEC584 II 3 G EEx nA [nL] II C T4...T6 -100°C +1200°C IEC584...
  • Page 23 Approbation EEx / S.I. - 5350B : 5350B KEMA 02ATEX1318 ........II 1 GD ou II 2 (1) GD, Zone 1, EEx ib IIC, Entity / Fisco T65°C...T105°C IS, Class I, Division 2, Group A, B, C, D EEx ia IIC ou EEx ib [ia] IIC T4...T6 Entity / Fisco Applicable en zone ........
  • Page 24: Montage Des Fils Du Capteur

    Connexions : Sortie : Connexion bus Terminaison Coupleur de segment Connexion bus Terminaison Coupleur de segment Dimensions mécaniques : Montage des fils du capteur Les fils doivent être montés entre les plaques métalliques.
  • Page 25: Schéma De Principe

    Schema de principe : Installation bus :...
  • Page 26: Appendix

    ® PROFIBUS PA / FOUNDATION™ FIELDBUS MESSUMFORMER PRetrans 5350 Inhaltsverzeichnis Sicherheitsanweisung ............50 EG-Konformitätserklärung..........51 Verwendung ................ 52 Technische Merkmale ............52 Montage / Installation ............52 Anwendungen ..............53 Bestellangaben ..............54 Elektrische Daten ............... 54 Anschlüsse, Eingang ............60 Anschlüsse, Ausgang ............
  • Page 27: Sicherheitsanweisung

    Sicherheitsanweisung EG-KONFORMITÄTSERKLÄRUNG Ex-Installation: Als Hersteller bescheinigt Für sichere Installation von 5350 in explosionsgefährdeter Umgebung muss fol- PR electronics A/S gendes beobachtet werden. Die Installation muss nur von qualifizierten Per- Lerbakken 10 sonen, die mit den nationalen und internationalen Gesetze, Direktiven und Standards des Gebiets bekannt sind, vorgenommen werden.
  • Page 28: Itk

    Fieldbus Funktionsblöcke: 2 Analoge und 1 PID. OUNDATION™ • F Fieldbus Funktionalität: Basic oder LAS. OUNDATION™ Montage / Installation: • Für DIN Form B Sensorkopf Montage. Im sicheren Bereich kann der 5350 auf einer DIN- Schiene mittels der PR-Armatur Typ 8421 montiert werden.
  • Page 29: Elektrische Daten

    Grundwerte Grund- Temperatur- Eingangsart Genauigkeit koeffizient ≤ ±0,1°C ≤ ±0,002°C / °C Pt100 und Pt1000 ≤ ±0,15°C ≤ ±0,002°C / °C Ni100 ≤ ±1,3°C ≤ ±0,02°C / °C Cu10 ≤ ±0,05 Ω ≤ ±0,002 Ω Lin. R / °C ≤ ±10 µV ≤...
  • Page 30 TE-Eingang: Ex- / I.S.-Zulassung - 5350A: KEMA 03ATEX1011 X Min. Max. Wert Wert Norm Ex-Daten: Klemme 1, 2 (Fieldbus-Kreislauf): +400°C +1820°C IEC584 -100°C +1000°C IEC584 II 3 G EEx nA [nL] II C T4...T6 -100°C +1200°C IEC584 ..............: 32 VDC -180°C +1372°C IEC584...
  • Page 31: Μh

    EEx- / I.S.-Zulassung - 5350B: 5350B KEMA 02ATEX1318 ........II 1 GD od. II 2 (1) GD, Zone 1, EEx ib IIC, Entity / Fisco T65°C...T105°C IS, Class I, Division 2, Group A, B, C, D EEx ia IIC od. EEx ib [ia] IIC T4...T6 Entity / Fisco Anwendung in Zone ........
  • Page 32: Montage Von Fühlerleitungen

    Anschlüsse: Ausgang: Bus-Verbindung Bus- Abschluss Segment- koppler Bus-Verbindung Bus- Abschluss Segment- koppler Abmessungen: Montage von Fühlerleitungen: Die Leitungen müssen zwischen den Metallplatten montiert werden.
  • Page 33: Blockdiagramm

    Blockdiagramm: Businstallation: PR5350A Segmentkoppler Versorgung PR5350A PR5350A max. 16 OUNDATION Bus- max. 32 PROFIBUS Abschluss Sicheres Bereich Ex-gefährdeter Bereich PR5350B Segmentkoppler, Ex PR5350B Versorgung, Ex An zusätzliche Segmentkopplern PR5350B max. 10 OUNDATION Bus- max. 10 PROFIBUS Abschluss...
  • Page 34: Appendix

    APPENDIX FM, UL, CSA and FISCO Installation Drawing No. 5350QE01...
  • Page 35 Installation Drawing 5350QE01. Unclassified Location Hazardous (Classified) Location Class I, Division2, Groups, A,B,C,D Associated Apparatus Barrier with Class I, Zone 1, IIC Unclassified Location Hazardous (Classified) Location entity Parameters: UM < 250V Associated Apparatus Class I, Division1, Groups, A,B,C,D Voc or Uo < Vmax or Ui Barrier or Isc or Io <...
  • Page 36 Installation notes: FM / UL / CSA: For installation in the US the 5350 shall be installed according to the National Electrical Hazardous (Classified) Location Unclassified Location Code (ANSI-NFPA 70). For installation in Canada the transmitter shall be installed in a suitable enclosure to meet Class I, Division2, Groups, A,B,C,D installation codes stipulated in the Canadian Electrical Code (CEC).
  • Page 37 Nonincendive Field Wiring Concept: The Nonincendive Field Wiring concept allows the interconnection of nonincendive field The Nonincendive Field Wiring concept allows for the interconnection of nonincendive field wiring apparatus using any of the wiring methods permitted for unclassified locations. wiring apparatus using any of the wiring methods permitted for unclassified locations. Vmax >= Voc or Vt, Ca >= Ci +Ccable, La >= Li + Lcable"...
  • Page 38 ATEX: See ATEX Installation 5350QA01 5350QE01.doc 2005-03-16 Rev. AC...
