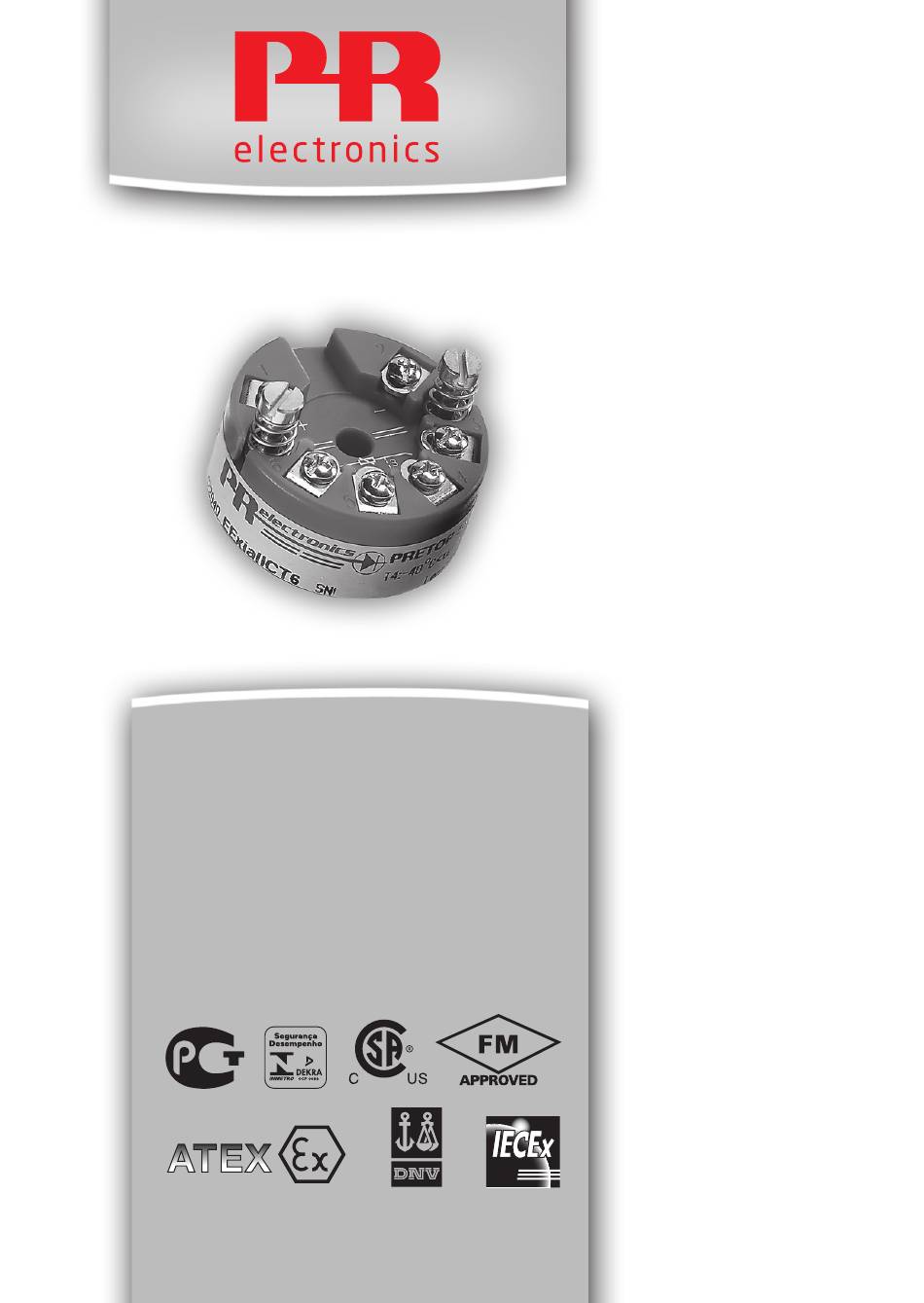

5 3 3 1
2 - D r a h t U n i v e r s a l -
M e s s u m f o r m e r
N r . 5 3 3 1 V 1 1 3 - D E
A b S e r i e n n r . 1 4 1 3 6 5 0 0 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5331 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PR electronics 5331 Series

  • Page 1 5 3 3 1 2 - D r a h t U n i v e r s a l - M e s s u m f o r m e r N r . 5 3 3 1 V 1 1 3 - D E A b S e r i e n n r .
  • Page 2 Revision Notes The following list provides notes concerning revisions of this document. Rev. ID Date Notes 13/45 IECEx and INMETRO approvals added 1440...
  • Page 3: Table Of Contents

    2-DRAHT UNIVERSALMESSUMFORMER PRetop 5331 Inhaltsverzeichnis Verwendung....................Technische Merkmale ................Montage / Installation ................Anwendungen ..................Bestellangaben: 5331 ................Elektrische Daten ................... Anschlüsse ....................Blockdiagramm ..................Programmierung ..................10 Abmessungen ..................11 Montage von Fühlerleitungen ............11 Appendix ....................12 ATEX Installation Drawing - 5331A ..........13 ATEX Installation Drawing - 5331D ..........
  • Page 4: Verwendung

    2-DRAHT UNIVERSALMESSUMFORMER PRetop 5331 • Eingang für WTH, TE, Ω oder mV • Extreme Messgenauigkeit • 1,5 kVAC mit galvanische Trennung • Programmierbare Sensorfehlanzeige • Für Einbau in Anschlusskopf DIN Form B Verwendung • Linearisierte Temperaturmessung mit Pt100...Pt1000, Ni100...Ni1000 oder Thermoelementsensor. • Umwandlung von linearer Widerstandsänderung in ein analoges Standard- Stromsignal, z.B. von Ventilen oder Niveau-Messwertgeber. • Verstärkung von bipolaren mV-Signalen zu einem Standard 4...20 mA Stromsignal.
  • Page 5: Anwendungen

    ANwENDUNgEN 2-Draht-Installation WTH in 4...20 mA im Kontrollraum 2-Draht-Installation TE in 4...20 mA im Kontrollraum Widerstand 2-Draht-Installation in 4...20 mA im Kontrollraum 2-Draht-Installation mV in 4...20 mA im Kontrollraum 5 33 1 V 1 13 - DE...
  • Page 6: Bestellangaben: 5331

    Bestellangaben: 5331 Umgebungs- galvanische Version temperatur Trennung 5331 Standard -40°C...+85°C : 3 1500 VAC CSA, FM, ATEX, IECEx & INMETRO : D Elektrische Daten Spezifikationsbereich: -40°C bis +85°C Allgemeine Daten: Versorgungsspannung, DC Standard ............. 7,2...35 V CSA, FM, ATEX, IECEx & INMETRO ... 7,2...30 VDC Eigenverbrauch ............ 25 mW...0,8 W Spannungsabfall ............ 7,2 VDC Isolationsspannung, Test / Betrieb ....
  • Page 7 grundwerte Grund- Temperatur- Eingangsart Genauigkeit koeffizient ≤ ±0,2°C ≤ ±0,01°C/°C Lin. R ≤ ±0,1 Ω ≤ ±10 mΩ / °C ≤ ±10 µV ≤ ±1 µV / °C Volt TE-Typ: ≤ ±1°C ≤ ±0,05°C / °C E, J, K, L, N, T, U TE-Typ: B, R, S, ≤ ±2°C ≤ ±0,2°C / °C W3, W5, LR EMV-Immunitätswirkung .......... < ±0,5% d. Messsp. Erweiterte EMV-Immunität: NAMUR NE 21, A Kriterium, Burst ...... < ±1% d. Messsp. Einfluss von Änderung der Versorgungsspannung ...........
  • Page 8 TE-Eingang: Min. Max. Min. Temperatur Temperatur Spanne Norm +400°C +1820°C 100°C IEC584 -100°C +1000°C 50°C IEC584 -100°C +1200°C 50°C IEC584 -180°C +1372°C 50°C IEC584 -100°C +900°C 50°C DIN 43710 -180°C +1300°C 50°C IEC584 -50°C +1760°C 100°C IEC584 -50°C +1760°C 100°C IEC584 -200°C +400°C...
  • Page 9 Zulassungen: EMV 2004/108/EG ..........EN 61326-1 GOST R Marine-Zulassung: Det Norske Veritas, Ships & Offshore ..... Stand. f. Certific. No. 2.4 Ex / I.S.: ATEX 94/9/EG 5331A ..............KEMA 10ATEX0002 X 5331D..............KEMA 06ATEX0062 X FM-Zertifikat .............. 2D5A7 CSA-Zertifikat ............1125003 IECEx ................DEK 13.0035X INMETRO ..............
  • Page 10: Anschlüsse

    ANScHLüSSE Eingang: WTH, 2-Leiter WTH, 3-Leiter WTH, 4-Leiter TE, interne CJC TE, externe CJC Widerst., 2-Leiter Widerst., 3-Leiter Widerst., 4-Leiter Ausgang: 2-Draht-Installation 5331V 1 13 - D E...
  • Page 11: Blockdiagramm

    BLOckDIAgRAMM 5 33 1 V 1 13 - DE...
  • Page 12: Programmierung

    PROgRAMMIERUNg • Loop Link ist eine batteriegespeiste Schnittstelle zur Programmierung des PRetop 5331. • Bezüglich Programmierung verweisen wir auf die nachfolgende Zeichnung und die “Hilfe”-Funktion im PReset-Programm. • Loop Link darf nicht zur kommunikation mit Modulen, die in Ex-gefährdeten Bereichen installiert sind, benutz werden. Bestellangabe: Loop Link Betriebs- spannung Unterbrechen Gelb Eingang Grün Schwarz PRetop 5331 Anschlussstelle L oop 5909 - USB L ink * Nur anzuschliessen, wenn on-line (im Betrieb) konfiguriert werden soll. 5331V 1 13 - D E...
  • Page 13: Montage Von Fühlerleitungen

    Abmessungen Montage von Fühlerleitungen ø 6 mm 2 0 . 2 m m 33 mm ø 44 mm Die Leitungen müssen zwischen den Metallplatten 5 33 1 V 1 13 - DE...
  • Page 14: Appendix

    APPENDIx ATEx Installation Drawing - 5331A ATEx Installation Drawing - 5331D IEcEx installation drawing - 5331A IEcEx installation drawing - 5331D FM Installation Drawing - 5331D cSA Installation Drawing - 5331D INMETRO Instruções de Segurança - 5331A INMETRO Instruções de Segurança - 5331D 5331V 1 13 - D E...
  • Page 15 5331QA02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installationszeichnung Für die sichere Installation von 5331A3B oder 5334A3B ist Folgendes zu beachten: Das Gerät darf nur von qualifiziertem Personal eingebaut werden, das mit den nationalen und internationalen Gesetzen, Richtlinien und Standards auf diesem Gebiet vertraut ist. Das Baujahr kann aus den ersten beiden Ziffern der Seriennummer ersehen werden.
  • Page 16 5331QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installationszeichnung Für die sichere Installation von 5331D oder 5334B ist Folgendes zu beachten: Das Gerät darf nur von qualifiziertem Personal eingebaut werden, das mit den nationalen und internationalen Gesetzen, Richtlinien und Standards auf diesem Gebiet vertraut ist. Das Baujahr kann aus den ersten beiden Ziffern der Seriennummer ersehen werden.
  • Page 17 5331QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installationsvorschriften Die galvanische Trennung zwischen dem Sensorkreis und dem Eingangskreis ist nicht unfehlbar. Allerdings ist die galvanische Trennung zwischen den Kreisen so ausgelegt, dass diese eine Testspannung von 500 VAC für eine Minute aushält. Für Anwendung in einer potentiellen explosiven Atmosphäre - basierend auf entflammbares Gas - muss der Messumformer in einem Gehäuse, welcher einen Schutzgrad von mindestens IP20 gemäß...
  • Page 18 5331QI02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 5331A or 5334A the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 19 5331QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 5331D or 5334B the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 20 5331QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes. The sensor circuit is not infallibly galvanic isolated from the input circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute. In a potentially explosive gas atmosphere, the transmitter shall be mounted in a metal form B enclosure in order to provide a degree of protection of at least IP20 according to IEC60529.
  • Page 21 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM FM Installation Drawing 5300Q502 Rev AH Model 5331C,5331D, 5333C, 5333D and 5343B Non Hazardous Location Hazardous (Classified) Location Class I,Division1, Groups, A,B,C,D Associated Apparatus Class I, Zone 0, IIC or Barrier with Ambient temperature limits entity Parameters: T4: ‐40 to + 85 deg. Celcius T6: ‐40 to + 60 deg. Celcius UM <...
  • Page 22 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM The entity concept The Transmitter must be installed according to National Electrical Code (ANSI-NFPA 70) and shall be installed with the enclosure, mounting, and spacing segregation requirement of the ultimate application. Equipment that is FM-approved for intrinsic safety may be connected to barriers based on the ENTITY CONCEPT.
  • Page 23 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM CSA Installation drawing 533XQC03 Hazardous area Non Hazardous Area T4: -40 ≤ Ta ≤ 85ºC T6: -40 ≤ Ta ≤ 60ºC Module 5331D, 5333D Terminal: 3,4,5,6 Only passive, or non-energy storing devices such as RTD’s and Thermocouples may be connected Barrier...
  • Page 24 5331QB02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Desenho de Instalação INMETRO Para instalação segura do 5331A ou 5334A o seguinte deve ser observado. O modo deve apenas ser instalado por pessoas qualificadas que são familiarizadas com as leis nacionais e internacionais, diretrizes e padrões que se aplicam a esta área.
  • Page 25 5331QB01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Desenho de Instalação INMETRO Para instalação segura do 5331D ou 5334B o seguinte deve ser observado. O modo deve apenas ser instalado por pessoas qualificadas que são familiarizadas com as leis nacionais e internacionais, diretrizes e padrões que se aplicam a esta área.
  • Page 26 5331QB01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Notas de instalação O circuito do sensor não é isolado galvanicamente infalível do circuito de entrada. Contudo, a isolação galvânica entre os circuitos é capaz de resistir a um teste de tensão de 500Vac durante 1 minuto.
  • Page 27 Displays Programmable displays with wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearisation, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analogue and digital signals as well as HART signals between sensors / I/P converters / ® frequency signals and control systems in Ex zone 0, 1 & 2 and for some devices in zone 20, 21 & 22.
  • Page 28  sales@prelectronics.es  www.prelectronics.it  sales@prelectronics.it  www.prelectronics.se  sales@prelectronics.se  www.prelectronics.com  sales@prelectronics.com  www.prelectronics.com  sales@prelectronics.com  www.prelectronics.cn  sales@prelectronics.cn Head office Denmark www.prelectronics.com PR electronics A/S sales@prelectronics.dk Lerbakken 10 tel. +45 86 37 26 77 DK-8410 Rønde fax +45 86 37 30 85...
