PR electronics 6335 Product Manual

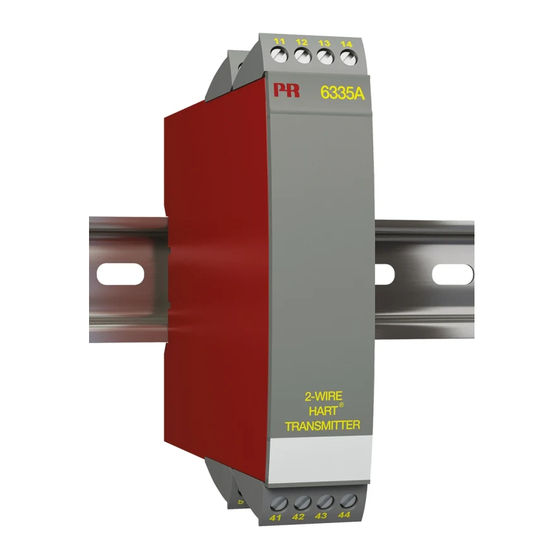

2-wire hart transmitter
Hide thumbs Also See for 6335:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual

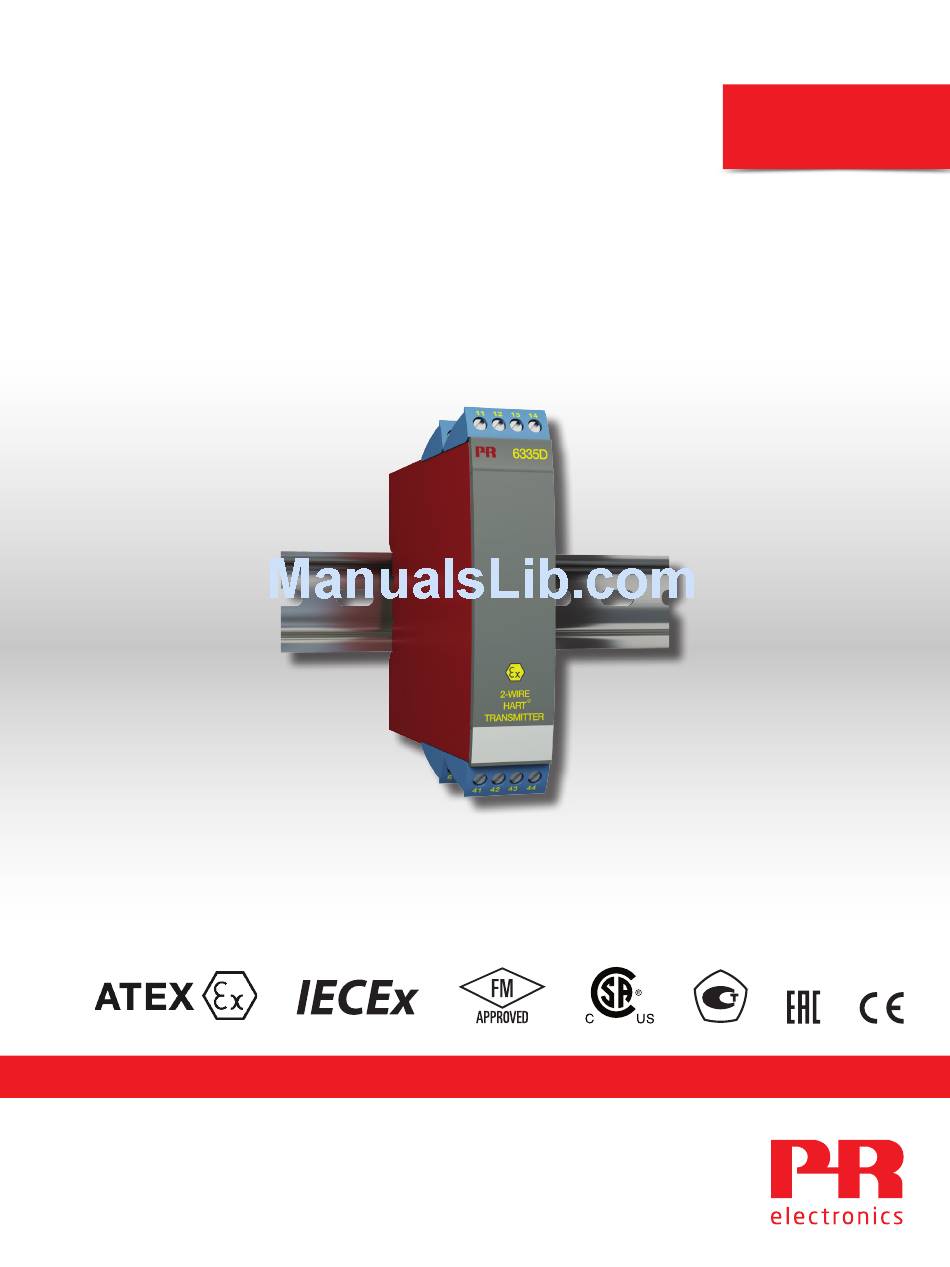

Product Manual
6335
2-wire HART transmitter
T E M P E R AT U R E
|
I . S . I N T E R FA C E S
No. 6335V111- UK
From serial no. : 150 95118 6
|
CO M M U N I C AT I O N I N T E R FA C E S
|
M U LT I F U N C T I O N A L
|
I S O L AT I O N
PERFORMANCE
MADE
SMARTER
|
D I S P L AY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6335 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR electronics 6335

Summary of Contents for PR electronics 6335

  • Page 1 PERFORMANCE MADE SMARTER Product Manual 6335 2-wire HART transmitter T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.

  • Page 3: Table Of Contents

    2-wire HART transmitter 6335 Table of contents Technical characteristics .................

  • Page 4: Technical Characteristics

    The RTD and resistance inputs have cable compensation to 4...20 mA for 2-, 3- and 4-wire connection. • The 6335 has been designed according to strict safety requirements and is thus suitable for application in SIL 2 installations. • A limit can be programmed on the output signal.

  • Page 5: Order

    Order Galvanic Type Version Channels isolation 6335 Standard 1500 VAC : 2 Single ATEX, CSA, FM & IECEx Double *NB! Please remember to order CJC connectors type 5910 / 5910Ex (channel 1) and 5913 / 5913Ex (channel 2) for TC inputs with an internal CJC.
  • Page 6 Accuracy, the greater of general and basic values: General values Input type Absolute accuracy Temperature coefficient ≤ ±0.05% of span ≤ ±0.005% of span / °C Basic values Input type Basic accuracy Temperature coefficient Pt100 / Pt1000 ≤ ±0.1°C ≤ ±0.005°C/°C Ni100 ≤...
  • Page 7 TC inputs: Min. Max. Min. Type temperature temperature span Standard +400°C +1820°C 100°C IEC584 -100°C +1000°C 50°C IEC584 -100°C +1200°C 50°C IEC584 +1372°C 50°C IEC584 -180°C -100°C +900°C 50°C DIN 43710 -180°C +1300°C 50°C IEC584 -50°C +1760°C 100°C IEC584 -50°C +1760°C 100°C IEC584...

  • Page 8: Connections

    Connections Inputs: RTD, 2-wire RTD, 3-wire RTD, 4-wire TC, internal CJC 41 42 41 42 41 42 RTD, 2-wire RTD, 3-wire RTD, 4-wire TC, internal CJC 51 52 51 52 51 52 TC, external CJC Resistance, 2-wire Resistance, 3-wire Resistance, 4-wire 41 42 41 42 41 42...

  • Page 9: Block Diagram

    Programming 6335 can be configured in the following 3 ways: 1. With PR electronics A/S’ communications interface Loop Link and PReset PC configuration software. 2. With a HART modem and PReset PC configuration software. 3. With a HART communicator with PR electronics A/S’ DDL driver.
  • Page 10 For programming please refer to the drawing below. To get access to productspecific commands, the HART communicator must be loaded with the PR electronics A/S DDL driver. This can be ordered either at the HART Communication Foundation or PR electronics A/S.

  • Page 11: Connection Of Transmitters In Multidrop Mode

    Connection of transmitters in multidrop mode • The HART communicator or a PC modem can be connected accross AB or BC. 6335 6335 6335 Power supply Max. 15 channels > 250 ohm, < 1100 ohm load • The outputs of max. 15 transmitters can be conected in parallel for a digital HART communication on 2-wires.

  • Page 12: Atex Installation Drawing - 6335A

    6335QA02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing For safe installation of 6335A or 6337A the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 13 6335QA02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM General installation instructions To avoid risk of ignition during installation and maintenance appropriate safety measures against electrostatic discharge (ESD) are to be considered. The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute.

  • Page 14: Atex Installation Drawing - 6335D

    6335QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing For safe installation of 6335D or 6337D the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 15 6335QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM General installation instructions To avoid risk of ignition during installation and maintenance appropriate safety measures against electrostatic discharge (ESD) are to be considered. The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute.

  • Page 16: Iecex Installation Drawing - 6335A

    6335QI02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 6335A or 6337A the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 17 6335QI02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM General installation instructions If the enclosure is made of non-metallic materials or of painted metal, electrostatic charging shall be avoided. The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute.

  • Page 18: Iecex Installation Drawing - 6335D

    6335QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 6335D or 6337D the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 19 6335QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM General installation instructions To avoid risk of ignition during installation and maintenance appropriate safety measures against electrostatic discharge (ESD) are to be considered. The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute.

  • Page 20: Csa Installation Drawing - 6335D

    CSA Installation drawing 6335QC02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Hazardous (Classified ) Location Non Hazardous Location IS,Class I, Division 1, Group A,B,C,D T4..T6 Ex ia IIC T4..T6 Ga Class I, Zone 0, AEx ia IIC T4..T6 Ga T6: -40 ≤ Ta ≤ 60ºC T4: -40 ≤...
  • Page 21 CSA Installation drawing 6335QC02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Hazardous (Classified ) Location Non Hazardous Location IS,Class I, Division 1, Group A,B,C,D T4..T6 Ex ia IIC T4..T6 Ga Class I, Zone 0, AEx ia IIC T4..T6 Ga T6: -40 ≤ Ta ≤ 60ºC T4: -40 ≤...

  • Page 22: Fm Installation Drawing - 6335D

    FM Installation drawing 6335QF01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Hazardous (Classified ) Location Non Hazardous Location Class I, Division 1, Group A,B,C,D T4..T6 Class I, Zone 0, AEx ia IIC T4..T6 T6: -40 ≤ Ta ≤ 60ºC T4: -40 ≤ Ta ≤ 85ºC Terminal: 41,42,43,44 Uo: 9.6 VDC...
  • Page 23 FM Installation drawing 6335QF01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Hazardous (Classified ) Location Class I, Division 2, Group A,B,C,D T4..T6 Class I, Zone 2, IIC T4..T6 Non Hazardous Location T6: -40 ≤ Ta ≤ 60ºC T4: -40 ≤ Ta ≤ 85ºC Associated Terminal: apparatus...

  • Page 24: Document History

    Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 15/50 ATEX & IECEx M1 approval added 6335V111-UK...
  • Page 25 We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year with a global reach. This means that we are always nearby warranty. With each product you purchase, you receive and know your local markets well.
  • Page 26 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
