Safety • Assembly • Operation • Adjustments • Maintenance • Troubleshooting • Parts Lists • Warranty

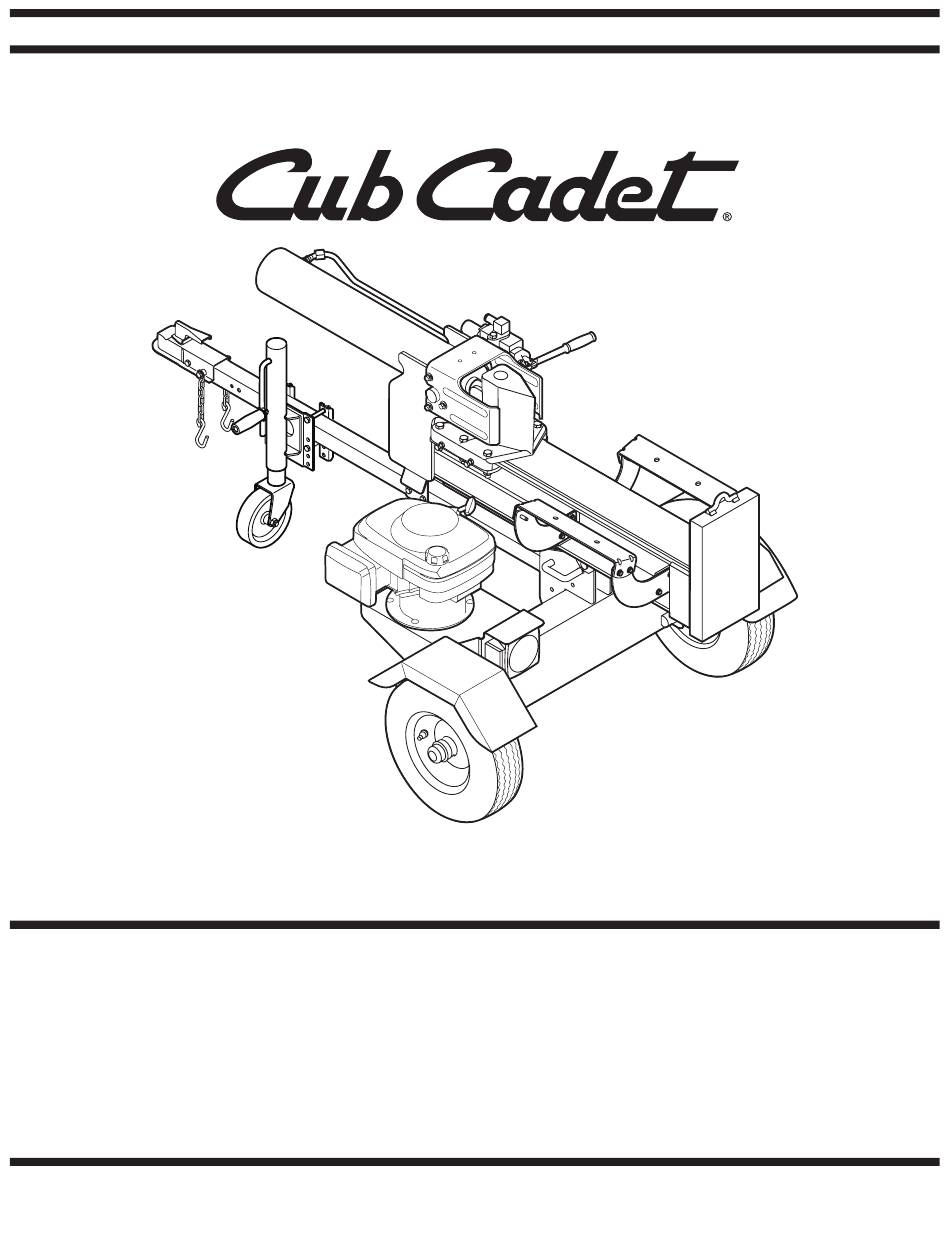

OPERATOR'S MANUAL
Log Splitter — Model LS 27 CC
IMPORTANT
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-
covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,
Ohio 44136-0019.
FORM NO. 770-10037F
PRINTED IN U.S.A
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
05/01/2007

Advertisement

Chapters

Table of Contents
loading

Summary of Contents for Troy-Bilt CubCadet LS 27 CC

  • Page 1 Safety • Assembly • Operation • Adjustments • Maintenance • Troubleshooting • Parts Lists • Warranty OPERATOR’S MANUAL Log Splitter — Model LS 27 CC IMPORTANT READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush- covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
  • Page 2: Table Of Contents

    This Operator’s Manual is an important part of your new log splitter. It will help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says. Table of Contents Safety Labels .........Page 3 Troubleshooting ........Page 16 Safe Operation Practices ......Page 4 Illustrated Parts List ......Page 18 Setting Up Your Log Splitter ....Page 6...
  • Page 3: Safety Labels

    Safety Labels Found On Your Log Splitter Safety Labels WARNING DO NOT remove safety (or any) labels from log splitter for any reason.
  • Page 4: Safe Operation Practices

    WARNING: Engine Exhaust, some of its constituents, and certain vehicle compo- nents contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm. DANGER: This machine was built to be operated according to the rules for safe operation in this Safe manual.
  • Page 5 15. This machine should not be towed on any street, f. Never overfill the fuel tank. Fill tank to no more highway or public road without checking the existing than 1/2 inch below bottom of filler neck to provide federal, state, or local vehicle requirements. Any space for fuel expansion.
  • Page 6: Setting Up Your Log Splitter

    WARNING: Use extreme caution unpacking this machine. Some components are very heavy and will require additional people or mechanical handling equipment. NOTE: All references in this manual to the left or right side of the log splitter is from the operating position only. Setting Up Exceptions, if any, will be specified.
  • Page 7 NOTE: The log cradle may be mounted in a forward position at the factory for shipping purposes, it should be remounted according to the image in Fig. 3-5. 4. Lift and slide the cylinder up to the top of beam and into the weld brackets.
  • Page 8: Operating Your Log Splitter

    Know Your Log Splitter Cylinder Control Handle Operating Dislodger Your Log Splitter Wedge Beam Assembly Tongue WARNING Swivel Stand Vertical Beam Cradle Lock Tail Light (If Equipped) IMPORTANT Your log splitter may be shipped with motor oil in the engine. You MUST check the oil level before operat- ing.
  • Page 9 Control Handle The control handle has three positions. See Figure 4-2. • FORWARD: Move control handle FORWARD or DOWN to move wedge to split wood. NOTE: Control handle will return to neutral position as soon as handle is released.(Forward Position only) To return Operating wedge...
  • Page 10 Control Handle 1. Move control handle FORWARD or DOWN to split wood. 2. Release the control handle to stop the wedge move- ment. 3. Move control handle BACK or UP to return the wedge. Operating Log Dislodger The log dislodger is designed to remove any partially Your Log split wood from the wedge.
  • Page 11 6. Use a flexible “spider” type coupling between engine and pump drive shafts. 7. Keep hoses clear and unblocked. 8. Bleed air out of hoses before operating. 9. Flush and clean hydraulic system before restarting after servicing. Operating 10. Use “pipe dope” on all hydraulic fittings. Your Log 11.
  • Page 12: Maintaining Your Log Splitter

    Gib Adjustment Periodically remove and replace the “gibs” (spacers) between the wedge assembly and the back plate. NOTE: The gibs may be rotated and/or turned over for even wear. Adjustment Maintaining Bolt 1. Loosen the lock nuts under each back plate and slide the gibs out.
  • Page 13 Hydraulic Fluid and Inlet Filter • Check the hydraulic fluid level in the log splitter reservoir tank before each use. Maintain fluid level within the range specified on the dipstick at all times. • Change the hydraulic fluid in the reservoir every 100 hours of operation.
  • Page 14 6. Install pump coupling half and key on pump shaft. Rotate coupling half until set screw faces opening in shield. Do not tighten set screw. 7. Install nylon “spider” onto engine coupling half. 8. Align pump coupling half with nylon “spider” by rotat- ing engine using starter handle.
  • Page 15 Storing Your Log Splitter 4. Start the engine and let it run until the fuel lines and carburetor are empty. Prepare your log splitter for storage at the end of the season or if the log splitter will not be used for 30 days or 5.
  • Page 16: Troubleshooting

    Problem Cause Remedy 1. Connect wire to spark plug. Engine fails to start 1. Spark plug wire disconnected. 2. Fill tank with clean, fresh gasoline. 2. Fuel tank empty or stale fuel. 3. Move choke to CHOKE position. 3. Choke, if equipped, not in CHOKE position.
  • Page 17 Problem Cause Remedy Slow cylinder shaft 1. Gear sections damaged. 1.See authorized service dealer. speed while extending 2. Excessive pump inlet vacuum. 2. Make certain pump inlet hoses are clear and unblocked-use short, and retracting. large diameter inlet hoses. 3.See authorized service dealer. 3.
  • Page 18 Model LS 27 CC To secure ground wire...
  • Page 19 Ref. Part No. Description Ref. Part No. Description 718-0769A Hydraulic Cylinder 710-0650 TT Screw, 5/16-18 x.875 727-04166 Hydraulic Tube 712-04065 Flange Lock Nut, 3/8-16 710-1018 Hex Cap Screw 1/2-20 x 2.75 781-04179 Log Tray Parts List 737-0192 90 Degree Solid Adapter 681-04040A Frame Assembly 718-0481A Control Valve...
  • Page 20: Warranty

    CUB CADET LLC MANUFACTURER’S LIMITED WARRANTY FOR LOG SPLITTERS & JET SWEEPS The limited warranty set forth below is given by Cub Cadet LLC with d. Cub Cadet does not extend any warranty for products sold or respect to new merchandise purchased and used in the United States, exported outside of the United States and/or Canada, and their its possessions and territories, and by MTD Products Limited with respective possessions and territories, except those sold through...
  • Page 21 Seguridad • Montaje • Operación • Ajustes • Mantenimiento • Solución de problemas • Lista de piezas • Garantía MANUAL DEL OPERADOR LS 27 CC — Máquina rompetroncos IMPORTANTE LEA CON ATENCIÓN LAS REGLAS DE SEGURIDAD E INSTRUCCIONES ANTES DEL FUNCIONAMIENTO Advertencia: Esta unidad está...
  • Page 22 Este Manual del Operador es una parte importante de su nueva máquina rompetroncos. Lo ayudará a montar, preparar y mantener la unidad para obtener los mejores resultados. Por favor, lea y comprenda el contenido del manual. Índice Etiquetas de seguridad ......... Página 23 Mantenimiento de la máquina rompetroncos ..
  • Page 23: Etiquetas De Seguridad

    Etiquetas de seguridad que se encuentran en la máquina rompetroncos Etiquetas Seguridad ADVERTENCIA NO retire las etiqu- etas de seguridad (ni ninguna etiqueta) de la máquina rompetroncos por ninguna razón.
  • Page 24: Prácticas De Operación Seguras

    ADVERTENCIA:El escape del motor de este producto, algunos de sus componentes y algunos componentes del vehículo contienen o liberan sustancias químicas que el estado de California considera que pueden producir cáncer, defectos de nacimiento u otros problemas reproductivos. PELIGRO:Esta máquina fue construida para ser operada de acuerdo con las reglas de seguridad conteni- das en este manual.
  • Page 25 miento. del combustible. 15. Esta máquina no se debe remolcar en ninguna calle, g. Vuelva a colocar la tapa de la gasolina y ajústela bien. ruta o camino público sin verificar los requisitos h. Limpie el combustible que se haya derramado sobre aplicables a los vehículos según las reglamentaciones el motor y el equipo y mueva la máquina a otra área.
  • Page 26: Configuración De La Máquina Rompetroncos

    ADVERTENCIA: Tenga mucho cuidado al desembalar esta máquina. Algunos componentes son muy pesados y es necesario que colaboren varias personas o que se use equipo de manipulación mecánico. NOTA: Las referencias que contiene este manual sobre Configuración los lados derecho o izquierdo de la máquina rompetron- cos se hacen observando la misma desde la posición de de la máquina operación.
  • Page 27 2. Desconecte el liberador del soporte soldado de vigueta retirando los seis tornillos hexagonales. Vea la Figura 3-4. 3. Desconecte el bastidor de troncos de la vigueta al costado de la válvula de control. Vea la Figura 3-5. 4. Levante y deslice el cilindro hacia arriba hasta el tope de la vigueta y dentro de los soportes soldados.
  • Page 28: Funcionamiento De La Máquina Rompetroncos

    Conozca su máquina rompetroncos Cilindro Liberador de la madera Funciona- miento de la máquina Manija de control rompetroncos Avance Cuña de Corte Asamblea de Viga Lengua ADVERTENCIA Gire Soporte Bloqueo de la Cuna de Tronco viga vertical Luz de cola IMPORTANTE Su máquina rom- petroncos se envía...
  • Page 29 Manija de control La manija de control tiene tres posiciones. Vea la Figura 4-2. • HACIA ADELANTE: Mueva la manija de control FORWARD (hacia adelante) o DOWN (abajo) para mover la cuña para cortar madera. NOTA: La manija de control vuelve a la posición neutral inmediatamente después de que se la suelta.
  • Page 30 Manija de control 1. Mueva la manija de control HACIA ADELANTE o HACIA ABAJO para cortar la madera. 2. Suelte la manija de control para detener el movimiento de la cuña. 3. Mueva la manija de control HACIA ATRÁS o HACIA ARRIBA para que regrese la cuña.
  • Page 31 9. Enjuague y limpie el sistema hidráulico antes de volver a arrancar la máquina después del mantenimiento. 10. Use “lubricante para caños” en todos los accesorios hidráulicos. 11. Deje que el motor se caliente antes de cortar madera. 12. Cebe la bomba antes del arranque inicial, haciendo funcionar el motor con la bujía desconectada (si esto no Funcionami- se realizó...
  • Page 32: Mantenimiento De La Máquina Rompetroncos

    Ajuste del retenedor Periódicamente retire y cambie los “retenedores” (sepa- radores) entre el montaje de la cuña y el contraplato. NOTA: Los retenedores se pueden rotar y/o girar para un desgaste parejo. Perno de Mantenimiento 1. Afloje las tuercas de seguridad que se encuentran ajuste debajo de cada contraplato y deslice los retenedores de la máquina...
  • Page 33 Fluido hidráulico y filtro de entrada • Controle el nivel de fluido hidráulico del depósito de la máquina rompetroncos antes de usarla. Siempre mantenga el nivel de fluido dentro del rango especifi- cado en la varilla indicadora. • Cambie el fluido hidráulico del depósito cada 100 horas de funcionamiento.
  • Page 34 6. Instale el medio acoplamiento de la bomba y ajústelo sobre el eje de la bomba. Gire el medio acoplamiento hasta que el tornillo de fijación quede de frente a la abertura del protector. No apriete el tornillo de fijación. 7.
  • Page 35 Almacenamiento de la máquina rom- 5. Retire la bujía. Sosteniendo un trapo sobre el orificio del cilindro, vierta aproximadamente 1/2 onza (una petroncos cucharada, más o menos) de aceite para motor en Prepare la máquina rompetroncos para su almace- el cilindro y dé marcha al motor lentamente para namiento al finalizar la temporada o si la unidad no se distribuir el aceite.
  • Page 36: Solución De Problemas

    Problema Cause Solución El motor no arranca 1. Se ha desconectado el cable de la bujía. 1. Conecte el cable a la bujía. 2. El depósito de combustible está vacío o el 2. Llene el tanque con gasolina limpia y combustible se ha echado a perder.
  • Page 37 Problema Cause Solución Velocidad lenta del eje 1. Hay partes de los engranajes dañadas. 1. Consulte al distribuidor autorizado para el mantenimiento. del cilindro durante la 2. Vacío excesivo en la entrada de la bomba. 2. Asegúrese de que las mangueras de extensión o retracción.
  • Page 38: Lista De Partes Ilustrada

    Modelo LS 27 CC To secure ground wire...
  • Page 39 Ref. Parte No Descripción Ref. Parte No Descripción 718-0769A Cilindro Hidráulico 710-0650 Tornillo TT, 5/16-18 x.875 727-04166 Tubo Hidráulico 712-04065 Tuerca de seguridad con brida, 3/8-16 710-1018 Tornillo cabeza hex 1/2-20 x 2.75 781-04179 Bandeja de madera Lista de 737-0192 90 Grado Adaptador Sólido 681-04040A Montaje del marco 718-0481A...
  • Page 40 GARANTÍA LIMITADA DEL FABRICANTE PARA La garantía limitada que se extiende a continuación es otorgada por d. Cub Cadet no proporciona ninguna garantía por productos vendidos la empresa Cub Cadet LLC y cubre mercaderías nuevas compradas y o exportados fuera de los Estados Unidos de América, sus utilizadas en los Estados Unidos, sus posesiones y territorios.
