8.1

Design of the User Interface

The user interface of the SMA product (e.g. SMA Data Manager) and the user interface of
Sunny Portal are uniform.
The product is configured and commissioned on site via the user interface of the product.
The Sunny Portal serves as the user interface for the extended configuration of the product, of
system sections, systems, system groups and the entire system portfolio. The Sunny Portal monitors
and analyzes the system and its components on all levels.
The number of functions and menus depends on whether you are on the local user interface of the
product or in Sunny Portal.
H
G
F
E

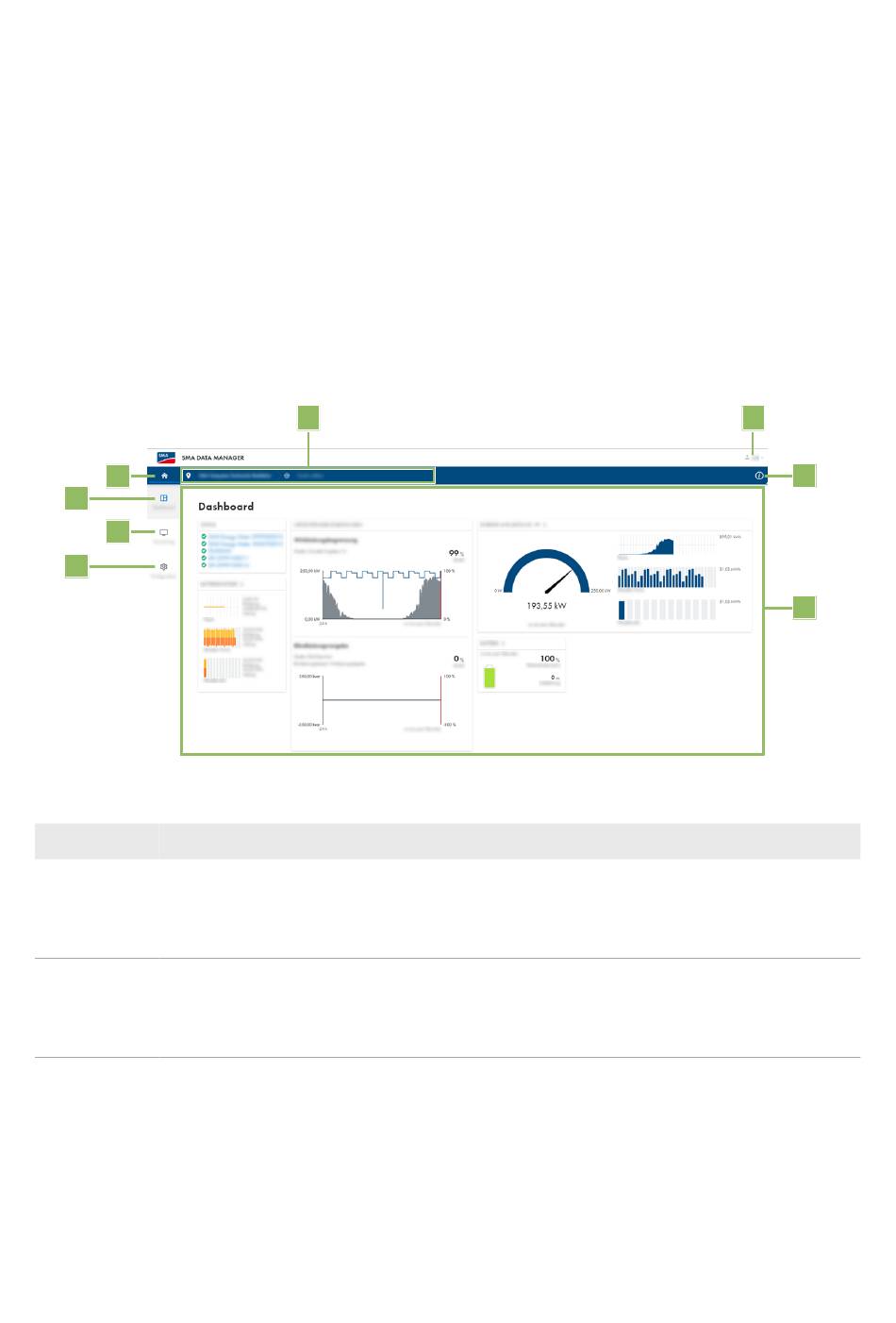

Figure 9: Design of the user interface (example)
Position Designation
A Focus navigation
B User settings
44 EDMM-10-BE-en-27
A
Description
Enables the navigation between the following levels:
• System
• Device
Provides the following functions:
• Configuring personal data
• Log out
