Dimensions for mounting:

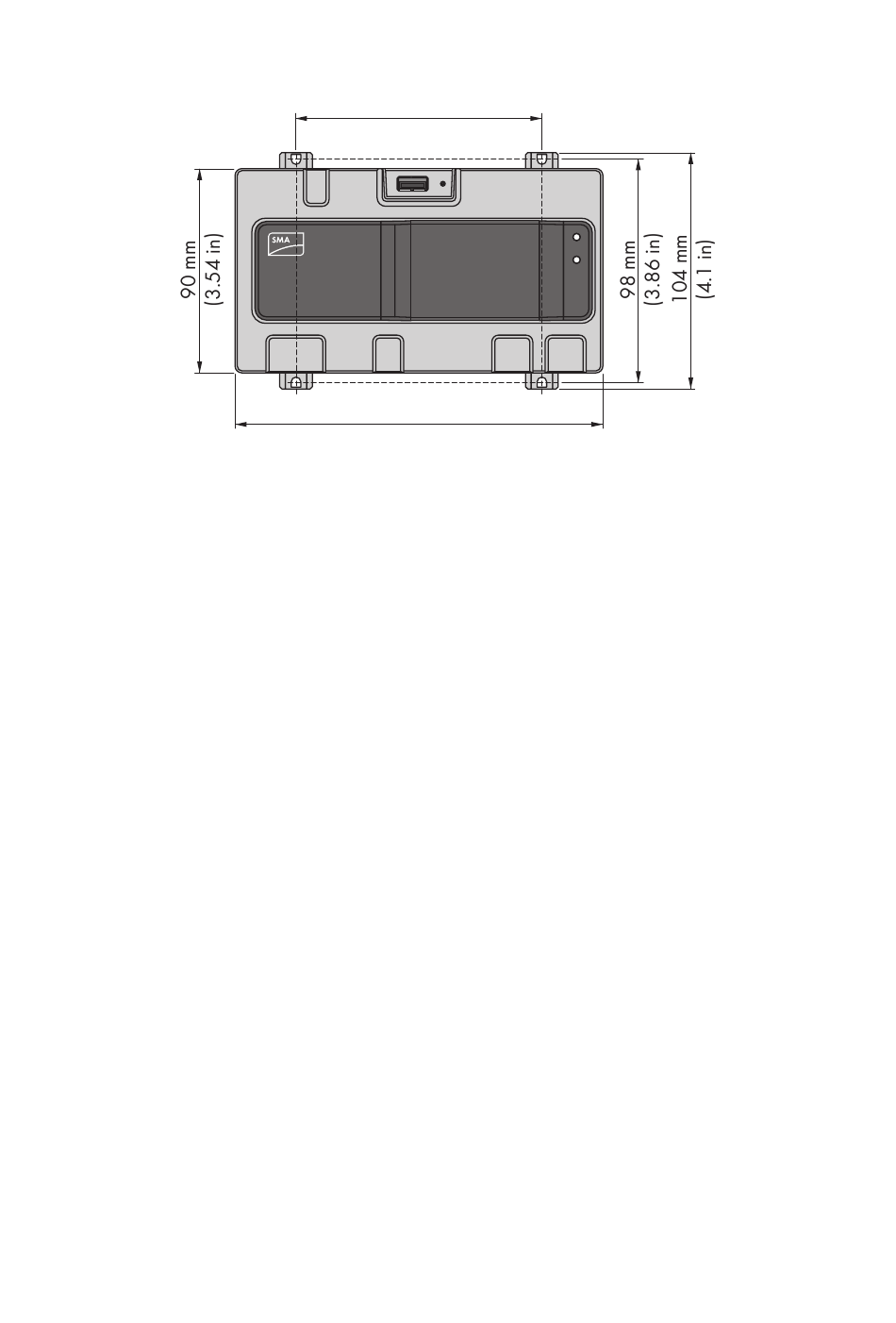

Figure 4: Dimensions for wall mounting (Dimensions in mm (in))
Recommended clearances:
☐ A clearance of 50 mm (2 in) must be observed above and below to other objects.
5.2

Mounting the product

There are two options for mounting the product:
• Mounting on the top-hat rail
• Mounting on a wall
Mounting the Product on the DIN rail
Additionally required mounting material (not included in the scope of delivery):
☐ Top-hat rail (TH 35-7.5)
Requirement:
☐ The top-hat rail must be securely mounted.
