SMA Solar Technology AG
6

Connection

6.1

Overview of the Connection Area

X1

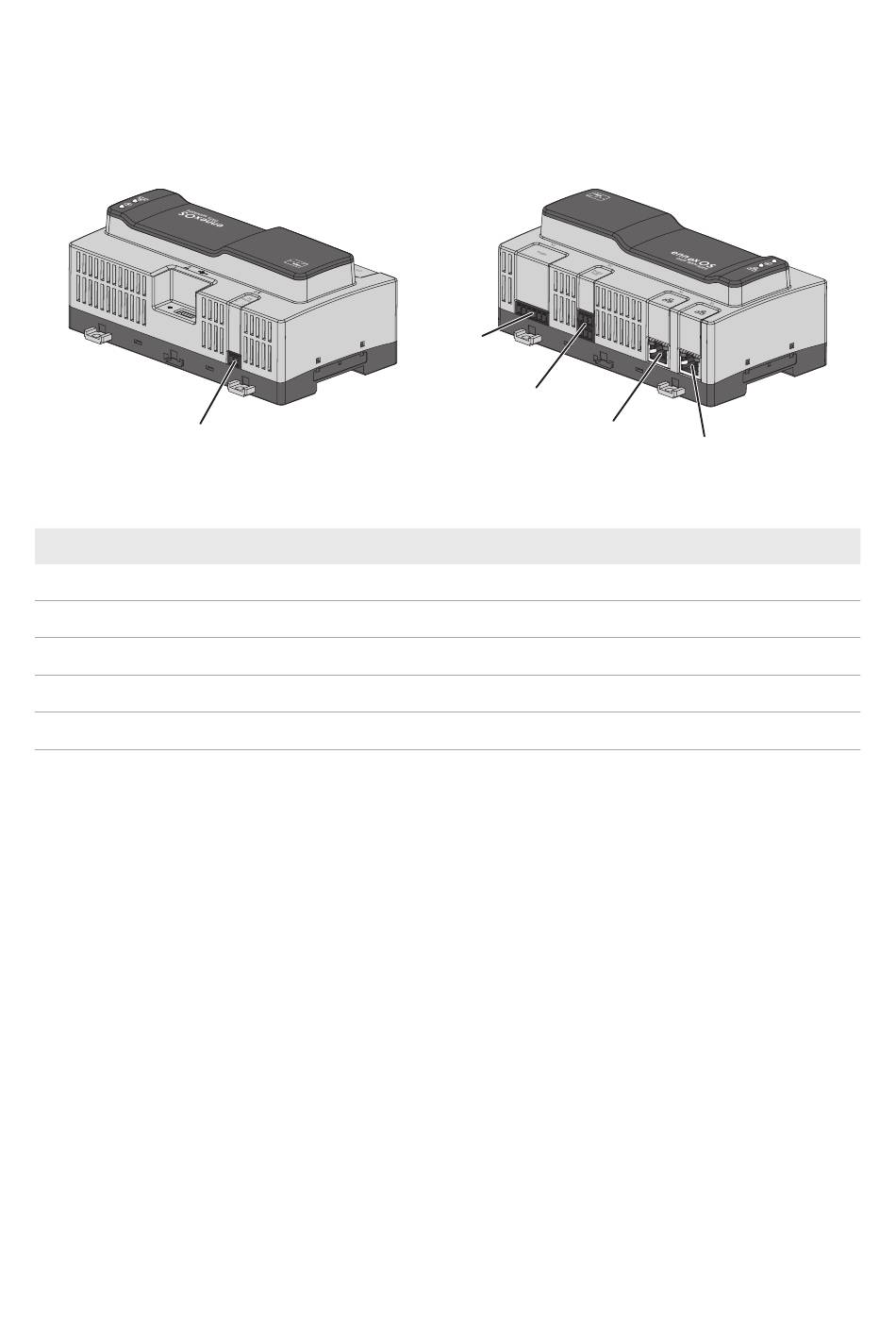

Figure 5: Overview of the connection area
Connection
X1
X2
X3
X4
X5
6.2

Preparing the Connection Cable

Always proceed as follows to prepare each connection cable for connection to multipole plugs.
Procedure:
1. Strip 40 mm (1.57 in) of cable sheath from the end of the connection cable to which the
multipole plug is to be attached. When doing so, ensure that no pieces of cable fall into the
enclosure.
2. Strip off 6 mm (0.24 in) of the conductor insulation from each of the required connection
cable conductors.
3. Trim unneeded insulated conductors of the connection cable flush with the cable sheath.
4. If needed, push 1 bootlace ferrule onto 1 stripped insulated conductor as far as it will go and
crimp using a crimping tool.
6.3

Connecting Signal Source to Digital Input

Digital signals for the active power supply can be transmitted to the jack X3. A ripple control
receiver or a remote terminal unit can be used as a digital signal source, for example.
☐ Digital signal source with up to 4 potential-free contacts
Operating manual
Explanation
Jack for connecting the voltage supply
Jack for connecting the RS485 devices
Jack for the connection of digital signals
Network port with status LEDs for connecting to the SMA Speedwire network
Network port with status LEDs for connecting to the SMA Speedwire network
X2
X3
X4
EDMM-10-BE-en-27
6 Connection
X5
29
