Actuator Arm and
Control Box Mounting
To wire this operator and complete the installation, refer to a specific control box "Wiring/Owner's manual".
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists. The operator
will NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH entrapment area.
UL 325 August 2018 Standard
THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY.
Visit www.doorking.com/dealer-locator to find a professional installing and servicing dealer in your area.
Date Installed:
Installer/Company Name:
Phone Number:
Leave Manual with Owner
Conforms To UL STD 325
Certified To CSA STD C22.2 # 247

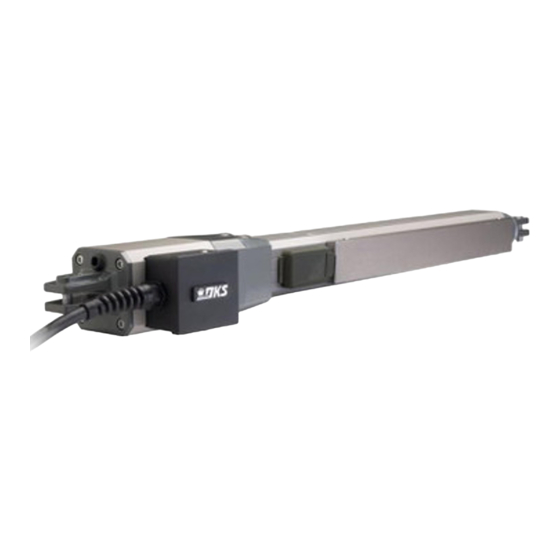

Vehicular Swing Gate Operator
Circuit Board
Serial Number
and Revision Letter:
Copyright 2020 DoorKing
®
, Inc. All rights reserved.
6003
6003
6003
6003-065-F-4-20
Copyright 2009 DoorKing, Inc. All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DoorKing 6003
Summary of Contents for DoorKing 6003
- Page 1 NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH entrapment area. UL 325 August 2018 Standard THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY. Visit www.doorking.com/dealer-locator to find a professional installing and servicing dealer in your area. Date Installed: Installer/Company Name:...
- Page 3 DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights reserved.
-
Page 4: Swing Gate Requirements
If bottom of gate is 4” to 16”above the ground at any part of the gate’s traveling path, entrapment protection is REQUIRED for this area. Not Allowed 4 inches to 16 inches Gates shall have smooth bottom edges, with vertical bottom edged protrusions NOT exceeding 0.50 inches. 6003-065-F-4-20... - Page 5 The operator will NOT run without one or more property. monitored type B1 or B2 entrapment protection devices in EACH ENTRAPMENT AREA. 6003-065-F-4-20...
-
Page 6: Astm F2200 Standard For Gate Construction
6. One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm). • Be sure you have instructed the owner of the gate operator about safe and proper operation and testing of the gate operator. 6003-065-F-4-20... -
Page 7: Important Notices
Do not allow children to play in the area of the operator or to play with any gate-operating device. • To remove the gate operator from service, operate the gate to the full open position and then shut off power to the operator at the service panel. 6003-065-F-4-20... -
Page 8: Ul 325 Entrapment Protection
Type C - Inherent force limiting, inherent adjustable clutch or inherent pressure relief device. Type D - Actuating device requiring constant pressure to maintain opening or closing motion of the gate. * B1 and B2 means of entrapment protection must be MONITORED. 6003-065-F-4-20... - Page 9 ENTRAPMENT - The condition when an object is caught or held in a position that increases the risk of injury. 6003-065-F-4-20...
-
Page 10: Manual Key Release
Placing hinges close to the corner can eliminate a potential entrapment area (See Swing Gate Requirements on pages 2 and 3). Manual Key Release Powered Shaft Manually key release the actuator. Powered shaft can be pulled out. 6003-065-F-4-20... -
Page 11: "Pull To Open" Installation
Actuator arm MUST be level! Middle Bottom Installation Note: Make sure that the operator is mounted high enough off the ground that it will NOT come in contact with standing or Bottom flowing water. This will Gate in Closed Position damage the operator. 6003-065-F-4-20... -
Page 12: "Push To Open" Installation
Actuator arm MUST be level! Bottom Installation Note: Make sure that the operator is Middle mounted high enough off the ground that it will NOT come in contact with standing or flowing water. This will Bottom damage the Gate in Closed Position operator. 6003-065-F-4-20... -
Page 13: Mounting Actuator Arm
If brackets are going to be welded to the gate and/or wall, only tack weld the brackets with the arm attached. Protect the arm from welding sparks during tack welding. Remove arm before completely welding around the brackets. Make sure the brackets are level when tack welding them! The arm will not operate properly if not level. 6003-065-F-4-20... -
Page 14: Mounting Control Box With Conduit
Dual Actuators Connection (115 VAC or Solar) Secondary Actuator SECONDARY Actuator PRIMARY Actuator Cable Junction Interconnection Cable 30 feet. P/N 2600-755 Primary Interconnection Cable 40 feet. P/N 2600-756 Actuator Interconnection Cable 50 feet. P/N 2600-757 Cable DoorKing interconnection cable (Sold separately) inside underground conduit 6003-065-F-4-20... - Page 15 Conduit Holes b i n o l e Remove fragile t i n DoorKing offers a mounting components post kit (P/N 1000-045) from control when no vertical surface is ” C box to protect 3 / 4...
-
Page 16: Install Warning Signs
Install Warning Signs This DoorKing Swing Gate Operator is shipped with two warning signs. The purpose of the warning sign is to alert uninformed persons, and to remind persons familiar with the gate system, that a possible hazard exists so that appropriate action can be taken to avoid the hazard or to reduce exposure to the hazard. - Page 17 Push to Open Closing-Direction Photo Sensor Entrapment protection is RECOMMENDED for this area. Pull to Open If the distance between an entrapment or obstruction exists less than 16” from the open gate, then entrapment protection is REQUIRED for this area. 6003-065-F-4-20...
- Page 18 16” above the ground at any point in its arc of travel, entrapment protection is REQUIRED for this area. 4-Wire In-Line Edge 2-Wire End-of-Line Edge Reversing Edges are wired in series Greater than 4” but less than 16” 6003-065-F-4-20...
-
Page 19: Accessory Items
DoorKing offers a complete line of loop components to complete your gate operator system. See DoorKing’s web site - www.doorking.com See the free manual “Loop and Loop-Detectors Information” PDF located at Doorking’s web site - www.doorking.com Magnetic Lock - Magnetic Gate Lock Kit provides an excellent means to secure swing gates and is a fail-safe device allowing emergency vehicle access upon power outage. - Page 20 6003 Primary/Secondary 4302 Circuit Board Connection Motor Motor Secondary Open Connection Beam Close 1476-010 Beam ONLY FIRE Brown 1 1 2 3 4 5 6 7 1 2 3 4 5 6 7 Blue 2 Orange 3 1 2 3 4 5 6 7...
- Page 21 Quick Guide for 6003 Limit Sensors This guide is for installers familiar with DoorKing products ONLY. DO NOT use this as your only source to wire, adjust limit sensors and DIP-switches if you are unfamiliar with this operator. Please refer to the control box manual you are installing for complete wiring, adjustments and DIP-switch settings for this operator.
- Page 22 NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH entrapment area. UL 325 August 2018 Standard THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY. Visit www.doorking.com/dealer-locator to find a professional installing and servicing dealer in your area. www.doorking.com DoorKing, Inc.
