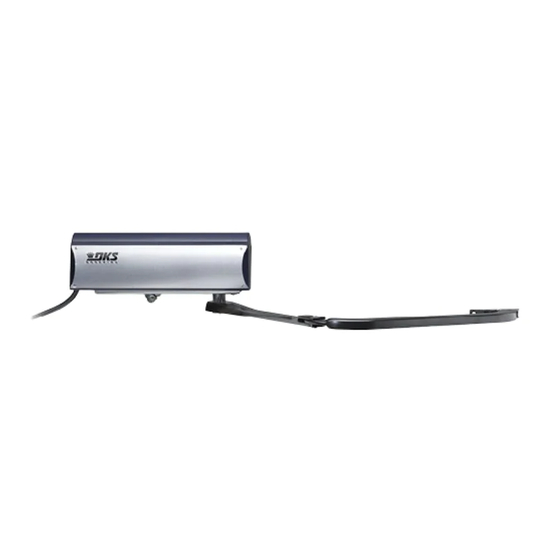

D O O R K I N G THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY. Visit www.doorking.com/dealer-locator to find a professional installing and servicing dealer in your area. Date Installed: Installer/Company Name:...
Left Side Position DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights reserved.
If bottom of gate is 4” to 16”above the ground at any part of the gate’s traveling path, entrapment protection is REQUIRED for this area. Not Allowed 4 inches to 16 inches Gates shall have smooth bottom edges, with vertical bottom edged protrusions NOT exceeding 0.50 inches. 6004-065-V-6-20...
Page 6
The operator will NOT run without one or more property. monitored type B1 or B2 entrapment protection devices in EACH ENTRAPMENT AREA. 6004-065-V-6-20...
6. One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm). • Be sure you have instructed the owner of the gate operator about safe and proper operation and testing of the gate operator. 6004-065-V-6-20...
Do not allow children to play in the area of the operator or to play with any gate-operating device. • To remove the gate operator from service, operate the gate to the full open position and then shut off power to the operator at the service panel. 6004-065-V-6-20...
Type C - Inherent force limiting, inherent adjustable clutch or inherent pressure relief device. Type D - Actuating device requiring constant pressure to maintain opening or closing motion of the gate. * B1 and B2 means of entrapment protection must be MONITORED. 6004-065-V-6-20...
Hinge Placement Note: It’s important to consider hinge placement on a pilaster or a thick wall when installing the gate. Placing hinges close to the corner can eliminate a potential entrapment area (See Swing Gate Requirements on pages 3 & 4). 6004-065-V-6-20...
Note: Lock and unlock directions Operator Circuit Board Wiring will be reversed when motor is in l t ( the right-side orientation. Lockpin Arm Assembly Lockpin Gate Retaining Ring Attachment Bracket Spacing Washers Note: Operator hardware is metric. Retaining Ring 6004-065-V-6-20...
Mounting Bracket shown in Left-Side Opening Position. 1 5/8” Attach mounting bracket to pilaster or wall with four (4) #10 Weld gate attachment bracket to gate or screws and suitable expansion hardware (Not supplied). use two (2) suitable screws (Not supplied). 6004-065-V-6-20...
D O O R K I N G Secondary Operator Junction Primary Interconnection Cable 30 feet. P/N 2600-755 Cable Operator Interconnection Cable 40 feet. P/N 2600-756 Cable Interconnection Cable 50 feet. P/N 2600-757 DoorKing interconnection cable (Sold separately) inside underground conduit 6004-065-V-6-20...
Page 16
Conduit Holes b i n o l e Remove fragile t i n DoorKing offers a mounting components post kit (P/N 1000-045) from control when no vertical surface is ” C box to protect 3 / 4...
Install Warning Signs This DoorKing Swing Gate Operator is shipped with two warning signs. The purpose of the warning sign is to alert uninformed persons, and to remind persons familiar with the gate system, that a possible hazard exists so that appropriate action can be taken to avoid the hazard or to reduce exposure to the hazard.
Open to the OUTSIDE Open to the INSIDE Closing-Direction Photo Sensor Entrapment protection is RECOMMENDED for this area. If the distance between an entrapment or obstruction exists less than 16” from the open gate, then entrapment protection is REQUIRED for this area. 6004-065-V-6-20...
Page 19
16” above the ground at any point in its arc of travel, entrapment protection is REQUIRED for this area. 4-Wire In-Line Edge 2-Wire End-of-Line Edge Reversing Edges are wired in series Greater than 4” but less than 16” 6004-065-V-6-20...
DoorKing offers a complete line of loop components to complete your gate operator system. See DoorKing’s web site - www.doorking.com See the free manual “Loop and Loop-Detectors Information” PDF located at Doorking’s web site - www.doorking.com Magnetic Lock - Magnetic Gate Lock Kit provides an excellent means to secure swing gates and is a fail-safe device allowing emergency vehicle access upon power outage.
6004 Primary/Secondary 4302 Circuit Board Connection Primary Operator Secondary Operator D O O R K I N G D O O R K I N G Operator Cable Operator Cable Brown 1 Blue 2 Orange 3 Red 4 Yellow 5...
Quick Guide for 6004 Limit Sensors This guide is for installers familiar with DoorKing products ONLY. DO NOT use this as your only source to wire, adjust limit sensors and DIP-switches if you are unfamiliar with this operator. Please refer to the control box manual you are installing for complete wiring, adjustments and DIP-switch settings for this operator.
Page 24
NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH entrapment area. UL 325 August 2018 Standard THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY. Visit www.doorking.com/dealer-locator to find a professional installing and servicing dealer in your area. www.doorking.com DoorKing, Inc.
