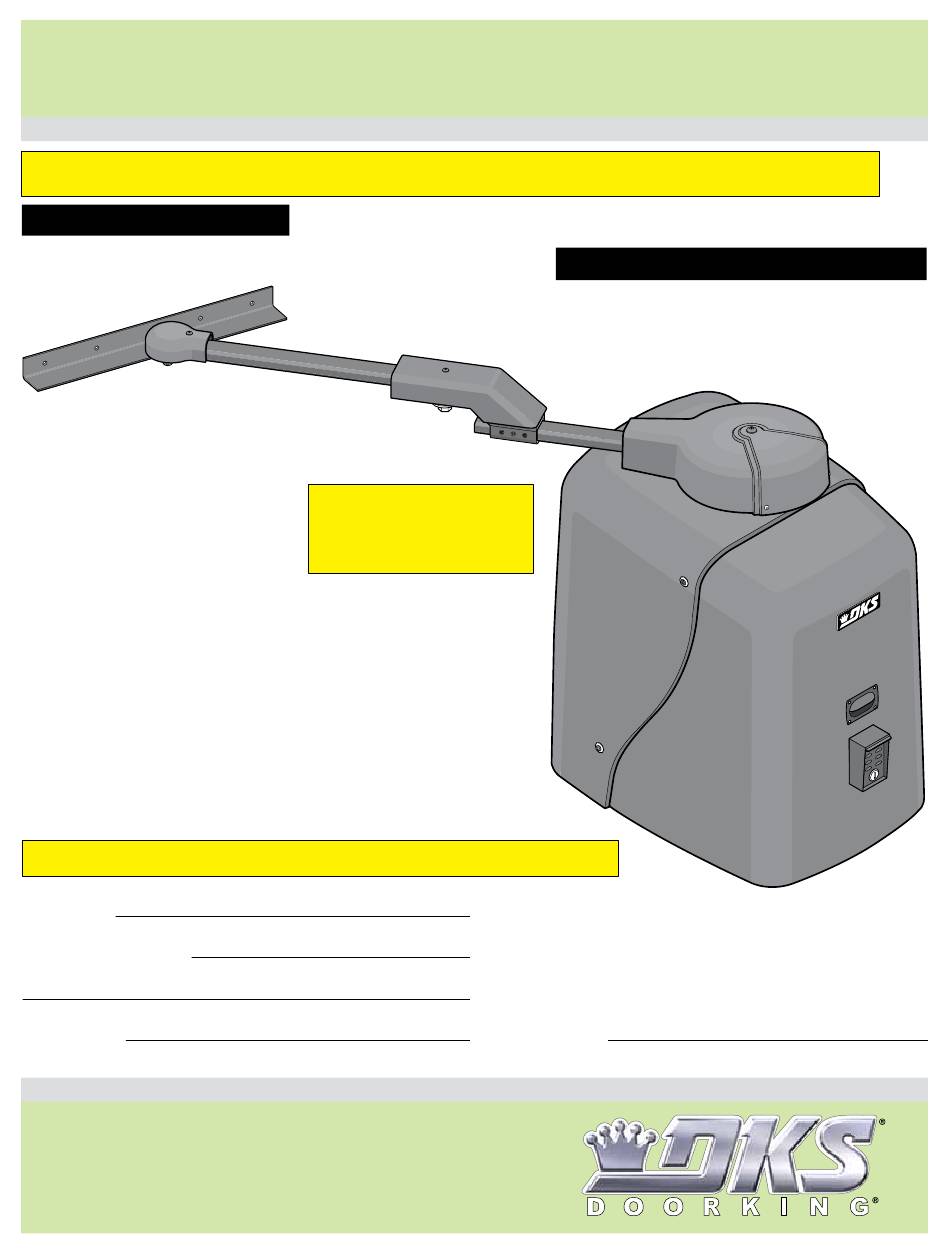

Installation/Owner's Manual
Use this manual for circuit board 4404-018 Revision A or higher.
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists. The operator
will NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH entrapment area.
UL 325 August 2018 Standard
THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY.
Visit www.doorking.com/dealer-locator to find a professional installing and servicing dealer in your area.
Date Installed:
Installer/Company Name:
Phone Number:
Leave Manual with Owner
UL 325 Compliant
Heavy-Duty Vehicular Swing Gate Operator
This vehicular gate operator is
designed for Class III and Class IV
applications ONLY and must
NEVER be used in applications
serving the general public.
Circuit Board
Serial Number
and Revision Letter:
®
Copyright 2018 DoorKing
, Inc. All rights reserved.
Model 6555
Model 6555
Model 6555
Bi-Parting Gate Operators CANNOT be used.
Copyright 2009 DoorKing, Inc. All rights reserved.
6555-065-A-12-18
