Actuator Arm and

Control Box Mounting

To wire this operator and complete the installation, refer to a specific control box "Wiring/Owner's manual".

Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists. The operator

will NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH entrapment area.

UL 325 August 2018 Standard

THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY.

Visit www.doorking.com/dealer-locator to find a professional installing and servicing dealer in your area.

Date Installed:

Installer/Company Name:

Phone Number:

Leave Manual with Owner

Conforms To UL STD 325

Certified To CSA STD C22.2 # 247

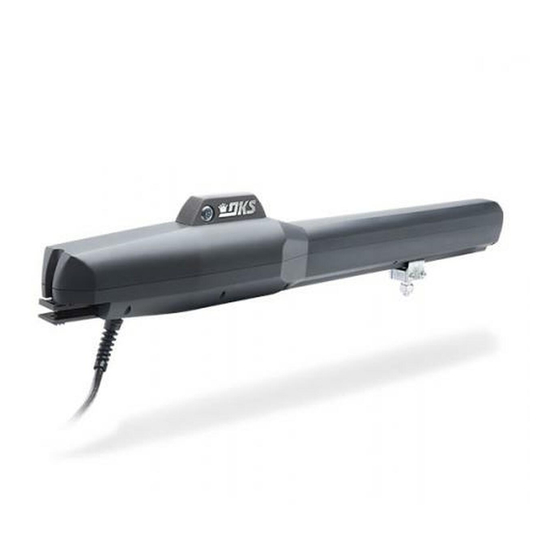

Vehicular Swing Gate Operator

Circuit Board

Serial Number

and Revision Letter:

6006

6006-065-B-3-20

Table of Contents

Need help?

Do you have a question about the 6006 and is the answer not in the manual?

Questions and answers

Summary of Contents for DoorKing 6006

Page 1 NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH entrapment area. UL 325 August 2018 Standard THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY. Visit www.doorking.com/dealer-locator to find a professional installing and servicing dealer in your area. Date Installed: Installer/Company Name:...
Page 3 DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights reserved.
Page 4: Swing Gate Requirements
REQUIRED for this area. Not Allowed 4 inches to 16 inches Gates shall have smooth bottom edges, with vertical bottom edged protrusions NOT exceeding 0.50 inches (1.2 cm). 6006-065-B-3-20...
Page 5 The operator will NOT run without one or more property. monitored type B1 or B2 entrapment protection devices in EACH ENTRAPMENT AREA. 6006-065-B-3-20...
Page 6: Astm F2200 Standard For Gate Construction
6. One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm). • Be sure you have instructed the owner of the gate operator about safe and proper operation and testing of the gate operator. 6006-065-B-3-20...
Page 7: Important Notices
Do not allow children to play in the area of the operator or to play with any gate-operating device. • To remove the gate operator from service, operate the gate to the full open position and then shut off power to the operator at the service panel. 6006-065-B-3-20...
Page 8: Ul 325 Entrapment Protection
Type C - Inherent force limiting, inherent adjustable clutch or inherent pressure relief device. Type D - Actuating device requiring constant pressure to maintain opening or closing motion of the gate. * B1 and B2 means of entrapment protection must be MONITORED. 6006-065-B-3-20...
Page 9 ENTRAPMENT - The condition when an object is caught or held in a position that increases the risk of injury. 6006-065-B-3-20...
Page 10: Manual Release
(See Swing Gate Requirements on page 2). Manual Release 9 0 ° Handle Handle Carriage Rotate handle 90° to release carriage. Unlock handle with key. Note: Handle can be rotated and locked on either side of operator for easy key access. 6006-065-B-3-20...
Page 11 Extreme force will be exerted on this bracket during gate Weld directly cycling. to support post OR to steel plate 90° Closed Gate 7 3/4” 8 1/2” (21.5 cm) (19.6 cm) Addition to rear bracket must be fabricated to reach post/wall. 6006-065-B-3-20...
Page 12: Mounting Operator
Welding Brackets to Surfaces If brackets are going to be welded to the gate and/or wall, only tack weld the brackets with the 6006 attached. Protect the 6006 from welding sparks during tack welding. Remove 6006 before COMPLETELY welding around the brackets. Make sure the brackets are level when tack welding them! The 6006 will not operate properly if not level.
Page 13 Position the desired control box on the wall, close enough to the 6006 so the primary actuator cable can be easily routed inside the box.
Page 14 Boxes Input Power Conduit Primary Conduit 6006 Cable Sweep Elbow 3/4” conduit From Secondary 6006 if Installed (See previous page) recommended. o l e Solar Cabinet t i n Mounting Holes b i n and Conduit Holes b i n...
Page 15: Install Warning Signs
Install Warning Signs This DoorKing Swing Gate Operator is shipped with two warning signs. The purpose of the warning sign is to alert uninformed persons, and to remind persons familiar with the gate system, that a possible hazard exists so that appropriate action can be taken to avoid the hazard or to reduce exposure to the hazard.
Page 16 PUSH to Open Closing-Direction Photo Sensor Entrapment protection is RECOMMENDED for this area. PULL to Open If the distance between an entrapment or obstruction exists less than 16” from the open gate, then entrapment protection is REQUIRED for this area. 6006-065-B-3-20...
Page 17 16” (40.6 cm) above the ground at any point in its arc of travel, entrapment protection is REQUIRED for this area. 4-Wire In-Line Edge 2-Wire End-of-Line Edge Reversing Edges are wired in series Greater than 4” (10.1 cm) but less than 16” (40.6 cm) 6006-065-B-3-20...
Page 18: Accessory Items
DoorKing offers a complete line of loop components to complete your gate operator system. See DoorKing’s web site - www.doorking.com See the free manual “Loop and Loop-Detectors Information” PDF located at Doorking’s web site - www.doorking.com Magnetic Lock Magnetic Gate Lock Kit provides an excellent means to secure swing gates and is a fail-safe device allowing emergency vehicle access upon power outage.
Page 19 6006 Primary/Secondary 4302 Circuit Board Connection Open Beam Close 1476-010 Secondary Connection ONLY Beam FIRE Brown 1 Blue 2 Orange 3 Red 4 Yellow 5 Green 6 Green/Yellow 7 Primary Connection ONLY Brown 1 Blue 2 Orange 3 Red 4...
Page 20 Quick Guide for 6006 Limit Sensors This guide is for installers familiar with DoorKing products ONLY. DO NOT use this as your only source to wire, adjust limit sensors and DIP-switches if you are unfamiliar with this operator. Please refer to the control box manual you are installing for complete wiring, adjustments and DIP-switch settings for this operator.
Page 21 6006-065-B-3-20...
Page 22 NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH entrapment area. UL 325 August 2018 Standard THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY. Visit www.doorking.com/dealer-locator to find a professional installing and servicing dealer in your area. www.doorking.com DoorKing, Inc.
