DoorKing 6400 Owner's Manual

DoorKing 6400 Owner's Manual

Vehicular swing gate operator
Hide thumbs Also See for 6400:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, Owner's Manual
Gate Operator and
Control Box Mounting
To wire this operator and complete the installation, refer to a specific control box "Wiring/Owner's manual".
UL 325 Compliant
Vehicular Swing Gate Operator
Copyright 2012 DoorKing, Inc. All rights reserved.
6400
6400
6400
6400-065-S-6-12
Copyright 2009 DoorKing, Inc. All rights reserved.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DoorKing 6400

Summary of Contents for DoorKing 6400

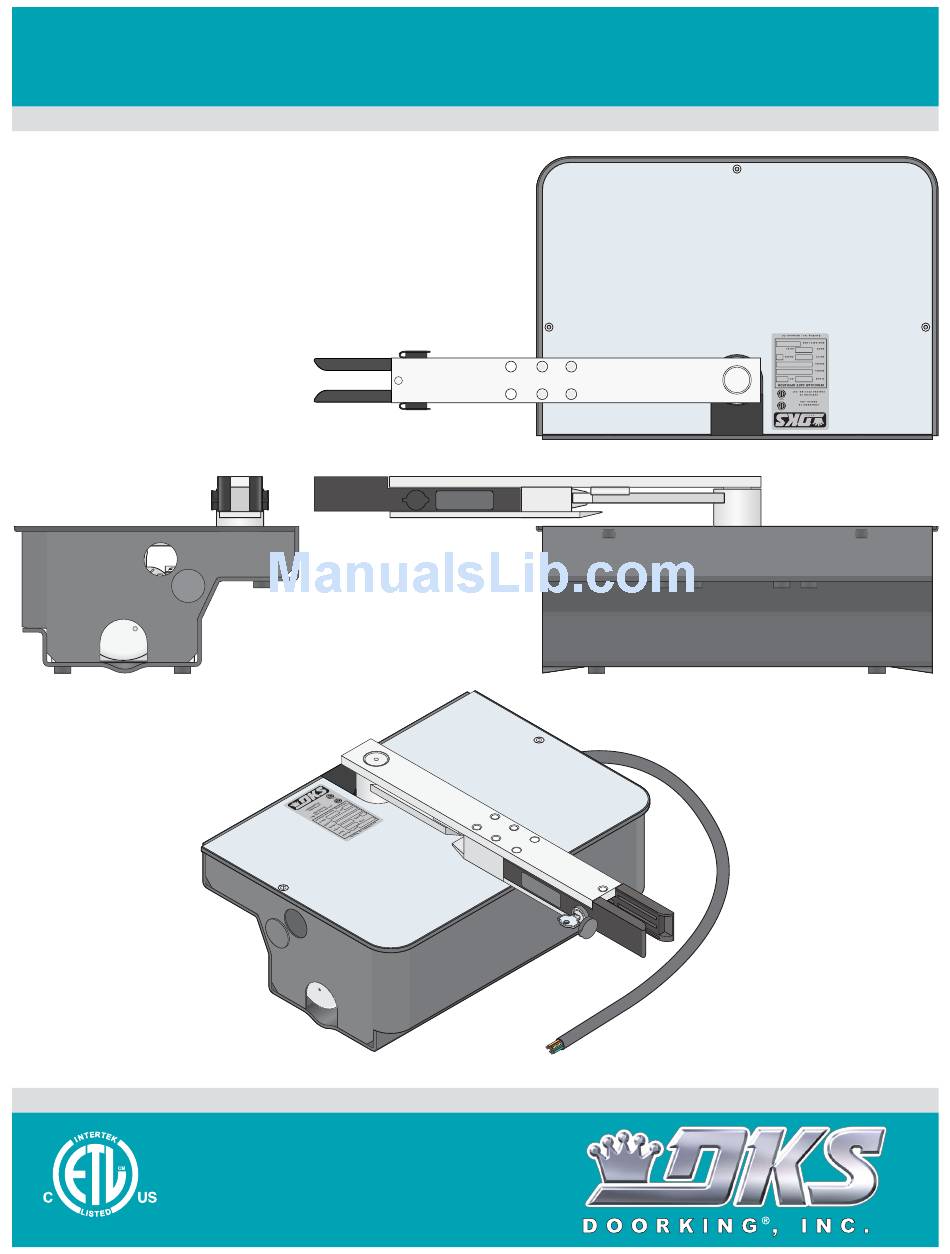

  • Page 1 Control Box Mounting Vehicular Swing Gate Operator To wire this operator and complete the installation, refer to a specific control box “Wiring/Owner’s manual”. 6400-065-S-6-12 Copyright 2012 DoorKing, Inc. All rights reserved. UL 325 Compliant Copyright 2009 DoorKing, Inc. All rights reserved.

  • Page 3: Specifications

    9 3/8” DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights reserved.

  • Page 4: Table Of Contents

    Swing Gate Protection INSTALLATION Manual Key Release Installation of 6400 10-11 Drive Motor Orientation and Components Installation Mounting Control Box with Conduit 13-14 Install Warning Signs In-Ground Loops Photo Sensor Positions Accessory Items 6400 Primary/Secondary 4302 Circuit Board Connection 6400-065-S-6-12...

  • Page 5: Astm F2200 Standard For Gate Construction

    2. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while the gate is still moving in the opening direction. 3. One or more non-contact sensors shall be located where the risk of entrapment or obstruction exist, such as the perimeter reachable by a moving gate or barrier. 6400-065-S-6-12...

  • Page 6: Important Notices

    Do not allow children to play in the area of the operator or to play with any gate-operating device. • To remove the gate operator from service, operate the gate to the full open position and then shut off power to the operator at the service panel. 6400-065-S-6-12...

  • Page 7: Ul 325 Entrapment Protection

    C - Inherent adjustable clutch or pressure relief device. D - Provision for connection of, or supplied with, an actuating device requiring continuous pressure to maintain opening or closing motion of the gate. E - An inherent audio alarm. 6400-065-S-6-12...

  • Page 8: Glossary

    ENTRAPMENT - The condition when an object is caught or held in a position that increases the risk of injury. 6400-065-S-6-12...

  • Page 9: Swing Gate Requirements

    NOT required for this area. If distance is less than 16 inches, entrapment protection in this area is required. ASTM F2200 7.1.1.2 Not Allowed Gates shall have smooth bottom edges, with vertical bottom edged protrusions not exceeding 0.50 inches. ASTM F2200 4.3 6400-065-S-6-12...

  • Page 10: Swing Gate Protection

    Located so pedestrians cannot come in contact with the vehicular gate. Automatic Exit Loop (Optional) will provide an open command to the gate operator(s) when a vehicle is exiting the property. See page 15 for typical loop layout locations. 6400-065-S-6-12...

  • Page 11: Installation

    Hinges for the Gate Good hinges are essential for proper operation of a swinging gate. DoorKing has a full line of gate hinge products that will ensure safe, reliable and long lasting gate operation. The gate must be properly installed and swing smoothly when opening and closing.

  • Page 12: Installation Of 6400

    Installation of 6400 The gate MUST be completely supported by the gate hinges and NOT allowed to rest on the 6400. The foundation box MUST have a drain pipe installed with the correct slope for proper drainage. Improper drainage of the foundation box will result in stagnant water that will lead to operator failure eventually.

  • Page 13: Installation Of 6400

    3 / 4 Hole ” e t a Apply Grease i n . Important: The weight of the gate MUST NOT rest on the 6400. DO NOT weld gate frame to U-Channel. U-Channel Weld Release U-channel Handle on both...

  • Page 14: Drive Motor Orientation And Components Installation

    Open Gate Gate Primary Operator Secondary Operator Open Clockwise Open Counter-Clockwise Drive motors face the same direction in a dual gate installation. Limit assemblies are positioned according to the opening direction of the gate (See limit plates shown above). 6400-065-S-6-12...

  • Page 15: Mounting Control Box With Conduit

    Dual Gate Operators Connection (115 VAC or Solar) Interconnection Cable 30 feet. P/N 2600-755 Junction Interconnection Cable 40 feet. P/N 2600-756 Interconnection Cable 50 feet. P/N 2600-757 Junction Secondary Operator Primary Operator DoorKing interconnection cable (Sold separately) inside underground conduit 6400-065-S-6-12...
  • Page 16 Conduit Holes b i n o l e Remove fragile t i n DoorKing offers a mounting components post kit (P/N 1000-045) from control when no vertical surface is ” C box to protect 3 / 4...

  • Page 17: Install Warning Signs

    Install Warning Signs This DoorKing Swing Gate Operator is shipped with two warning signs. The purpose of the warning sign is to alert uninformed persons, and to remind persons familiar with the gate system, that a possible hazard exists so that appropriate action can be taken to avoid the hazard or to reduce exposure to the hazard.

  • Page 18: Photo Sensor Positions

    Secondary Entrapment Protection Device: In addition to the inherent reversing sensor system, the Model 6400 has a 6-pin UL 325 terminal for the connection of photo sensors-Type B1 secondary entrapment protection device required by UL 325 standards (see 115 VAC or Solar control box wiring manual). Entrapment protection devices must be installed to reduce the risk of injury.

  • Page 19: Accessory Items

    DoorKing offers a complete line of loop components to complete your gate operator system. See DoorKing’s web site - www.doorking.com See the free manual “Loop and Loop-Detectors Information” PDF located at Doorking’s technical web site www.dkaccess.com Magnetic Lock - Magnetic Gate Lock Kit provides an excellent means to secure swing gates and is a fail-safe device allowing emergency vehicle access upon power outage.

  • Page 20: 6400 Primary/Secondary 4302 Circuit Board Connection

    6400 Primary/Secondary Secondary Operator 4302 Circuit Board Connection (Common) White (Limit) Yellow (Slow Down) Brown Yellow (Common) White Green (Motor) Brown Brown Limit Positions Blue (Motor) Blue will vary (Slow Down) Purple Green/Yellow (Common) White Orange (Common) White (Limit) Gray...
  • Page 21 6400-065-S-6-12...

  • Page 22: 6400-065

    Vehicular Swing Gate Operator To wire this operator and complete the installation, refer to the specific control box “Wiring/Owner’s manual”. 6400-065-S-6-12 www.doorking.com DoorKing, Inc. 120 Glasgow Avenue Inglewood, California 90301 U.S.A. Phone: 310-645-0023 Fax: 310-641-1586 Copyright 2009 DoorKing, Inc. All rights reserved.
