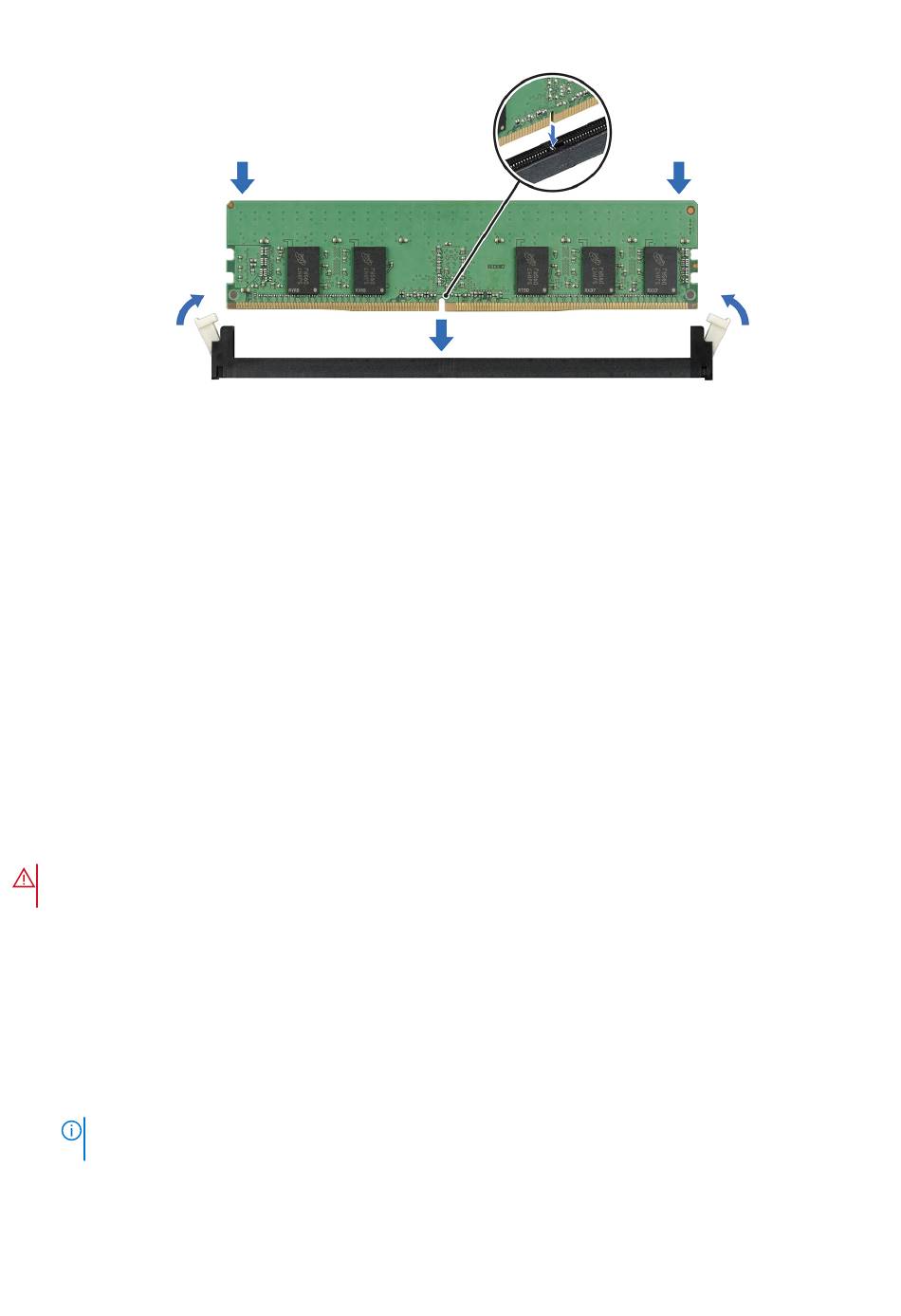

Figure 29. Installing a memory module
Next steps
1. Install the drive backplane
2. Install the air shroud
3. Follow the procedure listed in
4. To verify if the memory module has been installed properly, press F2 and navigate to System Setup Main Menu > System
BIOS > Memory Settings. In the Memory Settings screen, the System Memory Size must reflect the updated capacity of
the installed memory.
5. If the value is incorrect, one or more of the memory modules may not be installed properly. Ensure that the memory module
is firmly seated in the memory module socket.
6. Run the system memory test in system diagnostics.

Processors and heat sinks

Removing a processor and heat sink module

Prerequisites
WARNING: The heat sink may be hot to touch for some time after the system has been powered down. Allow the
heat sink to cool before removing it.
1. Follow the safety guidelines listed in
2. Follow the procedure listed in
3. Remove the air shroud.
Steps
1. Using a Torx #T30 screwdriver, loosen the screws on the heat sink in the order below:
a. Loosen the first screw three turns.
b. Loosen the second screw completely.
c. Return to the first screw and loosen it completely.
NOTE: It is normal for the heat sink to slip off the blue retention clips when the screws are partially loosened,
continue to loosen the screw(s).
2. Pushing both retention clips simultaneously, lift the Processor and heat sink module (PHM) out of the system.
3. Set the PHM aside with the processor side facing up.
38 Installing and removing system components
After working inside your
Safety instructions.
Before working inside your
system.
system.
