VIPA HMI
TP-ECO | 62H-MHC0 | Manual
HB160 | TP-ECO | 62H-MHC0 | en | 17-01

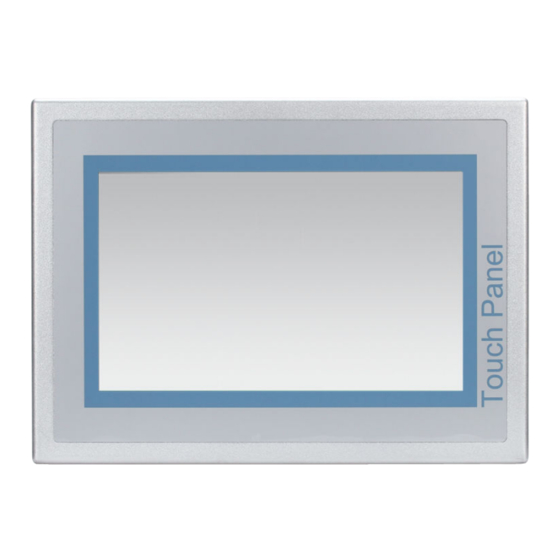

Touch Panel - TP607LC/+
www.vipa.com/en/service-support/manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIPA 62H-MHC0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YASKAWA VIPA 62H-MHC0

Summary of Contents for YASKAWA VIPA 62H-MHC0

  • Page 1 VIPA HMI TP-ECO | 62H-MHC0 | Manual HB160 | TP-ECO | 62H-MHC0 | en | 17-01 Touch Panel - TP607LC/+ www.vipa.com/en/service-support/manual...
  • Page 2 VIPA GmbH Ohmstr. 4 91074 Herzogenaurach Telephone: +49 9132 744-0 Fax: +49 9132 744-1864 Email: info@vipa.com Internet: www.vipa.com 62H-MHC0_000_TP607LC/+,1,GB - © 2017...

  • Page 3: Table Of Contents

    VIPA HMI Table of contents Table of contents General........................5 1.1 Copyright © VIPA GmbH ................. 5 1.2 About this manual..................... 6 1.3 Safety information..................... 7 Hardware description..................... 8 2.1 Safety information for users................8 2.2 Properties......................9 2.3 Structure......................10 2.3.1 Overview......................
  • Page 4 VIPA HMI Table of contents 4.8 Access to the network resources..............66 Installation Guidelines..................69 5.1 Basic rules for the EMC-equitable assembly of installations......69 5.2 EMC-equitable assembly................72 5.3 EMC-equitable cabling................... 73 5.4 Special precautions providing high noise immunity........76 5.5 Checklist for the EMC-compliant installation of controllers......

  • Page 5: General

    VIPA HMI General Copyright © VIPA GmbH General 1.1 Copyright © VIPA GmbH All Rights Reserved This document contains proprietary information of VIPA and is not to be disclosed or used except in accordance with applicable agreements. This material is protected by the copyright laws. It may not be reproduced, distributed, or altered in any fashion by any entity (either internal or external to VIPA), except in accord- ance with applicable agreements, contracts or licensing, without the express written con- sent of VIPA and the business management owner of the material.

  • Page 6: About This Manual

    VIPA HMI General About this manual VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany Telefax: +49 9132 744-1204 EMail: documentation@vipa.de Technical support Contact your local VIPA Customer Service Organization representative if you encounter problems with the product or have questions regarding the product. If you are unable to locate a customer service centre, contact VIPA as follows: VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany Tel.: +49 9132 744-1150 (Hotline)

  • Page 7: Safety Information

    VIPA HMI General Safety information CAUTION! Damages to property is likely if these warnings are not heeded. Supplementary information and useful tips. 1.3 Safety information Applications conforming The system is constructed and produced for: with specifications communication and process control general control and automation tasks industrial applications operation within the environmental conditions specified in the technical data...

  • Page 8: Hardware Description

    VIPA HMI Hardware description Safety information for users Hardware description 2.1 Safety information for users Handling of electrostatic VIPA modules make use of highly integrated components in MOS-Technology. These sensitive modules components are extremely sensitive to over-voltages that can occur during electrostatic discharges.

  • Page 9: Properties

    VIPA HMI Hardware description Properties 2.2 Properties General The VIPA Touch Panel allows you to visualize and alter operating states and recent process values of a connected PLC. The Touch Panel is a compact and modular Ò Ò embedded PC based on Windows CE.

  • Page 10: Structure

    VIPA HMI Hardware description Structure > Overview Order data Type Order number Description TP 607LC/+ 62H-MHC0-... 7'' TFT color, RS232, RS232/RS422/RS485, USB-A, Ethernet RJ45 MPI/PROFIBUS DP 961-0MP0 MPI/PROFIBUS DP interface (optional) interface 2.3 Structure 2.3.1 Overview Front view MPI/PROFIBUS DP interface COM 3 (optional) RS232 interface COM 1 RS232/RS422/RS485 interface COM 2 Display with touch sensitive area (touch screen)
  • Page 11 VIPA HMI Hardware description Structure > Overview Bottom view RS232/RS422/RS485 interface COM 2 Back view Slot for SD storage medium RJ45 jack for Ethernet communication Slot for DC 24V voltage supply "Host"-USB-A interface Please make sure that the Touch Panel always has to be supplied with external voltage! HB160 | TP-ECO | 62H-MHC0 | en | 17-01...

  • Page 12: Interfaces

    VIPA HMI Hardware description Structure > Interfaces 2.3.2 Interfaces HB160 | TP-ECO | 62H-MHC0 | en | 17-01...
  • Page 13 VIPA HMI Hardware description Structure > Interfaces RS232/RS422/RS485 inter- 25 pin SubD female face HB160 | TP-ECO | 62H-MHC0 | en | 17-01...
  • Page 14 VIPA HMI Hardware description Structure > Interfaces RS232 interface 9 pin SubD plug Interface is compatible to the COM interface of a PC Logical signals as voltage levels Point-to-point links with serial full-duplex transfer in two-wire technology up to 15m distance Data transfer rate up to 115.2kbit/s MPI/PROFIBUS DP inter-...

  • Page 15: Memory Management

    VIPA HMI Hardware description Structure > Memory management 2.3.3 Memory management Memory management The following memory systems are available for the Touch Panel: 256Mbyte work memory 128Mbyte Flash disk USB storage media using "Host"-USB-A interface Slot for SD Work memory Every Touch Panel has a work memory with a size of 256Mbyte.

  • Page 16: Dimensions

    VIPA HMI Hardware description Dimensions 2.4 Dimensions Installation dimensions For the installation of the Touch Panel in control cabinets and desks the following dimen- sions are necessary: 7" - 62H-MHC0-... Front panel width 2.5 ... 6mm Installation cutting (W x H) 198 x 142mm Front panel (W x H) 212 x 156mm...

  • Page 17: General Data

    VIPA HMI Hardware description General data 2.5 General data Conformity and approval Conformity 2014/35/EU Low-voltage directive 2014/30/EU EMC directive Approval Refer to Technical data others RoHS 2011/65/EU Restriction of the use of certain hazardous substances in electrical and electronic equipment Protection of persons and device protection Type of protection IP20...
  • Page 18 VIPA HMI Hardware description General data Standard Comment Emitted interference EN 61000-6-4 Class A (Industrial area) Noise immunity EN 61000-6-2 Industrial area zone B EN 61000-4-2 8kV at air discharge (degree of severity 3), 4kV at contact discharge (degree of severity 2) EN 61000-4-3 HF field immunity (casing) 80MHz …...

  • Page 19: Technical Data

    VIPA HMI Hardware description Technical data > 62H-MHC0-DH 2.6 Technical data 2.6.1 62H-MHC0-DH Order no. 62H-MHC0-DH Type Touch Panel TP 607LC+ Display Display size (diagonal) 7 " Display size (width) 152 mm Display size (height) 91 mm Resolution 480 x 800 / 800 x 480 Aspect ratio Type of display TFT color (64K colors)
  • Page 20 VIPA HMI Hardware description Technical data > 62H-MHC0-DH Order no. 62H-MHC0-DH Serial, COM1 RS232 COM1 connector Sub-D, 9-pin, male Serial, COM2 RS232 / RS422 / RS485 COM2 connector Sub-D, 25-pin, female Number of USB-A interfaces USB-A connector USB-A (host) Number of USB-B interfaces USB-B connector Number of ethernet interfaces Ethernet...
  • Page 21 VIPA HMI Hardware description Technical data > 62H-MHC0-DH Order no. 62H-MHC0-DH Height 142 mm Minimum 2.5 mm Maximum front panel thickness 6 mm Net weight 1200 g Environmental conditions Operating temperature 0 °C to 50 °C Storage temperature -20 °C to 60 °C Certifications UL certification KC certification...

  • Page 22: Mhc0-Cb

    VIPA HMI Hardware description Technical data > 62H-MHC0-CB 2.6.2 62H-MHC0-CB Order no. 62H-MHC0-CB Type Touch Panel TP 607LC+ Display Display size (diagonal) 7 " Display size (width) 152 mm Display size (height) 91 mm Resolution 480 x 800 / 800 x 480 Aspect ratio Type of display TFT color (64K colors)
  • Page 23 VIPA HMI Hardware description Technical data > 62H-MHC0-CB Order no. 62H-MHC0-CB COM1 connector Sub-D, 9-pin, male Serial, COM2 RS232 / RS422 / RS485 COM2 connector Sub-D, 25-pin, female Number of USB-A interfaces USB-A connector USB-A (host) Number of USB-B interfaces USB-B connector Number of ethernet interfaces Ethernet...
  • Page 24 VIPA HMI Hardware description Technical data > 62H-MHC0-CB Order no. 62H-MHC0-CB Minimum 2.5 mm Maximum front panel thickness 6 mm Net weight 1200 g Environmental conditions Operating temperature 0 °C to 50 °C Storage temperature -20 °C to 60 °C Certifications UL certification KC certification...

  • Page 25: Deployment Under Windows Ce 6.0 Core

    VIPA HMI Deployment under Windows CE 6.0 Core Installation Deployment under Windows CE 6.0 Core 3.1 Installation Overview The Touch Panel is suitable for the installation in operating tables and control cabinet fronts. The installation happens via the back. The Touch Panel is provided with a patented fixing technique that allows an easy connection with a hexagon socket key.

  • Page 26: Installation Of The Optional Mpi/Profibus Dp Interface

    VIPA HMI Deployment under Windows CE 6.0 Core Installation of the optional MPI/PROFIBUS DP interface 3.2 Installation of the optional MPI/PROFIBUS DP interface CAUTION! Personnel and instruments should be grounded when working on electro- static sensitive modules! Take the interface module only at the holding plate and avoid touching the board! Store respectively send the interface module always in the corresponding ESD packaging! Installation...
  • Page 27 VIPA HMI Deployment under Windows CE 6.0 Core Installation of the optional MPI/PROFIBUS DP interface For installation insert the interface module into the opening. Push the interface module in the device until the holding plate fits to the housing. Here the interface module is put into the right position by 2 inner guide rails.
  • Page 28 VIPA HMI Deployment under Windows CE 6.0 Core Installation of the optional MPI/PROFIBUS DP interface Now press the interface module downwards until the holding plate snaps into the lugs. Please make sure that the holding plate always snaps to the lugs, otherwise the holding plate can not be screwed! Mount the screws again.

  • Page 29: Commissioning

    VIPA HMI Deployment under Windows CE 6.0 Core Commissioning Demounting Remove the screws. Push the holding plate from the lugs. Use a screwdriver by inserting it gently between the housing and holding plate. Pull the interface module out of the device. Reinstall the cover plate.

  • Page 30: Vipa Startup-Manager

    VIPA HMI Deployment under Windows CE 6.0 Core Commissioning > VIPA Startup-Manager 3.3.1 VIPA Startup-Manager As soon as the Touch Panel is provided by power supply, the VIPA Startup-Manager will be loaded. Start screen At the first startup of the VIPA Startup-Manager the following start screen appears. There is a button on the initial screen with a counter, which counts backwards.
  • Page 31 VIPA HMI Deployment under Windows CE 6.0 Core Commissioning > VIPA Startup-Manager With [Search Image] a list of all the firmware images is shown, which are available on the panel and connected storage media. These images will be listed with create data and version number.
  • Page 32 VIPA HMI Deployment under Windows CE 6.0 Core Commissioning > VIPA Startup-Manager Via "Rotation" the orientation of the panel can be changed. Via "Program start" with [+] you can add programmes, which have to start automatically. Select "start" and assign a name for the program. Upload your program with [...].

  • Page 33: Installation Movicon And Startup-Manager

    VIPA HMI Deployment under Windows CE 6.0 Core Installation Movicon and Startup-Manager 3.4 Installation Movicon and Startup-Manager Overview After an image update it is necessary to re-install Movicon and Startup-Manager. The cur- rent data can be found in the service area of www.vipa.com. For the Panel 62H-MHC0-...
  • Page 34 VIPA HMI Deployment under Windows CE 6.0 Core Installation Movicon and Startup-Manager Click [Make]. ð All the necessary files are copied and the registry is accordingly adjusted. The progress is displayed in a new window. Please wait a moment. ð After successful execution the following completion screen appears. Confirm this window with [OK], remove the SD card and re-start the panel.

  • Page 35: Connection To A Plc System

    VIPA HMI Deployment under Windows CE 6.0 Core Connection to a PLC system 3.5 Connection to a PLC system Overview For the inclusion into your PLC system several HMI/SCADA project-engineering platforms are at your disposal that has to be installed at an external PC. Here you may create your project, where appropriate simulate it and transfer it to the Touch Panel via a connection that you’ve entered before.

  • Page 36: Operating System Windows Embedded Ce 6.0 Core

    VIPA HMI Deployment under Windows CE 6.0 Core Operating system WindowsÒ Embedded CE 6.0 Core > General 3.6 Operating system Windows Ò Embedded CE 6.0 Core 3.6.1 General Ò The newly developed standard Windows CE allows devices that are communicating with Ò...

  • Page 37: Structure

    VIPA HMI Deployment under Windows CE 6.0 Core Operating system WindowsÒ Embedded CE 6.0 Core > Structure 3.6.2 Structure Icon Via icons on the desktop you gain direct access to the application related to the icon. Ò Desktop The desktop is the screen that is shown after login at Windows CE.
  • Page 38 VIPA HMI Deployment under Windows CE 6.0 Core Operating system WindowsÒ Embedded CE 6.0 Core > Structure Software keyboard The button allows you to select one of the available software keyboards. At the moment the following standard keyboards are implemented: Keyboard At pushed Shift key: At pushed [a´ü] key:...
  • Page 39 VIPA HMI Deployment under Windows CE 6.0 Core Operating system WindowsÒ Embedded CE 6.0 Core > Structure Meaning Home Position 1 End End BS Backspace up ã dn ä lt á rt â pgup Page ã pgdn Page ä ins Insert del Delete Tab Tabulator Shift...
  • Page 40 VIPA HMI Deployment under Windows CE 6.0 Core Operating system WindowsÒ Embedded CE 6.0 Core > Structure Set Ethernet parameters The dialog field for pre-setting an Ethernet address is to be found at ‘Start è Settings è Network and Dial-up Connections’. The default setting is address assignment via DHCP.

  • Page 41: Integrated Server

    VIPA HMI Deployment under Windows CE 6.0 Core Integrated Server > ftp server 3.7 Integrated Server 3.7.1 General Login data The Touch Panel has several integrated server that enable a remote maintenance within a network. Some servers only allow access by means of entering User name and Pass- word.

  • Page 42: Vnc Server

    VIPA HMI Deployment under Windows CE 6.0 Core Integrated Server > VNC server For the adjustment choose in the Internet Explorer ‘Options è Internet options’, register "extended" in the area "Browsing” and set the following settings: activate: "activate directory view for ftp sites" Restart the Internet Explorer.
  • Page 43 VIPA HMI Deployment under Windows CE 6.0 Core Integrated Server > VNC server Establishing a VNC con- With "Autostart" you can select the automatic startup of the VNC server, via the Startup- nection Manager. The VNC connection establishment has the following approach: Click on and open the "Windows"...

  • Page 44: Access To The Network Resources

    VIPA HMI Deployment under Windows CE 6.0 Core Access to the network resources 3.8 Access to the network resources Overview The Touch Panel allows you to access shared resources in a Microsoft network like drives and printer. Here you may assign existing public directories or printer in the network to local directories or printer in the Touch Panel.
  • Page 45 VIPA HMI Deployment under Windows CE 6.0 Core Access to the network resources Enter user name, password and if necessary user group. After the successful login the following message appears Successfully mapped to network printer The printer may now be accessed as "network\printer". Test print For example you may print the content of the current directory using \>...

  • Page 46: Deployment Under Windows Ce 6.0 Prof

    VIPA HMI Deployment under Windows CE 6.0 Prof. Installation Deployment under Windows CE 6.0 Prof. 4.1 Installation Overview The Touch Panel is suitable for the installation in operating tables and control cabinet fronts. The installation happens via the back. The Touch Panel is provided with a patented fixing technique that allows an easy connection with a hexagon socket key.

  • Page 47: Installation Of The Optional Mpi/Profibus Dp Interface

    VIPA HMI Deployment under Windows CE 6.0 Prof. Installation of the optional MPI/PROFIBUS DP interface 4.2 Installation of the optional MPI/PROFIBUS DP interface CAUTION! Personnel and instruments should be grounded when working on electro- static sensitive modules! Take the interface module only at the holding plate and avoid touching the board! Store respectively send the interface module always in the corresponding ESD packaging! Installation...
  • Page 48 VIPA HMI Deployment under Windows CE 6.0 Prof. Installation of the optional MPI/PROFIBUS DP interface For installation insert the interface module into the opening. Push the interface module in the device until the holding plate fits to the housing. Here the interface module is put into the right position by 2 inner guide rails.
  • Page 49 VIPA HMI Deployment under Windows CE 6.0 Prof. Installation of the optional MPI/PROFIBUS DP interface Now press the interface module downwards until the holding plate snaps into the lugs. Please make sure that the holding plate always snaps to the lugs, otherwise the holding plate can not be screwed! Mount the screws again.

  • Page 50: Commissioning

    VIPA HMI Deployment under Windows CE 6.0 Prof. Commissioning > VIPA Startup-Manager Demounting Remove the screws. Push the holding plate from the lugs. Use a screwdriver by inserting it gently between the housing and holding plate. Pull the interface module out of the device. Reinstall the cover plate.
  • Page 51 VIPA HMI Deployment under Windows CE 6.0 Prof. Commissioning > VIPA Startup-Manager A delay time of 5 seconds is default. In the selection menu under "Autostart" you can adjust this time. Selection menu There are following buttons in the selection menu: Settings Info/Update Autostart...
  • Page 52 VIPA HMI Deployment under Windows CE 6.0 Prof. Commissioning > VIPA Startup-Manager With [...] at "Runtime path" res. "Project path" all existing runtimes res. projects on the panel and the storage media will be listed. Under "Delay Time" you can adjust a delay time > 0 by using the buttons [+] and [-]. 5 seconds are default.

  • Page 53: Installation Movicon And Startup-Manager

    VIPA HMI Deployment under Windows CE 6.0 Prof. Installation Movicon and Startup-Manager You can optionally set parameters. Exit with [Finish]. Ò With "Copy" [...] you can copy Windows CE files on the panel from a source path to a destination path. With "Autostart"...
  • Page 54 VIPA HMI Deployment under Windows CE 6.0 Prof. Installation Movicon and Startup-Manager Switch-on the panel, install the SD card and select via ‘Start è Settings’ Control Panel. Start in the Control Panel the program "AutoRunMaker" via double-click on the fol- lowing symbol ð...
  • Page 55 VIPA HMI Deployment under Windows CE 6.0 Prof. Installation Movicon and Startup-Manager Please wait a moment. ð After successful execution the following completion screen appears. Confirm this window with [OK], remove the SD card and re-start the panel. ð The panel should start with the Startup-Manager after the restart. HB160 | TP-ECO | 62H-MHC0 | en | 17-01...

  • Page 56: Connection To A Plc System

    VIPA HMI Deployment under Windows CE 6.0 Prof. Connection to a PLC system 4.5 Connection to a PLC system Overview For the inclusion into your PLC system several HMI/SCADA project-engineering platforms are at your disposal that has to be installed at an external PC. Here you may create your project, where appropriate simulate it and transfer it to the Touch Panel via a connection that you’ve entered before.

  • Page 57: Operating System Windows Embedded Ce 6.0 Prof

    VIPA HMI Deployment under Windows CE 6.0 Prof. Operating system WindowsÒ Embedded CE 6.0 Prof. > General 4.6 Operating system Windows Ò Embedded CE 6.0 Prof. 4.6.1 General Ò The newly developed standard Windows CE allows devices that are communicating with Ò...

  • Page 58: Structure

    VIPA HMI Deployment under Windows CE 6.0 Prof. Operating system WindowsÒ Embedded CE 6.0 Prof. > Structure 4.6.2 Structure Icon Via icons on the desktop you gain direct access to the application related to the icon. Ò Desktop The desktop is the screen that is shown after login at Windows CE.
  • Page 59 VIPA HMI Deployment under Windows CE 6.0 Prof. Operating system WindowsÒ Embedded CE 6.0 Prof. > Structure Show desktop All windows are minimized and the desktop is shown. Software keyboard This button displays a keyboard at the screen. "Hide Input Panel" hides the key- board again.
  • Page 60 VIPA HMI Deployment under Windows CE 6.0 Prof. Operating system WindowsÒ Embedded CE 6.0 Prof. > Structure Large KB At pushed Shift key: Meaning Home Position 1 End End BS Backspace up ã dn ä lt á rt â pgup Page ã pgdn Page ä...
  • Page 61 VIPA HMI Deployment under Windows CE 6.0 Prof. Operating system WindowsÒ Embedded CE 6.0 Prof. > Structure Ò System setting (Control As many components of the Control Panel conform with the system control of Windows Panel) most of the description is not necessary. The description of the control panel components relevant for operating the Touch Panel can be found in the following: Set display Via ‘Start è...

  • Page 62: Integrated Server

    VIPA HMI Deployment under Windows CE 6.0 Prof. Integrated Server > General The use of the optional MPI/PROFIBUS interface is required. 4.7 Integrated Server 4.7.1 General Login data The Touch Panel has several integrated server that enable a remote maintenance within a network.

  • Page 63: Ftp Server

    VIPA HMI Deployment under Windows CE 6.0 Prof. Integrated Server > ftp server 4.7.2 ftp server By means of a ftp server data between client and server can be exchanged. Here you can copy, delete or create files and directories. Conditions for ftp access Depending on the ftp client your PC must have the following conditions for a ftp connec- tion.

  • Page 64: Http Server

    VIPA HMI Deployment under Windows CE 6.0 Prof. Integrated Server > Telnet server 4.7.3 http server The Touch Panel has an integrated http server (web server) that allows depending on the access the administration of the Touch Panel res. of websites in the Touch Panel. The administrative access to the http server happens via Ethernet from the PC by setting the IP address of the Touch Panel with attached "Admin"...

  • Page 65: Vnc Server

    VIPA HMI Deployment under Windows CE 6.0 Prof. Integrated Server > VNC server By entering Exit res. closing the window you may terminate the Telnet connection at any time. Commands After establishment of a Telnet connection the Panel PC provides you with commands. A list of possible commands with a short description is available via the command help.

  • Page 66: Access To The Network Resources

    VIPA HMI Deployment under Windows CE 6.0 Prof. Access to the network resources The VNC connection establishment has the following approach: Click on and open the "Windows" directory. Start the VNC server by executing the file winvnc.exe. To show the server has been started, the symbol Efon vnc appears in the task bar.
  • Page 67 VIPA HMI Deployment under Windows CE 6.0 Prof. Access to the network resources Condition for this is that you are logged in to the network with your user name and pass- word. The assignment of a network resource is performed in the Touch Panel via the command console "Command Prompt".
  • Page 68 VIPA HMI Deployment under Windows CE 6.0 Prof. Access to the network resources Test print For example you may print the content of the current directory using \> dir > network \printer. List network connections The listing command for all network connections of your Touch Panel is \> net use Terminate network con- You may terminate already assigned network resources via nections...

  • Page 69: Installation Guidelines

    VIPA HMI Installation Guidelines Basic rules for the EMC-equitable assembly of installations Installation Guidelines 5.1 Basic rules for the EMC-equitable assembly of installations General The installation guidelines contain information about the interference free deployment of a PLC system. There is the description of the ways, interference may occur in your PLC, how you can make sure the electromagnetic compatibility (EMC), and how you manage the isolation.
  • Page 70 VIPA HMI Installation Guidelines Basic rules for the EMC-equitable assembly of installations Coupling mechanism Cause Typical source Galvanic coupling Galvanic or metallic coupling always Pulsed devices (Net influence from occurs, when two current circuits have transducers and foreign net a common line. devices) Starting motors Different potential of component...
  • Page 71 VIPA HMI Installation Guidelines Basic rules for the EMC-equitable assembly of installations Basic rules for EMC In the most times it is enough to take care of some elementary rules to guarantee the EMC. Please regard the following basic rules when installing your PLC. Take care of a correct area-wide grounding of the inactive metal parts when installing your components.

  • Page 72: Emc-Equitable Assembly

    VIPA HMI Installation Guidelines EMC-equitable assembly 5.2 EMC-equitable assembly Mostly, measures for suppressing interference voltages are only taken, when the control is already in commission and the perfect receive of a wanted signal is disturbed. Causes for such interference's are in the most cases inadequate reference potentials, coming from mistakes at the device assembly and installation.

  • Page 73: Emc-Equitable Cabling

    VIPA HMI Installation Guidelines EMC-equitable cabling 5.3 EMC-equitable cabling Line routing Content of this section is the line routing of bus, signal and supply lines. Object of the line routing is to suppress the "slurring" at parallel lines. Line routing inside and For an EMC-equitable routing of the lines it is convenient to divide the cables in different outside of cubicles groups and install each group itself:...
  • Page 74 VIPA HMI Installation Guidelines EMC-equitable cabling Lightning protection CAUTION! Where cables and signal lines for PLC equipment are installed outside of buildings, the conditions for internal and external lightning protection must be satisfied. – Exterior lines should either be installed in metallic conduit pipes that is grounded on both ends or in steel-reinforced concrete cable trunks with continuously connected reinforcing.
  • Page 75 VIPA HMI Installation Guidelines EMC-equitable cabling Avoid cables with foil-type screens as the foil can be easily damaged by tension and pressure at the point of attachment; this can result in reduced effectiveness of the screening action. As a rule you should always ground the screens of cables on both ends. This is the only way in which you can ensure that high frequency interference is attenuated prop- erly.

  • Page 76: Special Precautions Providing High Noise Immunity

    VIPA HMI Installation Guidelines Special precautions providing high noise immunity 5.4 Special precautions providing high noise immunity Inductors require snubber Inductors controlled by your programmable controller (e.g. contactors and relays) do not networks normally require additional snubber networks or suppressors as the respective modules have been provided with the required components.

  • Page 77: Checklist For The Emc-Compliant Installation Of Controllers

    VIPA HMI Installation Guidelines Checklist for the EMC-compliant installation of controllers 5.5 Checklist for the EMC-compliant installation of controllers EMV-measures Space for Notes Connection of the inactive parts You should take special care to check the connections of: Module racks Frames Screen and protected earth conductor Are all the inactive metal parts interconnected by means of large-surface and low-...
