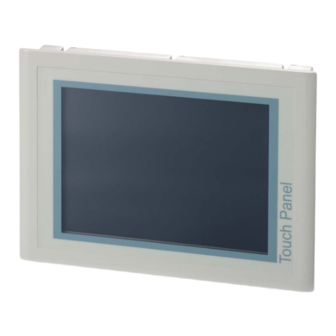

- Page 1 VIPA HMI TP | 62I-JID0 | Manual HB160 | TP | 62I-JID0 | GB | 15-36 Touch Panel - TP 608C...
- Page 2 VIPA GmbH Ohmstr. 4 91074 Herzogenaurach Telephone: +49 9132 744-0 Fax: +49 9132 744-1864 Email: info@vipa.com Internet: www.vipa.com 62I-JID0_000_TP608C,1,GB - © 2015...
-
Page 3: Table Of Contents
4.1 Basic rules for the EMC-equitable assembly of installa- tions.................. 45 4.2 EMC-equitable assembly..........47 4.3 EMC-equitable cabling............. 48 4.4 Special precautions providing high noise immunity..51 4.5 Checklist for the EMC-compliant installation of control- lers................... 53 HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 4: General
Conformity is indicated by the CE marking affixed to the product. Conformity Information For more information regarding CE marking and Declaration of Con- formity (DoC), please contact your local VIPA customer service organization. HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 5: About This Manual
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany Tel.: +49 9132 744-1150 (Hotline) EMail: support@vipa.de 1.2 About this manual Objective and contents This manual describes the Touch Panel 62I-JID0-... from VIPA. It contains a description of the structure, project engineering and deployment. Product Order number... -
Page 6: Safety Information
This device is not certified for applications in – in explosive environments (EX-zone) Documentation The manual must be available to all personnel in the project design department installation department commissioning operation HB160 | TP | 62I-JID0 | GB | 15-36... - Page 7 – The national rules and regulations of the respective country must be satisfied (installation, safety, EMC ...) Disposal National rules and regulations apply to the disposal of the unit! HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 8: Hardware Description
Instruments must be grounded. Modifying electrostatic sensitive modules you should only use sol- dering irons with grounded tips. CAUTION! Personnel and instruments should be grounded when working on electrostatic sensitive modules. HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 9: Properties
Easy mounting via integrated pivoted lever Protection class IP65 (frontal) Order data Type Order number Description TP 608C 62I-JID0-... 8.4" SVGA, TFT color, MPI/PROFIBUS DP/RS485, RS232, RS422/485, 2xUSB-A, USB-B, 2xEthernet RJ45 (Switch) HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 10: Structure
4 2x "Host"-USB-A interface 5 "Slave"-USB-B interface 6 RJ45 jack for Ethernet communication 7 RJ45 jack for Ethernet communication 8 Slot for DC 24V voltage supply 9 Slot for CF/SD/MMC storage medium HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 11: Interfaces
Serial bus connection in 4-wire technology using full duplex mode Data communications up to a max. distance of 500m Data communication rate up to 115.2kBaud Serial bus connection in 2-wire technology using half duplex mode HB160 | TP | 62I-JID0 | GB | 15-36... - Page 12 The USB-A interface of your PC can be connected to the "Slave"- USB-B interface of your Touch Panel deploying the USB program- ming cable. The USB programming cable is delivered by VIPA with order No. 670-0KB10. HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 13: Memory Management
The card may be plugged and removed during runtime and is immedi- ately listed as SDMMC Card at My Device. Please take care to plug the according card as shown on the back of the Touch Panel. HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 14: Dimensions
Installation cutting (W x H) 250 x 175mm Front panel (W x H) 264 x 189mm Rear panel (W x H x D) 248 x 173 x 43mm Installation depth 43mm HB160 | TP | 62I-JID0 | GB | 15-36... - Page 15 – The deviation from the plane for the panel cut-out is 0.5mm. This condition must be fulfilled for the mounted HMI device. – Permissible surface roughness in the area of the seal: £ 120µm (friction coefficient 120) HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 16: General Data
Air humidity EN 60068-2-30 RH1 (without condensation, rel. humidity 10… 95%) Pollution EN 61131-2 Degree of pollution 2 Mechanical Oscillation EN 60068-2-6 1g, 9Hz ... 150Hz Shock EN 60068-2-27 15g, 11ms HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 17: Technical Data
Display size (height) 127.8 mm Resolution 600 x 800 / 800 x 600 Aspect ratio Type of display TFT color (16.7M colors) MTBF Backlights (25°C) 50000 h System properties Processor Xscale 1.1 GHz HB160 | TP | 62I-JID0 | GB | 15-36... - Page 18 Number of USB-A interfaces USB-A connector USB-A (host) Number of USB-B interfaces USB-B connector USB-B (device) Number of ethernet interfaces Ethernet Ethernet 10/100 MBit Ethernet connector RJ45 Integrated ethernet switch ü Video connectors HB160 | TP | 62I-JID0 | GB | 15-36...
- Page 19 1.5 mm Maximum front panel thickness 6 mm Weight 2325 g Environmental conditions Operating temperature 0 °C to 50 °C Storage temperature -20 °C to 60 °C Certifications UL certification in preparation HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 20: Jid0-Cx
10 s Operating controls Touchscreen resistive Touch function Single Touch Keyboard external via USB Mouse external via USB Interfaces MPI, PROFIBUS-DP RS485 isolated MPI, PROFIBUS-DP connector Sub-D, 9-pin, female Serial, COM1 RS232 HB160 | TP | 62I-JID0 | GB | 15-36... - Page 21 IP 20 Dimensions Front panel 264 mm x 189 mm x 7.5 mm Rear panel 248 mm x 173 mm x 43 mm Installation cut-out Width 250 mm Height 175 mm HB160 | TP | 62I-JID0 | GB | 15-36...
- Page 22 1.5 mm Maximum front panel thickness 6 mm Weight 2325 g Environmental conditions Operating temperature 0 °C to 50 °C Storage temperature -20 °C to 60 °C Certifications UL certification in preparation HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 23: Deployment Touch Panel
Now bolt the lever [5] clockwise with the screwdriver [4] until it rotates to the outside. Further screwing bolts the lever to the front panel until it holds this to the control cabinet front. HB160 | TP | 62I-JID0 | GB | 15-36... - Page 24 Insert the insulation-stripped wire into the round opening. You can use wires with a cross-section from 0.08mm to 2.5mm By removing the screwdriver the wire is connected safely with the plug connector via a spring. HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 25: Commissioning
A delay time of 5 seconds is default. In the selection menu under "Autostart" you can adjust this time. Selection menu There are following buttons in the selection menu: Settings Info/Update Autostart HB160 | TP | 62I-JID0 | GB | 15-36... - Page 26 To remain the settings permanently, they have to be saved with KuK Tools [Store]. Autostart With [Autostart] you define which runtime and which project will be started automatically together with the panel startup. HB160 | TP | 62I-JID0 | GB | 15-36...
- Page 27 Via "Rotation" the orientation of the panel can be changed. Via "Program start" with [+] you can add programmes, which have to start automatically. Select "start" and assign a name for the program. HB160 | TP | 62I-JID0 | GB | 15-36...
- Page 28 The VIPA Startup-Manager will be closed by [Exit] and the system Ò returns to the Windows screen. Back With [Back] you get back to the start screen of the VIPA Startup-Man- ager. HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 29: Connection To A Plc System
CE is a 32bit, open and scalable platform for a multiplicity of communication and data processing devices. The func- tions like multi-tasking and multi-threading are supported by this oper- ating system. HB160 | TP | 62I-JID0 | GB | 15-36... - Page 30 Please consider that changes which are made are set back after PowerOFF-PowerON and are only stored via [Store] which can be found under ‘Start è Programs è KuK_Tools è KuK Tools’. HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 31: Structure
Ethernet, the symbol is displayed crossed out. Keyboard layout If you’ve connected a keyboard you can choose the requested language layout via this button. Time This area shows the time that you can change via double click. HB160 | TP | 62I-JID0 | GB | 15-36... - Page 32 At the moment the following standard keyboards are imple- mented: Keyboard At pushed Shift key: At pushed [a´ü] key: Please note that äöü can exclusively be entered via the software keyboard "Keyboard". HB160 | TP | 62I-JID0 | GB | 15-36...
- Page 33 The software keyboard allows you to enter key entries without con- necting an external keyboard. As soon as an entry is required the software keyboard is automatically shown. Hide Input Panel hides the keyboard again. HB160 | TP | 62I-JID0 | GB | 15-36...
- Page 34 Here you set the highest MPI address (highest station address). Within a MPI network the highest MPI address must be identical! With TS (this station) you set the local MPI address for the Touch Panel. HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 35: Communication Via Activesync
Installation Download the ActiveSync from the Microsoft website and start the file MSASYNC.EXE. Start the installation with [Next]. Choose an installation directory and click on [Next]. ð ActiveSync is installed. HB160 | TP | 62I-JID0 | GB | 15-36... - Page 36 PC and turn on the Touch Panel. ð The USB device (Touch Panel) is recognized and the dialog window "new partnership" opens. Choose "yes" for fixing a partnership and push [Next]. HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 37: Integrated Server
Password: vipatp Overview Per default the following server are integrated: ftp server (activated) http server (activated) Telnet (activated) VNC (not activated) Phrases Phrases that are used in the description of the server: HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 38: Ftp Server
PC with Windows Explorer as ftp client and your Touch Panel. Connect your Touch Panel with the network where your PC is a member via an Ethernet cable. Switch on your Touch Panel. HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 39: Http Server
The login as web admin requires the following steps: Start the web browser at your PC and enter the following into the address bar: IP address/webadmin Enter the following into the authentification: User name: wince Password: vipatp HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 40: Telnet Server
After establishment of a Telnet connection the Panel PC provides you with commands. A list of possible commands with a short description is available via the command help. By beginning with "help" before a command you receive help to this command. HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 41: Vnc Server
You may also start the VNC server at the Touch Panel via a Telnet connection by entering the command winvnc in the command console with an active Telnet connection. Now start the VNC client vncviewer.exe on your PC. HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 42: Access To The Network Resources
The access to the network resource is performed with the commands Net view and Net use. List released resources Shared resources of a network PC can be listed by the command: \> net view PC-Name HB160 | TP | 62I-JID0 | GB | 15-36... - Page 43 Successfully mapped to network printer The printer can now be accessed as "network\printer". Test print For example you can print the content of the current directory using \> dir > network\printer. HB160 | TP | 62I-JID0 | GB | 15-36...
- Page 44 "archive" of "test server". To save the settings also after power on, you have to store them to the registry with ‘START è Programs è KuK_Tools è KuK Tools’ [Store]. HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 45: Installation Guidelines
Depending on the spreading medium (lead bound or lead free) and the distance to the interference cause, interferences to your control occur by means of different coupling mechanisms. There are: galvanic coupling capacitive coupling inductive coupling radiant coupling HB160 | TP | 62I-JID0 | GB | 15-36... - Page 46 (e.g. walkie-talkie) wave meets a line circuit. The Sparking lines (sparking hit of the wave inducts currents plugs, collector of electric and voltages. motors, welding devices) HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 47: Emc-Equitable Assembly
A correctly done grounding sup- inactive metal parts ports an unambiguous reference potential for the control and reduces the impact of coupled interferences. HB160 | TP | 62I-JID0 | GB | 15-36... -
Page 48: Emc-Equitable Cabling
>400V Group D Lines for H1 respectively TCP/IP Combination of groups Following the table you may see the conditions for the cabling of the line groups by combining the single groups: HB160 | TP | 62I-JID0 | GB | 15-36... - Page 49 – Install these protective elements at the location where the cables enter the building. Any lightning protection system must be based on an indi- vidual assessment of the entire plant. For questions please contact VIPA GmbH. HB160 | TP | 62I-JID0 | GB | 15-36...
- Page 50 The one-sided grounding of screens may provide advantages when: It is not possible to install an equipotential bonding conductor Analogue signals (a few mV or mA) must be transmitted Foil-type screening (static screening) is employed. HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 51: Special Precautions Providing High Noise Immunity
(e.g. relay contacts). In this case the integrated suppressors on the module are also disabled. You can connect diodes to suppress back-emc, varis- tors or RC-networks to the inductors. HB160 | TP | 62I-JID0 | GB | 15-36... - Page 52 Suppression of fluores- cent lamps in cubicles 1 Fluorescent lamp 2 Screen above the lamp 3 Screened cable 4 Switch with metallic cover 5 Line filter or screened power cable HB160 | TP | 62I-JID0 | GB | 15-36...
-
Page 53: Checklist For The Emc-Compliant Installation Of Controllers
Have the screens been connected by means of large-surface and low- impedance cable clamps? Cable screens grounded both-sided where possible? Inductors Have the coils of contactors controlled by means of contacts been connected to snubber networks? HB160 | TP | 62I-JID0 | GB | 15-36...
