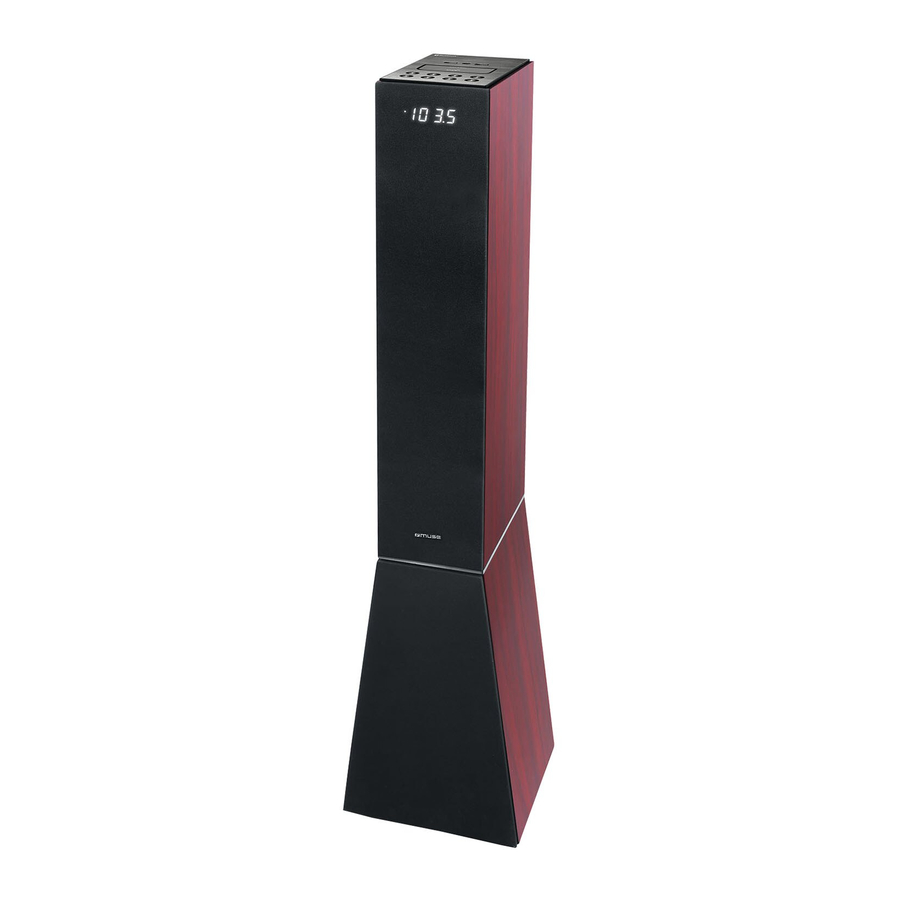

Muse M-1300 BT, M-1300 DWT - Bluetooth Speaker With FM Radio Manual

LOCATION OF CONTROLS

1. LED display
2. USB playback indicator
3. Remote sensor
4. Bluetooth indicator
5. Tweeters
6. Main speakers
7. Subwoofer
8. USB port for charging
9. AUX IN jack (3.5mm)
10. USB port for MP3 playback
11. NFC Tag
12. P+: Preset up
13. Setting clock / Memorization
14. , : Skip/search /Tuning

15. / SOURCE : To turn unit on/off;
    To select FM, BLUETOOTH,USB,
    AUX-1or AUX-2 mode.
16. PLAY/PAUSE
17. : To adjust volume
18. FM wire antenna
19. AUDIO IN L/R RCA jacks
20. AC Power Cord
21. Cradle for tablet or Smartphone

CRADLE FOR TABLET OR SMARTPHONE

1. Push to lift up the cradle cover.

2. Place your tablet or smartphone on the cradle.


REMOTE CONTROL

R1. STANDBY : To turn unit on/off
R2. SOURCE : To select FM, BLUETOOTH, USB, AUX-1or AUX-2 mode.
R3. : To mute or restore sound
R4. VOL+/- : To adjust volume
R5. ATS : Auto scan and preset radio stations
R6. M : Set clock/ Memory
R7. / : Preset up/ down
R8. , : Skip/search /Tuning
R9. Play/ Pause
R10. B+/- : To adjust Bass
R11. LD : Loudness On/Off
R12. T+/- : To adjust Treble

The remote control operates on 1pc "CR2025" lithium battery (included).
To power up the remote control, remove the insulation tab from the back of unit.

REPLACING BATTERY FOR THE REMOTE CONTROL

1. Push the button toward right.

2. Pull the battery loader out.
3. Insert one "CR2025" size battery with the positive side (+) facing up.
4. Replace the cover.

Do not ingest the battery, Chemical Burn Hazard
(The remote control supplied with) This product contains a coin/ button cell battery. If the coin/ button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

NOTES:

• Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.
• If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

POWER SUPPLY

This set operates on AC 100-240V 50/60Hz.
Connect the power cord to a convenient AC wall outlet.

NOTE:
In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 2 hours, the unit will automatically switch to Standby mode.

TURNING UNIT ON/OFF

1. Press STANDBY button to turn on the unit.
2. Long press STANDBY button on unit or short press STANDBY button on remote control to turn off the unit.

SELECTING FUNCTION

When the unit is ON, press SOURCE button repeatedly to select the desired function in cycle: FM, Bluetooth, USB, AUX-1 or AUX-2.

SETTING TIME

1. In standby mode, press once to enter time setting mode and the hour digits flash.
2. Press / on unit or / on remote control to set the hour value. Press to confirm and minute digits flash.
3. Press / on unit or / on remote control to set the minute value and press again to confirm.

RADIO

Listening to the radio

When the unit is ON, press SOURCE button repeatedly to select FM mode. The display will show " " for a few seconds and change to clock time.

Manual search

1. Choose your radio station with or .
2. Adjust the volume by or to the desired level.

Automatic search

Press and hold or for few seconds. The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing or .

Note: For a better reception in FM, extend the antenna.

Preset stations

The unit can store 20 FM stations.

Manual storage

1. Select a radio station manually or in automatic search.
2. Press . "P 01" appears on the screen.
3. Press P+ on unit or / on remote control to select a preset channel.
4. Press to save it.
5. Repeat steps 1-4 to store other stations.

Automatic storage

Press ATS on remote control and the unit will automatically save the first 20 FM stations. When you store on a channel already been preset, the previous station will automatically be cleared and replaced by the new station.

Listen to the station presets

1. Press P+ on unit or / on remote control to select your preset station.
2. Adjust the volume by or to the desired level.

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

1. When the unit is ON, Press SOURCE button repeatedly to select Bluetooth mode. The display will show " " for a few seconds and change to clock time. The Bluetooth indicator will start to blink rapidly. After 10 seconds it will beep once to indicate it is in pairing mode.
2. On the Bluetooth device, enable Bluetooth and select "M-1300BT" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a passcode, use "0000". Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, the speaker will beep twice. If it failed, the Bluetooth indicator will blink slowly.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, you need to disconnect current device first and follow the steps above to make a new connection.

If the pairing fails, perform the following:
Press and hold the button until the Bluetooth indicator blinks quickly to enter the Pairing mode. On the Bluetooth device, enable Bluetooth and select "M-1300BT" from the Device List (see step 2 above).

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-1300BT's speakers.
2. Press the button to pause playback. Press again to resume playback.
3. Select desired track with / .
4. Adjust the volume using the Volume buttons. You can also adjust the volume on the device to which you are paired.

Note: The Bluetooth indicator will blink slowly during playback.

Using a NFC Device

NFC (Near Field Communication) is a technology that enables short-range wireless communication between NFC-enabled devices, such as mobile phones.

1. When the unit is ON, press SOURCE button repeatedly to select Bluetooth mode. The display will show " " for a few seconds and change to clock time. The Bluetooth indicator will start to blink rapidly. After 10 seconds it will beep once to indicate it is in pairing mode.
2. Enable NFC and Bluetooth on your Bluetooth device (see the user manual of your device for details), tap the NFC device on the NFC tag of this unit until you hear a beep sound from this unit. The NFC device is connected to this unit via Bluetooth.
3. Select and play audio files or music on your NFC device.
4. To break the connection, tap the NFC device with the NFC tag on this unit again.

Note:
The operational range between the main unit and a NFC device is approximately 10 meters.

Hereby, NEW ONE S.A.S, declares that this MUSE M-1300 BT / M-1300 DWT is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.muse-europe.com/conformity/M-1300BT.pdf

USB PLAYBACK

1. Connect an USB device to the USB MP3 port on unit.
2. Press SOURCE button repeatedly to select USB mode. The display will show " " for a few seconds and change to clock time. Playback will start automatically. The USB indicator keeps blinking during playback.
3. Select desired track with .

Notes:

• Do not put anything other than a USB device to the port of this unit. Other objects may damage the USB mechanism.
• The USB socket must not be connected to the computer directly, for that may damage the unit.
• There are many USB devices in the market. We cannot guarantee to support all different models. Please try another USB device if your device is not supported.

CONNECTING AUXILIARY SOURCE

To AUDIO IN RCA jacks

1. Connect your auxiliary source (e.g. DVD player) to the AUDIO IN L/R jacks on back of unit with RCA audio cable (cable not included).
2. Press SOURCE repeatedly to select AUX 1 mode. The display will show " " for a few seconds and change to clock time.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUDIO IN L/R jacks.

To 3.5mm AUX IN jack

1. Connect your auxiliary source (e.g. mp3 player) to the AUX IN jack on the top of unit (cable not included).
2. Press SOURCE repeatedly to select AUX 2 mode. The display will show " " for a few seconds and change to clock time.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX IN jack.

USB CHARGING

This unit is equipped with a built-in USB charging port (Output: 5V 1A. ) for recharging your mobile device (e.g. Smartphone, tablet, etc. )
Simply plug the USB charging cable (not included) into the USB charging port and connect it to your mobile device.

TECHNICAL SPECIFICATION

GENERAL
POWER SUPPLY: AC 100-240V 50/60Hz, 65W consumption

RADIO
FM 87.5-108MHz

BLUETOOTH
Bluetooth: 2.402-2.48GHz
RF Output Power: 0.48 dBm
Bluetooth Version: V3.0 with EDR
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

Specifications are subject to change without notice.

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

• Power is not on; press the STANDBY button to turn the power on.
• Make sure unit is connected to AC power.

No Sound – General

• External device's volume is set to minimum; raise volume.
• The M-1300BT's volume is set to minimum; raise volume.

The Bluetooth device cannot pair or connect with the unit.

• You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
• The unit is not in pairing mode. Press and hold the button until the Bluetooth indicator blinks fast.
• The unit is already connected with another Bluetooth device; disconnect that device and then try again.

MORE INFORMATION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

To reduce the risk of electric shock, do not open the device, there is no party inside for the user. Refer all servicing to qualified personnel.

The lightning with the arrow symbol in the triangle is a warning sign alerting the user to "dangerous voltage" inside the unit.

The exclamation point in the triangle is a warning sign alerting the user of important instructions accompanying the product.
The Caution mark is located at the back of the device.

• The use of apparatus in moderate climates.
• The Marking plate is located at the back of the device.
• Make sure to have a minimum distance of 5 cm around the unit for sufficient ventilation.
• Ensure that the ventilation openings is not covered with items such as newspapers, tablecloths, curtains, etc.
• Do not place naked flame sources, such as lighted candles on the apparatus.
• Do not expose this appliance to dripping or splashing water.
• Do not place objects filled with liquids, such as glass, vase on the device.
• Do not throw batteries into fire! Respect the environment when disposing of used batteries.
• Batteries should not be exposed to excessive heat such as sunshine, fire or other similar heat source.
• The power plug is used as a disconnect device and must be easily accessible. To be completely disconnected from the power, the plug of the appliance should be disconnected completely. The socket must not be obstructed and should be easily accessible during intended use.
• Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device.

If in the future, you need to get rid of this product, please note that Waste electrical products should not be disposed of with household waste. Recycling facilities exist. Check with your municipality or ask your dealer for advice. (Directive for Waste Electrical and Electronic Equipment)

NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
