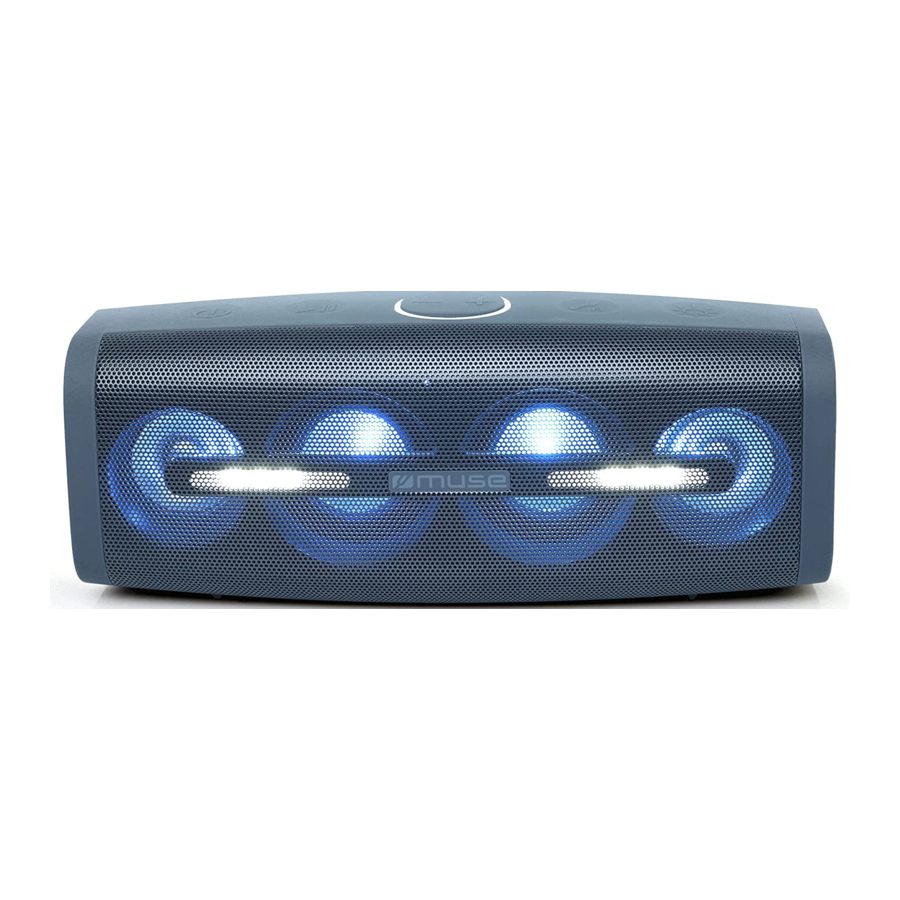

Muse M-830 DJ- Portable Bluetooth Speaker Manual

LOCATION OF CONTROLS

1. Power ON/OFF
2. Play/Pause Button
3. : Long press to decrease the volume; short press to skip to previous track
4. : Long press to increase the volume; short press to skip to next track
5. Receive call/ Transfer call/ Redial call/ End call
6. Lighting control Button
7. Microphone
8. Function LED indicator (blue for Bluetooth mode, green for AUX IN mode, red for charging)
9. Speakers
10. USB jack for charging your mobile device
11. AUX IN jack
12. Micro USB jack for charging the unit (DC IN 5V 1A)
13. NFC tag

POWER SUPPLY

The unit is powered by a built-in, lithium-ion rechargeable battery. Charge the built-in battery for at least four hours before using the device for the first time.

To charge the internal battery, connect the smaller end of the supplied USB cable to the Micro USB jack and the other end to a powered USB jack on your computer or an AC power supply (not included).

The function LED indicator will change to red color during charging and lights off when the battery becomes fully charged.

In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 30 minutes, the unit will turn off automatically.

• While using the built-in battery, the environmental temperature should be 5°C (41°F) to 35°C (95°F).
• The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.
• To get the longest service life of the built-in battery, charge at indoor-temperature.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• When the battery is low, you will hear the voice "Low Battery" every 40 seconds. The unit will switch to standby mode automatically when the battery is too low to work.

Notes:

• The unit is supplied from limited power sources.
• The unit is designed with a thermal protection system. When the unit's operation temperature exceeds 45°C, it will stop charging the built-in battery automatically for protection. In this case, await the unit to cool down to resume normal.

OPERATION

Turning unit ON/OFF

Press to turn ON the unit. You will hear the voice "Bluetooth".

Press again to turn OFF the unit. You will hear the voice "Power OFF".

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

Press to turn ON the unit. The function LED indicator will blink blue rapidly indicating it's in pairing mode. On the Bluetooth device, enable Bluetooth and select "MUSE M-830 DJ" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a passcode, use "0000". Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, you will hear the voice "Connected". The function LED indicator will blink blue slowly.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, press button twice to disconnect the device, and then follow the steps above to make a new connection.

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be reestablished when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-830 DJ's speakers.
2. Press the button to pause playback. Press again to resume playback.
3. Long press / buttons to adjust the volume level. You can also adjust the volume on the device to which you are paired.
4. Short press / buttons to select your desired audio file.

Using a NFC Device

NFC (Near Field Communication) is a technology that enables short-range wireless communication between NFC-enabled devices, such as mobile phones.

1. Press to turn ON the unit. The function LED indicator will blink blue indicating it's in pairing mode.
2. Enable NFC and Bluetooth on your Bluetooth device (see the user manual of your device for details), tap the NFC device on the NFC tag of this unit. If the units are paired properly, you will hear the voice "Connected". The NFC device is connected to this unit via Bluetooth.
3. Select and play audio files or music on your NFC device.
4. To break the connection, tap the NFC device with the NFC tag on this unit again.

Note: The operational range between the main unit and a NFC device is approximately 10 meters.

Receiving/ Dialing a Phone Call

This unit is equipped with a built-in microphone (located at the front cabinet behind the speaker gill), which allows you to make or end calls of a connected mobile phone through this unit. Make sure your Bluetooth-enabled mobile phone is paired with the unit. When there is an incoming call to the connected mobile phone, you will hear an incoming call alert tone from the unit.

1. Press the button to answer the incoming call.
2. Press and hold the button to end call.
3. To reject the incoming call, press and hold the button.
4. To transfer the sound between the mobile phone and the unit, press the button during a call.
5. To redial the last number retained in the memory of the mobile phone, press the button.

Notes:

• Re-dialing function is unavailable if there is no dial record feature in your mobile phone.
• This unit will not operate or may operate improperly with some Bluetooth mobile phones/audio players.
• If the conversation is not clear, try to move closer to the microphone (located at the front cabinet behind the speaker gill).

STEREO PAIRING

This function makes it possible for you to get stereo surround sound quality. It requires two Bluetooth speakers M-830 DJ to realize the real Bluetooth radio channel wireless separation, therefore, you've got to purchase two M-830 DJ.

Tips: it is suggested that the distance between the main speaker and secondary speaker is within 4 meters.

1. Turn on the two Bluetooth speakers M-830 DJ.
2. When both speakers are in pairing mode, press and hold button on one Bluetooth speaker which will become the main speaker (left channel) until you hear the indication voice "Searching", then it will search and connect to the secondary speaker (right channel). They will recognize the left and right channel automatically. You will hear the indication voice "Stereo Pairing" when the two speakers are connected successfully.
3. Connect your main speaker to Bluetooth enabled device (e.g. smart phone).
4. Play your song and listen to the sound in stereo.
5. Press button on either speaker to pause playback. Press again to resume playback.
6. Press button twice on the main speaker to disconnect the stereo pairing.

Using the flash/color light

1. In standby mode, press button to turn on the color light, and multiple color change to achieve a color cycle effect. Press the button again to settle down the light, repeatedly operate to select desired color. Press and hold the to turn off the light.
   Note: The flash light will not work in standby mode.
2. When the unit is on, repeatedly press button to select the lighting mode:
   • Both color light and flash light will be on, and change along with music.
   • Only color light will be on and change along with music.
   • Only flash light will be on and change along with music.
   • Light off.

CONNECTING AUXILIARY SOURCE

1. Press to turn ON the unit.
2. Connect your auxiliary source (e. g. mp3 player) to the AUX IN jack on unit (cable not included). The unit will switch to AUX mode automatically. The function LED indicator will change to green, indicating it's in AUX mode.
3. Start playback of the external unit and the external audio unit's output sound will be heard through the M-830 DJ's speakers.
4. Adjust the volume to desired level.
5. To stop playback, disconnect the audio cable from the AUX IN jack. The unit will switch to Bluetooth mode automatically.

USB CHARGING

This unit is equipped with a built-in USB charging port (Output: 5V 1A) for recharging your mobile device (e.g. Smartphone, tablet, etc.)

Simply plug the USB charging cable (not included) into the USB charging port and connect it to your mobile device.

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

• Power is not on; press to turn ON the unit.
• Make sure the battery is recharged.

No Sound – General

• External device's volume is set to minimum; raise volume.
• The M-830DJ's volume is set to minimum; raise volume.
• The audio cable is plugged in. Unplug cable if not using AUX IN function.

The Bluetooth device cannot pair or connect with the unit

• You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
• The unit is already connected with another Bluetooth device; disconnect that device and then try again.

SPECIFICATIONS

RECHARGEABLE BATTERY
Battery Type: 7.4V 1800mAh Lithium-ion Battery
Charging voltage: DC 5V 1000mA
Operating Time: Approx. 8 hours at 50% volume after fully charged
Charging Time: Approx. 6 hours

BLUETOOTH
Bluetooth Version: 4.2
Bluetooth: 2.402-2.48GHz
RF Output Power: -4.037 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

Specifications are subject to change without notice.

Hereby, NEW ONE S.A.S, declares that this MUSE M-830 DJ is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com
